GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv

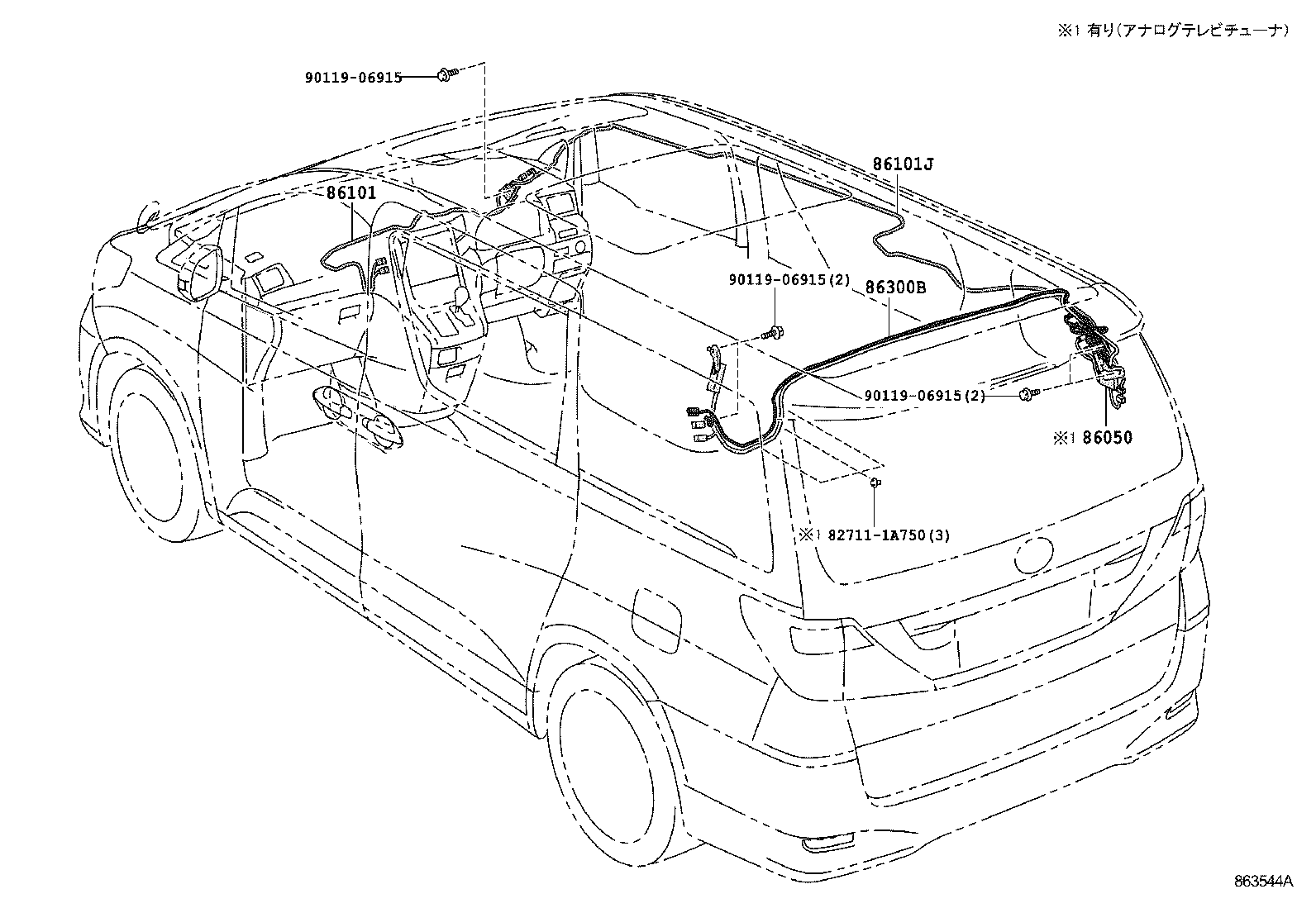

ILLUST NO. 1 OF 2(0804-1104)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86050 - ANTENNA ASSY, TELEVISION | ||||
| 86050-58060 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ｱﾅﾛｸﾞﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86050-58060 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ｱﾅﾛｸﾞﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-58090 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ｱﾅﾛｸﾞﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58090 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ｱﾅﾛｸﾞﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58070 |
ANH2#,GGH2#..CBU |
1 | ||
| 86101-58180 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58180 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58181 |
ANH2#,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58181 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101J - CORD SUB-ASSY, ANTENNA, NO.2 | ||||
| 86101-58100 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ｱﾅﾛｸﾞﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58100 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ｱﾅﾛｸﾞﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58080 |
ANH2#,GGH2#..CBU |
1 | ||
| 86101-58110 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58110 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86300B - ANTENNA ASSY, AMPLIFIER, NO.1 | ||||
| 86300-58040 |
ANH2#,GGH2#..CBU |
1 | ||
| 86300-58050 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ｱﾅﾛｸﾞﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86300-58050 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ｱﾅﾛｸﾞﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86300-58050 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86300-58050 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| Common parts | ||||
| 82711-1A750 | ||||
| 90119-06915 | ||||

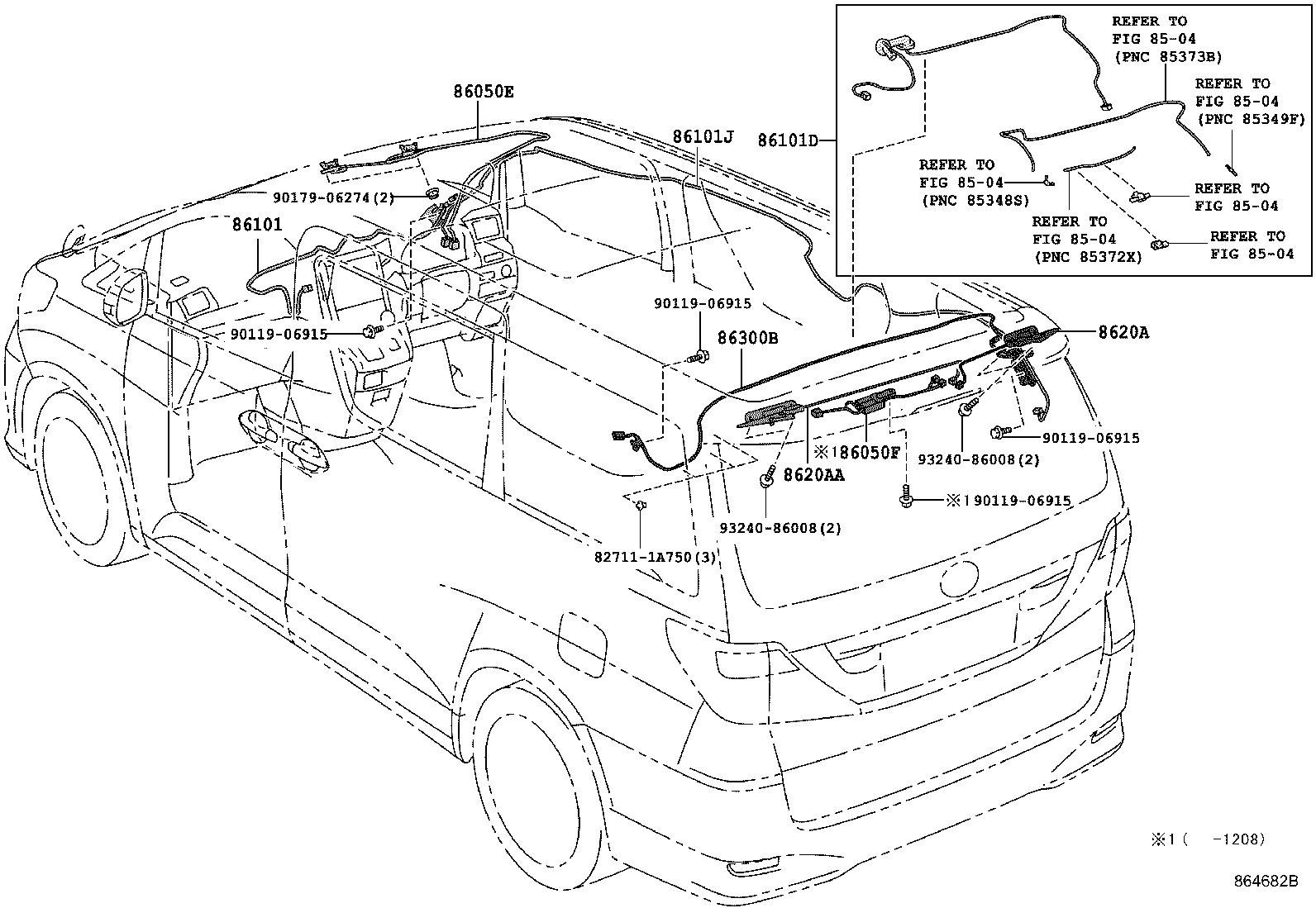

ILLUST NO. 2 OF 2(0804-1104)
ｱﾘ(ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86050E - ANTENNA ASSY, TELEVISION | ||||
| 86050-58040 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86050-58040 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86050F - ANTENNA ASSY, TELEVISION | ||||
| 86050-58080 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86050-58080 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86090A - TUNER ASSY, DIGITAL TELEVISION | ||||
| 86091-30010 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86091-30010 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86091-30020 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86091-30020 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86092 - BRACKET, DIGITAL TELEVISION, FRONT | ||||
| 86092-58010 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-58090 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ｱﾅﾛｸﾞﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58090 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ｱﾅﾛｸﾞﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58070 |
ANH2#,GGH2#..CBU |
1 | ||
| 86101-58180 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58180 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58181 |
ANH2#,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58181 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101D - CORD SUB-ASSY, ANTENNA, NO.3 | ||||
| 86101-58160 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58160 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101J - CORD SUB-ASSY, ANTENNA, NO.2 | ||||
| 86101-58100 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ｱﾅﾛｸﾞﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58100 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ｱﾅﾛｸﾞﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58080 |
ANH2#,GGH2#..CBU |
1 | ||
| 86101-58110 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58110 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 8620A - ANTENNA SUB-ASSY, DIGITAL TELEVISION, NO.1 | ||||
| 8620A-58030 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 8620A-58030 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 8620AA - ANTENNA SUB-ASSY, DIGITAL TELEVISION, NO.2 | ||||
| 8620A-58040 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 8620A-58040 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86300B - ANTENNA ASSY, AMPLIFIER, NO.1 | ||||
| 86300-58040 |
ANH2#,GGH2#..CBU |
1 | ||
| 86300-58050 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ｱﾅﾛｸﾞﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86300-58050 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ｱﾅﾛｸﾞﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86300-58050 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86300-58050 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| Common parts | ||||
| 82711-1A750 | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||
| 93240-86008 | ||||
| 93383-15010 | ||||
| Linked diagrams | ||||
| 8504 | ||||
| 8601 | ||||

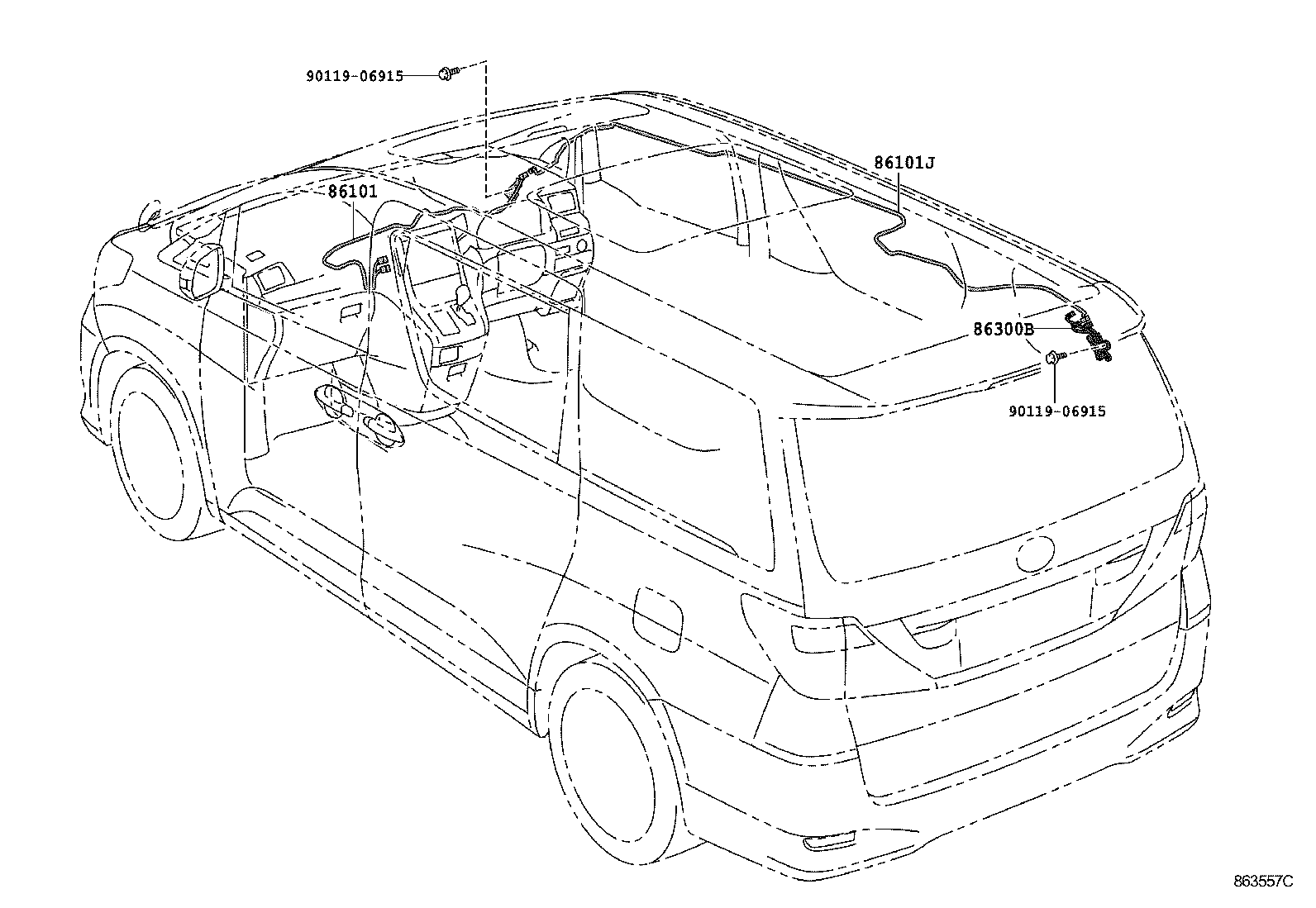

ILLUST NO. 1 OF 2(1104- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-58090 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ｱﾅﾛｸﾞﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58090 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ｱﾅﾛｸﾞﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58070 |
ANH2#,GGH2#..CBU |
1 | ||
| 86101-58180 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58180 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58181 |
ANH2#,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58181 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101J - CORD SUB-ASSY, ANTENNA, NO.2 | ||||
| 86101-58100 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ｱﾅﾛｸﾞﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58100 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ｱﾅﾛｸﾞﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58080 |
ANH2#,GGH2#..CBU |
1 | ||
| 86101-58110 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58110 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86300B - ANTENNA ASSY, AMPLIFIER, NO.1 | ||||
| 86300-58040 |
ANH2#,GGH2#..CBU |
1 | ||
| 86300-58050 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ｱﾅﾛｸﾞﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86300-58050 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ｱﾅﾛｸﾞﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86300-58050 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86300-58050 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
ILLUST NO. 2 OF 2(1104- )
ｱﾘ(ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86050E - ANTENNA ASSY, TELEVISION | ||||
| 86050-58040 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86050-58040 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86050F - ANTENNA ASSY, TELEVISION | ||||
| 86050-58080 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86050-58080 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-58090 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ｱﾅﾛｸﾞﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58090 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ｱﾅﾛｸﾞﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58070 |
ANH2#,GGH2#..CBU |
1 | ||
| 86101-58180 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58180 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58181 |
ANH2#,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58181 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101D - CORD SUB-ASSY, ANTENNA, NO.3 | ||||
| 86101-58160 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58160 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101J - CORD SUB-ASSY, ANTENNA, NO.2 | ||||
| 86101-58100 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ｱﾅﾛｸﾞﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58100 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ｱﾅﾛｸﾞﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58080 |
ANH2#,GGH2#..CBU |
1 | ||
| 86101-58110 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86101-58110 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 8620A - ANTENNA SUB-ASSY, DIGITAL TELEVISION, NO.1 | ||||
| 8620A-58030 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 8620A-58030 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 8620AA - ANTENNA SUB-ASSY, DIGITAL TELEVISION, NO.2 | ||||
| 8620A-58040 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 8620A-58040 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86300B - ANTENNA ASSY, AMPLIFIER, NO.1 | ||||
| 86300-58040 |
ANH2#,GGH2#..CBU |
1 | ||
| 86300-58050 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ｱﾅﾛｸﾞﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86300-58050 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ｱﾅﾛｸﾞﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86300-58050 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 86300-58050 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| Common parts | ||||
| 82711-1A750 | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||
| 93240-86008 | ||||
| Linked diagrams | ||||
| 8504 | ||||
