GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv
(0804- )

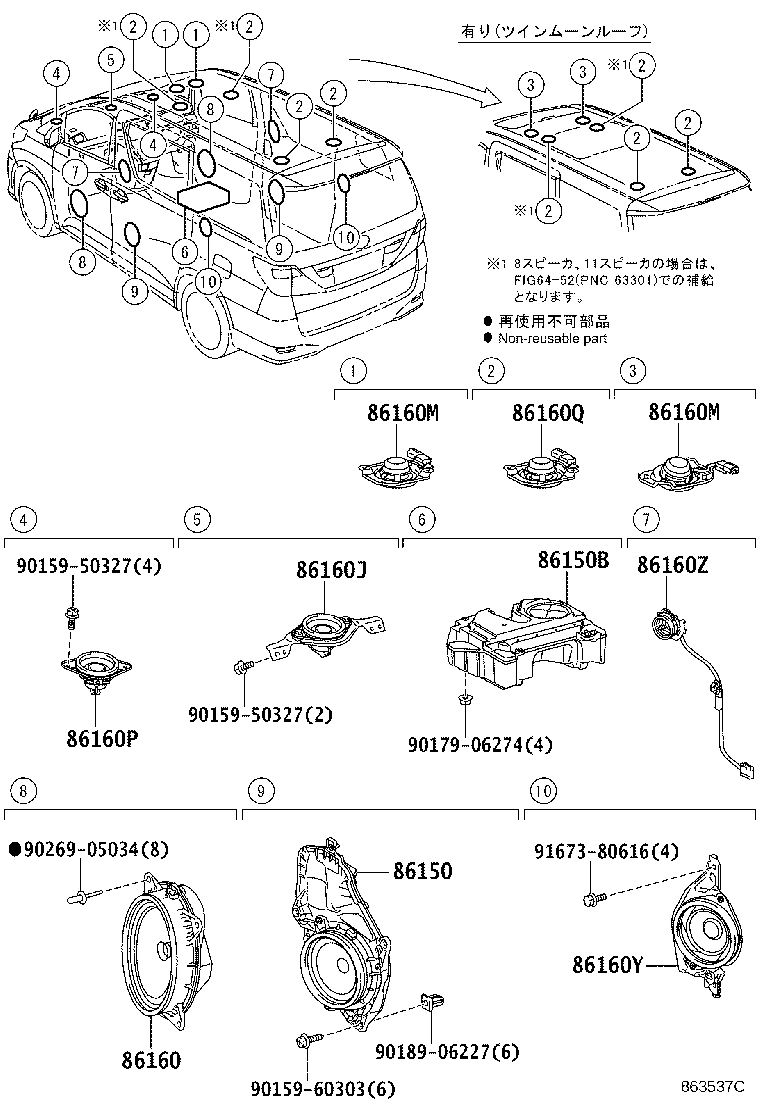

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86150 - SPEAKER ASSY, W/BOX, NO.1 | ||||
| 86150-58050 |
ANH2#,GGH2#..CBU 左側 |
1 | ||
| 86150-58060 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,右側 |
1 | ||
| 86150-58060 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,右側 |
1 | ||
| 86150-58040 |
ANH2#,GGH2#..CBU 右側 |
1 | ||
| 86150-58070 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,左側 |
1 | ||
| 86150-58070 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,左側 |
1 | ||
| 86150B - SPEAKER ASSY, W/BOX, NO.2 | ||||
| 86150-58030 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-58130 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
2 | ||
| 86160-58130 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
2 | ||
| 86160-58240 |
ANH2#,GGH2#..CBU |
2 | ||
| 86160J - SPEAKER ASSY, FRONT NO.3 | ||||
| 86160-58230 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86160-58231 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86160-58231 |
ANH2#,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86160-58230 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86160M - SPEAKER ASSY, ROOF | ||||
| 86160-58120 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
2 | ||
| 86160M - SPEAKER ASSY, ROOF | ||||
| 86160-58120 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
2 | ||
| 86160P - SPEAKER ASSY, FRONT NO.2 | ||||
| 86160-58211 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
2 | ||
| 86160-58210 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
2 | ||
| 86160-58260 |
ANH2#,GGH2#..CBU |
2 | ||
| 86160-58211 |
ANH2#,GGH2#..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
2 | ||
| 86160-58210 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
2 | ||
| 86160Q - SPEAKER ASSY, ROOF | ||||
| 86160-58120 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
4 | ||
| 86160Y - SPEAKER ASSY, REAR NO.2 | ||||
| 86160-58190 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,左側 |
1 | ||
| 86160-58190 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,左側 |
1 | ||
| 86160-58180 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,右側 |
1 | ||
| 86160-58180 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,右側 |
1 | ||
| 86160Z - SPEAKER ASSY, REAR NO.3 | ||||
| 86160-58200 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
2 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90159-60303 | ||||
| 90179-06274 | ||||
| 90189-06227 | ||||
| 90269-05034 | ||||
| 91673-80616 | ||||
