GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv

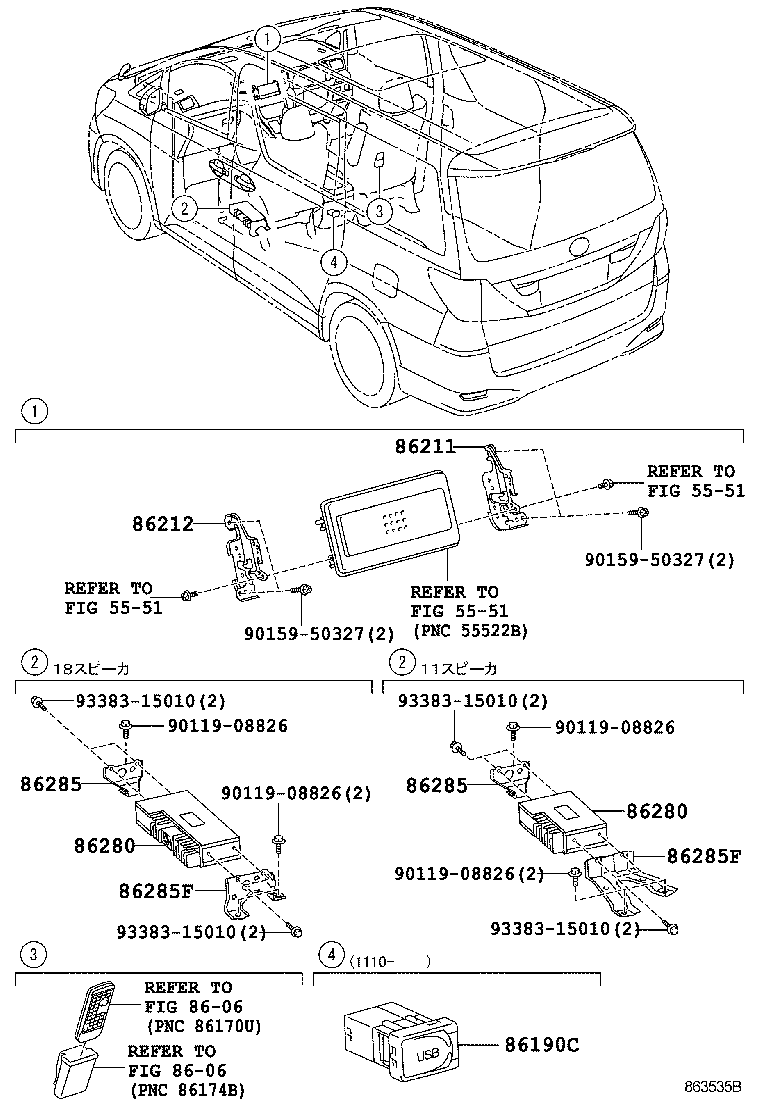

ILLUST NO. 1 OF 2(0804- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-58070 |
ANH2#,GGH2#..CBU |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-58070 |
ANH2#,GGH2#..CBU |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-58040 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86280-58050 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-58040 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86280-58050 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-58110 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86285-58110 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-58110 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86285-58110 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86285F - BRACKET, AMPLIFIER, NO.2 | ||||
| 86285-58120 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86285-58130 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86285F - BRACKET, AMPLIFIER, NO.2 | ||||
| 86285-58120 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86285-58130 |
ANH20,GGH2#..CBU;ANH25..08S..(240X,24X);ANH25..240G,240S,24V,24Z ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| Common parts | ||||
| 90119-08826 | ||||
| 90159-50327 | ||||
| 93383-15010 | ||||
| Linked diagrams | ||||
| 5551 | ||||
| 8606 | ||||

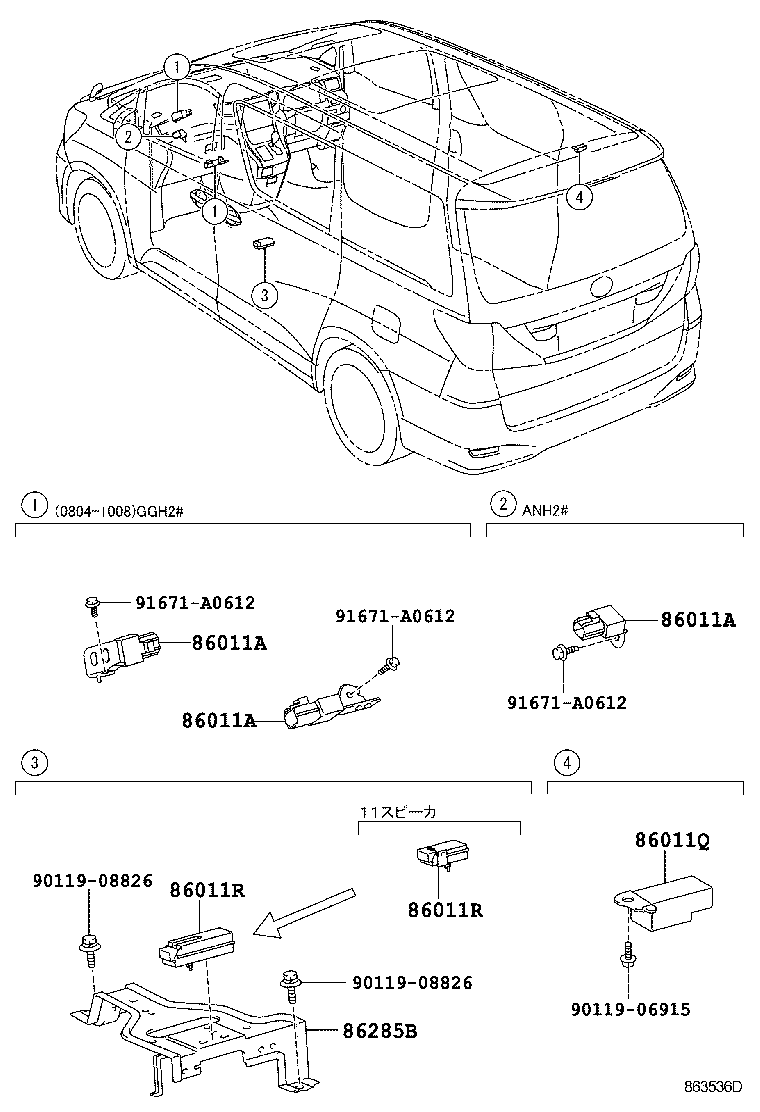

ILLUST NO. 2 OF 2(0804- )
ｺﾝﾃﾞﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04177 |
GGH2#..CBU |
2 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04177 |
GGH2#..CBU |
2 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04177 |
GGH2#..CBU |
2 | ||
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04171 |
ANH2#,GGH2#..CBU |
1 | ||
| 86011R - CONDENSER, RADIO SETTING | ||||
| 86516-58020 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86516-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 86011R - CONDENSER, RADIO SETTING | ||||
| 86516-58020 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86516-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 86285B - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-58100 |
ANH2#,GGH2#..CBU |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-08826 | ||||
| 91671-A0612 | ||||
