GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv
(0804- )

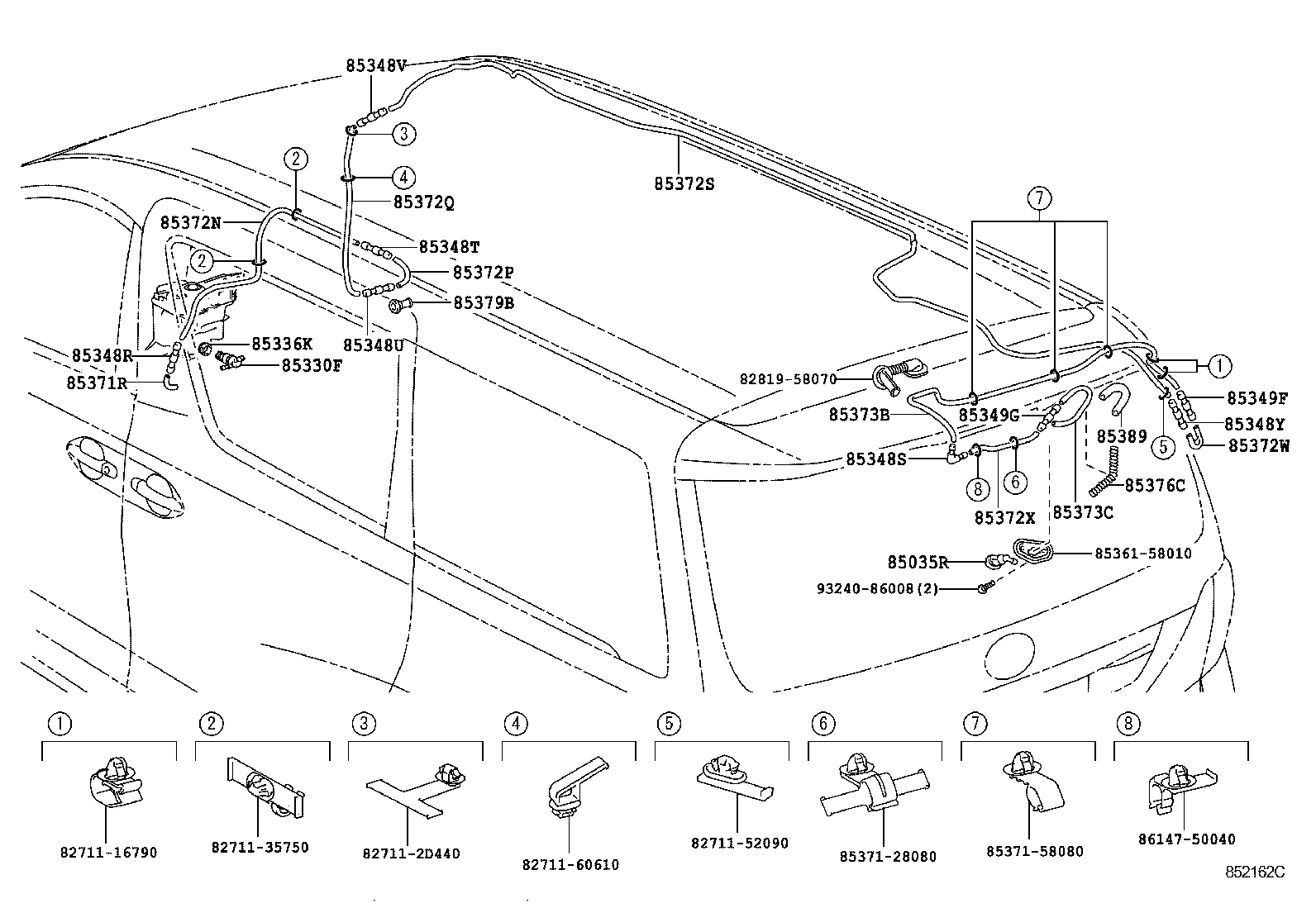

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85391-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 85330F - MOTOR & PUMP ASSY, RR WASHER | ||||
| 85330-60160 |
ANH2#,GGH2#..CBU |
1 | ||
| 85336K - PROTECTOR, WASHER JAR | ||||
| 85336-60300 |
ANH2#,GGH2#..CBU |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
ANH2#,GGH2#..CBU |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
ANH2#,GGH2#..CBU |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
ANH2#,GGH2#..CBU |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
ANH2#,GGH2#..CBU |
1 | ||
| 85348V - JOINT, REAR WASHER HOSE, NO.4 | ||||
| 85349-89122 |
ANH2#,GGH2#..CBU |
1 | ||
| 85348Y - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
ANH2#,GGH2#..CBU |
1 | ||
| 85349F - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
ANH2#,GGH2#..CBU |
1 | ||
| 85349G - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
ANH2#,GGH2#..CBU |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
ANH2#,GGH2#..CBU *H,L=70 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-07001 |
ANH2#,GGH2#..CBU *H,L=930 |
1 | ||
| 90446-07001 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) *H,L=930,ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀ泣eﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 90446-07001 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) *H,L=930,ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀ泣eﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
ANH2#,GGH2#..CBU *H,L=120 |
1 | ||
| 90099-33080 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) *H,L=120,ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀ泣eﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 90099-33080 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) *H,L=120,ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀ泣eﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) *H,L=870,ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀ泣eﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 90099-33080 |
ANH2#,GGH2#..CBU *H,L=870 |
1 | ||
| 90099-33080 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) *H,L=870,ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀ泣eﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-33595 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) *H,L=3955,ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞ^ﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 90099-33595 |
ANH2#,GGH2#..CBU *H,L=3955 |
1 | ||
| 90099-33595 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) *H,L=3955,ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞ^ﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 85375-33040 |
ANH2#,GGH2#..CBU |
1 | ||
| 85375-33040 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 85375-33040 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90099-33080 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) *H,L=300,ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀ泣eﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 90099-62070 |
ANH2#,GGH2#..CBU 長さ=300 |
1 | ||
| 90099-33080 |
ANH2#,GGH2#..CBU *H,L=300 |
1 | ||
| 90099-62070 |
ANH2#,GGH2#..CBU 長さ=300,ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃ激rﾁｭｰﾅ有り |
1 | ||
| 90099-33080 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) *H,L=300,ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀ泣eﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 90099-62070 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) 長さ=300,ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙﾃ激rﾁｭｰﾅ有り |
1 | ||
| 85373B - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7 | ||||
| 90099-33080 |
ANH2#,GGH2#..CBU *H,L=1180 |
1 | ||
| 90099-33080 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) *H,L=1180,ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞ^ﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 90099-62069 |
ANH2#,GGH2#..CBU 長さ=1180 |
1 | ||
| 90099-33080 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) *H,L=1180,ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞ^ﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 90099-62069 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) 長さ=1180,ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙeﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 90099-62069 |
ANH2#,GGH2#..CBU 長さ=1180,ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀﾙeﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 85373C - TUBE, REAR WASHER RUBBER | ||||
| 90446-07001 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) *H,L=350,ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀ泣eﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 90446-07001 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) *H,L=350,ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH&ﾃﾞｼﾞﾀ泣eﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 90446-07001 |
ANH2#,GGH2#..CBU *H,L=350 |
1 | ||
| 85376C - SPRING, WASHER HOSE | ||||
| 85389-72030 |
ANH2#,GGH2#..CBU |
1 | ||
| 85379B - GROMMET, WASHER, A | ||||
| 85379-16180 |
ANH2#,GGH2#..CBU |
1 | ||
| 85379-12850 |
ANH2#,GGH2#..CBU |
1 | ||
| 85389 - PACKING, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85389-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| Common parts | ||||
| 82711-16790 | ||||
| 82711-2D440 | ||||
| 82711-35750 | ||||
| 82711-52090 | ||||
| 82711-60610 | ||||
| 82819-58070 | ||||
| 85361-58010 | ||||
| 85371-28080 | ||||
| 85371-58080 | ||||
| 86147-50040 | ||||
| 93240-86008 | ||||
