GGH25W-PFTSK (2008)

Toyota Alphard/Vellfire/Hv

Production Apr 2008 - Oct 2011
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0804- )

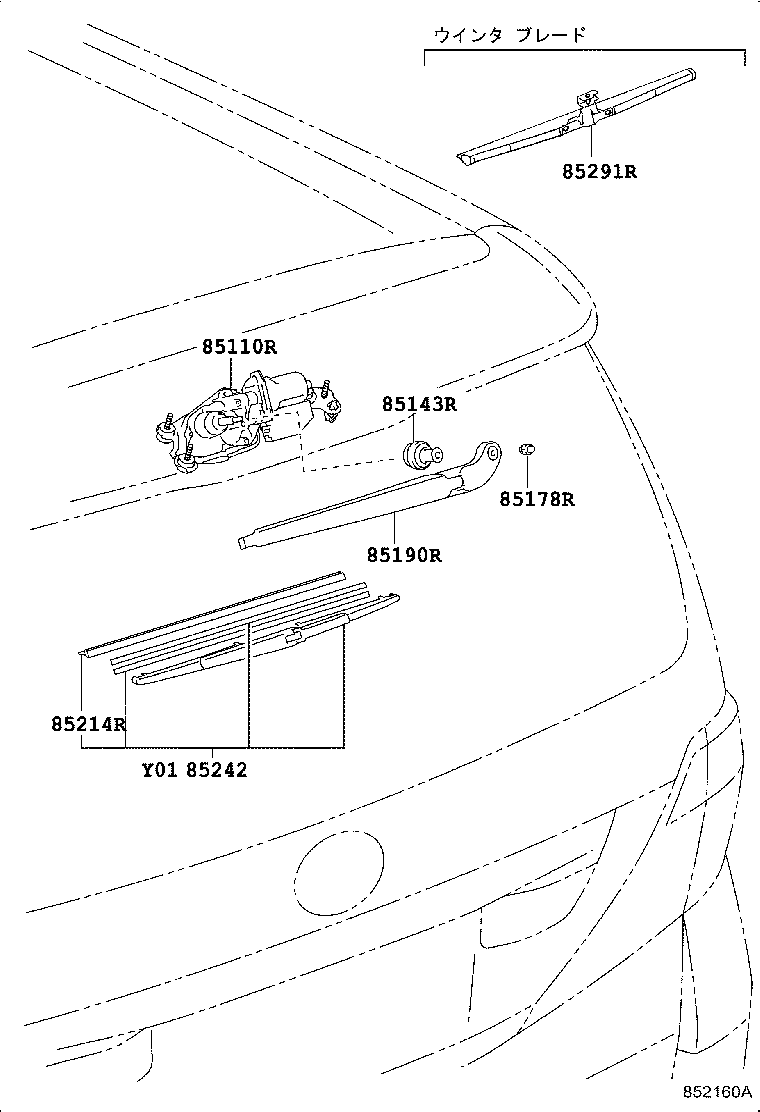

Click highlighted areas on diagram

diagram 85110R 85143R 85178R 85190R 85214R 85242 85291R
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-58030

ANH2#,GGH2#..CBU

 1
85143R - GROMMET, REAR WIPER MOTOR
85143-58010

ANH2#,GGH2#..CBU

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
85113-58010

ANH2#,GGH2#..CBU

 1
85113-58020

ANH2#,GGH2#..CBU

 1
90176-06050

ANH2#,GGH2#..CBU

 1
85190R - ARM ASSY, REAR WIPER
85241-58020

ANH2#,GGH2#..CBU

 1
85214R - RUBBER, REAR WIPER
85214-10100

ANH2#,GGH2#..CBU

 1
85242 - BLADE, RR WIPER
85242-58030

ANH2#,GGH2#..CBU

 1
85291R - BLADE,REAR WIPER, WINTER
85291-58030

ANH2#,GGH2#..CBU

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
