GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv
Production
Apr 2008
-
Oct 2011
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0804- )

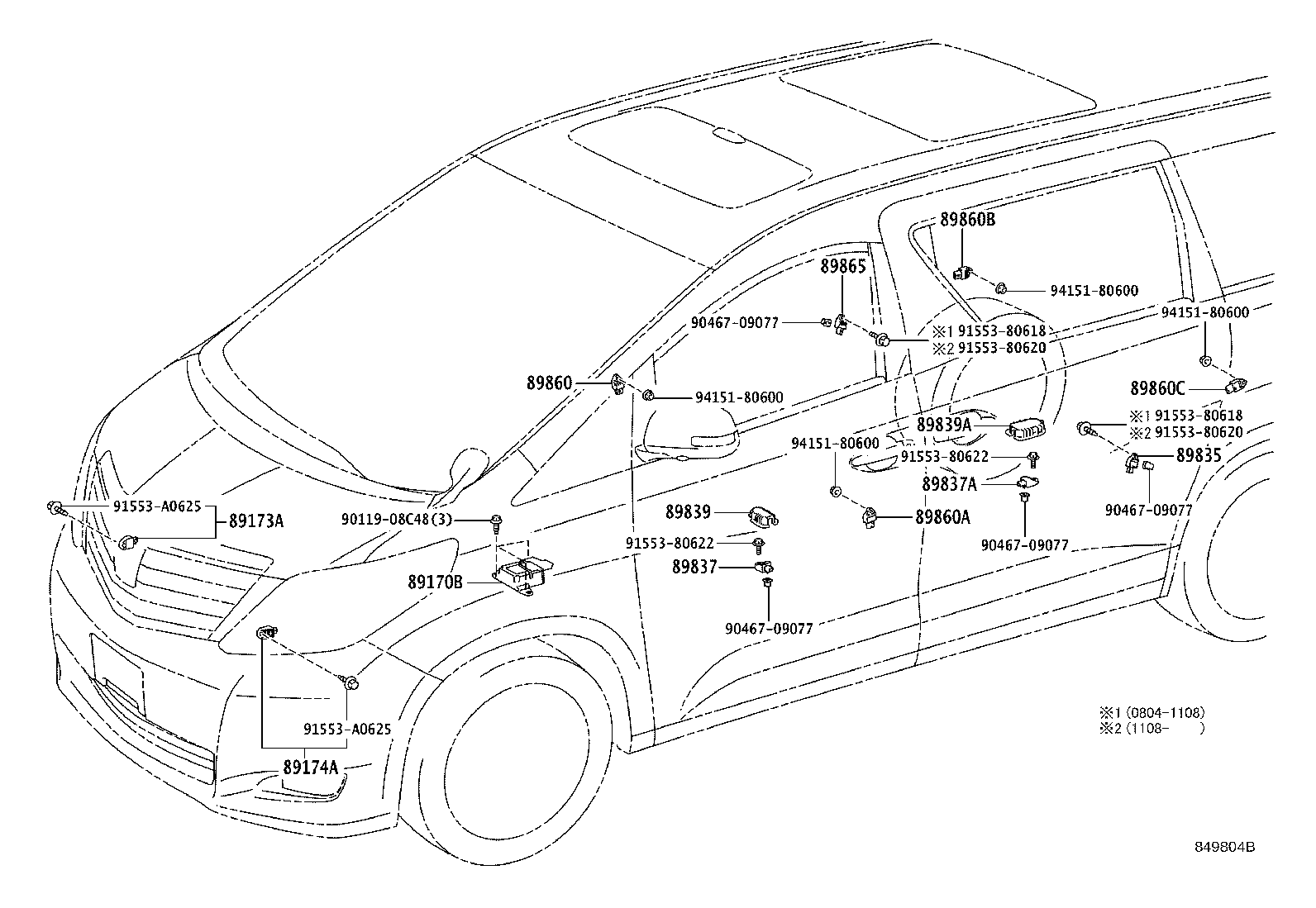

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89170B - SENSOR ASSY, AIR BAG(W/COMPUTER) | ||||
| 89170-58110 |
ANH2#,GGH2#..CBU |
1 | ||
| 89173A - SENSOR, AIR BAG, FRONT RH | ||||
| 89173-49375 |
ANH2#,GGH2#..CBU |
1 | ||
| 89174A - SENSOR, AIR BAG, FRONT LH | ||||
| 89173-49375 |
ANH2#,GGH2#..CBU |
1 | ||
| 89835 - SENSOR, DOOR SIDE AIR BAG, LH | ||||
| 89831-28020 |
ANH2#,GGH2#..CBU |
1 | ||
| 89837 - SENSOR, FRONT FLOOR SIDE AIR BAG | ||||
| 89837-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 89837A - SENSOR, REAR FLOOR SIDE AIR BAG | ||||
| 89837-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 89839 - COVER, FRONT FLOOR SIDE AIR BAG SENSOR | ||||
| 89839-28010 |
ANH2#,GGH2#..CBU |
1 | ||
| 89839A - COVER, REAR FLOOR SIDE AIR BAG SENSOR | ||||
| 89839-28020 |
ANH2#,GGH2#..CBU |
1 | ||
| 89860 - SENSOR ASSY, SIDE AIR BAG, RH | ||||
| 89831-28020 |
ANH2#,GGH2#..CBU |
1 | ||
| 89860A - SENSOR ASSY, SIDE AIR BAG, LH | ||||
| 89831-28020 |
ANH2#,GGH2#..CBU |
1 | ||
| 89860B - SENSOR ASSY, SIDE AIR BAG, RH, NO.2 | ||||
| 89831-33020 |
ANH2#,GGH2#..CBU |
1 | ||
| 89860C - SENSOR ASSY, SIDE AIR BAG, LH, NO.2 | ||||
| 89831-33020 |
ANH2#,GGH2#..CBU |
1 | ||
| 89865 - SENSOR, DOOR SIDE AIR BAG, RH | ||||
| 89831-28020 |
ANH2#,GGH2#..CBU |
1 | ||
| Common parts | ||||
| 90119-08C48 | ||||
| 90467-09077 | ||||
| 91553-80618 | ||||
| 91553-80620 | ||||
| 91553-80622 | ||||
| 91553-A0625 | ||||
| 94151-80600 | ||||
