GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv
Production
Apr 2008
-
Oct 2011
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0804- )

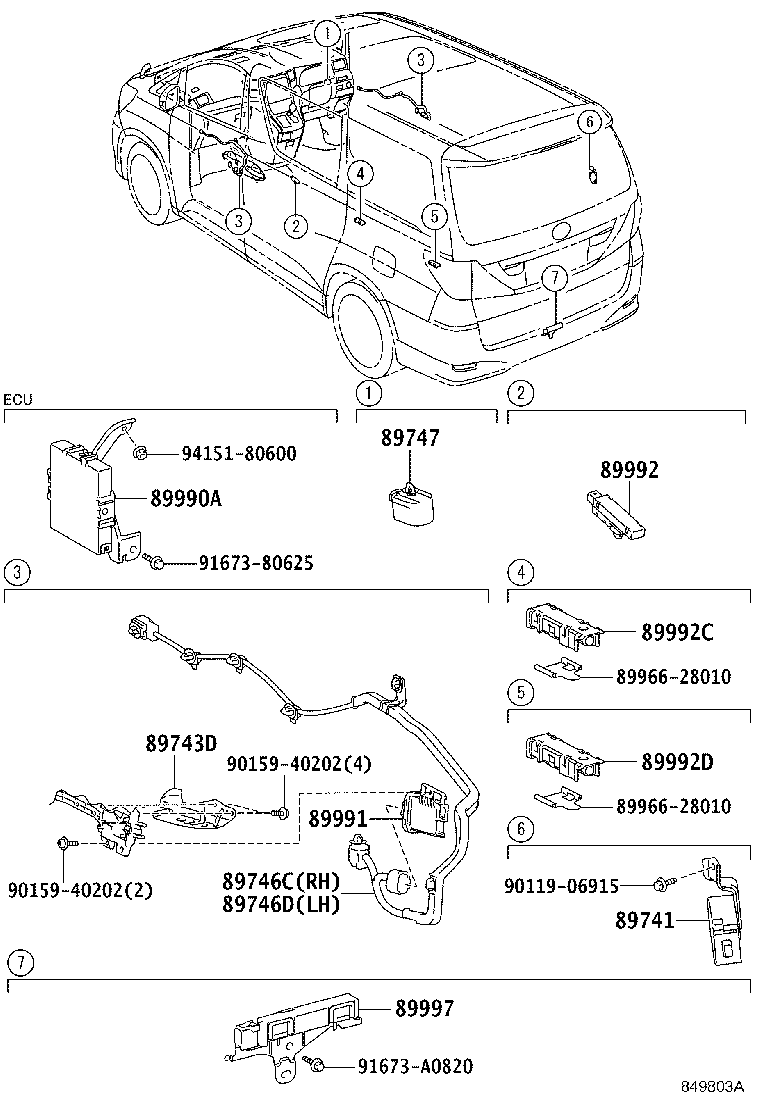

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89740-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 89743D - BRACKET, ELECTRICAL KEY WIRE HARNESS | ||||
| 89743-30130 |
ANH2#,GGH2#..CBU 左側 |
1 | ||
| 89743-68010 |
ANH2#,GGH2#..CBU 右側 |
1 | ||
| 89746C - HARNESS, ELECTRICAL KEY WIRE, NO.1 | ||||
| 89746-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 89746D - HARNESS, ELECTRICAL KEY WIRE, NO.2 | ||||
| 89746-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-52010 |
ANH2#,GGH2#..CBU |
1 | ||
| 89990A - COMPUTER ASSY, SMART KEY | ||||
| 89990-58080 |
ANH2#,GGH2#..CBU GｰBOOK−有り(DCM) |
1 | ||
| 89990-58031 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) GｰBOOK−有り(DCM) |
1 | ||
| 89990-58030 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) GｰBOOK−有り(DCM) |
1 | ||
| 89990-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 89990-58070 |
ANH2#,GGH2#..CBU |
1 | ||
| 89991 - OSCILLATOR, DOOR ELECTRICAL KEY | ||||
| 89991-28020 |
ANH2#,GGH2#..CBU 右側 |
1 | ||
| 89991-28030 |
ANH2#,GGH2#..CBU 左側 |
1 | ||
| 89992 - OSCILLATOR, INDOOR ELECTRICAL KEY | ||||
| 89992-52020 |
ANH2#,GGH2#..CBU |
1 | ||
| 89992C - OSCILLATOR, INDOOR ELECTRICAL KEY, NO.2 | ||||
| 89992-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 89992-28010 |
ANH2#,GGH2#..CBU |
1 | ||
| 89992D - OSCILLATOR, INDOOR ELECTRICAL KEY, NO.3 | ||||
| 89992-28010 |
ANH2#,GGH2#..CBU |
1 | ||
| 89992-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 89997 - ANTENNA, ELECTRICAL KEY | ||||
| 89997-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 89997-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| Common parts | ||||
| 89966-28010 | ||||
| 90119-06915 | ||||
| 90159-40202 | ||||
| 91673-80625 | ||||
| 91673-A0820 | ||||
| 94151-80600 | ||||
