GGH25W-PFTSK (2008)

Toyota Alphard/Vellfire/Hv

Production Apr 2008 - Oct 2011
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0804- )

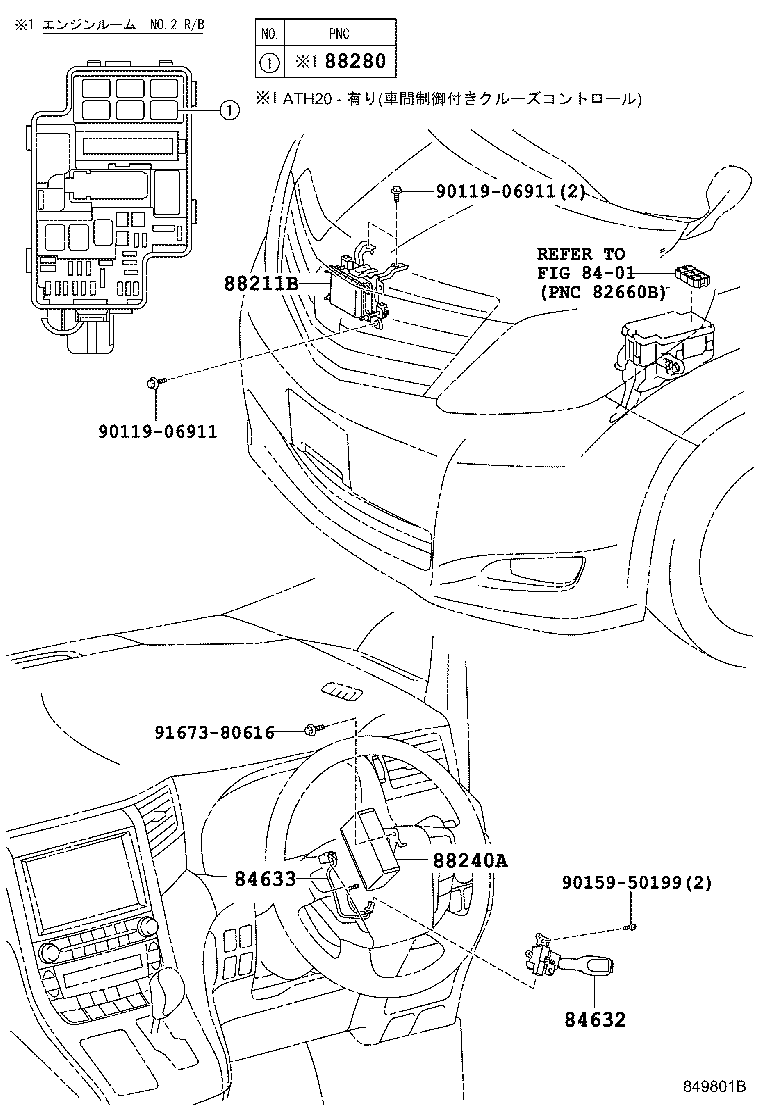

Click highlighted areas on diagram

diagram 8401 84632 84633 88211B 88240A 88280 9011906911 9011906911 9015950199 9167380616
Part # Description Qty Price
84632 - SWITCH, CRUISE CONTROL MAIN
84632-58011

GGH2#..07S..(350S,35Z)..CBU

Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)

 1
84632-34011

ANH2#,GGH2#..(240G,24V,350G,350S,350X,35V,35X,35Z)..CBU

 1
84633 - WIRE, CRUISE CONTROL SWITCH
84633-48010

GGH2#..07S..(350S,35Z)..CBU

Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)

 1
84633-48020

ANH2#,GGH2#..(240G,24V,350G,350S,350X,35V,35X,35Z)..CBU

 1
88211B - SENSOR ASSY, MILLIMETER WAVE RADAR
88210-58040

GGH25..07S;GGH20..07S..(350S,35Z);GGH20..(350G,35V)..CBU;GGH25..08S..(350G,35V)

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)

 1
88210-58050

GGH25..07S;GGH20..07S..(350S,35Z);GGH20..(350G,35V)..CBU;GGH25..08S..(350G,35V)

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)

 1
88240A - COMPUTER ASSY, DISTANCE CONTROL
88240-58050

GGH25..07S;GGH20..07S..(350S,35Z);GGH20..(350G,35V)..CBU;GGH25..08S..(350G,35V)

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)

 1
Common parts
90119-06911
90159-50199
91673-80616
Linked diagrams
8401
