GGH25W-PFTSK (2008)

Toyota Alphard/Vellfire/Hv

Production Apr 2008 - Oct 2011
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0804- )GGH2#

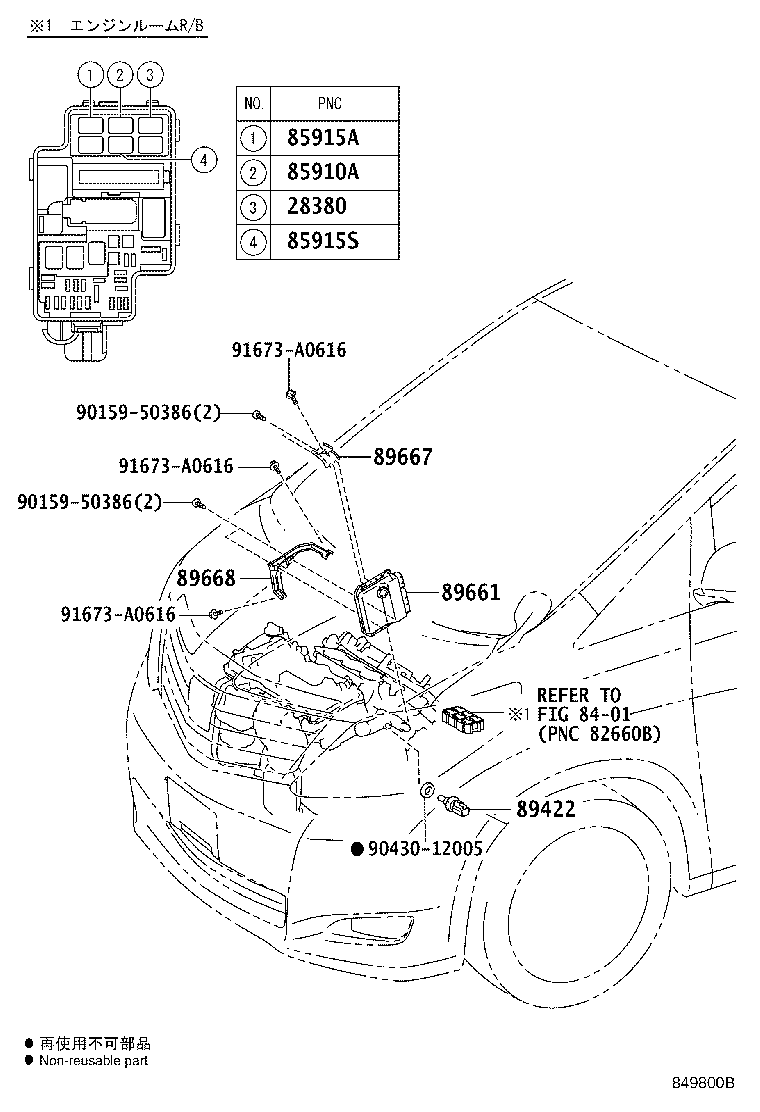

Click highlighted areas on diagram

diagram 28380 8401 85910A 85915A 85915S 89422 89661 89667 89668 9015950386 9015950386 9043012005 91673A0616 91673A0616 91673A0616
Part # Description Qty Price
28380 - RELAY ASSY, FUEL PUMP
90987-04004

2GRFE..GGH2#..CBU

 1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02027

ANH2#,GGH2#..CBU

 1
85915A - RELAY, MAIN
90987-02027

ANH2#,GGH2#..CBU

 1
85915S - RELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
90987-02027

GGH2#..CBU

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

ANH2#,GGH2#..CBU

 1
89661 - COMPUTER, ENGINE CONTROL
89661-58140

GGH25..CBU

DENSO

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-58030

ANH2#,GGH2#..CBU

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-28130

ANH2#,GGH2#..CBU

 1
Common parts
90159-50386
90430-12005
91673-A0616
Linked diagrams
8401
