GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv

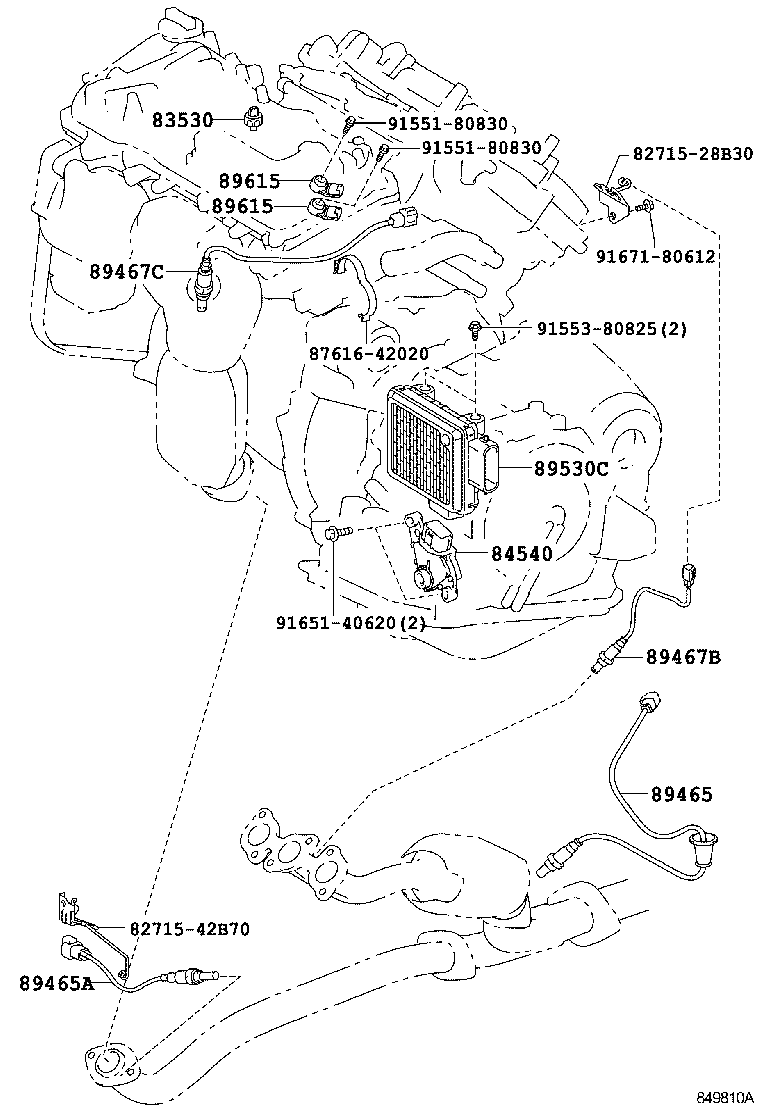

ILLUST NO. 1 OF 8(0804- )GGH2#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ANH2#,GGH2#..CBU |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-33010 |
GGH2#..CBU |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-58130 |
GGH2#..CBU |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-42150 |
GGH2#..CBU |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-28110 |
GGH2#..CBU |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-58110 |
GGH2#..CBU |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-58011 |
GGH2#..CBU |
1 | ||
| 89530-58010 |
GGH2#..CBU |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GGH2#..CBU |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GGH2#..CBU |
2 | ||
| Common parts | ||||
| 82715-28B30 | ||||
| 82715-42B70 | ||||
| 87616-42020 | ||||
| 91551-80830 | ||||
| 91553-80825 | ||||
| 91651-40620 | ||||
| 91671-80612 | ||||

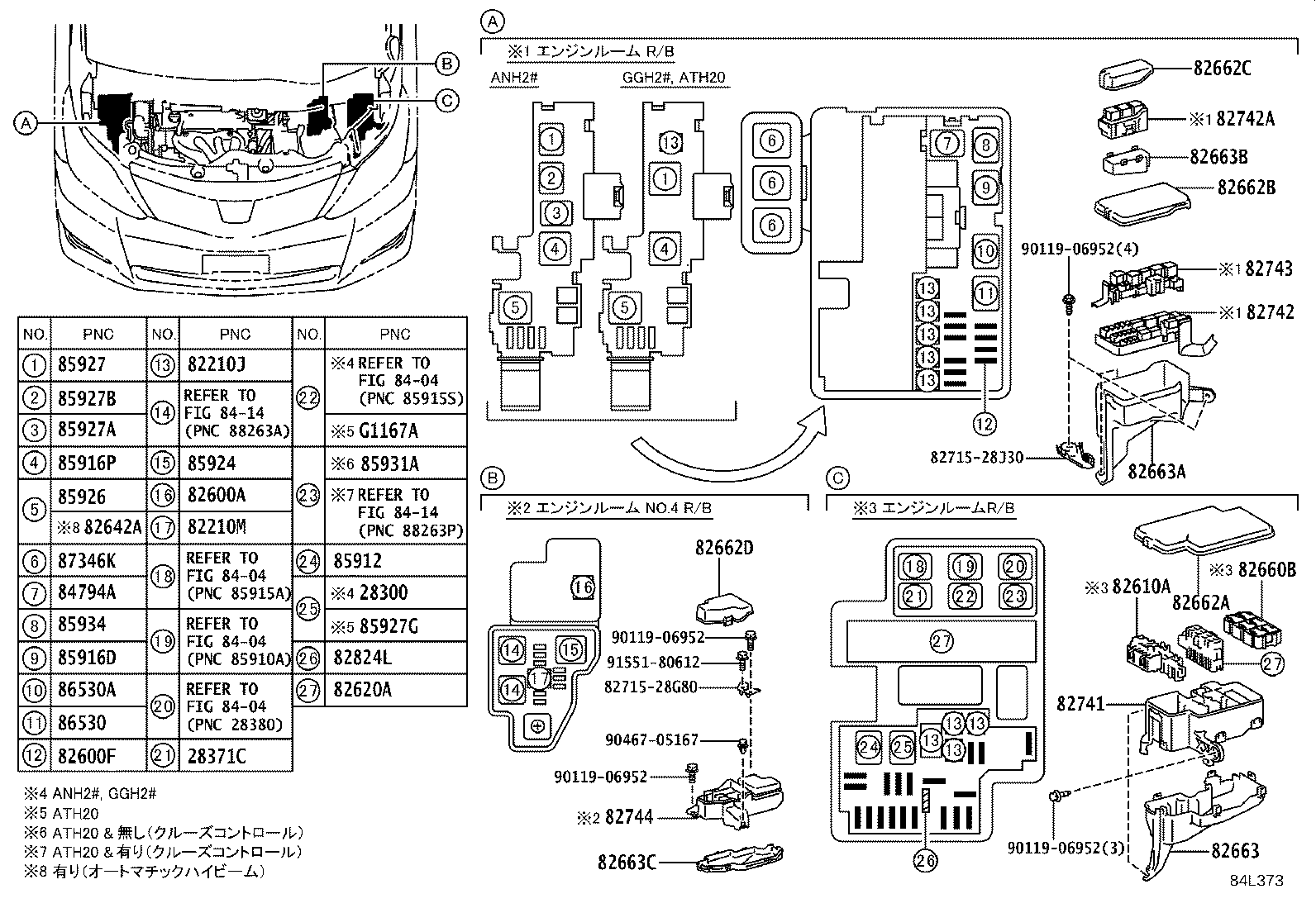

ILLUST NO. 2 OF 8(0804- )
ｴﾝｼﾞﾝﾙｰﾑ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28380A - RESISTER, FUEL PUMP | ||||
| 23080-31030 |
2GRFE..GGH2#..CBU |
1 | ||
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-28040 |
2AZFE,2GRFE..ANH2#,GGH2#..CBU |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-30080 |
GGH2#..CBU |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 93315-14014 | ||||

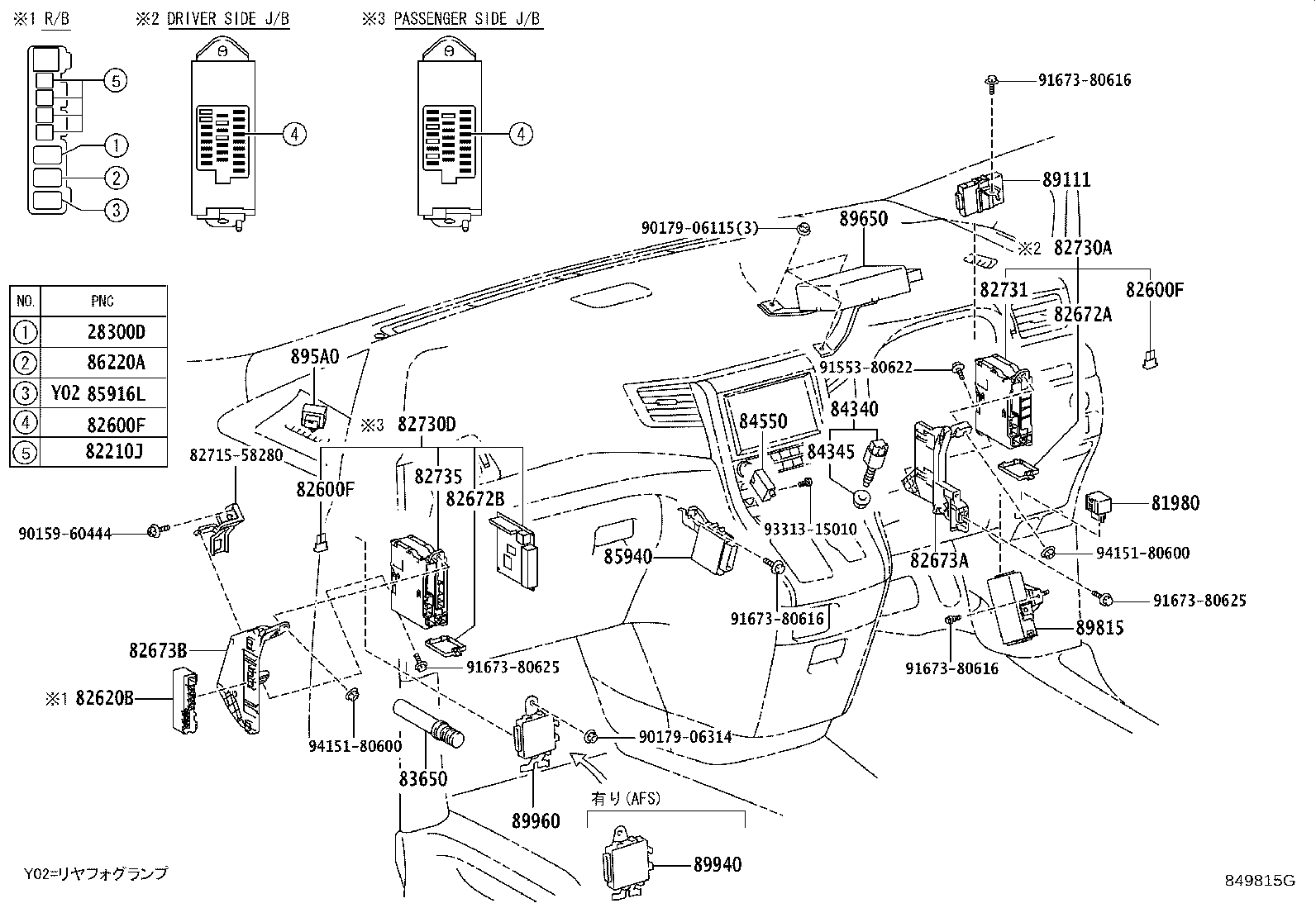

ILLUST NO. 4 OF 8(0804- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300D - RELAY, STARTER CUT | ||||
| 90987-02027 |
2AZFE,2GRFE..ANH2#,GGH2#..CBU |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50030 |
ANH2#,GGH2#..CBU |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08203 |
GGH2#..07S..(350S,35Z)..CBU 80A,ｵｽ端子,黒,寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞ戟[ｷ制御付き) |
1 | ||
| 90982-08203 |
ANH2#,GGH2#..CBU 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08203 |
GGH2#..CBU 80A,ｵｽ端子,黒,寒冷地仕様 |
1 | ||
| 90982-08203 |
GGH2#..07S..(350S,35Z)..CBU 80A,ｵｽ端子,黒,ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付ｫ) |
1 | ||
| 90982-08295 |
ANH2#,GGH2#..CBU 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08296 |
ANH2#,GGH2#..CBU 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08294 |
ANH2#,GGH2#..CBU 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08203 |
GGH2#..07S..(350S,35Z)..CBU 80A,ｵｽ端子,黒,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｸﾙｰｽﾞｺﾝgﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 90982-08228 |
ANH2#,ATH20,GGH2#..CBU 50A,ｵｽ端子,赤 |
1 | ||
| 90982-08296 |
ANH2#,ATH20,GGH2#..CBU 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08294 |
ANH2#,ATH20,GGH2#..CBU 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08295 |
ANH2#,ATH20,GGH2#..CBU 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08203 |
ANH2#,ATH20,GGH2#..CBU 80A,ｵｽ端子,黒 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
ANH2#,GGH2#..CBU 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09023 |
ANH2#,GGH2#..CBU 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
ANH2#,GGH2#..CBU 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
ANH2#,GGH2#..CBU 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09020 |
ANH2#,GGH2#..CBU 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
ANH2#,GGH2#..CBU 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09023 |
ANH2#,GGH2#..CBU 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
ANH2#,GGH2#..CBU 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
ANH2#,GGH2#..CBU 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09020 |
ANH2#,GGH2#..CBU 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
ANH2#,GGH2#..CBU 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09023 |
ANH2#,GGH2#..CBU 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
ANH2#,GGH2#..CBU 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
ANH2#,GGH2#..CBU 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09020 |
ANH2#,GGH2#..CBU 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-28290 |
ANH2#,GGH2#..CBU |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-58040 |
ANH2#,GGH2#..CBU |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-28060 |
ANH2#,GGH2#..CBU |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-58040 |
ANH2#,GGH2#..CBU |
1 | ||
| 82730D - BLOCK ASSY, PASSENGER SIDE JUNCTION | ||||
| 82730-58061 |
ANH2#,GGH2#..CBU |
1 | ||
| 82730-58060 |
ANH2#,GGH2#..CBU |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82733-28190 |
ANH2#,GGH2#..CBU |
1 | ||
| 82735 - BLOCK, PASSENGER SIDE JUNCTION | ||||
| 82731-28050 |
ANH2#,GGH2#..CBU |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
ANH2#,GGH2#..CBU |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69075 |
ANH2#,GGH2#..CBU |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ANH2#,GGH2#..CBU |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
ANH2#,GGH2#..CBU |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
ANH2#,GGH2#..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&ｺﾝﾋﾞﾈｰｼｮﾝｽｲｯﾁ−ﾘﾔﾌｫｸﾞｽｲｯﾁ付き |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-58010 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *274 or *275 |
1 | ||
| 85940-58010 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *296 or *297 |
1 | ||
| 85940-58010 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 85940-58010 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261 |
1 | ||
| 86220A - RELAY, INVERTER | ||||
| 90987-02027 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 90987-02027 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-58020 |
ANH25,GGH2#..CBU |
1 | ||
| 895A0 - RELAY ASSY, STOP LAMP CONTROL | ||||
| 895A0-46020 |
ANH2#,GGH2#..CBU |
1 | ||
| 895A0-28010 |
ANH2#,GGH2#..CBU |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-58010 |
ANH2#,GGH2#..CBU JTEKT/DENSO |
1 | ||
| 89815 - COMPUTER, SEAT BELT CONTROL | ||||
| 89815-58010 |
GGH2#..(350G,35V)..CBU;GGH2#..07S..(350S,35Z)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 89940 - COMPUTER ASSY, HEADLAMP SWIVEL | ||||
| 89940-58030 |
GGH2#..CBU |
1 | ||
| Common parts | ||||
| 82715-58280 | ||||
| 90159-60444 | ||||
| 90179-06115 | ||||
| 90179-06314 | ||||
| 91553-80622 | ||||
| 91673-80616 | ||||
| 91673-80625 | ||||
| 93313-15010 | ||||
| 94151-80600 | ||||

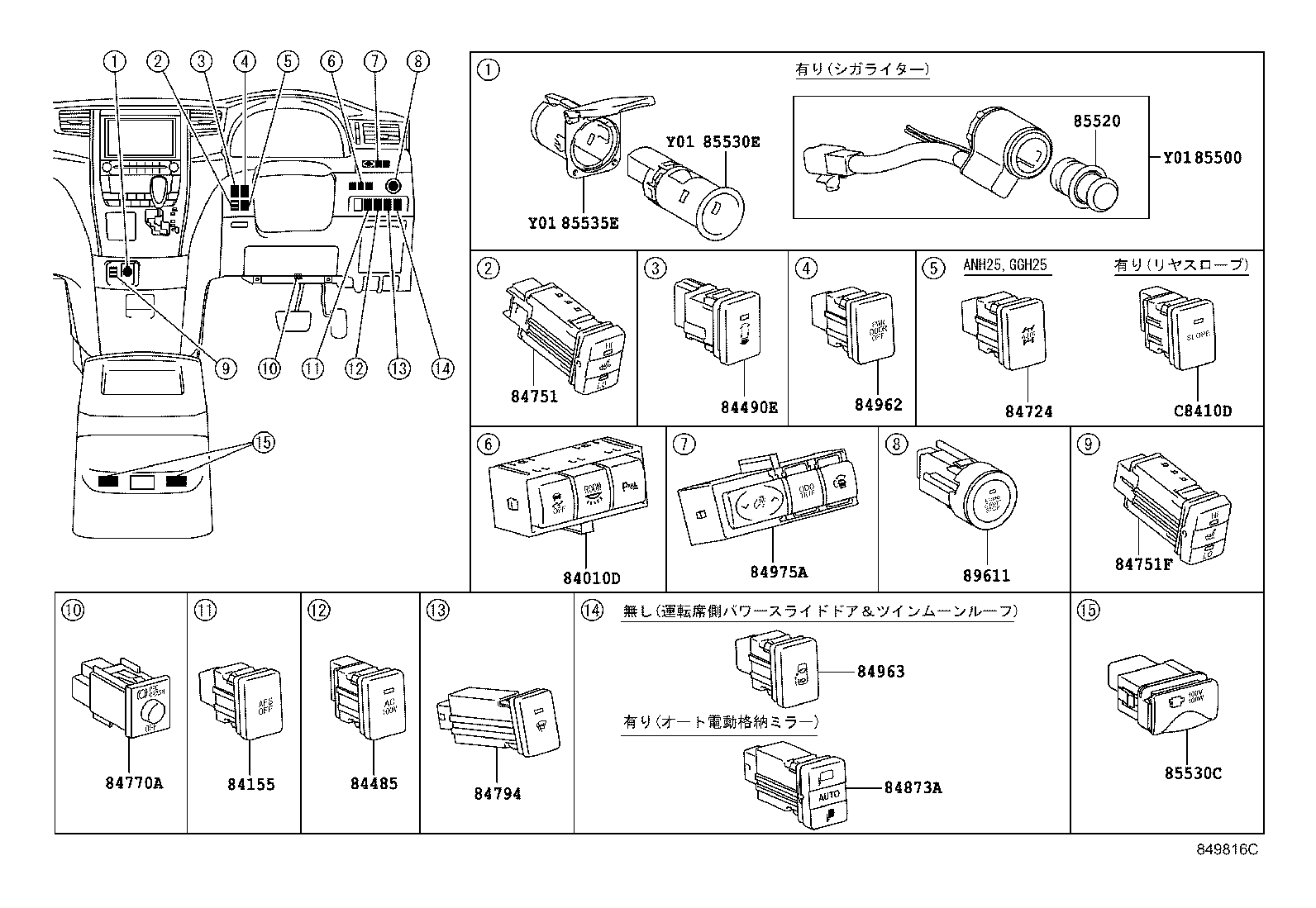

ILLUST NO. 5 OF 8(0804-1110)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-58090 |
ANH2#,GGH2#..CBU |
1 | ||
| 84155 - SWITCH, HEADLAMP SWIVEL MAIN | ||||
| 84155-28010 |
GGH2#..CBU |
1 | ||
| 84485 - SWITCH, POWER OUTLET(AC100V ACCESSORY SOCKET) | ||||
| 84485-28020 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 84485-28020 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 84490E - SWITCH ASSY, IPA PRE SUPPORT | ||||
| 84490-58020 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 84724 - SWITCH, 4 WHEEL DRIVE CONTROL | ||||
| 84724-28060 |
ANH25,GGH25..CBU |
1 | ||
| 84770A - SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL | ||||
| 84770-48010 |
GGH2#..(350G,35V)..CBU;GGH2#..07S..(350S,35Z)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84794-52010 |
ANH2#,GGH2#..CBU 寒冷地仕様 |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-58020 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *296 or *297 |
1 | ||
| 84873-58020 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *274 or *275 |
1 | ||
| 84873-58020 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 84873-58020 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261 |
1 | ||
| 84962 - SWITCH, POWER SLIDE DOOR MAIN | ||||
| 84962-28010 |
ANH2#,GGH2#..CBU |
1 | ||
| 84963 - SWITCH, POWER SLIDE DOOR CONTROL, NO.1 | ||||
| 84963-28010 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU |
1 | ||
| 84975A - TRIP & RHEOSTAT SWITCH ASSY | ||||
| 84975-58011 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 84975-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-58010 |
ANH2#,GGH2#..CBU ｼｶﾞﾚｯﾄﾗｲﾀｰ−ﾌﾛﾝﾄ1個(照明付き) |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
ANH2#,GGH2#..CBU ｼｶﾞﾚｯﾄﾗｲﾀｰ−ﾌﾛﾝﾄ1個(照明付き) |
1 | ||
| 85530C - SOCKET ASSY, POWER OUTLET, CENTER | ||||
| 85530-58020A0 |
ANH25..07S..(240G,240S,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..07S..(240S,350S,35Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,SHELL,TRIM0# |
2 | ||
| 85530-58020B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
2 | ||
| 85530-58020B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
2 | ||
| 85530-58020A0 |
ANH25..07S..(240G,240S,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..07S..(240S,350S,35Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,SHELL,TRIM0# |
2 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-42010 |
ANH2#,GGH2#..CBU |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-50020 |
ANH2#,GGH2#..CBU |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52012 |
ANH2#,GGH2#..CBU |
1 | ||
| 89611-52013 |
ANH2#,GGH2#..CBU |
1 | ||
| 89611-52011 |
ANH2#,GGH2#..CBU |
1 | ||

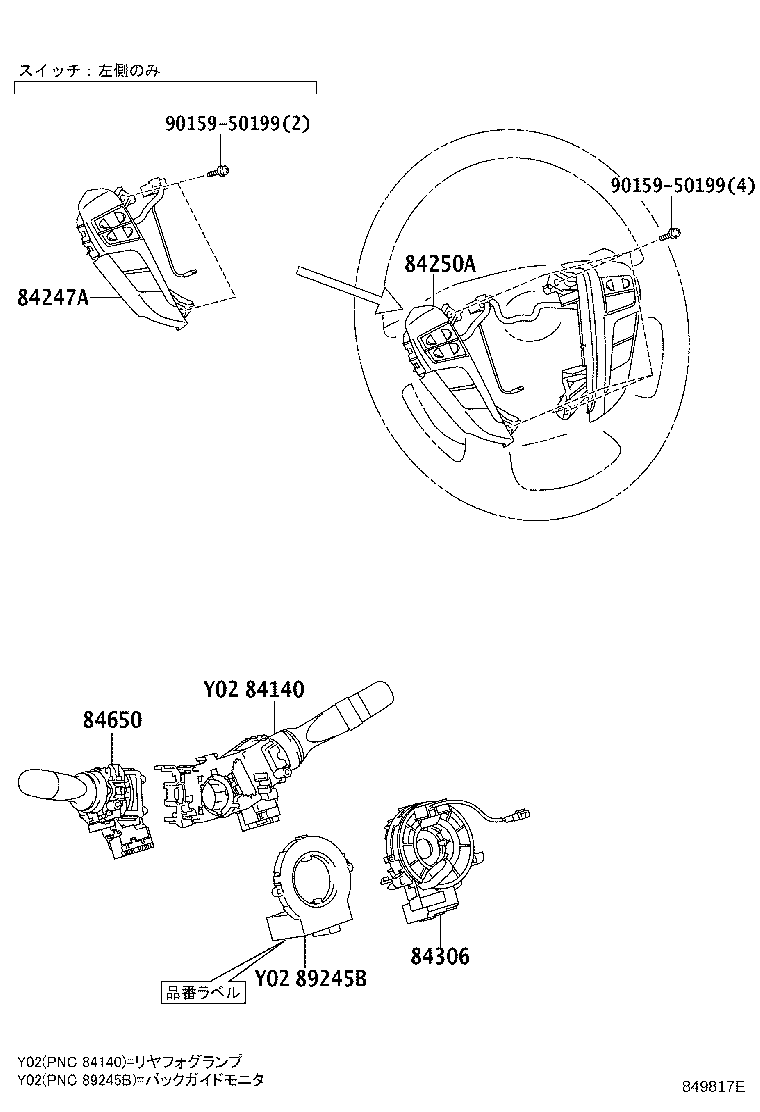

ILLUST NO. 6 OF 8(0804- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-42080 |
ANH2#,GGH2#..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&ｺﾝﾋﾞﾈｰｼｮﾝｽｲｯﾁ−ﾘﾔﾌｫｸﾞｽｲｯﾁ付き |
1 | ||
| 84140-42070 |
ANH2#,GGH2#..CBU |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-58030B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 84247-58030E0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU DK. BROWN,TRIM0# |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-58150B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 84250-58150E0 |
ANH25..07S..(240G,240S,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..07S..(240S,350S,35Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,DK. BROWN,TRIM0# |
1 | ||
| 84250-58160E0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),DK. BROWN,TRIM0# |
1 | ||
| 84250-58150B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 84250-58170E0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,DK. BROWN,TRIM0# |
1 | ||
| 84250-58170E0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,DK. BROWN,TRIM0# |
1 | ||
| 84250-58170B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 84250-58160B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),DK.GRAY,TRIM1# |
1 | ||
| 84250-58150E0 |
ANH25..07S..(240G,240S,24V);ANH25..08S..(240G,240X,24V,24X)..CBU;ANH20,GGH2#..07S..(240S,350S,35Z)..CBU;ANH20,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,DK. BROWN,TRIM0# |
1 | ||
| 84250-58170B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-52090 |
ANH2#,GGH2#..CBU |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-42140 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 84652-42130 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU |
1 | ||
| 84652-42140 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *274 or *275 |
1 | ||
| 84652-42140 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261 |
1 | ||
| 84652-42140 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *296 or *297 |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-33040 |
ANH2#,GGH2#..CBU |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||

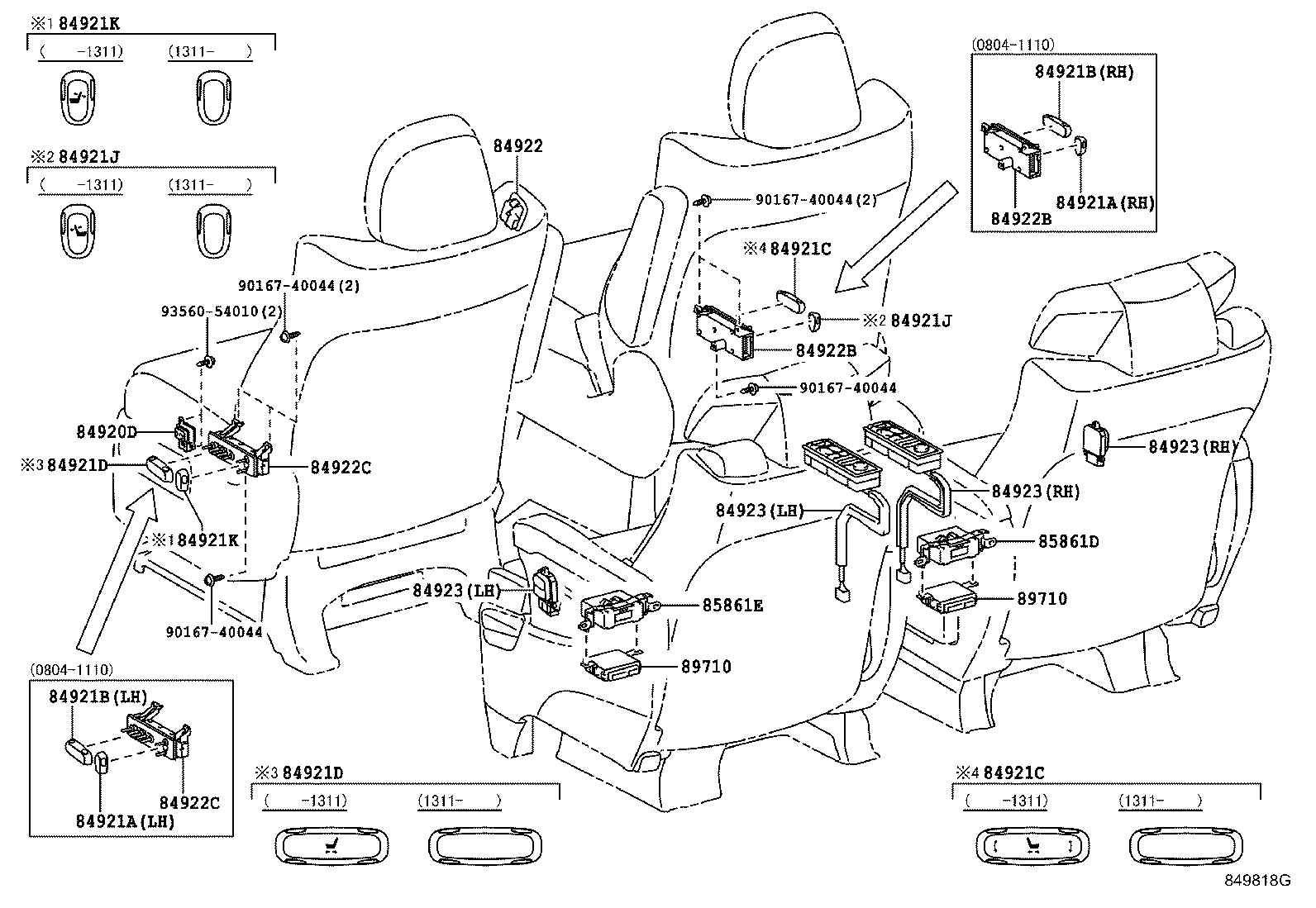

ILLUST NO. 7 OF 8(0804- )ANH20,ATH20,GGH2#..07S..240G,240S,24V,24Z,350S,35Z,HBDG,HBDSR,HBDV,HBDX,
ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84920D - SWITCH ASSY, POWER SEAT FRONT, LH | ||||
| 84920-58010A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 84920-58010A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 84920-58010C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1# |
1 | ||
| 84920-58010C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1# |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-60110A2 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,右側 |
1 | ||
| 84921-60110A2 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,右側 |
1 | ||
| 84921-60110C0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *296 or *297,BLACK,TRIM1#,右側 |
1 | ||
| 84921-60110C0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *296 or *297,BLACK,TRIM1#,右側 |
1 | ||
| 84921-60120A3 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,左側 |
1 | ||
| 84921-60120A3 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,左側 |
1 | ||
| 84921-60120C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,左側 |
1 | ||
| 84921-60120C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,左側 |
1 | ||
| 84921-60110C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,右側 |
1 | ||
| 84921-60110C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,右側 |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-60110A2 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,右側 |
1 | ||
| 84921-60110A2 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,右側 |
1 | ||
| 84921-60110C0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *296 or *297,BLACK,TRIM1#,右側 |
1 | ||
| 84921-60110C0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *296 or *297,BLACK,TRIM1#,右側 |
1 | ||
| 84921-60120A3 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,左側 |
1 | ||
| 84921-60120A3 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,左側 |
1 | ||
| 84921-60120C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,左側 |
1 | ||
| 84921-60120C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,左側 |
1 | ||
| 84921-60110C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,右側 |
1 | ||
| 84921-60110C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,右側 |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-60100C0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *296 or *297,BLACK,TRIM1#,右側 |
1 | ||
| 84921-60100C0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *296 or *297,BLACK,TRIM1#,右側 |
1 | ||
| 84921-60100C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,右側 |
1 | ||
| 84921-60100C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,右側 |
1 | ||
| 84921-60100A2 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,右側 |
1 | ||
| 84921-60100A2 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,右側 |
1 | ||
| 84921-60070C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,左側 |
1 | ||
| 84921-60070C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,左側 |
1 | ||
| 84921-60070A2 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,左側 |
1 | ||
| 84921-60070A2 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,左側 |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-60100C0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *296 or *297,BLACK,TRIM1#,右側 |
1 | ||
| 84921-60100C0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *296 or *297,BLACK,TRIM1#,右側 |
1 | ||
| 84921-60100C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,右側 |
1 | ||
| 84921-60100C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,右側 |
1 | ||
| 84921-60100A2 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,右側 |
1 | ||
| 84921-60100A2 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,右側 |
1 | ||
| 84921-60070C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,左側 |
1 | ||
| 84921-60070C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,左側 |
1 | ||
| 84921-60070A2 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,左側 |
1 | ||
| 84921-60070A2 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,左側 |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84070-58010 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261 |
1 | ||
| 84070-58010 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261 |
1 | ||
| 84070-58010 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 84070-58010 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 84070-58010 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *296 or *297 |
1 | ||
| 84070-58010 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *296 or *297 |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84070-58010 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261 |
1 | ||
| 84070-58010 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261 |
1 | ||
| 84070-58010 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 84070-58010 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 84070-58010 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *296 or *297 |
1 | ||
| 84070-58010 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *296 or *297 |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-60110 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 84922-60110 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-60110 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 84922-60110 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-58010A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,右側 |
1 | ||
| 84923-58010A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,右側 |
1 | ||
| 84923-58010C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,右側 |
1 | ||
| 84923-58010C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,右側 |
1 | ||
| 84923-58020A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,左側 |
1 | ||
| 84923-58020A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,左側 |
1 | ||
| 84923-58020C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,左側 |
1 | ||
| 84923-58020C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,左側 |
1 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-58010A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,右側 |
1 | ||
| 84923-58010A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,右側 |
1 | ||
| 84923-58010C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,右側 |
1 | ||
| 84923-58010C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,右側 |
1 | ||
| 84923-58020A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,左側 |
1 | ||
| 84923-58020A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,左側 |
1 | ||
| 84923-58020C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,左側 |
1 | ||
| 84923-58020C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,左側 |
1 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-58010A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,右側 |
1 | ||
| 84923-58010A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,右側 |
1 | ||
| 84923-58010C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,右側 |
1 | ||
| 84923-58010C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,右側 |
1 | ||
| 84923-58020A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,左側 |
1 | ||
| 84923-58020A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,左側 |
1 | ||
| 84923-58020C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,左側 |
1 | ||
| 84923-58020C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,左側 |
1 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-58010A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,右側 |
1 | ||
| 84923-58010A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,右側 |
1 | ||
| 84923-58010C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,右側 |
1 | ||
| 84923-58010C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,右側 |
1 | ||
| 84923-58020A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,左側 |
1 | ||
| 84923-58020A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,左側 |
1 | ||
| 84923-58020C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,左側 |
1 | ||
| 84923-58020C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,左側 |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 93560-54010 | ||||

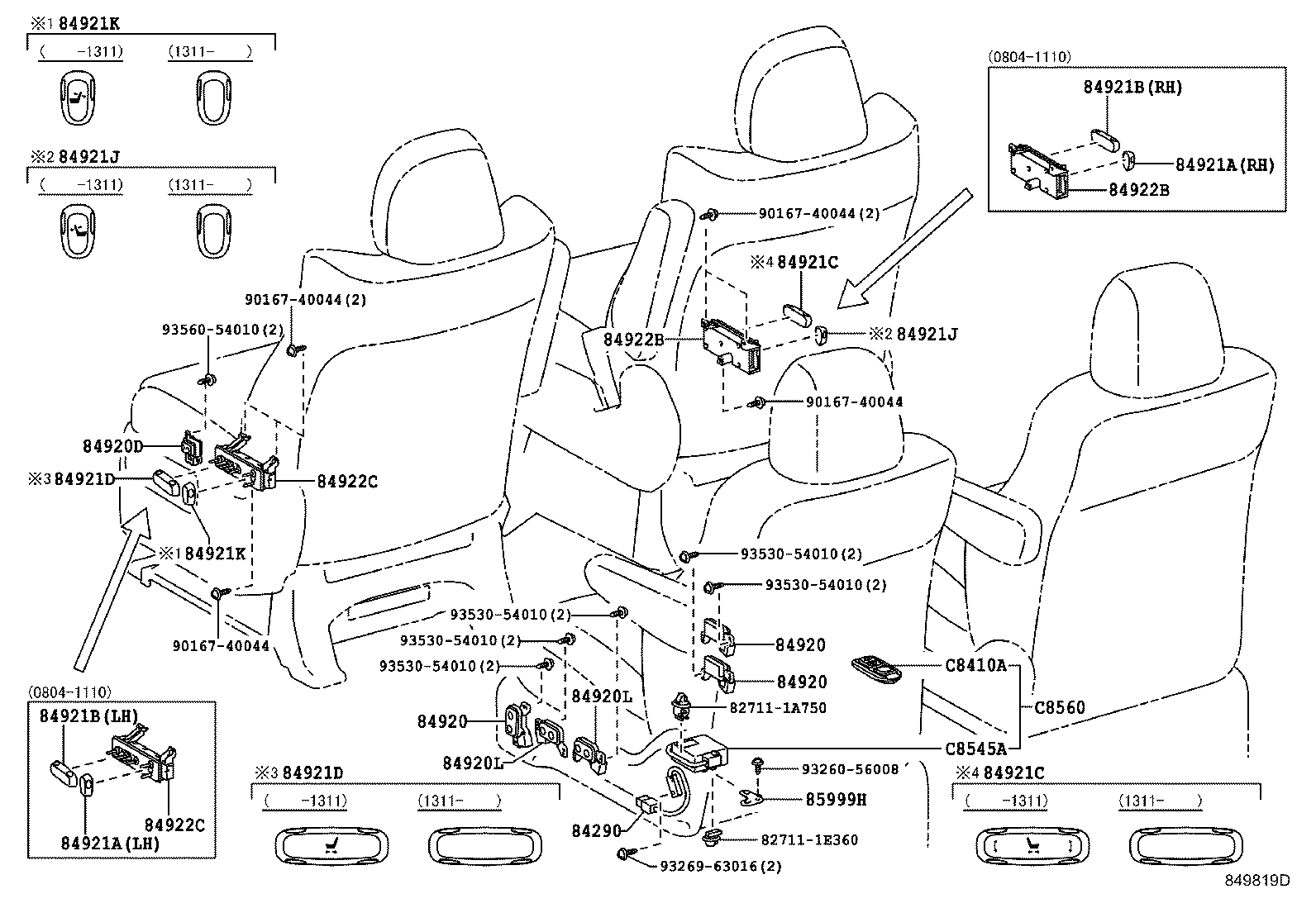

ILLUST NO. 7 OF 8(0804- )ANH25,GGH25..07S ; (0804- )ANH20,ATH20,GGH20..07S
ｼｰﾄ(ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84290 - SWITCH ASSY, LIMIT | ||||
| 84290-D1080 |
GGH2#..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-D1040C0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM1# |
3 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-D1040C0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM1# |
3 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-D1040C0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM1# |
3 | ||
| 84920D - SWITCH ASSY, POWER SEAT FRONT, LH | ||||
| 84920-58010A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 84920-58010C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1# |
1 | ||
| 84920L - SWITCH ASSY, POWER SEAT, NO.2 | ||||
| 84920-D1050C0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM1# |
2 | ||
| 84920L - SWITCH ASSY, POWER SEAT, NO.2 | ||||
| 84920-D1050C0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM1# |
2 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-60110A2 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,右側 |
1 | ||
| 84921-60110C0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *296 or *297,BLACK,TRIM1#,右側 |
1 | ||
| 84921-60120A3 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,左側 |
1 | ||
| 84921-60120C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,左側 |
1 | ||
| 84921-60110C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,右側 |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-60110A2 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,右側 |
1 | ||
| 84921-60110C0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *296 or *297,BLACK,TRIM1#,右側 |
1 | ||
| 84921-60120A3 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,左側 |
1 | ||
| 84921-60120C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,左側 |
1 | ||
| 84921-60110C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,右側 |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-60100C0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *296 or *297,BLACK,TRIM1#,右側 |
1 | ||
| 84921-60100C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,右側 |
1 | ||
| 84921-60100A2 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,右側 |
1 | ||
| 84921-60070C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,左側 |
1 | ||
| 84921-60070A2 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,左側 |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-60100C0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *296 or *297,BLACK,TRIM1#,右側 |
1 | ||
| 84921-60100C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,右側 |
1 | ||
| 84921-60100A2 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,右側 |
1 | ||
| 84921-60070C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,左側 |
1 | ||
| 84921-60070A2 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,左側 |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84070-58010 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261 |
1 | ||
| 84070-58010 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 84070-58010 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *296 or *297 |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84070-58010 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261 |
1 | ||
| 84070-58010 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 84070-58010 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *296 or *297 |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-60110 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-60110 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 85999H - BRACKET, RELAY | ||||
| 85999-D1320 |
GGH2#..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| C8410A - SWITCH ASSY, POWER LIFT CONTROL | ||||
| C8410-D1161 |
GGH2#..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| C8545A - RELAY, POWER LIFT CONTROL | ||||
| C8545-D1400 |
GGH2#..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| C8560 - RELAY ASSY, LIFTER | ||||
| C8560-D1051 |
GGH2#..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| Common parts | ||||
| 82711-1A750 | ||||
| 82711-1E360 | ||||
| 90167-40044 | ||||
| 93260-56008 | ||||
| 93269-63016 | ||||
| 93530-54010 | ||||
| 93560-54010 | ||||

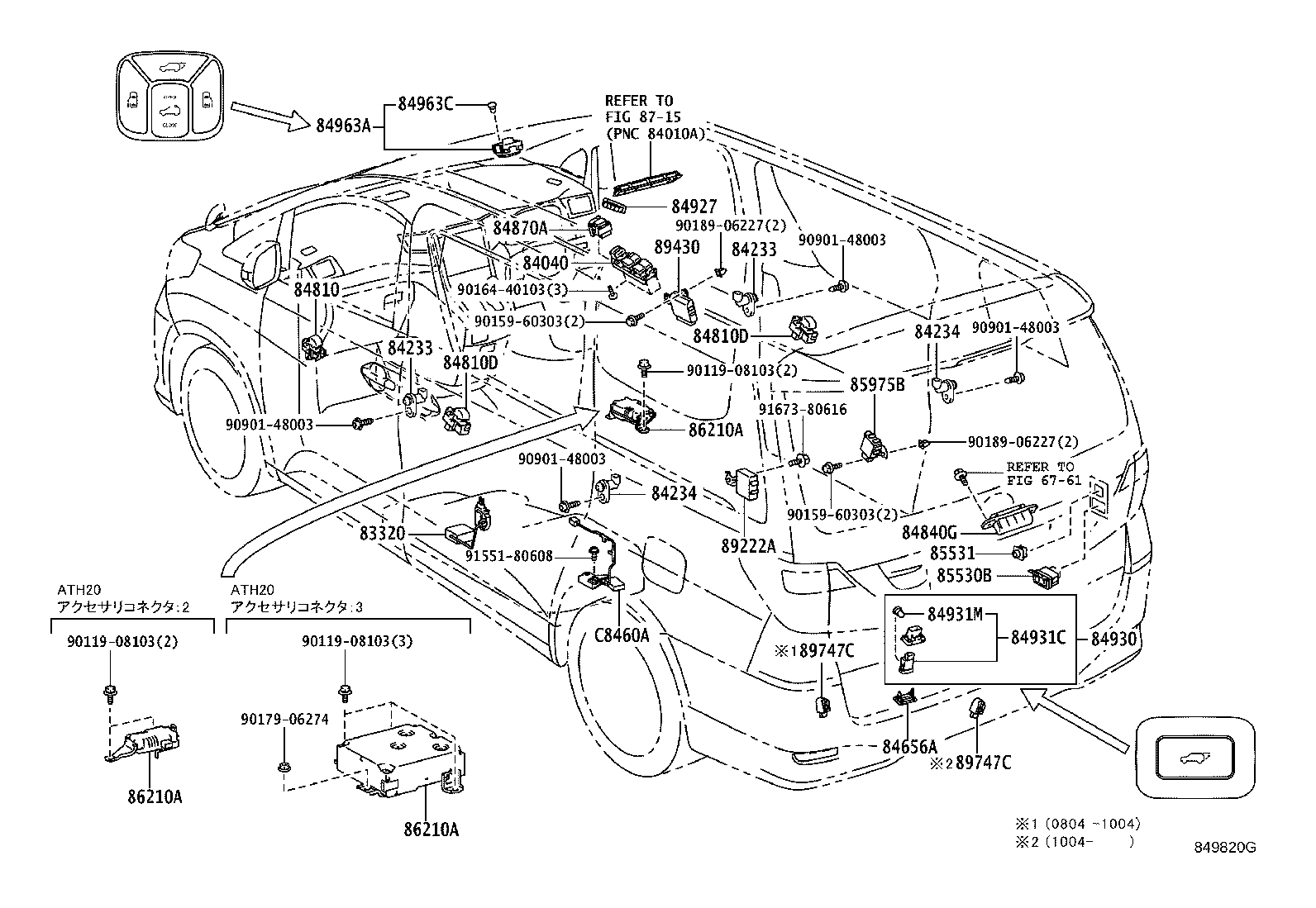

ILLUST NO. 8 OF 8(0804- )
ﾄﾞｱ, ﾙｰﾌ, ﾌﾛｱ & ﾊﾞｯｸﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-28520 |
ANH2#,GGH2#..CBU |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-33080 |
ANH2#,GGH2#..CBU |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
ANH2#,GGH2#..CBU |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
ANH2#,GGH2#..CBU |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
ANH2#,GGH2#..CBU |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
ANH2#,GGH2#..CBU |
2 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-58020A0 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),SHELL,TRIM0# |
1 | ||
| 84656-58020B0 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),DK.GRAY,TRIM1# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-33120 |
ANH2#,GGH2#..CBU |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33120 |
ANH2#,GGH2#..CBU |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33120 |
ANH2#,GGH2#..CBU |
2 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-72010 |
ANH2#,GGH2#..CBU |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-58020 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *274 or *275 |
1 | ||
| 84872-58020 |
GGH2#..07S..(350S,35Z)..CBU *274 or *275&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ |
1 | ||
| 84872-58020 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 84872-58020 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 84872-58020 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261 |
1 | ||
| 84872-58010 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU |
1 | ||
| 84872-58020 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶｰﾄﾞ ﾓｹｯﾄ |
1 | ||
| 84872-58020 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *296 or *297 |
1 | ||
| 84872-58020 |
GGH2#..07S..(350S,35Z)..CBU *296 or *297&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-58010 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *296 or *297 |
1 | ||
| 84927-58010 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-58050 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 84931C - SWITCH, BACK DOOR CONTROL | ||||
| 84930-58010 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 84931M - BULB, DOOR CONTROL SWITCH | ||||
| 90010-01039 |
GGH2#..07S..(350S,35Z)..CBU 14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯNﾄﾞｱ) |
1 | ||
| 84963A - SWITCH, POWER SLIDE DOOR CONTROL, NO.2 | ||||
| 84010-58130 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 84010-58110 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 84963C - BULB, POWER SLIDE CONTROL SWITCH, NO.2 | ||||
| 90010-01143 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU 14V 1.4W,有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 90010-01143 |
GGH2#..07S..(350S,35Z)..CBU 14V 1.4W,有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 85975B - RELAY, SLIDE DOOR CLOSER, RH | ||||
| 85975-58020 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-58030 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86210-58030 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-58030 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86210-58030 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-58030 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 86210-58030 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-58011 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 89430-58010 |
GGH2#..07S..(350S,35Z) Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 89430-58012 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261 |
1 | ||
| 89430-58011 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261 |
1 | ||
| 89430-58012 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 89430-58012 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *274 or *275 |
1 | ||
| 89430-58012 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *296 or *297 |
1 | ||
| 89747C - BUZZER, POWER SLIDE BACK DOOR WARNING | ||||
| 89747-52010 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 89747C - BUZZER, POWER SLIDE BACK DOOR WARNING | ||||
| 89747-52010 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| C8460A - SWITCH ASSY, LIMIT, LH NO.2 | ||||
| C8460-D1230 |
GGH2#..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| Common parts | ||||
| 90119-08103 | ||||
| 90159-60303 | ||||
| 90164-40103 | ||||
| 90179-06274 | ||||
| 90189-06227 | ||||
| 90901-48003 | ||||
| 91551-80608 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 3 OF 8(0804- )
ｴﾝｼﾞﾝﾙｰﾑ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
2AZFE,2GRFE..ANH2#,GGH2#..CBU |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
2AZFE,2GRFE..ANH2#,GGH2#..CBU |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08203 |
GGH2#..07S..(350S,35Z)..CBU 80A,ｵｽ端子,黒,寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞ戟[ｷ制御付き) |
1 | ||
| 90982-08203 |
ANH2#,GGH2#..CBU 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08203 |
GGH2#..CBU 80A,ｵｽ端子,黒,寒冷地仕様 |
1 | ||
| 90982-08203 |
GGH2#..07S..(350S,35Z)..CBU 80A,ｵｽ端子,黒,ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付ｫ) |
1 | ||
| 90982-08295 |
ANH2#,GGH2#..CBU 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08296 |
ANH2#,GGH2#..CBU 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08294 |
ANH2#,GGH2#..CBU 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08203 |
GGH2#..07S..(350S,35Z)..CBU 80A,ｵｽ端子,黒,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｸﾙｰｽﾞｺﾝgﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 90982-08228 |
ANH2#,ATH20,GGH2#..CBU 50A,ｵｽ端子,赤 |
1 | ||
| 90982-08296 |
ANH2#,ATH20,GGH2#..CBU 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08294 |
ANH2#,ATH20,GGH2#..CBU 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08295 |
ANH2#,ATH20,GGH2#..CBU 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08203 |
ANH2#,ATH20,GGH2#..CBU 80A,ｵｽ端子,黒 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
ANH2#,GGH2#..CBU 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09023 |
ANH2#,GGH2#..CBU 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
ANH2#,GGH2#..CBU 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
ANH2#,GGH2#..CBU 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09020 |
ANH2#,GGH2#..CBU 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-28080 |
ANH2#,GGH2#..CBU |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-28270 |
ANH2#,GGH2#..CBU |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-28250 |
ANH2#,GGH2#..CBU |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-58020 |
GGH2#..CBU |
1 | ||
| 82662-58020 |
GGH2#..CBU 寒冷地仕様 |
1 | ||
| 82662-58021 |
ANH2#,GGH2#..CBU |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-58040 |
GGH2#..CBU |
1 | ||
| 82662-58041 |
GGH2#..CBU |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-28140 |
ANH2#,GGH2#..CBU 寒冷地仕様 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-28050 |
ANH2#,GGH2#..CBU |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-28040 |
ANH2#,GGH2#..CBU |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-28060 |
ANH2#,GGH2#..CBU 寒冷地仕様 |
1 | ||
| 82663-28060 |
GGH2#..07S..(350S,35Z)..CBU 寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82663-28060 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-28020 |
ANH2#,GGH2#..CBU |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-28010 |
ANH2#,GGH2#..CBU |
1 | ||
| 82742A - BLOCK, ENGINE ROOM RELAY, NO.5 | ||||
| 82742-28020 |
GGH2#..07S..(350S,35Z)..CBU 寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82742-28020 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 82742-28020 |
ANH2#,GGH2#..CBU 寒冷地仕様 |
1 | ||
| 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 | ||||
| 82743-28030 |
GGH2#..CBU |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
ANH2#,GGH2#..CBU |
2 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02027 |
ANH2#,GGH2#..CBU 寒冷地仕様 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04004 |
ANH2#,GGH2#..CBU |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
ANH2#,GGH2#..CBU |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
ANH2#,GGH2#..CBU |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-04010 |
ANH2#,GGH2#..CBU |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
GGH2#..CBU |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
GGH2#..CBU |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
ANH2#,GGH2#..CBU |
1 | ||
| 86530A - RELAY, HORN | ||||
| 90987-02027 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) GｰBOOK−有り(DCM) |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02025 |
ANH2#,GGH2#..CBU 寒冷地仕様 |
3 | ||
| Common parts | ||||
| 82715-28G80 | ||||
| 82715-28J30 | ||||
| 90119-06952 | ||||
| 90467-05167 | ||||
| 91551-80612 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
