GGH25W-PFTSK (2008)

Toyota Alphard/Vellfire/Hv

Production Apr 2008 - Oct 2011
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0804- )

Click highlighted areas on diagram

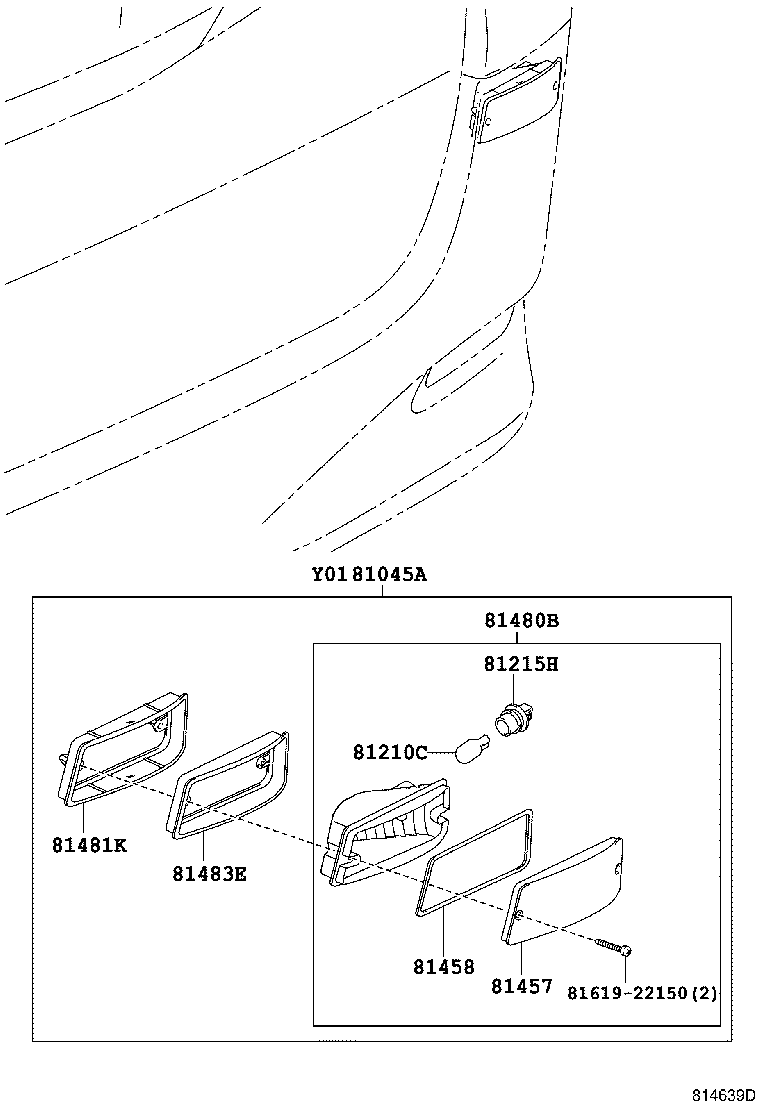

diagram 81045A 81210C 81215H 81457 81458 81480B 81481K 81483E 8161922150
Part # Description Qty Price
81045A - LAMP SET, REAR FOG
81045-58020

ANH2#,GGH2#..240S,24Z,350S,35Z

***,ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)

 1
81210C - BULB, REAR FOG LAMP
90981-13043

ANH2#,GGH2#..CBU

12V 21W,ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)

 1
81215H - SOCKET, REAR FOG LAMP
90075-99080

ANH2#,GGH2#..CBU

ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)

 1
81457 - LENS, REAR FOG LAMP
81457-58010

ANH2#,GGH2#..CBU

ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)

 1
81458 - PACKING, REAR FOG LAMP
81458-58010

ANH2#,GGH2#..CBU

ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)

 1
81480B - LAMP ASSY, REAR FOG
81480-58010

ANH2#,GGH2#..CBU

ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)

 1
81481K - BRACKET, REAR FOG LAMP
81481-58040

ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU

ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)

 1
81483E - PROTECTOR, REAR FOG LAMP
81483-58020

ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU

ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)

 1
Common parts
81619-22150
