GGH25W-PFTSK (2008)

Toyota Alphard/Vellfire/Hv

Production Apr 2008 - Oct 2011
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0804- )

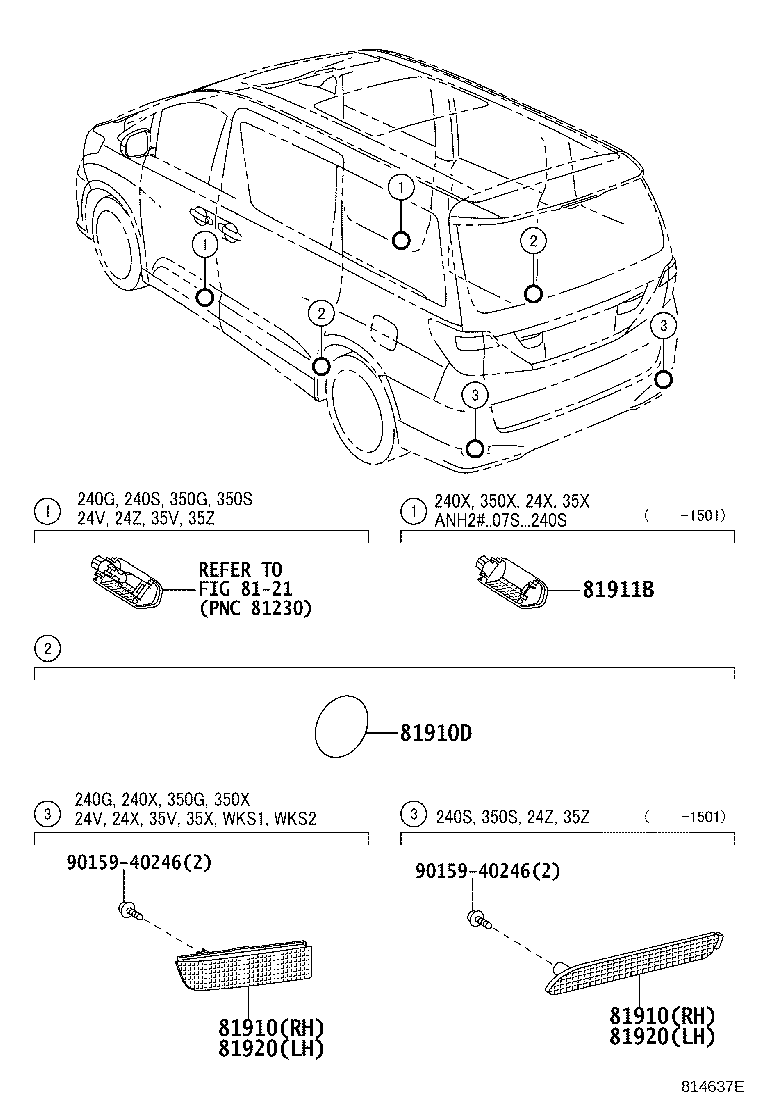

Click highlighted areas on diagram

diagram 8121 81910 81910 81910D 81911B 81920 81920 9015940246 9015940246
Part # Description Qty Price
81910 - REFLECTOR ASSY, REFLEX, RH
81910-48012

ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU

 1
81910 - REFLECTOR ASSY, REFLEX, RH
81910-48012

ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU

 1
81910D - REFLECTOR ASSY, REFLEX, REAR
81910-21030

ANH2#,GGH2#..CBU

 2
81920 - REFLECTOR ASSY, REFLEX, LH
81920-48012

ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU

 1
81920 - REFLECTOR ASSY, REFLEX, LH
81920-48012

ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU

 1
Common parts
90159-40246
Linked diagrams
8121
