GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv
Production
Apr 2008
-
Oct 2011
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0804- )ALPHD

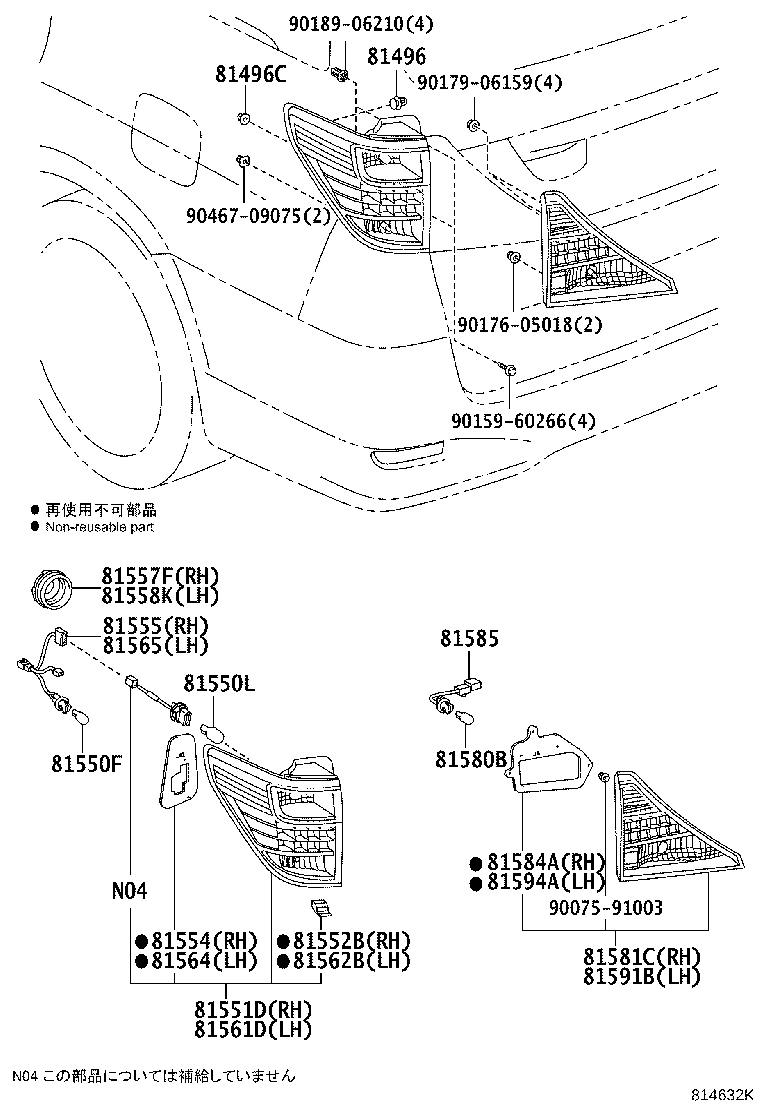

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-28010 |
ANH2#,GGH2#..CBU |
2 | ||
| 81496C - GUIDE, REAR COMBINATION LAMP, NO.2 | ||||
| 81496-58010 |
ANH2#,GGH2#..CBU |
2 | ||
| 81550F - BULB, TAIL LAMP | ||||
| 99132-12050 |
ANH2#,GGH2#..ALPHD..CBU |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15021 |
ANH2#,GGH2#..CBU |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-58070 |
ANH2#,GGH2#..(240S,350S)..CBU |
1 | ||
| 81552B - PACKING, REAR COMBINATION LAMP BODY, RH | ||||
| 81552-58060 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-58060 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-58060 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 81557F - COVER, REAR COMBINATION LAMP BACK, RH | ||||
| 90075-66004 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 81558K - COVER, REAR COMBINATION LAMP BACK, LH | ||||
| 90075-66004 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-58070 |
ANH2#,GGH2#..(240S,350S)..CBU |
1 | ||
| 81562B - PACKING, REAR COMBINATION LAMP BODY, LH | ||||
| 81552-58060 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81564-58060 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81565-58060 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 81580B - BULB (FOR REAR LAMP) | ||||
| 99132-12050 |
ANH2#,GGH2#..ALPHD..CBU 12V 5W |
2 | ||
| 81581C - LENS AND BODY, REAR LAMP, RH | ||||
| 81581-58130 |
ANH2#,GGH2#..(240S,350S)..CBU |
1 | ||
| 81584A - GASKET, REAR LAMP RH | ||||
| 81584-58120 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 81585 - SOCKET & WIRE, REAR LAMP | ||||
| 81585-58120 |
ANH2#,GGH2#..ALPHD..CBU |
2 | ||
| 81591B - LENS AND BODY, REAR LAMP, LH | ||||
| 81591-58130 |
ANH2#,GGH2#..(240S,350S)..CBU |
1 | ||
| 81594A - GASKET, REAR LAMP LH | ||||
| 81594-58120 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| Common parts | ||||
| 90075-91003 | ||||
| 90159-60266 | ||||
| 90176-05018 | ||||
| 90179-06159 | ||||
| 90189-06210 | ||||
| 90467-09075 | ||||
