GGH25W-PFTSK (2008)

Toyota Alphard/Vellfire/Hv

Production Apr 2008 - Oct 2011
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0804-1110)240S,350S

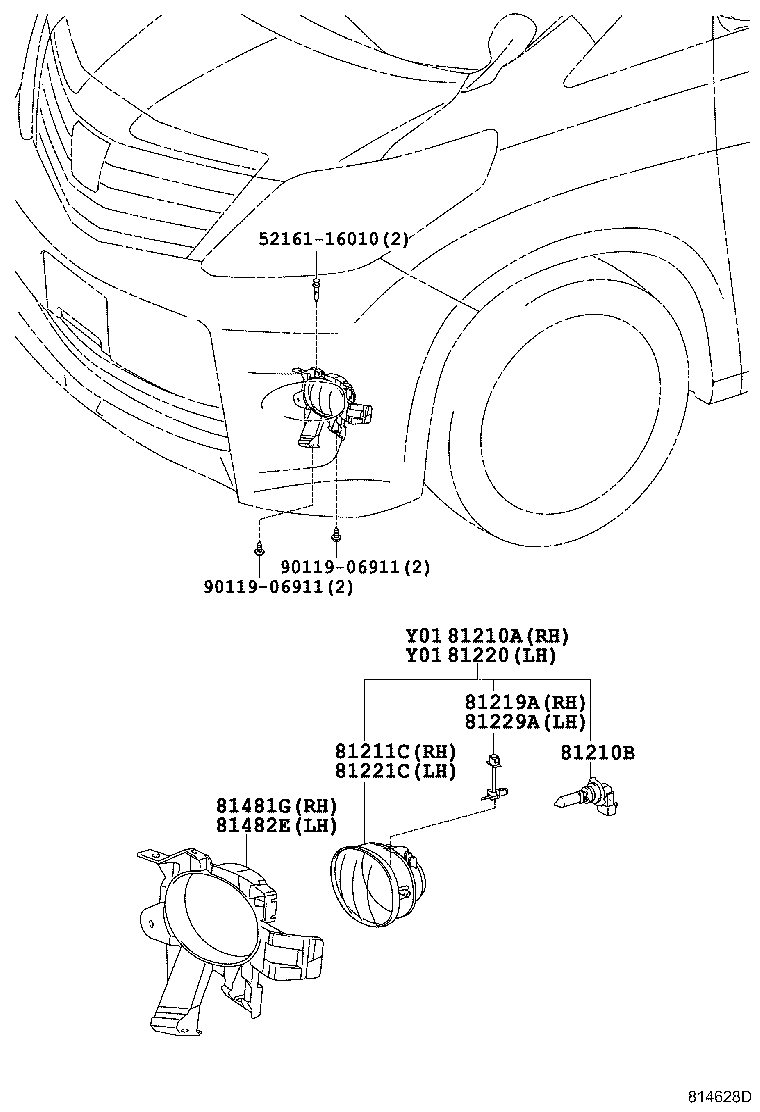

Click highlighted areas on diagram

diagram 5216116010 81210A 81210B 81211C 81219A 81220 81221C 81229A 81481G 81482E 9011906911 9011906911
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-42050

ANH2#,GGH2#..(240S,24V,24X,350S,35V,35X)..CBU

 1
81210B - BULB, FOG LAMP
90981-13047

ANH2#,GGH2#..CBU

12V 55W,ﾊﾛｹﾞﾝ

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-42050

ANH2#,GGH2#..(240S,24V,24X,350S,35V,35X)..CBU

 1
81219A - BRACKET, FOG LAMP, RH
81218-42050

ANH2#,GGH2#..(240S,24V,24X,350S,35V,35X)..CBU

 1
81220 - LAMP ASSY, FOG, LH
81220-42050

ANH2#,GGH2#..(240S,24V,24X,350S,35V,35X)..CBU

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-42050

ANH2#,GGH2#..(240S,24V,24X,350S,35V,35X)..CBU

 1
81229A - BRACKET, FOG LAMP, LH
81228-42050

ANH2#,GGH2#..(240S,24V,24X,350S,35V,35X)..CBU

 1
81481G - BRACKET, FOG LAMP, RH
81481-58080

ANH2#,GGH2#..(240S,350S)..CBU

 1
81482E - BRACKET, FOG LAMP, LH
81482-58060

ANH2#,GGH2#..(240S,350S)..CBU

 1
Common parts
52161-16010
90119-06911
