GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv
(0804- )GGH2#..ALPHD ; (1004- )07S..240S ;(1110- )HBDG,HBDSR

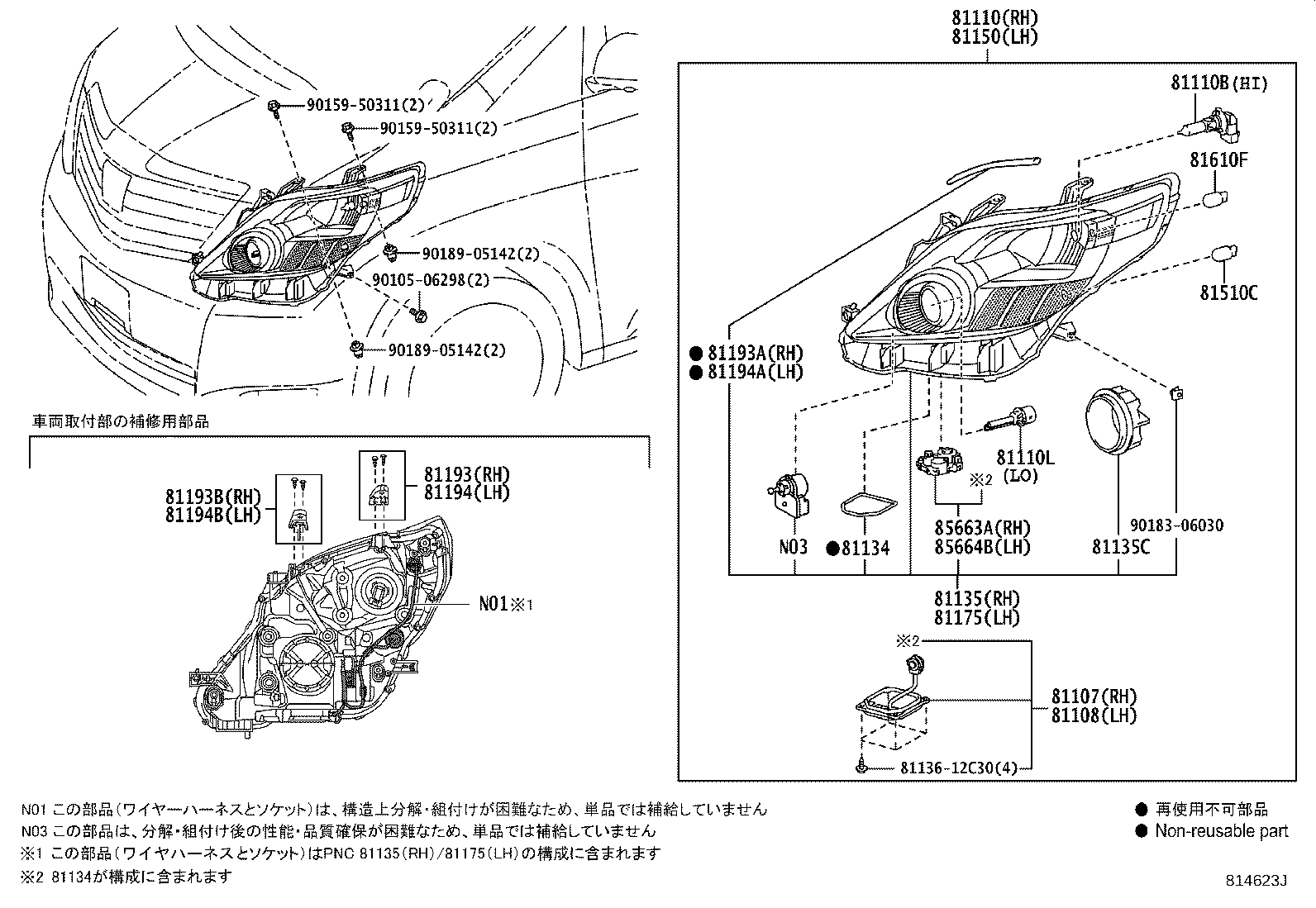

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-52680 |
ANH2#,GGH2#..CBU |
1 | ||
| 81107-52681 |
ANH2#,GGH2#..CBU |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-52681 |
ANH2#,GGH2#..CBU |
1 | ||
| 81107-52680 |
ANH2#,GGH2#..CBU |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-58120 |
GGH2#..350S..CBU |
1 | ||
| 81110-58121 |
GGH2#..350S..CBU |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
ANH2#,GGH2#..CBU 12V65W(SAE),60W(ECE) |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20019 |
ANH2#,GGH2#..CBU 45V 35W |
2 | ||
| 90981-20028 |
ANH2#,GGH2#..CBU 45V 35W |
2 | ||
| 90981-20018 |
ANH2#,GGH2#..CBU 45V 35W |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68007 |
ANH2#,GGH2#..CBU |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-58120 |
GGH2#..350S..CBU |
1 | ||
| 81145-58121 |
GGH2#..350S..CBU |
1 | ||
| 81135C - COVER, HEADLAMP BACK, NO.1 | ||||
| 81135-58050 |
ANH2#,GGH2#..CBU |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-58120 |
GGH2#..350S..CBU |
1 | ||
| 81150-58121 |
GGH2#..350S..CBU |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-58120 |
GGH2#..350S..CBU |
1 | ||
| 81185-58121 |
GGH2#..350S..CBU |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-58030 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 81193A - PROTECTOR, HEADLAMP, RH | ||||
| 81117-58240 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-58040 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-58030 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 81194A - PROTECTOR, HEADLAMP, LH | ||||
| 81117-58240 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-58040 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
ANH2#,GGH2#..CBU 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
ANH2#,GGH2#..(240G,240S,240X,350G,350S,350X,35Z)..CBU 12V 5W |
2 | ||
| 85663A - MOTOR, HEADLAMP SWIVEL, RH | ||||
| 81129-58101 |
GGH2#..(350G,350S,350X,35Z)..CBU |
2 | ||
| 81129-58100 |
GGH2#..CBU |
1 | ||
| 81129-58101 |
GGH2#..(350G,350S,350X,35Z)..CBU |
1 | ||
| 85664B - MOTOR, HEADLAMP SWIVEL, LH | ||||
| 81169-58100 |
GGH2#..CBU |
1 | ||
| 81169-58101 |
GGH2#..(350G,350S,350X,35Z)..CBU |
1 | ||
| 81169-58101 |
GGH2#..(350G,350S,350X,35Z)..CBU |
2 | ||
| Common parts | ||||
| 81136-12C30 | ||||
| 90105-06298 | ||||
| 90159-50311 | ||||
| 90183-06030 | ||||
| 90189-05142 | ||||
