Toyota Alphard/vellfire/hv GGH25 FUEL TANK & TUBE

GGH25W-PFTSK (2008)

Toyota Alphard/Vellfire/Hv

Production Apr 2008 - Oct 2011

Engine 2GRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

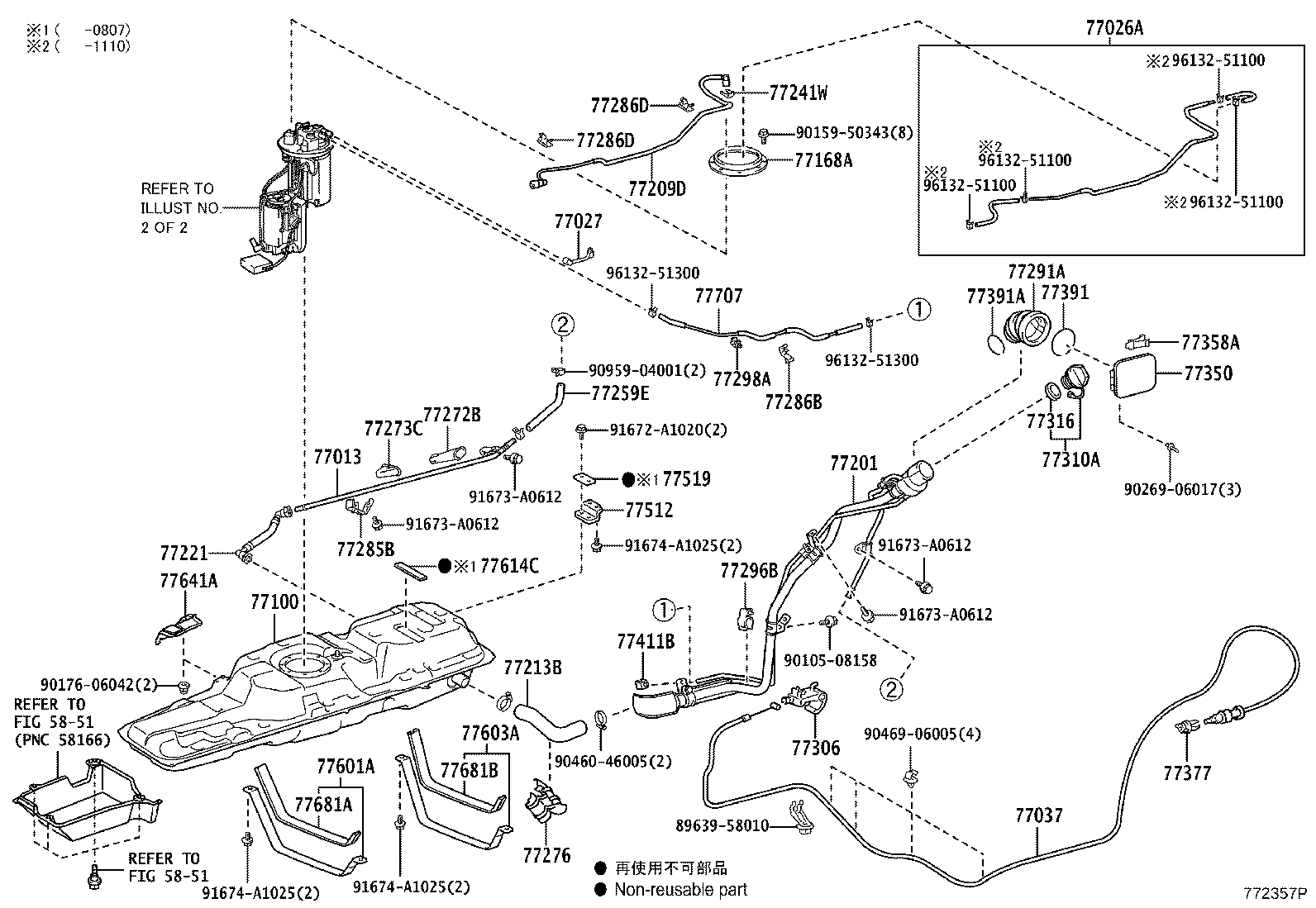

ILLUST NO. 1 OF 3(0804- )

Click highlighted areas on diagram

ﾌｭｰｴﾙﾀﾝｸ

Part #	Description	Period	Qty
77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2
77013-28080	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-28130	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
77027-28010	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-58020	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77100 - TANK ASSY, FUEL
77001-28551	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77168A - PLATE, FUEL TANK VENT TUBE SET
77168-52020	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-58030	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77209D - TUBE SUB-ASSY, FUEL TANK MAIN
77209-28050	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-28050	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77221 - TUBE, FUEL TANK BREATHER, NO.1
77221-28110	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77241W - CLIP, TUBE JOINT
77241-60320	ANH2#,GGH2#..CBU	04/2008 - 07/2010	1
77241-33011	ANH2#,GGH2#..CBU	08/2010 - 10/2011	1
77259E - HOSE, FUEL
77259-58030	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77272B - SUPPORT, BREATHER TUBE, NO.1
77272-28050	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77273C - SUPPORT, BREATHER TUBE, NO.2
77273-28010	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77276 - PROTECTOR, FUEL HOSE
77276-28010	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1
77285-28030	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77285-28040	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77286D - CLAMP, FUEL TUBE, NO.2
77286-58010	ANH2#,GGH2#..CBU	11/2008 - 10/2011	2
77286-32070	ANH2#,GGH2#..CBU	04/2008 - 10/2008	2
77286D - CLAMP, FUEL TUBE, NO.2
77286-58010	ANH2#,GGH2#..CBU	11/2008 - 10/2011	2
77286-32070	ANH2#,GGH2#..CBU	04/2008 - 10/2008	2
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-58010	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1
77296-58010	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77298A - CLAMP, FUEL TUBE, NO.4
77298-30170	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-28060B1	ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU GRAY,TRIM0#,1#	04/2008 - 03/2010	1
77306-58020A0	GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0#	04/2010 - 10/2011	1
77306-58020B0	ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1#	04/2010 - 10/2011	1
77310A - CAP ASSY, FUEL TANK
77300-52030	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77316 - GASKET, FUEL TANK CAP
77316-52040	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77350 - LID ASSY, FUEL FILLER OPENING
77350-58020	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77358A - STOPPER, FUEL FILLER OPENING LID
77358-30060	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-12050	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77391 - RING, FUEL INLET BOX
77391-28010	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77391A - RING, FUEL INLET BOX
77391-28020	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77411B - SUPPORT, FUEL TUBE GROMMET, NO.1
77411-20050	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77512 - BRACKET, FUEL TANK, REAR
77512-28020	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77519 - SPACER, FUEL TANK BRACKET
77529-28010	ANH2#,GGH2#..CBU	04/2008 - 07/2008	1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-28100	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77603A - BAND SUB-ASSY, FUEL TANK, NO.2
77602-28030	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77614C - SEAL, FUEL TANK COVER
77614-52020	ANH2#,GGH2#..CBU	04/2008 - 07/2008	2
77641A - PROTECTOR, FUEL TANK, NO.1
77641-28120	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77681A - SEAT, FUEL TANK BAND
77616-68010	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77681B - SEAT, FUEL TANK BAND
77681-28060	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET
77707-28020	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
Common parts
89639-58010
90105-08158
90159-50343
90176-06042
90269-06017
90460-46005
90469-06005
90959-04001
91672-A1020
91673-A0612
91674-A1025
96132-51100
96132-51300
Linked diagrams
5851

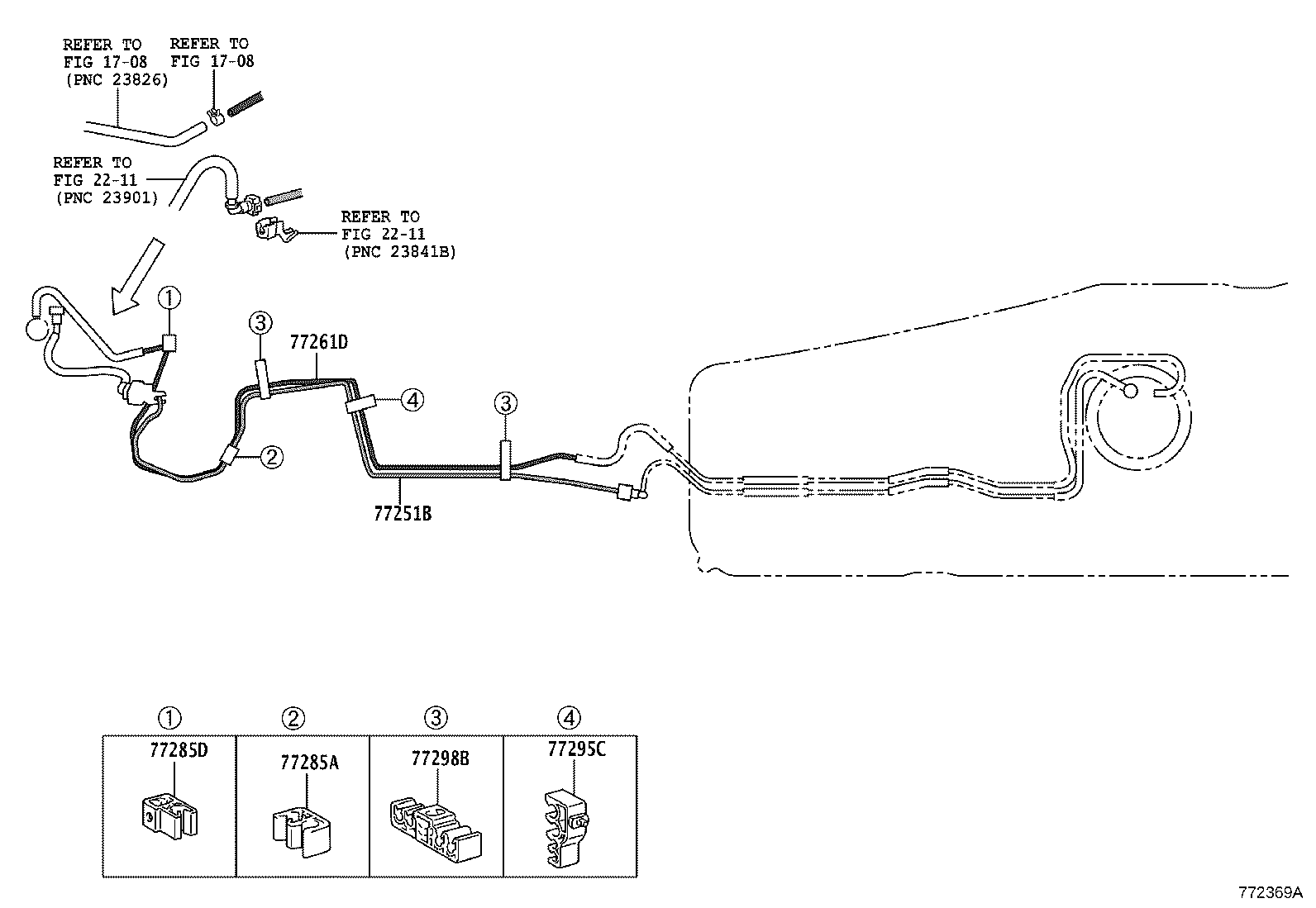

ILLUST NO. 3 OF 3(0804- )

Click highlighted areas on diagram

ﾌｭｰｴﾙﾁｭｰﾌﾞ

Part #	Description	Period	Qty
77251B - TUBE, FUEL MAIN
77251-28220	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77261D - TUBE, FUEL TANK TO CANISTER
77261-28070	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77285A - SUPPORT, FUEL RETURN AND MAIN TUBE
77285-42110	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77285D - CLAMP, FUEL TUBE, NO.1
77285-52010	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77295C - GROMMET, FUEL TUBE
77295-33020	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77298B - CLAMP, FUEL TUBE, NO.4
77298-52070	ANH2#,GGH2#..CBU	04/2008 - 10/2011	2
Linked diagrams
1708
2211

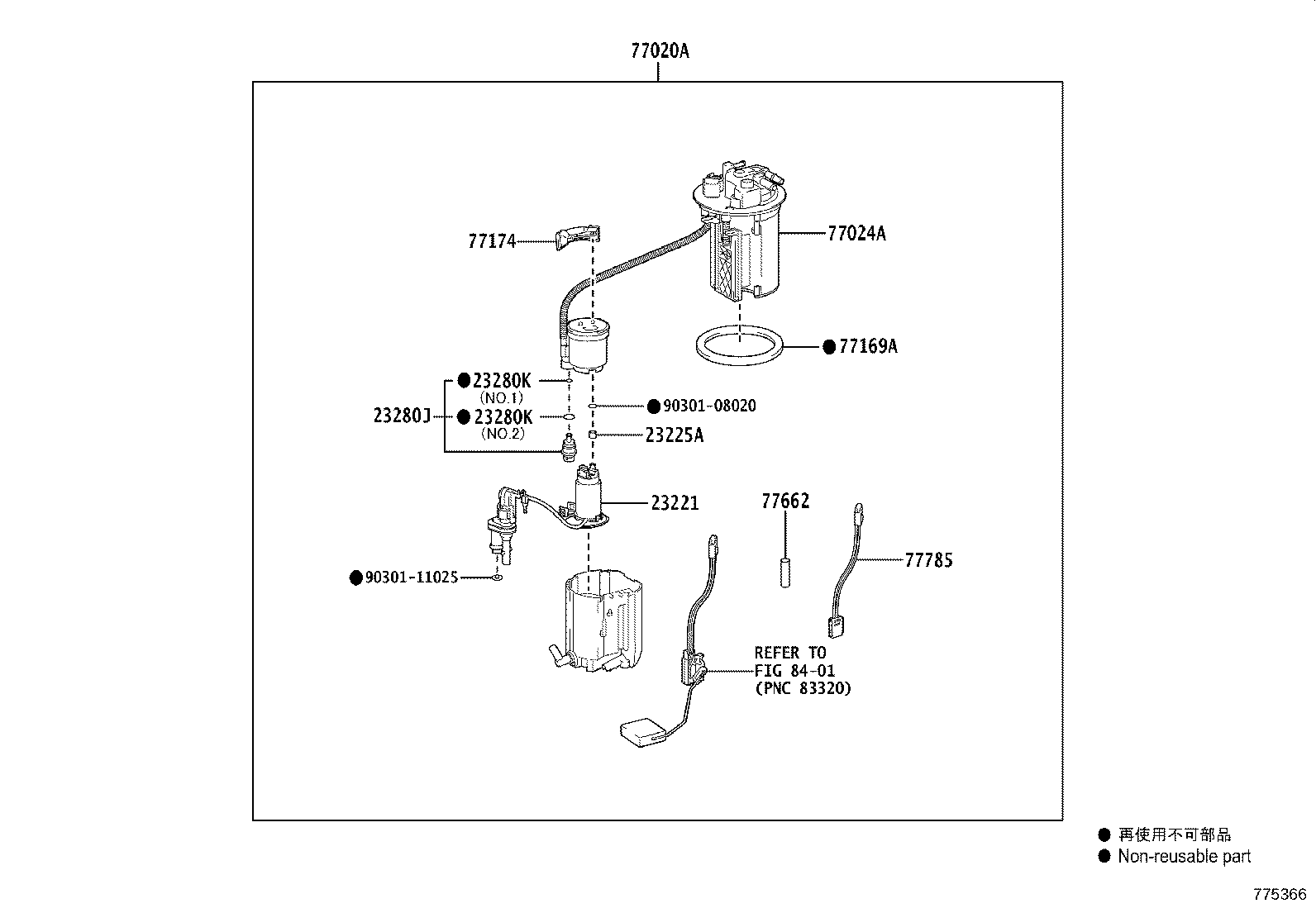

ILLUST NO. 2 OF 3(0804- )

Click highlighted areas on diagram

ﾌｭｰｴﾙﾎﾟﾝﾌﾟ

Part #	Description	Period	Qty
23221 - PUMP, FUEL
23220-31350	2GRFE..GGH2#..CBU	04/2008 - 10/2011	1
23225A - SPACER, FUEL PUMP
23225-21020	2AZFE,2GRFE..ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
23280J - REGULATOR ASSY, FUEL PRESSURE
23280-21010	2AZFE,2GRFE..ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
23280K - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-04013	2AZFE,2GRFE..ANH2#,GGH2#..CBU NO.1	04/2008 - 10/2011	1
90301-15024	2AZFE,2GRFE..ANH2#,GGH2#..CBU NO.2	04/2008 - 10/2011	1
23280K - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-04013	2AZFE,2GRFE..ANH2#,GGH2#..CBU NO.1	04/2008 - 10/2011	1
90301-15024	2AZFE,2GRFE..ANH2#,GGH2#..CBU NO.2	04/2008 - 10/2011	1
77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77020-58010	GGH2#..CBU	04/2008 - 10/2011	1
77024A - PLATE SUB-ASSY, FUEL SUCTION
77024-28060	ANH2#,GGH2#..CBU	02/2009 - 10/2011	1
77024-58010	ANH2#,GGH2#..CBU	04/2008 - 01/2009	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-52010	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77174 - SUPPORT, FUEL SUCTION, NO.1
77174-72020	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77662 - COVER, FUEL TANK GAGE
77662-53010	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
77785 - HARNESS, FUEL PUMP
77785-28010	ANH2#,GGH2#..CBU	04/2008 - 10/2011	1
Common parts
90301-08020
90301-11025
Linked diagrams
8401
