GGH25W-PFTSK (2008)

Toyota Alphard/Vellfire/Hv

Production Apr 2008 - Oct 2011
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0804-1110)

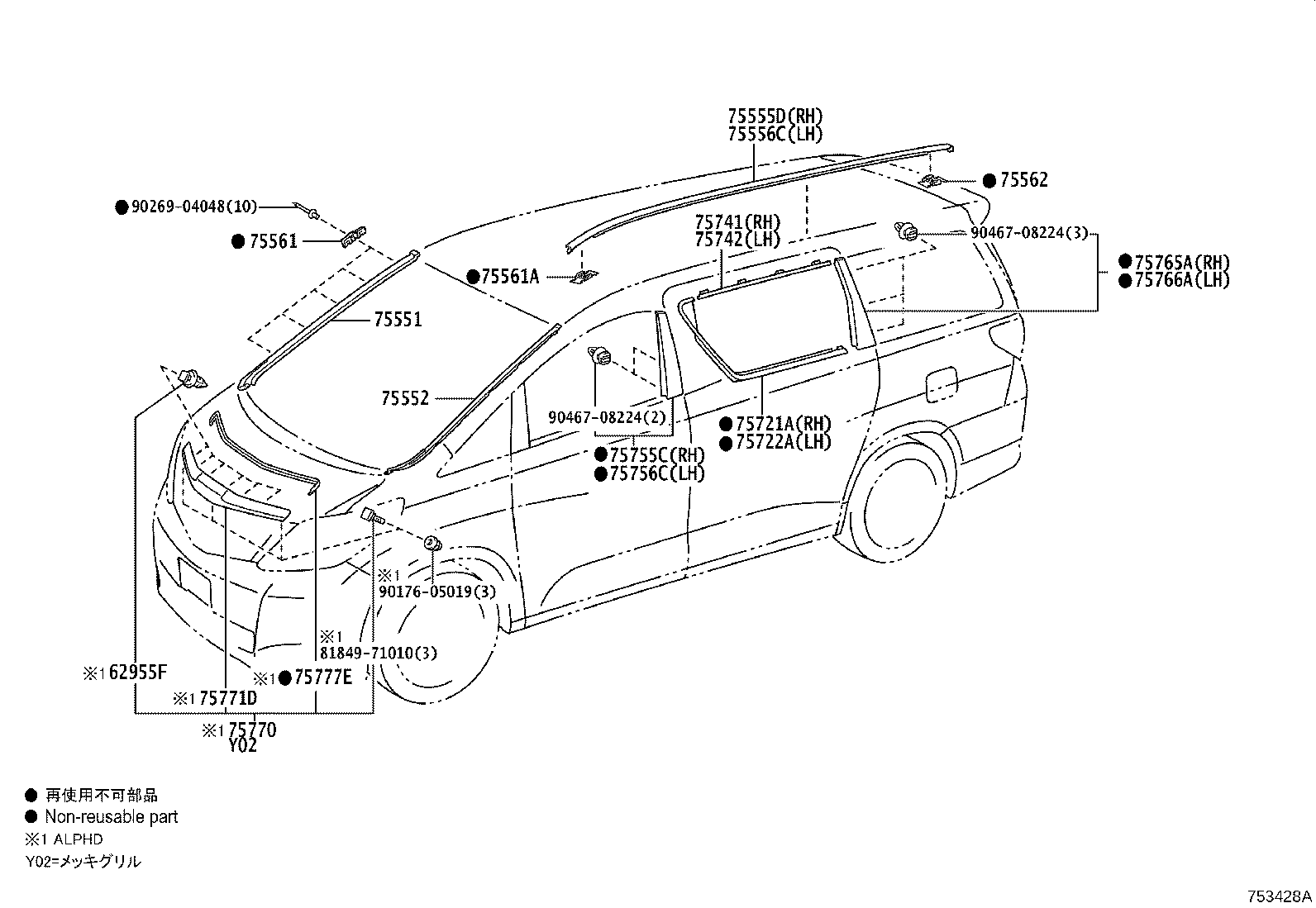

Click highlighted areas on diagram

diagram 62955F 75551 75552 75555D 75556C 75561 75561A 75562 75721A 75722A 75741 75742 75755C 75756C 75765A 75766A 75770 75771D 75777E 8184971010 9017605019 9026904048 9046708224 9046708224
Part # Description Qty Price
62955F - RETAINER, QUARTER VENT LOUVER
62955-50010

ANH2#,GGH2#..ALPHD..CBU

 6
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-58020

ANH2#,GGH2#..CBU

塗装不要

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-58020

ANH2#,GGH2#..CBU

塗装不要

 1
75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75555-58020

ANH2#,GGH2#..CBU

 1
75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75556-58020

ANH2#,GGH2#..CBU

 1
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75545-58020

ANH2#,GGH2#..CBU

 10
75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING
75561-52040

ANH2#,GGH2#..CBU

 2
75562 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2
75561-52040

ANH2#,GGH2#..CBU

 2
75721A - MOULDING, REAR DOOR BELT, RH
75721-58020

ANH2#,GGH2#..CBU

 1
75722A - MOULDING, REAR DOOR BELT, LH
75722-58020

ANH2#,GGH2#..CBU

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-58020

ANH2#,GGH2#..CBU

塗装不要

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-58020

ANH2#,GGH2#..CBU

塗装不要

 1
75755C - MOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75755-58020

ANH2#,GGH2#..CBU

 1
75756C - MOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75756-58020

ANH2#,GGH2#..CBU

 1
75765A - MOULDING, REAR DOOR WINDOW FRAME, REAR RH
75765-58020

ANH2#,GGH2#..CBU

 1
75766A - MOULDING, REAR DOOR WINDOW FRAME, REAR LH
75766-58020

ANH2#,GGH2#..CBU

 1
75770 - MOULDING ASSY, HOOD, FRONT
75770-58010

ANH2#,GGH2#..ALPHD..CBU

ﾒｯｷ

 1
75771D - MOULDING, FRONT PANEL, UPPER
75771-58010

ANH2#,GGH2#..ALPHD..CBU

 1
75777E - PAD, HOOD FRONT MOULDING
75777-58010

ANH2#,GGH2#..ALPHD..CBU

 1
Common parts
81849-71010
90176-05019
90269-04048
90467-08224
