GGH25W-PFTSK (2008)

Toyota Alphard/Vellfire/Hv

Production Apr 2008 - Oct 2011
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0804-1110)

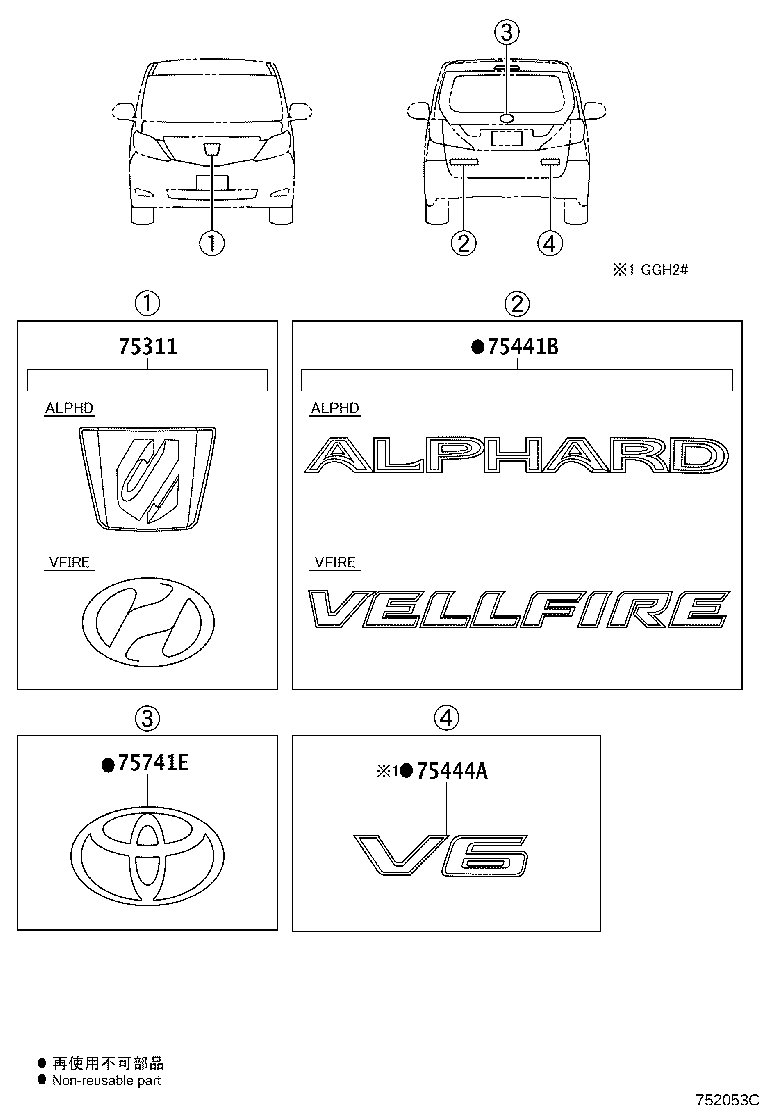

Click highlighted areas on diagram

diagram 75311 75441B 75444A 75741E
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75301-58060

ANH2#,GGH2#..ALPHD..CBU

 1
75311-58060

GGH2#..07S..350S..CBU

Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)

 1
75311-58060

GGH2#..07S..350S..CBU

Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞﾓﾆﾀ)

 1
75441B - PLATE, BACK DOOR NAME
75441-58030

ANH2#,GGH2#..ALPHD..CBU

ALPHARD

 1
75444A - PLATE, BACK DOOR NAME, NO.4
75444-58030

GGH2#..CBU

V6

 1
75741E - EMBLEM, SYMBOL
90975-02066

ANH2#,GGH2#..CBU

 1
