GGH25W-PFTSK (2008)

Toyota Alphard/Vellfire/Hv

Production Apr 2008 - Oct 2011
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0804- )ANH2#,GGH2#

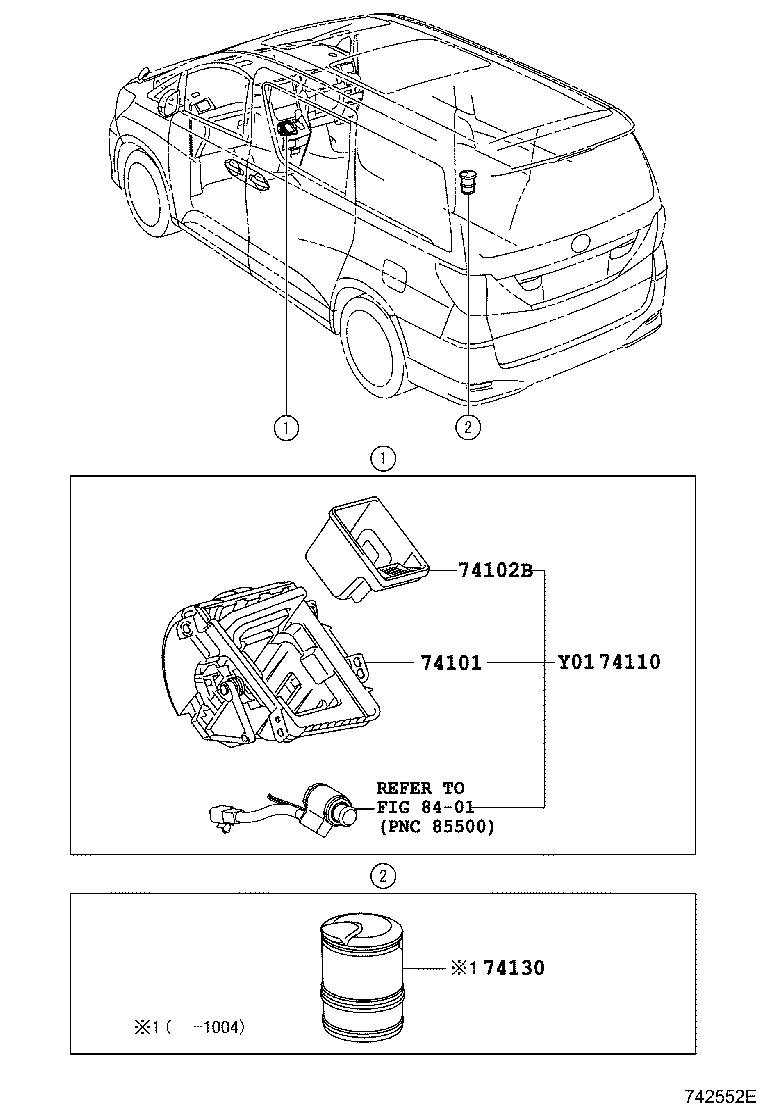

Click highlighted areas on diagram

diagram 74101 74102B 74110 74130 8401
Part # Description Qty Price
74101 - RECEPTACLE SUB-ASSY, FRONT ASH
74101-58010

ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU

灰皿−ﾌﾛﾝﾄ:1個&ﾘﾔ:1個

 1
74101-58010

ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU

灰皿−ﾌﾛﾝﾄ:1個&ﾘﾔ:無し

 1
74101-58020

GGH2#..07S..(350S,35Z)..CBU

Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&灰皿−ﾌﾛﾝﾄ:1個&ﾘﾔ:1個

 1
74101-58020

GGH2#..07S..(350S,35Z)..CBU

Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&灰皿−ﾌﾛﾝﾄ:1個&ﾘﾔ:無し

 1
74101-58040

ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU

*274 or *275&灰皿−ﾌﾛﾝﾄ:1個&ﾘﾔ:無し&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ

 1
74101-58040

ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU

*296 or *297&灰皿−ﾌﾛﾝﾄ:1個&ﾘﾔ:無し&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ

 1
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-12410

ANH2#,GGH2#..CBU

灰皿−ﾌﾛﾝﾄ:1個&ﾘﾔ:1個

 1
74102-12410

ANH2#,GGH2#..CBU

灰皿−ﾌﾛﾝﾄ:1個&ﾘﾔ:無し

 1
74102-12410

GGH2#..07S..(350S,35Z)..CBU

Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&灰皿−ﾌﾛﾝﾄ:1個&ﾘﾔ:1個

 1
74102-12410

ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU

*274 or *275&灰皿−ﾌﾛﾝﾄ:1個&ﾘﾔ:無し&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ

 1
74102-12410

ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU

*296 or *297&灰皿−ﾌﾛﾝﾄ:1個&ﾘﾔ:無し&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ

 1
74102-12410

GGH2#..07S..(350S,35Z)..CBU

Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&灰皿−ﾌﾛﾝﾄ:1個&ﾘﾔ:無し

 1
74110 - RECEPTACLE ASSY, INSTRUMENT PANEL ASH
74110-58100

ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU

***,灰皿−ﾌﾛﾝﾄ:1個&ﾘﾔ:1個

 1
74110-58120

GGH2#..07S..(350S,35Z)..CBU

***,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&灰皿−ﾌﾛﾝﾄ:1個&ﾘﾔ:1個

 1
74110-58120

GGH2#..07S..(350S,35Z)..CBU

***,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&灰皿−ﾌﾛﾝﾄ:1個&ﾘﾔ:無し

 1
74110-58100

ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU

***,灰皿−ﾌﾛﾝﾄ:1個&ﾘﾔ:無し

 1
74110-58140

ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU

*274 or *275&灰皿−ﾌﾛﾝﾄ:1個&ﾘﾔ:無し&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ

 1
74110-58140

ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU

*296 or *297&灰皿−ﾌﾛﾝﾄ:1個&ﾘﾔ:無し&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ

 1
74130 - RECEPTACLE ASSY, REAR ASH
74130-28040C0

GGH2#..07S..(350S,35Z)..CBU

BLACK,TRIM0#,1#

 1
74130-42010

ANH2#,GGH2#..CBU

 1
Linked diagrams
8401
