GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv

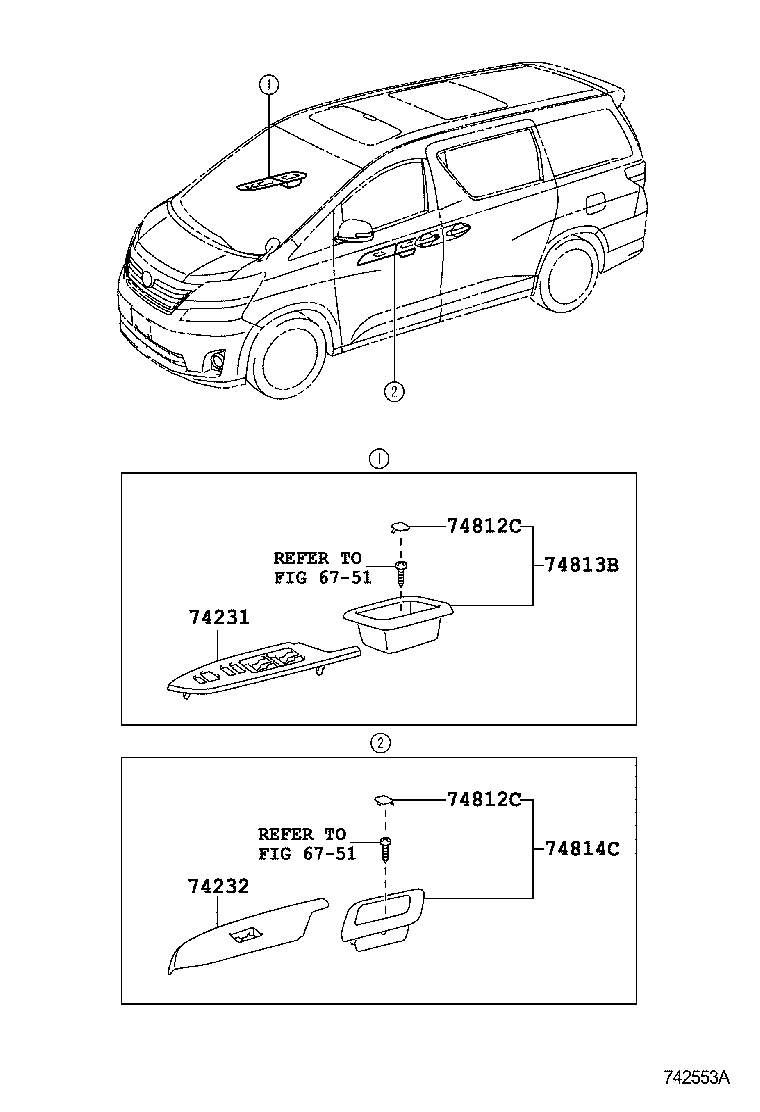

ILLUST NO. 1 OF 2(0804- )
ｱｰﾑﾚｽﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-58060 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 74231-58030B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 74231-58100 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶｰﾄﾞ ﾓｹｯﾄ |
1 | ||
| 74231-58150 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 74231-58130 |
GGH2#..07S..(350S,35Z)..CBU *274 or *275&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ |
1 | ||
| 74231-58130 |
GGH2#..07S..(350S,35Z)..CBU *296 or *297&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ |
1 | ||
| 74231-58031B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 74231-58180 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-58020B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 74232-58030 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 74232-58090 |
GGH2#..07S..(350S,35Z)..CBU *274 or *275&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ |
1 | ||
| 74232-58080 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 74232-58021B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 74232-58040 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶｰﾄﾞ ﾓｹｯﾄ |
1 | ||
| 74232-58090 |
GGH2#..07S..(350S,35Z)..CBU *296 or *297&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ |
1 | ||
| 74232-58050 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 74812C - COVER, DOOR PULL HANDLE | ||||
| 74812-58010B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶｰﾄﾞ ﾓｹｯﾄ,DK.GRAY,TRIM0#,1# |
2 | ||
| 74812-58010B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM0#,1# |
2 | ||
| 74812-58010B0 |
GGH2#..07S..(350S,35Z)..CBU *296 or *297&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,DK.GRAY,TRIM0#,1# |
2 | ||
| 74812-58010B0 |
GGH2#..07S..(350S,35Z)..CBU *274 or *275&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,DK.GRAY,TRIM0#,1# |
2 | ||
| 74812-58010B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
2 | ||
| 74812-58010B0 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM0#,1# |
2 | ||
| 74812C - COVER, DOOR PULL HANDLE | ||||
| 74812-58010B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶｰﾄﾞ ﾓｹｯﾄ,DK.GRAY,TRIM0#,1# |
2 | ||
| 74812-58010B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM0#,1# |
2 | ||
| 74812-58010B0 |
GGH2#..07S..(350S,35Z)..CBU *296 or *297&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,DK.GRAY,TRIM0#,1# |
2 | ||
| 74812-58010B0 |
GGH2#..07S..(350S,35Z)..CBU *274 or *275&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,DK.GRAY,TRIM0#,1# |
2 | ||
| 74812-58010B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
2 | ||
| 74812-58010B0 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM0#,1# |
2 | ||
| 74813B - HANDLE, FRONT DOOR PULL, RH | ||||
| 74813-58010B1 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 74813-58020B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 74813-58020B0 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 74813-58020B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶｰﾄﾞ ﾓｹｯﾄ,DK.GRAY,TRIM0# |
1 | ||
| 74813-58020B0 |
GGH2#..07S..(350S,35Z)..CBU *296 or *297&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 74813-58020B0 |
GGH2#..07S..(350S,35Z)..CBU *274 or *275&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 74814C - HANDLE, FRONT DOOR PULL, LH | ||||
| 74814-58010B1 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 74814-58020B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶｰﾄﾞ ﾓｹｯﾄ,DK.GRAY,TRIM0# |
1 | ||
| 74814-58020B0 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 74814-58020B0 |
GGH2#..07S..(350S,35Z)..CBU *274 or *275&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 74814-58020B0 |
GGH2#..07S..(350S,35Z)..CBU *296 or *297&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 74814-58020B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| Linked diagrams | ||||
| 6751 | ||||

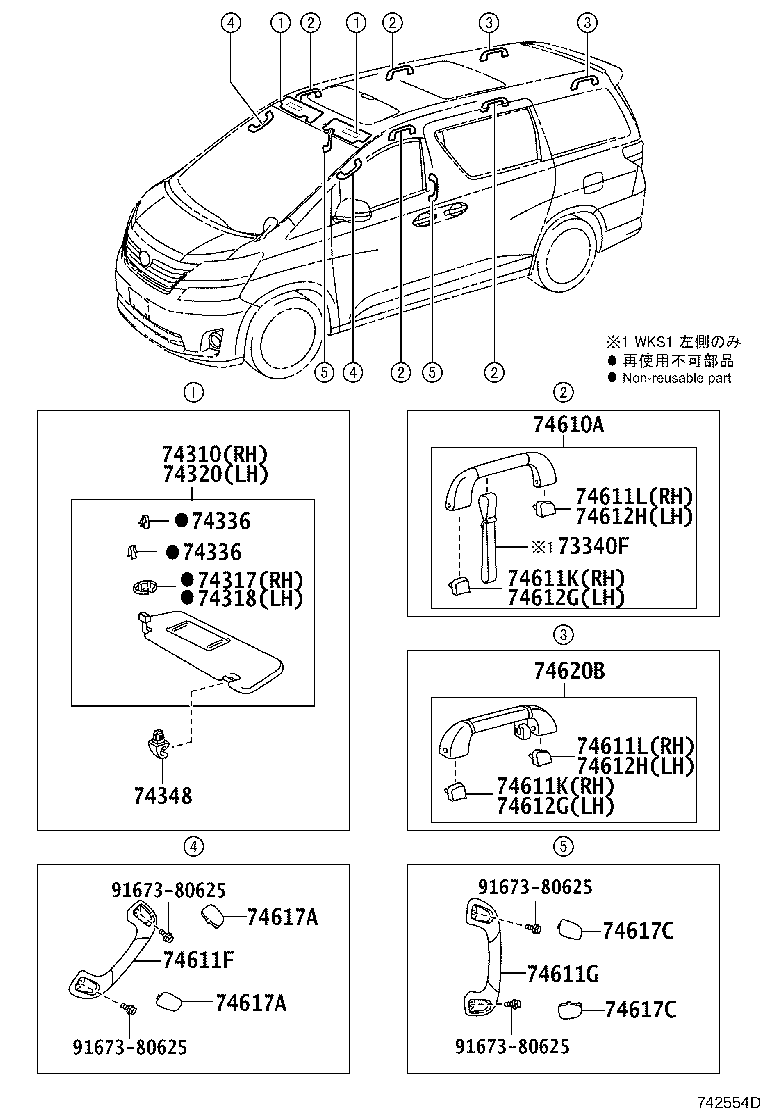

ILLUST NO. 2 OF 2(0804- )
ﾊﾞｲｻﾞ & ｱｼｽﾄｸﾞﾘｯﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-58060B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
1 | ||
| 74310-58060A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-52010A1 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 74317-33010A0 |
GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 74317-52010B1 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
1 | ||
| 74317-33010B1 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74318-52020A1 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 74318-33010A0 |
GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 74318-52020B1 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
1 | ||
| 74318-33010B1 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-58050A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 74320-58050B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
1 | ||
| 74336 - CLIP, VISOR ARM SET | ||||
| 74336-52010 |
ANH2#,GGH2#..CBU |
4 | ||
| 74336-33020 |
ANH2#,GGH2#..CBU |
4 | ||
| 74336 - CLIP, VISOR ARM SET | ||||
| 74336-52010 |
ANH2#,GGH2#..CBU |
4 | ||
| 74336-33020 |
ANH2#,GGH2#..CBU |
4 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-33040B1 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
2 | ||
| 74348-33040A3 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-30240B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
4 | ||
| 74610-30240A3 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
4 | ||
| 74611F - GRIP, ASSIST, NO.1 | ||||
| 74680-58010B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
2 | ||
| 74680-58010A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
2 | ||
| 74611G - GRIP, ASSIST, NO.2 | ||||
| 74680-58010B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
2 | ||
| 74680-58010A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
2 | ||
| 74611K - COVER, ASSIST GRIP, RH FRONT SIDE | ||||
| 74611-60050B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
3 | ||
| 74611-60050A4 |
GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
3 | ||
| 74611K - COVER, ASSIST GRIP, RH FRONT SIDE | ||||
| 74611-60050B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
3 | ||
| 74611-60050A4 |
GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
3 | ||
| 74611L - COVER, ASSIST GRIP, RH REAR SIDE | ||||
| 74612-60100A4 |
GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
3 | ||
| 74612-60100B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
3 | ||
| 74611L - COVER, ASSIST GRIP, RH REAR SIDE | ||||
| 74612-60100A4 |
GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
3 | ||
| 74612-60100B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
3 | ||
| 74612G - COVER, ASSIST GRIP, LH FRONT SIDE | ||||
| 74612-60100A4 |
GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
3 | ||
| 74612-60100B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
3 | ||
| 74612G - COVER, ASSIST GRIP, LH FRONT SIDE | ||||
| 74612-60100A4 |
GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
3 | ||
| 74612-60100B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
3 | ||
| 74612H - COVER, ASSIST GRIP, LH REAR SIDE | ||||
| 74611-60050B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
3 | ||
| 74611-60050A4 |
GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
3 | ||
| 74612H - COVER, ASSIST GRIP, LH REAR SIDE | ||||
| 74611-60050B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
3 | ||
| 74611-60050A4 |
GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
3 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-58010A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
4 | ||
| 74617-58010B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
4 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-58010A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
4 | ||
| 74617-58010B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
4 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-58010A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
4 | ||
| 74617-58010B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
4 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-58010A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
4 | ||
| 74617-58010B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
4 | ||
| 74620B - GRIP ASSY, ASSIST, REAR | ||||
| 74610-30320A3 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0#,右側 |
1 | ||
| 74610-30330A3 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0#,左側 |
1 | ||
| 74610-30320B2 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1#,右側 |
1 | ||
| 74610-30330B2 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1#,左側 |
1 | ||
| Common parts | ||||
| 91673-80625 | ||||
