GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv

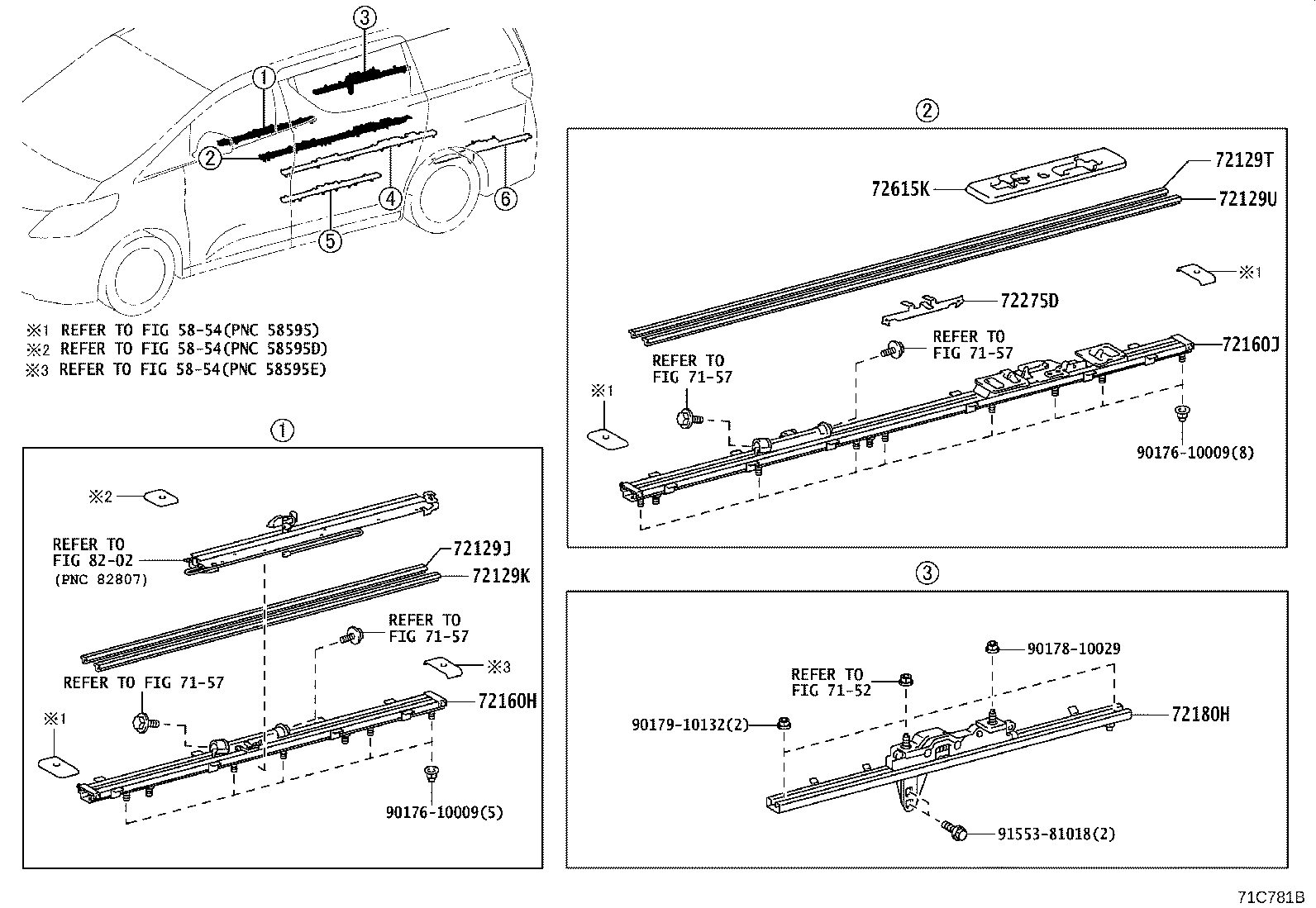

ILLUST NO. 1 OF 2(0804- )07S..240S,24Z,350G,350S,35V,35Z,HBDG,HBDSR,HBDV,HBDZR
ﾗｲﾄ,ｱﾘ(ﾊﾟﾜｰｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72129J - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.1 | ||||
| 72129-58100B0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72129-58100A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 72129K - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.2 | ||||
| 72129-58110A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 72129-58110B0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72129T - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.1 | ||||
| 72129-58090A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 72129-58090B0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72129U - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.2 | ||||
| 72129-58090B0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72129-58090A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 72160H - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-58170 |
ANH2#,GGH2#..07S..CBU |
1 | ||
| 72160-58150 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 72160J - TRACK ASSY, REAR RH SEAT, INNER NO.1 | ||||
| 72170-58160 |
ANH2#,GGH2#..07S..CBU |
1 | ||
| 72180H - TRACK ASSY, REAR RH SEAT, OUTER NO.2 | ||||
| 72180-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 72275D - STOPPER, REAR SEAT TRACK SLIDE, RH NO.1 | ||||
| 72275-58020 |
ANH2#,GGH2#..07S..CBU |
1 | ||
| 72615K - COVER, REAR SEAT LOCK STRIKER, RH | ||||
| 72615-58030B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72615-58030A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| Common parts | ||||
| 90176-10009 | ||||
| 90178-10029 | ||||
| 90179-10132 | ||||
| 91553-81018 | ||||
| Linked diagrams | ||||
| 5854 | ||||
| 7152 | ||||
| 7157 | ||||
| 8202 | ||||

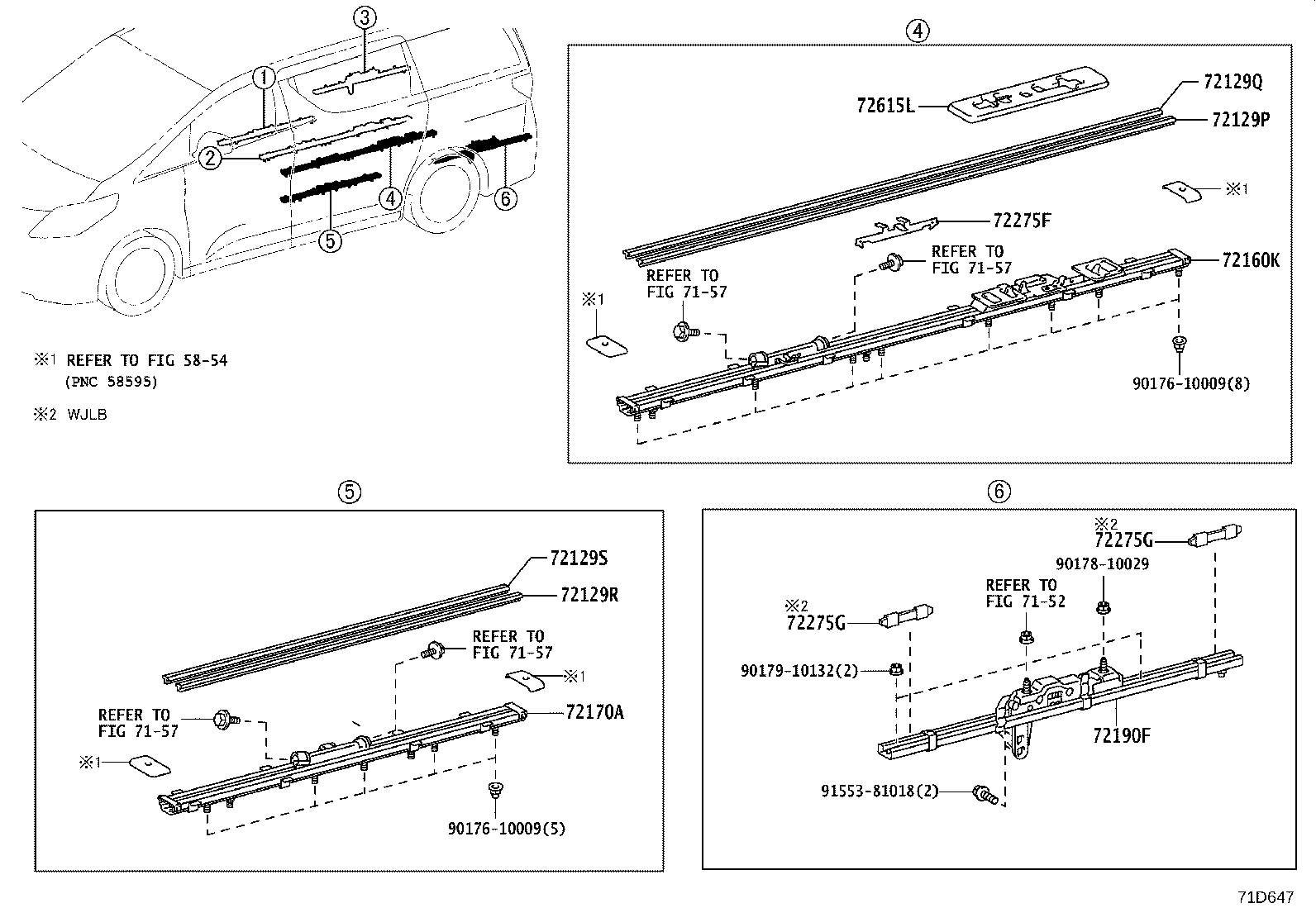

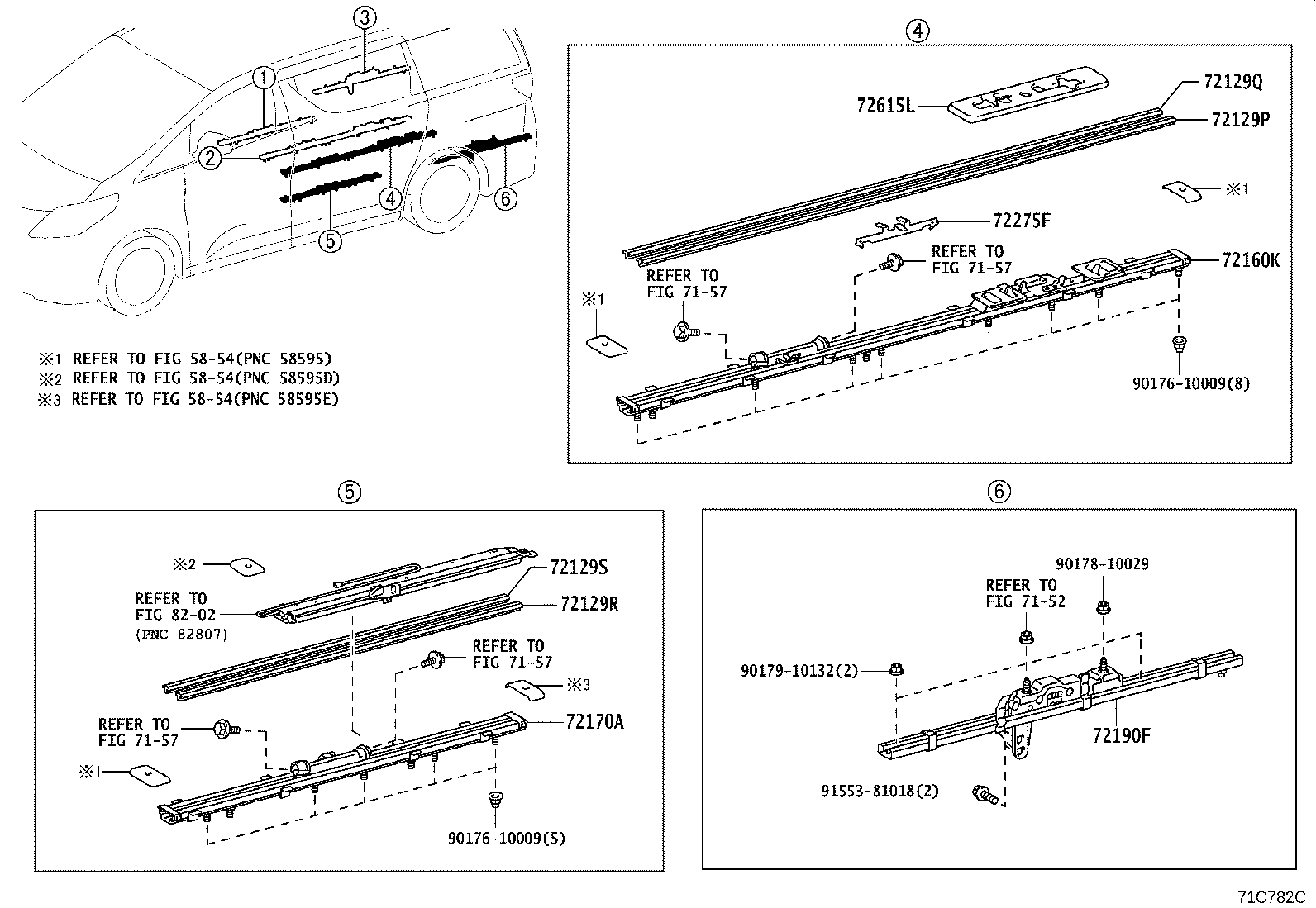

ILLUST NO. 2 OF 2(0804- )07S..240S,24Z,350G,350S,35V,35Z,HBDG,HBDSR,HBDV,HBDZR
ﾚﾌﾄ,ｱﾘ(ﾊﾟﾜｰｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72129P - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.1 | ||||
| 72129-58090A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 72129-58090B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72129-58200B0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),DK.GRAY,TRIM1# |
1 | ||
| 72129-58200B0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),DK.GRAY,TRIM1# |
1 | ||
| 72129-58200B0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ),DK.GRAY,TRIM1# |
1 | ||
| 72129Q - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.2 | ||||
| 72129-58090A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 72129-58200B0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ),DK.GRAY,TRIM1# |
1 | ||
| 72129-58090B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72129-58200B0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),DK.GRAY,TRIM1# |
1 | ||
| 72129-58200B0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),DK.GRAY,TRIM1# |
1 | ||
| 72129R - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.1 | ||||
| 72129-58100A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 72129-58190B0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),DK.GRAY,TRIM1# |
1 | ||
| 72129-58100B0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72129S - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.2 | ||||
| 72129-58110A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 72129-58110B0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72160K - TRACK ASSY, REAR LH SEAT, INNER NO.1 | ||||
| 72160-58160 |
ANH2#,GGH2#..07S..(240G,240S,24V,24Z,350G,350S,35V,35Z)..CBU |
1 | ||
| 72170A - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72170-58170 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 72170-58180 |
ANH2#,GGH2#..07S..(240G,240S,24V,24Z,350G,350S,35V,35Z)..CBU |
1 | ||
| 72190F - TRACK ASSY, REAR LH SEAT, OUTER NO.2 | ||||
| 72190-58040 |
ANH2#,GGH2#..CBU |
1 | ||
| 72275F - STOPPER, REAR SEAT TRACK SLIDE, LH NO.1 | ||||
| 72275-58020 |
ANH2#,GGH2#..07S..CBU |
1 | ||
| 72615L - COVER, REAR SEAT LOCK STRIKER, LH | ||||
| 72615-58020B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72615-58020A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| Common parts | ||||
| 90176-10009 | ||||
| 90178-10029 | ||||
| 90179-10132 | ||||
| 91553-81018 | ||||
| Linked diagrams | ||||
| 5854 | ||||
| 7152 | ||||
| 7157 | ||||
| 8202 | ||||

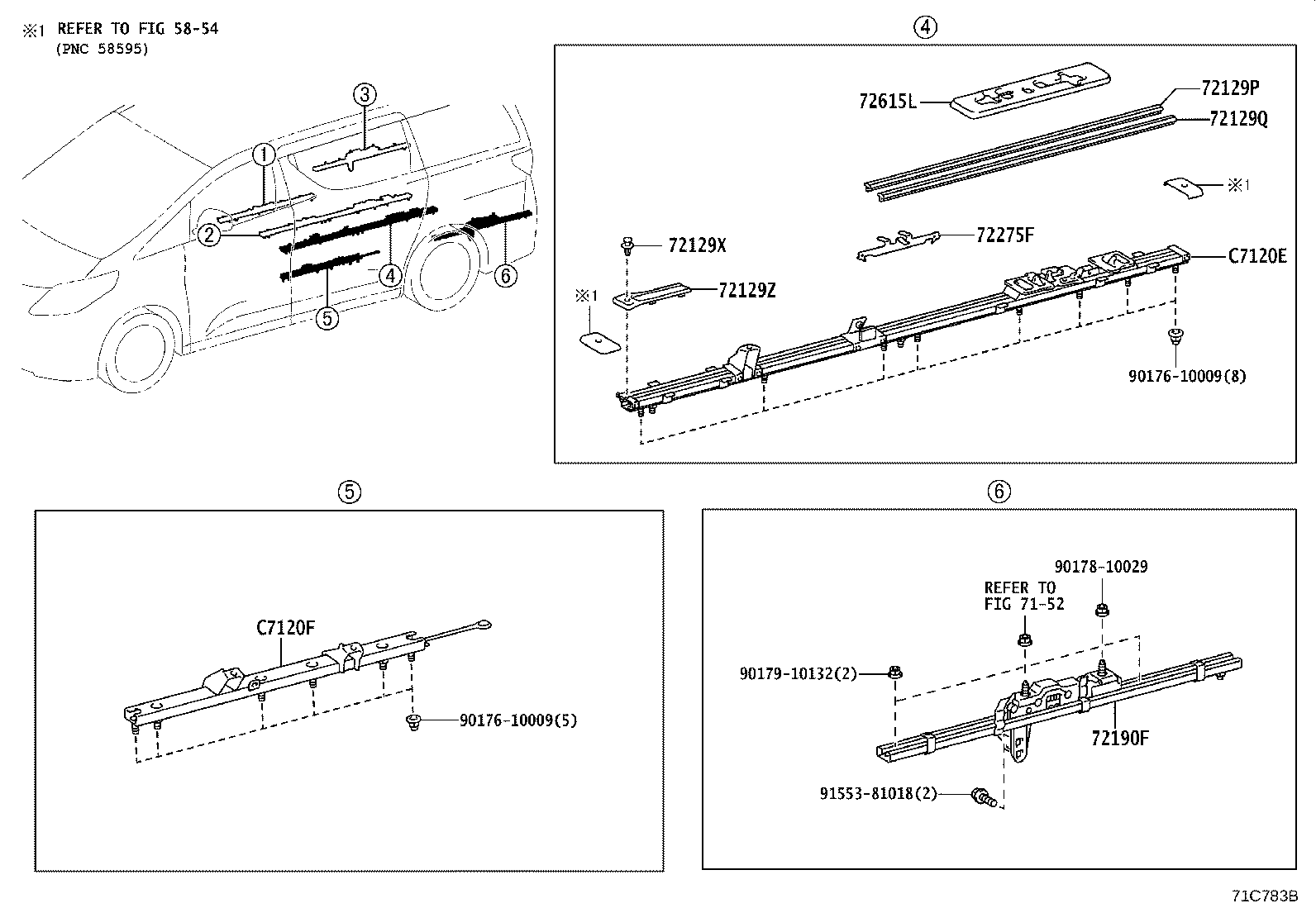

ILLUST NO. 2 OF 2(0804- )07S
ﾚﾌﾄ ｱﾘ(ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72129P - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.1 | ||||
| 72129-58090A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 72129-58090B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72129-58200B0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),DK.GRAY,TRIM1# |
1 | ||
| 72129-58200B0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),DK.GRAY,TRIM1# |
1 | ||
| 72129-58200B0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ),DK.GRAY,TRIM1# |
1 | ||
| 72129Q - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.2 | ||||
| 72129-58090A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 72129-58200B0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ),DK.GRAY,TRIM1# |
1 | ||
| 72129-58090B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72129-58200B0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),DK.GRAY,TRIM1# |
1 | ||
| 72129-58200B0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),DK.GRAY,TRIM1# |
1 | ||
| 72129X - CLIP(FOR SEAT TRACK LOWER RAIL PROTECTOR) | ||||
| 90467-07066P6 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),DK.GRAY,TRIM1# |
1 | ||
| 72190F - TRACK ASSY, REAR LH SEAT, OUTER NO.2 | ||||
| 72190-58040 |
ANH2#,GGH2#..CBU |
1 | ||
| 72275F - STOPPER, REAR SEAT TRACK SLIDE, LH NO.1 | ||||
| 72275-58020 |
ANH2#,GGH2#..07S..CBU |
1 | ||
| 72615L - COVER, REAR SEAT LOCK STRIKER, LH | ||||
| 72615-58020B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72615-58020A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| C7120E - LEG ASSY, WELCAB SEAT, LH INNER | ||||
| C7120-58050 |
GGH2#..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ) |
1 | ||
| C7120-58050 |
GGH2#..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| C7120-58050 |
GGH2#..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ) |
1 | ||
| C7120F - LEG ASSY, WELCAB SEAT, LH OUTER | ||||
| C7120-58060 |
GGH2#..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ) |
1 | ||
| C7120-58060 |
GGH2#..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ) |
1 | ||
| C7120-58060 |
GGH2#..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| Common parts | ||||
| 90176-10009 | ||||
| 90178-10029 | ||||
| 90179-10132 | ||||
| 91553-81018 | ||||
| Linked diagrams | ||||
| 5854 | ||||
| 7152 | ||||

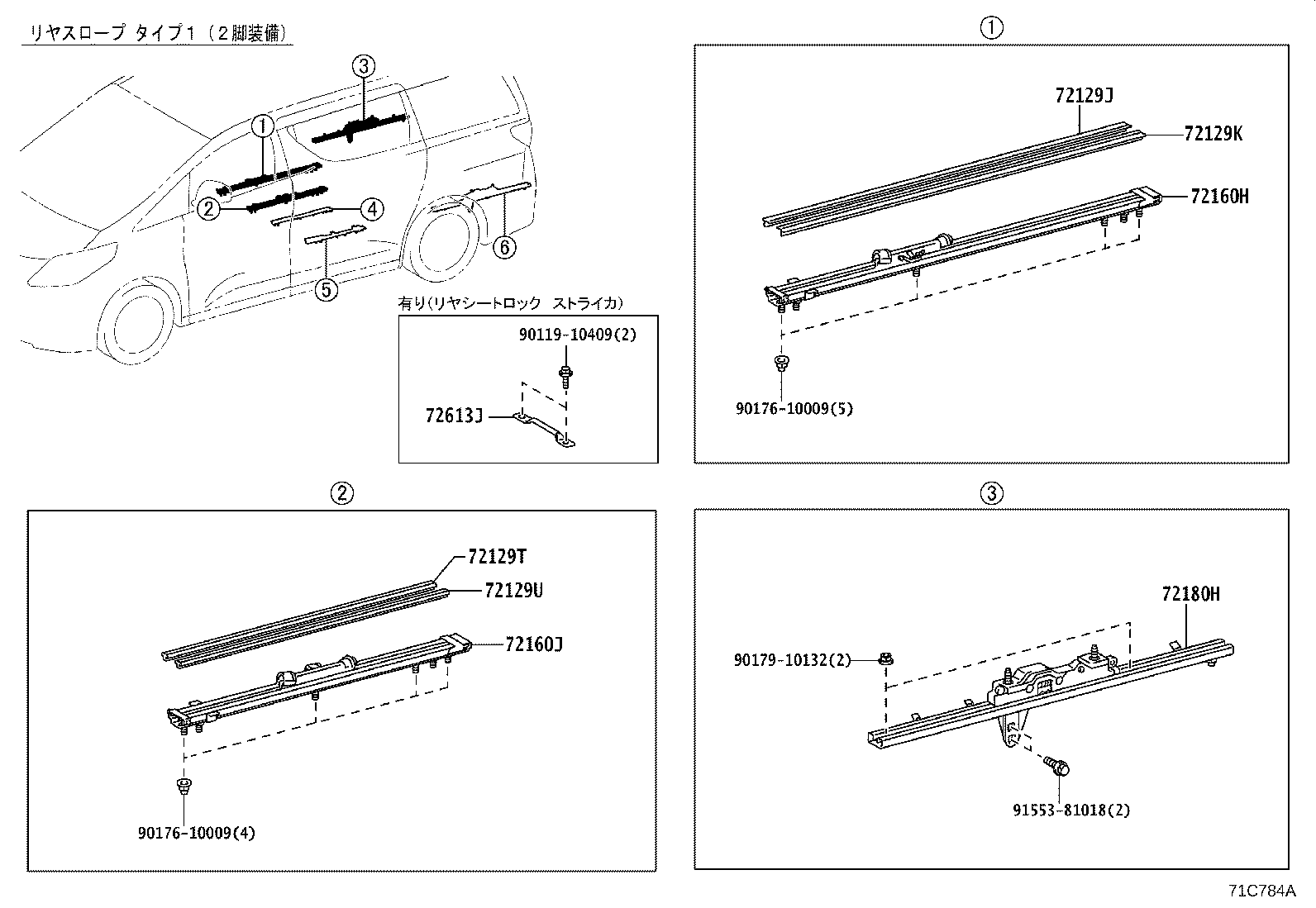

ILLUST NO. 1 OF 2(0804- )07S
ﾗｲﾄ ｱﾘ(ﾘﾔｽﾛｰﾌﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72129J - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.1 | ||||
| 72129-58100B0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72129-58100A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 72129K - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.2 | ||||
| 72129-58110A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 72129-58110B0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72129T - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.1 | ||||
| 72129-58090A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 72129-58090B0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72129U - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.2 | ||||
| 72129-58090B0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72129-58090A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 72160H - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-58170 |
ANH2#,GGH2#..07S..CBU |
1 | ||
| 72160-58150 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 72160J - TRACK ASSY, REAR RH SEAT, INNER NO.1 | ||||
| 72170-58160 |
ANH2#,GGH2#..07S..CBU |
1 | ||
| 72180H - TRACK ASSY, REAR RH SEAT, OUTER NO.2 | ||||
| 72180-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| Common parts | ||||
| 90119-10409 | ||||
| 90176-10009 | ||||
| 90179-10132 | ||||
| 91553-81018 | ||||

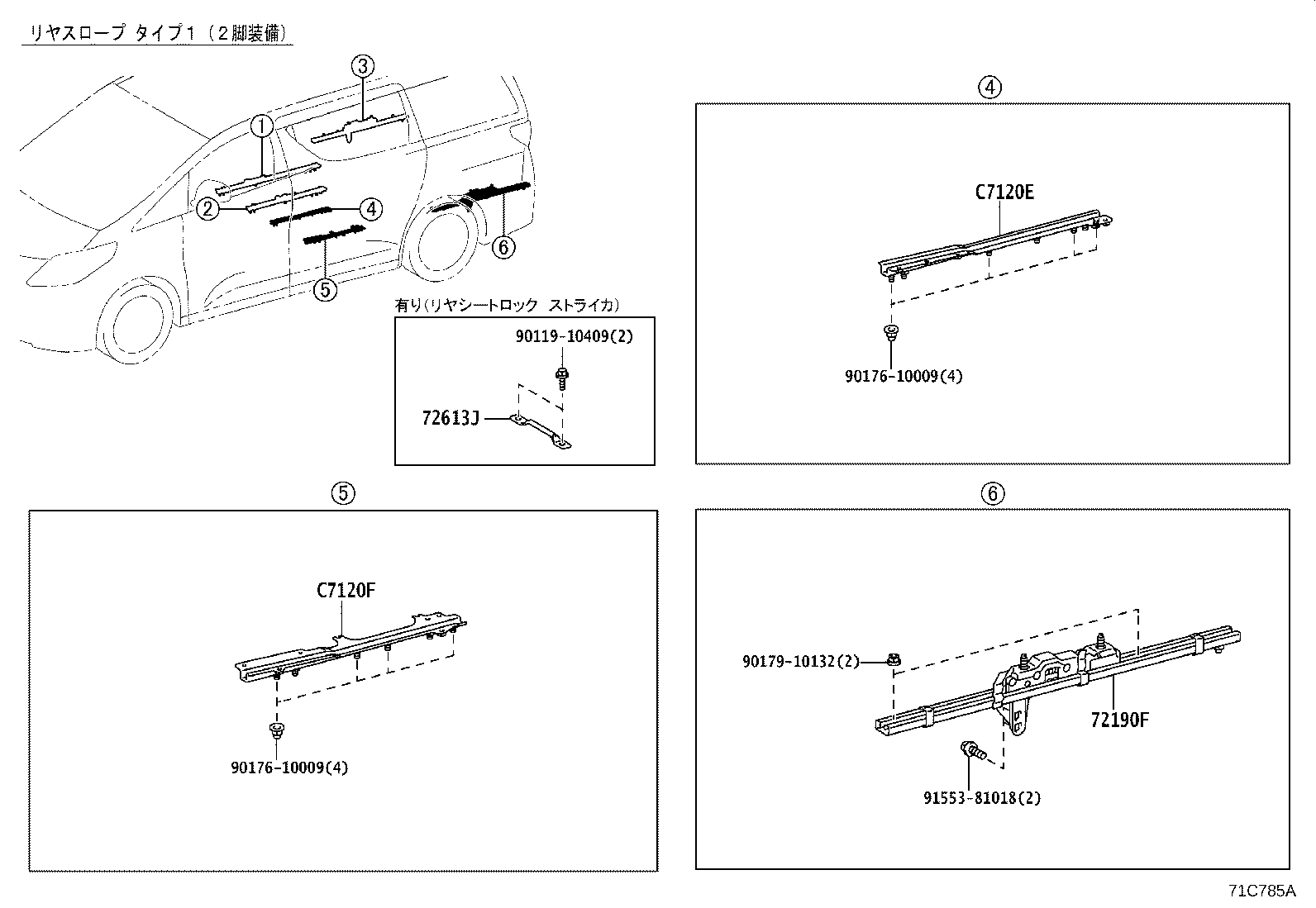

ILLUST NO. 2 OF 2(0804- )07S
ﾚﾌﾄ ｱﾘ(ﾘﾔｽﾛｰﾌﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72190F - TRACK ASSY, REAR LH SEAT, OUTER NO.2 | ||||
| 72190-58040 |
ANH2#,GGH2#..CBU |
1 | ||
| C7120E - LEG ASSY, WELCAB SEAT, LH INNER | ||||
| C7120-58050 |
GGH2#..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ) |
1 | ||
| C7120-58050 |
GGH2#..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| C7120-58050 |
GGH2#..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ) |
1 | ||
| C7120F - LEG ASSY, WELCAB SEAT, LH OUTER | ||||
| C7120-58060 |
GGH2#..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ) |
1 | ||
| C7120-58060 |
GGH2#..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ) |
1 | ||
| C7120-58060 |
GGH2#..07S..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| Common parts | ||||
| 90119-10409 | ||||
| 90176-10009 | ||||
| 90179-10132 | ||||
| 91553-81018 | ||||
ILLUST NO. 1 OF 2(0804- )07S
ﾗｲﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72129J - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.1 | ||||
| 72129-58100B0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72129-58100A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 72129K - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.2 | ||||
| 72129-58110A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 72129-58110B0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72129T - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.1 | ||||
| 72129-58090A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 72129-58090B0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72129U - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.2 | ||||
| 72129-58090B0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72129-58090A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 72160H - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-58170 |
ANH2#,GGH2#..07S..CBU |
1 | ||
| 72160-58150 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 72160J - TRACK ASSY, REAR RH SEAT, INNER NO.1 | ||||
| 72170-58160 |
ANH2#,GGH2#..07S..CBU |
1 | ||
| 72180H - TRACK ASSY, REAR RH SEAT, OUTER NO.2 | ||||
| 72180-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 72275D - STOPPER, REAR SEAT TRACK SLIDE, RH NO.1 | ||||
| 72275-58020 |
ANH2#,GGH2#..07S..CBU |
1 | ||
| 72615K - COVER, REAR SEAT LOCK STRIKER, RH | ||||
| 72615-58030B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72615-58030A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| Common parts | ||||
| 90176-10009 | ||||
| 90178-10029 | ||||
| 90179-10132 | ||||
| 91553-81018 | ||||
| Linked diagrams | ||||
| 5854 | ||||
| 7152 | ||||
| 7157 | ||||
ILLUST NO. 2 OF 2(0804- )07S
ﾚﾌﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72129P - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.1 | ||||
| 72129-58090A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 72129-58090B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72129-58200B0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),DK.GRAY,TRIM1# |
1 | ||
| 72129-58200B0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),DK.GRAY,TRIM1# |
1 | ||
| 72129-58200B0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ),DK.GRAY,TRIM1# |
1 | ||
| 72129Q - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.2 | ||||
| 72129-58090A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 72129-58200B0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ),DK.GRAY,TRIM1# |
1 | ||
| 72129-58090B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72129-58200B0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),DK.GRAY,TRIM1# |
1 | ||
| 72129-58200B0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),DK.GRAY,TRIM1# |
1 | ||
| 72129R - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.1 | ||||
| 72129-58100A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 72129-58190B0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),DK.GRAY,TRIM1# |
1 | ||
| 72129-58100B0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72129S - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.2 | ||||
| 72129-58110A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 72129-58110B0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72160K - TRACK ASSY, REAR LH SEAT, INNER NO.1 | ||||
| 72160-58160 |
ANH2#,GGH2#..07S..(240G,240S,24V,24Z,350G,350S,35V,35Z)..CBU |
1 | ||
| 72170A - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72170-58170 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 72170-58180 |
ANH2#,GGH2#..07S..(240G,240S,24V,24Z,350G,350S,35V,35Z)..CBU |
1 | ||
| 72190F - TRACK ASSY, REAR LH SEAT, OUTER NO.2 | ||||
| 72190-58040 |
ANH2#,GGH2#..CBU |
1 | ||
| 72275F - STOPPER, REAR SEAT TRACK SLIDE, LH NO.1 | ||||
| 72275-58020 |
ANH2#,GGH2#..07S..CBU |
1 | ||
| 72615L - COVER, REAR SEAT LOCK STRIKER, LH | ||||
| 72615-58020B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72615-58020A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| Common parts | ||||
| 90176-10009 | ||||
| 90178-10029 | ||||
| 90179-10132 | ||||
| 91553-81018 | ||||
| Linked diagrams | ||||
| 5854 | ||||
| 7152 | ||||
| 7157 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
