GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv
(0804- )
ﾌﾛﾝﾄ ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-30010B2 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
1 | ||
| 73023-30010A3 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-30010A3 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73024-30010B2 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
ANH2#,GGH2#..CBU |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
ANH2#,GGH2#..CBU |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-58020C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),BLACK,TRIM1# |
1 | ||
| 73210-58020A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 73210-58030A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 73210-58021A1 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 73210-58021C1 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),BLACK,TRIM1# |
1 | ||
| 73210-58031A1 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 73210-58030C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73210-58031C1 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
ANH2#,GGH2#..CBU ﾌﾞﾗｯｸ |
1 | ||
| 73219-33020 |
ANH2#,GGH2#..CBU ｸﾞﾚｰ |
1 | ||
| 73219-33030 |
ANH2#,GGH2#..CBU ﾍﾞｰｼﾞｭ |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-58020A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 73220-58040A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 73220-58020C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),BLACK,TRIM1# |
1 | ||
| 73220-58031C1 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73220-58030C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73220-58021A1 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 73220-58040C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1# |
1 | ||
| 73220-58041A1 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 73220-58041C1 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1# |
1 | ||
| 73220-58021C1 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),BLACK,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-58050C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),BLACK,TRIM1# |
1 | ||
| 73230-58070C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1# |
1 | ||
| 73230-58050A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 73230-58060C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73230-58070A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 73230-58061C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73230-58071A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 73230-58071C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1# |
1 | ||
| 73230-58051C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),BLACK,TRIM1# |
1 | ||
| 73230-58071C0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *296 or *297,BLACK,TRIM1# |
1 | ||
| 73230-58051A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
2 | ||
| 73233-60020A1 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 73233-60020A1 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
2 | ||
| 73233-60020A1 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
2 | ||
| 73233-60020A1 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-58020C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),BLACK,TRIM1# |
1 | ||
| 73240-58020A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 73240-58040A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 73240-58040C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1# |
1 | ||
| 73240-58021C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),BLACK,TRIM1# |
1 | ||
| 73240-58030C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73240-58031C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73240-58041C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1# |
1 | ||
| 73240-58021A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 73240-58041A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-58020C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),BLACK,TRIM1# |
1 | ||
| 73240-58020A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 73240-58040A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 73240-58040C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1# |
1 | ||
| 73240-58021C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),BLACK,TRIM1# |
1 | ||
| 73240-58030C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73240-58031C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73240-58041C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1# |
1 | ||
| 73240-58021A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き),SHELL,TRIM0# |
1 | ||
| 73240-58041A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-10523 | ||||
| 90109-11059 | ||||
| 90178-11002 | ||||
| 90179-11010 | ||||
| 90206-17005 | ||||
| 91673-80616 | ||||
| 94612-11200 | ||||
| C9910-11001 | ||||

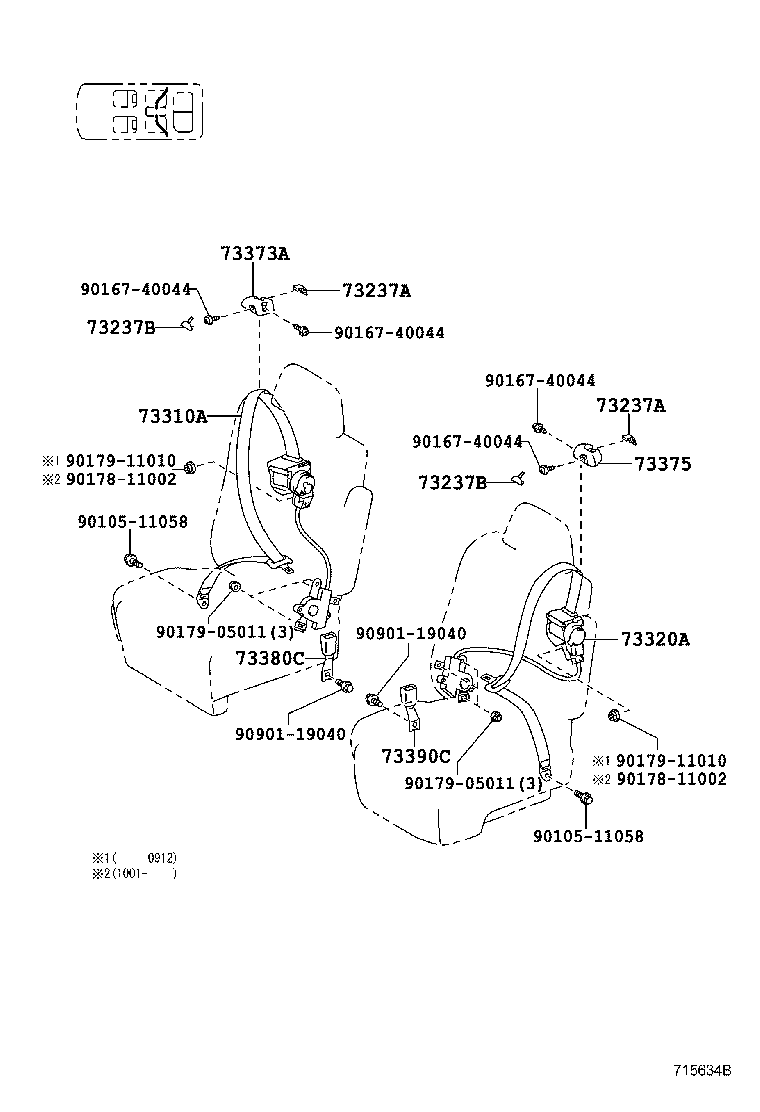

(0804- )07S
ﾘﾔ NO.1 ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73237A - COVER, SHOULDER BELT ANCHOR | ||||
| 73237-58010C0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1#,右側ｼｰﾄ |
1 | ||
| 73237-58010A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,右側ｼｰﾄ |
1 | ||
| 73237-58020A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,左側ｼｰﾄ |
1 | ||
| 73237-58020C0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1#,左側ｼｰﾄ |
1 | ||
| 73237A - COVER, SHOULDER BELT ANCHOR | ||||
| 73237-58010C0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1#,右側ｼｰﾄ |
1 | ||
| 73237-58010A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,右側ｼｰﾄ |
1 | ||
| 73237-58020A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#,左側ｼｰﾄ |
1 | ||
| 73237-58020C0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1#,左側ｼｰﾄ |
1 | ||
| 73237B - COVER, SHOULDER BELT ANCHOR | ||||
| 73237-58030C0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM1# |
1 | ||
| 73237-58030C0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),BLACK,TRIM1# |
1 | ||
| 73237-58030A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 73237-58030C0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ),BLACK,TRIM1# |
1 | ||
| 73237-58030C0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
2 | ||
| 73237B - COVER, SHOULDER BELT ANCHOR | ||||
| 73237-58030C0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM1# |
1 | ||
| 73237-58030C0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),BLACK,TRIM1# |
1 | ||
| 73237-58030A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 73237-58030C0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ),BLACK,TRIM1# |
1 | ||
| 73237-58030C0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
2 | ||
| 73310A - BELT ASSY, NO.1 SEAT 3 POINT TYPE, RH | ||||
| 73310-58030C1 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1# |
1 | ||
| 73310-58030A1 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 73310-58040C0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73310-58031A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 73310-58041C2 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73310-58031C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1# |
1 | ||
| 73320A - BELT ASSY, NO.1 SEAT 3 POINT TYPE, LH | ||||
| 73320-58020A1 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 73320-58021C0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1# |
1 | ||
| 73320-58020C1 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,BLACK,TRIM1# |
1 | ||
| 73320-58030C0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73320-58021A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 73320-58031C2 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73373A - COVER, REAR SEAT SHOULDER BELT, RH | ||||
| 73373-58010A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 73373-58010C0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73375 - COVER, REAR SEAT SHOULDER BELT, LH | ||||
| 73375-58010A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 73375-58010C0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 73230-16410A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 73230-16410C0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73230-16410A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 73230-16410C0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73230-58080C0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90167-40044 | ||||
| 90178-11002 | ||||
| 90179-05011 | ||||
| 90179-11010 | ||||
| 90901-19040 | ||||

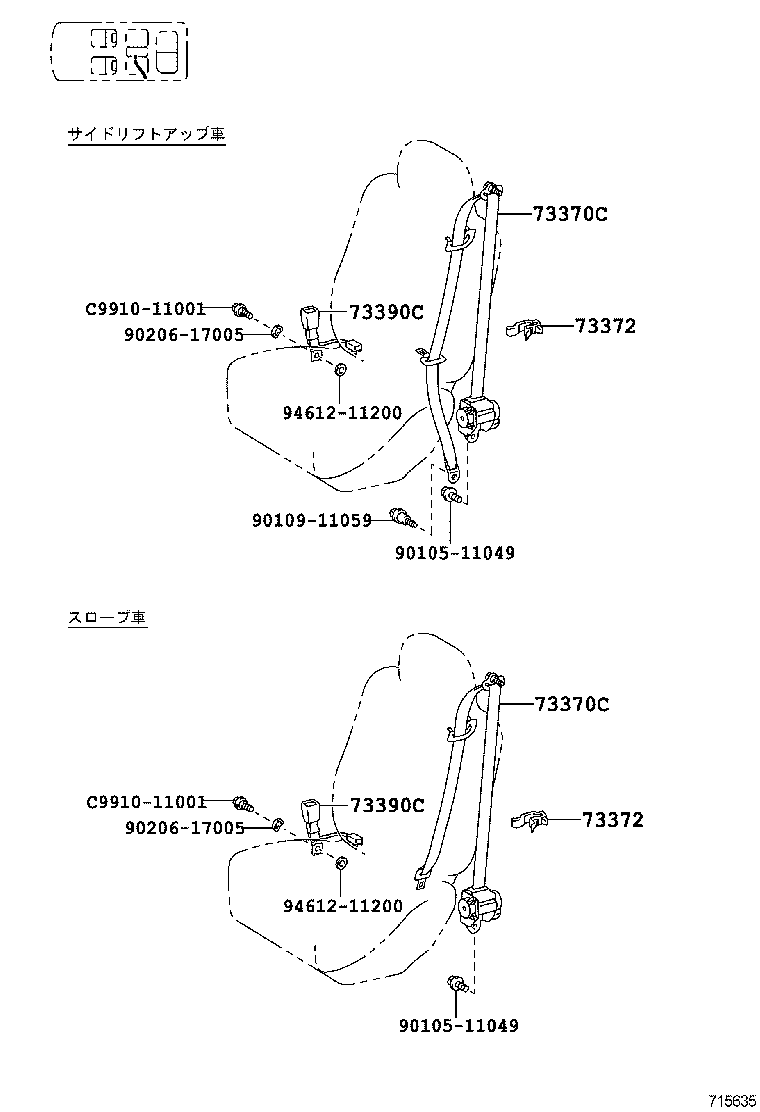

(0804- )07S
ﾘﾔ NO.1 ｼｰﾄ(ｻｲﾄﾞ ﾘﾌﾄｱｯﾌﾟ OR ｽﾛｰﾌﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-58030C0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),BLACK,TRIM1# |
1 | ||
| 73370-58030C0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM1# |
1 | ||
| 73370-58030C0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ),BLACK,TRIM1# |
1 | ||
| 73370-58031C0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ),BLACK,TRIM1# |
1 | ||
| 73370-58032C1 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),BLACK,TRIM1# |
1 | ||
| 73370-58032C1 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM1# |
1 | ||
| 73370-58031C0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),BLACK,TRIM1# |
1 | ||
| 73370-58031C0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM1# |
1 | ||
| 73370-58032C1 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ),BLACK,TRIM1# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-58030C0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),BLACK,TRIM1# |
1 | ||
| 73370-58030C0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM1# |
1 | ||
| 73370-58030C0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ),BLACK,TRIM1# |
1 | ||
| 73370-58031C0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ),BLACK,TRIM1# |
1 | ||
| 73370-58032C1 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),BLACK,TRIM1# |
1 | ||
| 73370-58032C1 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM1# |
1 | ||
| 73370-58031C0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),BLACK,TRIM1# |
1 | ||
| 73370-58031C0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM1# |
1 | ||
| 73370-58032C1 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ),BLACK,TRIM1# |
1 | ||
| 73372 - HANGER, REAR SEAT SHOULDER BELT, LH | ||||
| 73371-58010B0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ),DK.GRAY,TRIM1# |
1 | ||
| 73371-58010B0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),DK.GRAY,TRIM1# |
1 | ||
| 73371-58010B0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),DK.GRAY,TRIM1# |
1 | ||
| 73372 - HANGER, REAR SEAT SHOULDER BELT, LH | ||||
| 73371-58010B0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ),DK.GRAY,TRIM1# |
1 | ||
| 73371-58010B0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),DK.GRAY,TRIM1# |
1 | ||
| 73371-58010B0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),DK.GRAY,TRIM1# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73230-16410A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 73230-16410C0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73230-58080C0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM1# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73230-16410A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 73230-16410C0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73230-58080C0 |
GGH2#..07S..(350S,35Z)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11049 | ||||
| 90109-11059 | ||||
| 90206-17005 | ||||
| 94612-11200 | ||||
| C9910-11001 | ||||
(0804- )
ﾘﾔ NO.2 ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73139B - COVER, SEAT BELT ANCHOR | ||||
| 73139-58010A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73139-58010B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
1 | ||
| 73371C - HANGER, REAR NO.2 SEAT SHOULDER BELT, RH | ||||
| 73371-16050B9 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 73371-16050A1 |
GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73371-52010B1 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 73371-52010A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73372C - HANGER, REAR NO.2 SEAT SHOULDER BELT, LH | ||||
| 73371-16050A1 |
GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73371-16050B9 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 73371-52010A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73371-52010B1 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 73383A - HOOK, RR SEAT BELT | ||||
| 73383-58020 |
ANH2#,GGH2#..CBU 有り(ﾘﾙｰﾀ) DOP |
1 | ||
| 73510A - BELT ASSY, REAR NO.2 SEAT, 3 POINT TYPE | ||||
| 73510-58010C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73510-58010A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73530A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, RH | ||||
| 73530-58010C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73530-58010A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73540C - BELT ASSY, REAR NO.2 SEAT LAP TYPE | ||||
| 73540-58020C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73540-58021C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73540-58020A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73540-58021A0 |
GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU IVORY,TRIM0# |
1 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-58020C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73560-58020A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73560-58021A1 |
GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73560-58021C1 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-58030A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73570-58031C1 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73570-58031A1 |
GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73570-58030C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH | ||||
| 73580-58020C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| 73580-58020A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH | ||||
| 73580-58020A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 73580-58020C0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11049 | ||||
| 90119-11036 | ||||
| 90178-10029 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
