GGH25W-PFTSK (2008)

Toyota Alphard/Vellfire/Hv

Production Apr 2008 - Oct 2011
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0804- )

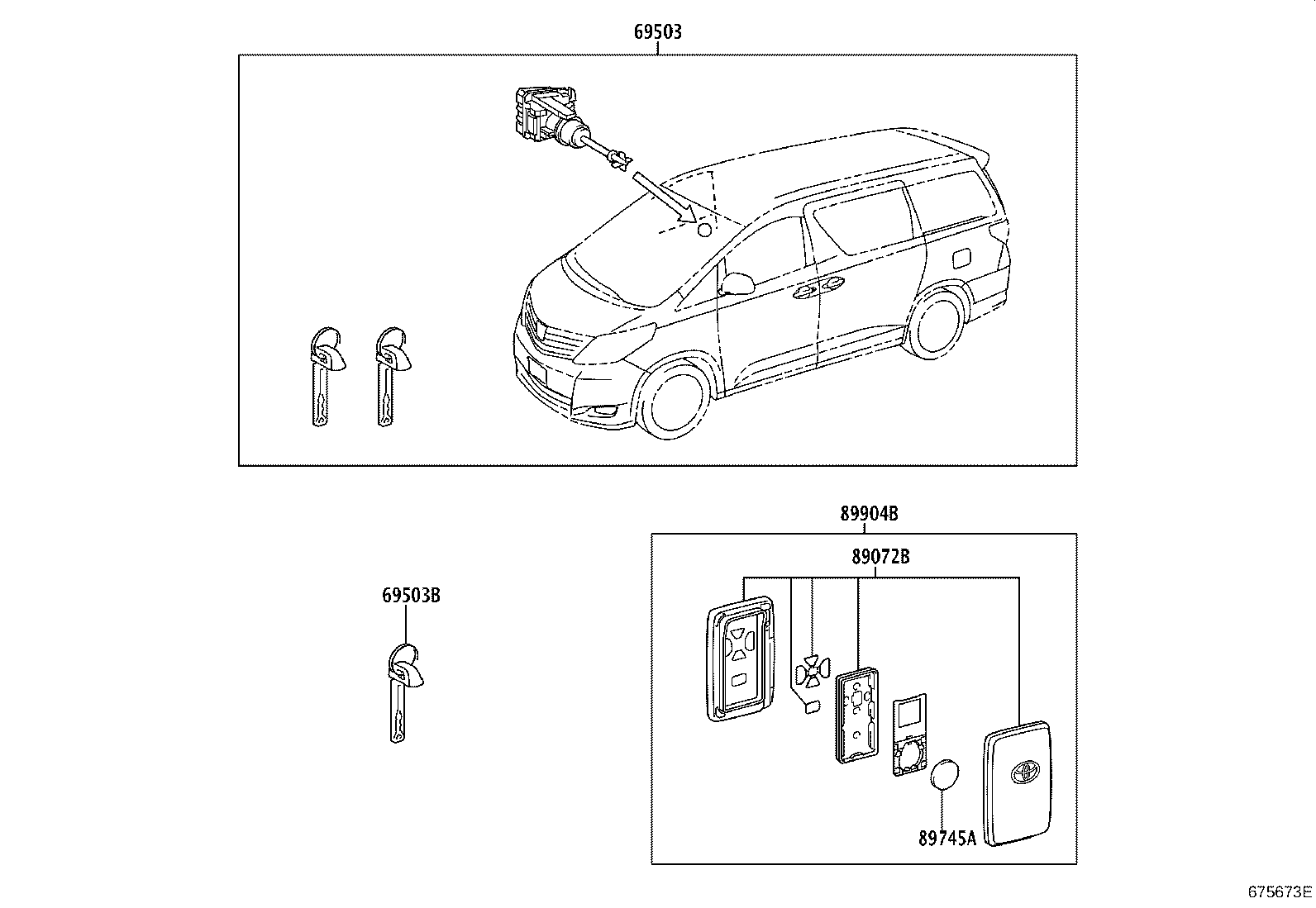

Click highlighted areas on diagram

diagram 69503 69503B 89072B 89745A 89904B
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-58210

ANH2#,GGH2#..CBU

 1
69503B - KEY, CUT
69515-52110

ANH2#,GGH2#..CBU

ﾏｽﾀｰｷｰ,W(*68)

 2
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-28560

ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU

 1
89072-58080

GGH2#..07S..(350S,35Z)..CBU

有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)

 1
89072-28570

ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU

有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ)

 1
89072-58080

ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU

有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)

 2
89072-58060

ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU

 2
89072-58070

ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU

有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ)

 2
89745A - BATTERY, TRANSMITTER
89745-52020

ANH2#,GGH2#..CBU

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-28081

GGH2#..07S..(350S,35Z)..CBU

有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)

 1
89904-28091

ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU

有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ)

 1
89904-28012

ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU

有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)

 2
89904-28032

ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU

 1
89904-28022

ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU

有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ)

 1
89904-28101

ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU

 1
89904-28290

ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU

 2
89904-28430

ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU

有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)

 2
89904-28440

ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU

有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ)

 2
89904-28280

ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU

有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ)

 2
89904-28450

ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU

 2
