GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv

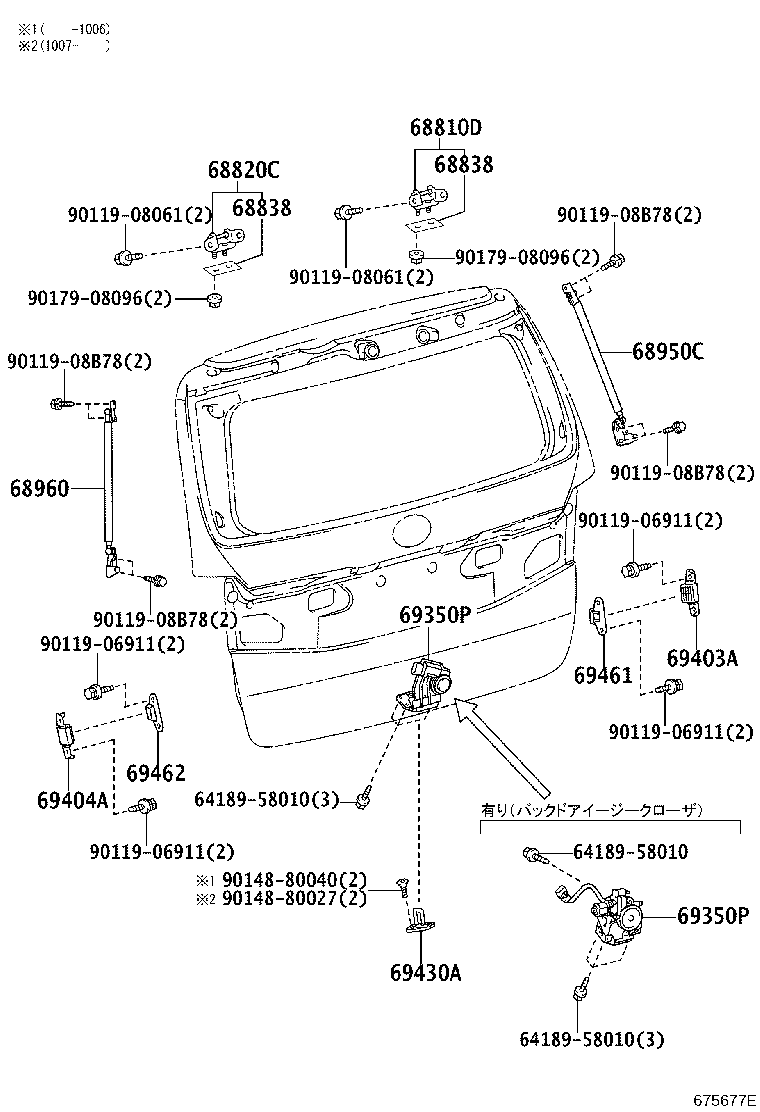

ILLUST NO. 1 OF 2(0804- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68810D - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-26010 |
ANH2#,GGH2#..CBU |
1 | ||
| 68820C - HINGE ASSY, BACK DOOR, LH | ||||
| 68820-26010 |
ANH2#,GGH2#..CBU |
1 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-26030 |
ANH2#,GGH2#..CBU 厚さ=1.1 |
2 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-26030 |
ANH2#,GGH2#..CBU 厚さ=1.1 |
2 | ||
| 68950C - STAY ASSY, BACK DOOR, RH | ||||
| 68950-58120 |
ANH2#,GGH2#..CBU 寒冷地仕様 |
1 | ||
| 68950-58140 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 68950-58140 |
GGH2#..07S..(350S,35Z)..CBU 寒冷地仕様&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 68950-58121 |
ANH2#,GGH2#..CBU 寒冷地仕様 |
1 | ||
| 68950-58110 |
ANH2#,GGH2#..CBU |
1 | ||
| 68950-58141 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 68950-58112 |
ANH2#,GGH2#..CBU |
1 | ||
| 68950-58111 |
ANH2#,GGH2#..CBU |
1 | ||
| 68950-58141 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU 寒冷地仕様&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 68950-58122 |
ANH2#,GGH2#..CBU 寒冷地仕様 |
1 | ||
| 68950-58142 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 68950-58142 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU 寒冷地仕様&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 68960 - STAY ASSY, BACK DOOR, LH | ||||
| 68960-58110 |
ANH2#,GGH2#..CBU |
1 | ||
| 68960-58120 |
ANH2#,GGH2#..CBU 寒冷地仕様 |
1 | ||
| 68960-58111 |
ANH2#,GGH2#..CBU |
1 | ||
| 68960-58140 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 68960-58140 |
GGH2#..07S..(350S,35Z)..CBU 寒冷地仕様&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 68960-58121 |
ANH2#,GGH2#..CBU 寒冷地仕様 |
1 | ||
| 68960-58142 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU 寒冷地仕様&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 68960-58141 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 68960-58141 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU 寒冷地仕様&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 68960-58142 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 68960-58122 |
ANH2#,GGH2#..CBU 寒冷地仕様 |
1 | ||
| 68960-58112 |
ANH2#,GGH2#..CBU |
1 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-28150 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU |
1 | ||
| 69350-28160 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-28150 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU |
1 | ||
| 69350-28160 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 69403A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH | ||||
| 67293-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 69404A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH | ||||
| 67293-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 69430A - STRIKER ASSY, BACK DOOR LOWER LOCK | ||||
| 69430-28050 |
ANH2#,GGH2#..CBU |
1 | ||
| 69461 - STOPPER, BACK DOOR SIDE MALE, RH | ||||
| 67281-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 69462 - STOPPER, BACK DOOR SIDE MALE, LH | ||||
| 67281-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| Common parts | ||||
| 64189-58010 | ||||
| 90119-06911 | ||||
| 90119-08061 | ||||
| 90119-08B78 | ||||
| 90148-80027 | ||||
| 90148-80040 | ||||
| 90179-08096 | ||||

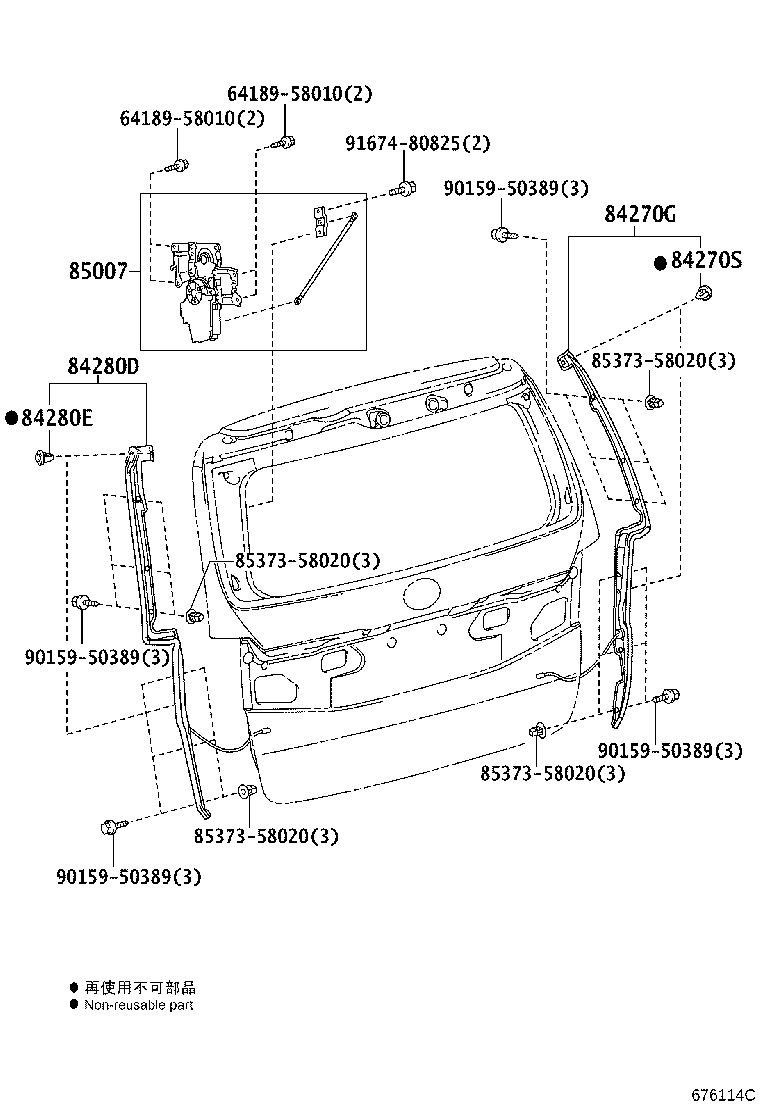

ILLUST NO. 2 OF 2(0804- )
ｱﾘ(ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84270G - SENSOR ASSY, POWER BACK DOOR, RH | ||||
| 84270-58030 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 84270S - CLIP(POWER BACK DOOR SENSOR, RH) | ||||
| 61617-42040 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
2 | ||
| 84280D - SENSOR ASSY, POWER BACK DOOR, LH | ||||
| 84280-58030 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 84280E - CLIP (FOR POWER BACK DOOR SENSOR, LH) | ||||
| 61617-42040 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
2 | ||
| 85007 - MOTOR UNIT, BACK DOOR | ||||
| 85007-59026 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 85007-59025 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| Common parts | ||||
| 64189-58010 | ||||
| 85373-58020 | ||||
| 90159-50389 | ||||
| 91674-80825 | ||||
