GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv

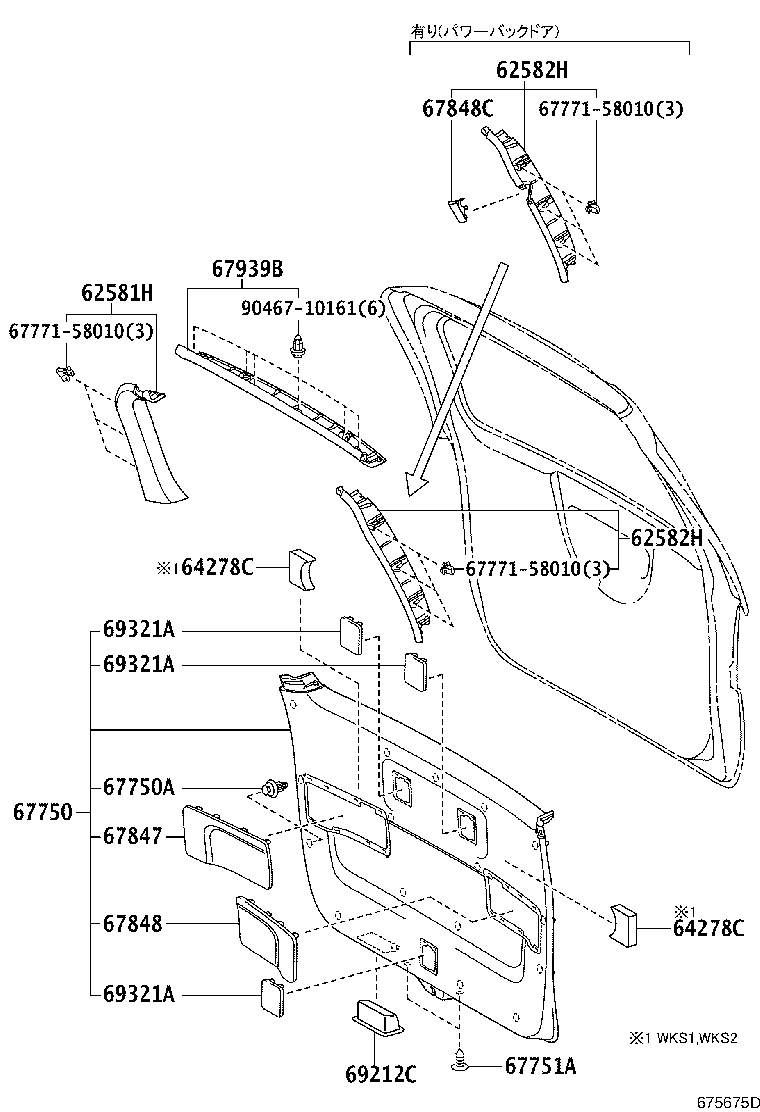

ILLUST NO. 2 OF 2(0804- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62581H - GARNISH, REAR WINDOW SIDE, RH | ||||
| 62581-58021B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
1 | ||
| 62581-58020A0 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),SHELL,TRIM0# |
1 | ||
| 62581-58020B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
1 | ||
| 62581-58021A0 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),SHELL,TRIM0# |
1 | ||
| 62582H - GARNISH, REAR WINDOW SIDE, LH | ||||
| 62582-58030B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
1 | ||
| 62582-58040A0 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),SHELL,TRIM0# |
1 | ||
| 62582-58041A0 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),SHELL,TRIM0# |
1 | ||
| 62582-58040B0 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),LT.GRAY,TRIM1# |
1 | ||
| 62582-58041B0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),LT.GRAY,TRIM1# |
1 | ||
| 62582H - GARNISH, REAR WINDOW SIDE, LH | ||||
| 62582-58030B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
1 | ||
| 62582-58040A0 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),SHELL,TRIM0# |
1 | ||
| 62582-58041A0 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),SHELL,TRIM0# |
1 | ||
| 62582-58040B0 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),LT.GRAY,TRIM1# |
1 | ||
| 62582-58041B0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),LT.GRAY,TRIM1# |
1 | ||
| 67750 - BOARD ASSY, BACK DOOR TRIM | ||||
| 67750-58070A0 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),SHELL,TRIM0# |
1 | ||
| 67750-58060B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 67750-58070B0 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),DK.GRAY,TRIM1# |
1 | ||
| 67750-58071A0 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),SHELL,TRIM0# |
1 | ||
| 67750-58061B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 67750-58071B0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),DK.GRAY,TRIM1# |
1 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-10161 |
ANH2#,GGH2#..CBU |
17 | ||
| 90467-10161 |
ANH2#,GGH2#..CBU |
15 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-06020A5 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),SHELL,TRIM0# |
2 | ||
| 90467-06020B6 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
2 | ||
| 67847 - COVER, BACK DOOR SERVICE HOLE, RH | ||||
| 67847-58010A0 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),SHELL,TRIM0# |
1 | ||
| 67847-58010B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 67848 - COVER, BACK DOOR SERVICE HOLE, LH | ||||
| 67848-58020B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 67848-58020A0 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),SHELL,TRIM0# |
1 | ||
| 67848C - COVER, BACK DOOR SERVICE HOLE, NO.2 | ||||
| 67848-58030B0 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),LT.GRAY,TRIM1# |
1 | ||
| 67848-58030A1 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),SHELL,TRIM0# |
1 | ||
| 67939B - GARNISH, BACK DOOR, CENTER | ||||
| 67939-58030B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
1 | ||
| 67939-58030A0 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),SHELL,TRIM0# |
1 | ||
| 67939-58031A0 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),SHELL,TRIM0# |
1 | ||
| 67939-58031B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU LT.GRAY,TRIM1# |
1 | ||
| 69212C - HANDLE, BACK DOOR INSIDE | ||||
| 74811-28020A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 74811-28020B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 69321A - COVER, BACK DOOR LOCK | ||||
| 69321-58010B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
3 | ||
| 69321-58010A0 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),SHELL,TRIM0# |
3 | ||
| 69321A - COVER, BACK DOOR LOCK | ||||
| 69321-58010B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
3 | ||
| 69321-58010A0 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),SHELL,TRIM0# |
3 | ||
| 69321A - COVER, BACK DOOR LOCK | ||||
| 69321-58010B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
3 | ||
| 69321-58010A0 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),SHELL,TRIM0# |
3 | ||
| Common parts | ||||
| 67771-58010 | ||||
| 90467-10161 | ||||
ILLUST NO. 1 OF 2(0804- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 64819B - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 64827A - CLIP, BACK WINDOW GLASS, RH | ||||
| 64827-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 64828 - CLIP, BACK WINDOW GLASS, LH | ||||
| 64828-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-58120 |
ANH2#,GGH2#..CBU |
1 | ||
| 67005-58140 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 69478-58010 |
ANH2#,GGH2#..CBU NO.2 |
2 | ||
| 90541-10032 |
ANH2#,GGH2#..CBU NO.1 |
2 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 69478-58010 |
ANH2#,GGH2#..CBU NO.2 |
2 | ||
| 90541-10032 |
ANH2#,GGH2#..CBU NO.1 |
2 | ||
| 67372A - WEIGHT, BACK DOOR | ||||
| 67372-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 67837L - SEAL, DOOR DUST PROOF | ||||
| 67837-26040 |
ANH2#,GGH2#..CBU |
2 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-58081 |
ANH2#,GGH2#..CBU *EHT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,寒冷地仕様 |
1 | ||
| 68105-58082 |
ANH2#,GGH2#..CBU *EHT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,寒冷地仕様 |
1 | ||
| 68105-58080 |
ANH2#,GGH2#..CBU *EHT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,寒冷地仕様 |
1 | ||
| 68105-58070 |
ANH2#,GGH2#..CBU *EHT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68105-58071 |
ANH2#,GGH2#..CBU *EHT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68294A - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-58050 |
ANH2#,GGH2#..CBU |
3 | ||
| 68294A - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-58050 |
ANH2#,GGH2#..CBU |
3 | ||
| 68294B - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-58060 |
ANH2#,GGH2#..CBU |
4 | ||
| 68294B - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-58060 |
ANH2#,GGH2#..CBU |
4 | ||
| 68294B - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-58060 |
ANH2#,GGH2#..CBU |
4 | ||
| 68294B - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-58060 |
ANH2#,GGH2#..CBU |
4 | ||
| 75819 - CLIP, LUGGAGE COMPARTMENT DOOR MOULDING | ||||
| 75819-33010 |
ANH2#,GGH2#..CBU |
9 | ||
| 75819 - CLIP, LUGGAGE COMPARTMENT DOOR MOULDING | ||||
| 75819-33010 |
ANH2#,GGH2#..CBU |
9 | ||
| 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76801-58080C0 |
ANH2#,GGH2#..ALPHD..CBU BLACK,202 |
1 | ||
| 76801-58080B0 |
ANH2#,GGH2#..(240S,350S)..CBU SILVER ME.,1E4 |
1 | ||
| 76801-58080A0 |
ANH2#,GGH2#..ALPHD..CBU WHITE PEARL CS.,070 |
1 | ||
| 76801-58080J0 |
ANH2#,GGH2#..ALPHD..CBU DK.BLUE MC.,8S6 |
1 | ||
| 76801-58080B2 |
ANH2#,GGH2#..07S..(240S,350S)..CBU GRAY ME.,1G3 |
1 | ||
| 76801-58081A0 |
ANH2#,GGH2#..ALPHD..CBU WHITE PEARL CS.,070 |
1 | ||
| 76801-58081C0 |
ANH2#,GGH2#..ALPHD..CBU BLACK,202 |
1 | ||
| 76801-58080E1 |
ANH2#,GGH2#..ALPHD..CBU GOLD PEARL CS.,4U1 |
1 | ||
| 76801-58081E1 |
ANH2#,GGH2#..ALPHD..CBU GOLD PEARL CS.,4U1 |
1 | ||
| 76801-58081J0 |
ANH2#,GGH2#..ALPHD..CBU DK.BLUE MC.,8S6 |
1 | ||
| 76801-58081B2 |
ANH2#,GGH2#..07S..(240S,350S)..CBU GRAY ME.,1G3 |
1 | ||
| 76801-58081B0 |
ANH2#,GGH2#..(240S,350S)..CBU SILVER ME.,1E4 |
1 | ||
| 76812 - GARNISH, BACK DOOR, OUTSIDE LOWER | ||||
| 76812-58030 |
ANH2#,GGH2#..(240G,240S,240X,24V,24X,350G,350S,350X,35V,35X)..CBU |
1 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-58030 |
ANH2#,GGH2#..CBU |
2 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-58080 |
ANH2#,GGH2#..CBU |
1 | ||
| 76831A - COVER, BACK DOOR FINISH PANEL, RH | ||||
| 76831-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 76832A - COVER, BACK DOOR FINISH PANEL, LH | ||||
| 76832-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 76839A - COVER, BACK DOOR GARNISH | ||||
| 76839-58030 |
ANH2#,GGH2#..CBU NO.1 |
1 | ||
| 76839-58040 |
ANH2#,GGH2#..CBU NO.2 |
1 | ||
| 76839A - COVER, BACK DOOR GARNISH | ||||
| 76839-58030 |
ANH2#,GGH2#..CBU NO.1 |
1 | ||
| 76839-58040 |
ANH2#,GGH2#..CBU NO.2 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90167-30019 | ||||
| 90179-06159 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 8112 | ||||
| 8401 | ||||
