GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv
(0804- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57443B - SUPPORT, SIDE STEP, REAR RH | ||||
| 51078-28020 |
ANH2#,GGH2#..CBU |
1 | ||
| 57444A - SUPPORT, SIDE STEP, REAR LH | ||||
| 51079-28040 |
ANH2#,GGH2#..CBU |
1 | ||
| 68029 - BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER | ||||
| 68029-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 68039 - BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH | ||||
| 68039-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 68301C - ROLLER SUB-ASSY, SLIDE DOOR, UPPER RH | ||||
| 68301-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 68301-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 68302 - ROLLER SUB-ASSY, SLIDE DOOR, UPPER LH | ||||
| 68302-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 68302-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 68303B - RAIL SUB-ASSY, SLIDE DOOR, CENTER RH | ||||
| 68303-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 68304B - RAIL SUB-ASSY, SLIDE DOOR, CENTER LH | ||||
| 68304-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 68308 - RAIL SUB-ASSY, SLIDE DOOR, UPPER RH | ||||
| 68308-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 68309 - RAIL SUB-ASSY, SLIDE DOOR, UPPER LH | ||||
| 68309-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 68310B - ROLLER ASSY, SLIDE DOOR, UPPER RH | ||||
| 68310-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 68310-58040 |
ANH2#,GGH2#..CBU |
1 | ||
| 68320A - ROLLER ASSY, SLIDE DOOR, UPPER, LH | ||||
| 68320-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 68320-58040 |
ANH2#,GGH2#..CBU |
1 | ||
| 68325 - CUSHION, SLIDE DOOR UPPER RAIL, RH | ||||
| 68325-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 68326A - CUSHION, SLIDE DOOR UPPER RAIL, LH | ||||
| 68326-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 68350B - ROLLER ASSY, SLIDE DOOR, LOWER RH | ||||
| 68350-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 68355 - GARNISH, SLIDE DOOR CENTER RAIL, RH | ||||
| 60835-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 68356 - GARNISH, SLIDE DOOR CENTER RAIL, LH | ||||
| 60836-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 68360B - ROLLER ASSY, SLIDE DOOR, LOWER LH | ||||
| 68360-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 68380D - HINGE ASSY, SLIDE DOOR, CENTER RH | ||||
| 68380-58040 |
ANH2#,GGH2#..CBU |
1 | ||
| 68380-58120 |
ANH2#,GGH2#..CBU |
1 | ||
| 68390A - HINGE ASSY, SLIDE DOOR, CENTER LH | ||||
| 68390-58090 |
ANH2#,GGH2#..CBU |
1 | ||
| 68390-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 68391 - CUSHION, SLIDE DOOR UPPER ROLLER, RH | ||||
| 68391-28040 |
ANH2#,GGH2#..CBU |
1 | ||
| 68391A - CUSHION, SLIDE DOOR UPPER ROLLER, LH | ||||
| 68391-28040 |
ANH2#,GGH2#..CBU |
1 | ||
| 68394A - PLATE, SLIDE DOOR LOWER RAIL, RH | ||||
| 68394-28030 |
ANH2#,GGH2#..CBU |
1 | ||
| 68399 - PLATE, SLIDE DOOR LOWER RAIL, LH | ||||
| 68399-28040 |
ANH2#,GGH2#..CBU |
1 | ||
| 69415 - STOPPER, SLIDE DOOR DOWN FEMALE | ||||
| 69415-28021 |
ANH2#,GGH2#..CBU |
2 | ||
| 69416B - STOPPER, SLIDE DOOR DOWN MALE | ||||
| 69046-58010 |
ANH2#,GGH2#..CBU |
2 | ||
| 69046-28020 |
ANH2#,GGH2#..CBU |
2 | ||
| 69046-28080 |
ANH2#,GGH2#..CBU |
2 | ||
| 69418 - STOP, SLIDE DOOR OPEN | ||||
| 69418-28100 |
ANH2#,GGH2#..CBU |
1 | ||
| 69419B - STOP, SLIDE DOOR OPEN, LH | ||||
| 69419-28040 |
ANH2#,GGH2#..CBU |
1 | ||
| 85005A - MOTOR UNIT, SLIDE DOOR, RH | ||||
| 85005-58021 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 85005-58020 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 85005-58021 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 85005-58020 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 85005-58040 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 85005-58040 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 85006 - MOTOR UNIT, SLIDE DOOR, LH | ||||
| 85006-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 85006-58021 |
ANH2#,GGH2#..CBU |
1 | ||
| 85006-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 85610B - MOTOR ASSY, SLIDE DOOR LOCK RELEASE, RH | ||||
| 85610-58020 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 85610-58020 |
GGH2#..07S..(350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 85620A - MOTOR ASSY, SLIDE DOOR LOCK RELEASE, LH | ||||
| 85620-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| Common parts | ||||
| 65487-28010 | ||||
| 75396-28090 | ||||
| 90105-06168 | ||||
| 90105-08187 | ||||
| 90105-08400 | ||||
| 90119-06595 | ||||
| 90119-06779 | ||||
| 90119-06911 | ||||
| 90119-06915 | ||||
| 90148-80049 | ||||
| 90159-60303 | ||||
| 90189-06227 | ||||
| 91551-80610 | ||||
| 91551-80812 | ||||
| 91553-80610 | ||||
| 91621-J0814 | ||||
| 91641-80818 | ||||

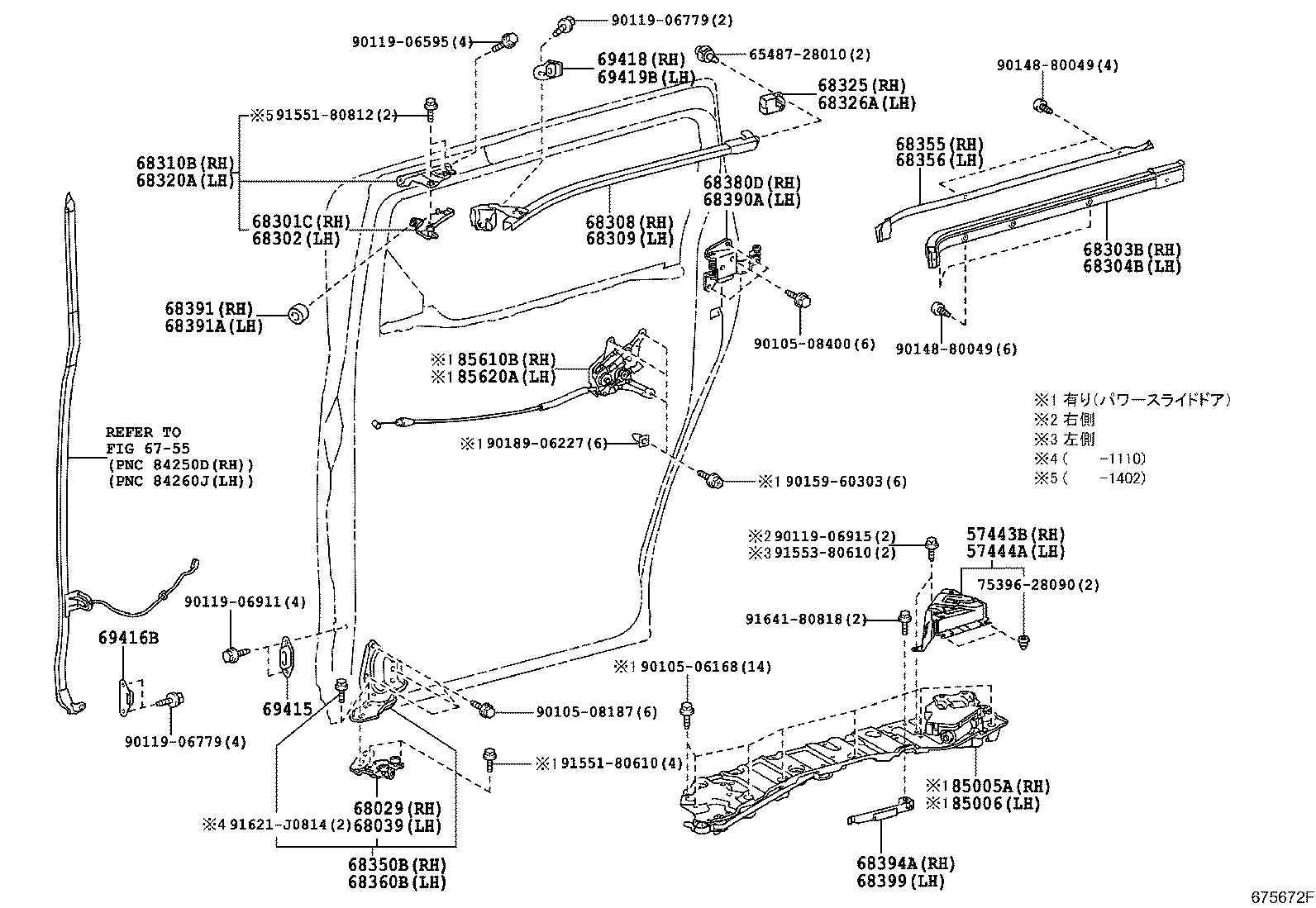

| Linked diagrams | ||||
| 6755 | ||||
