GGH25W-PFTSK (2008)

Toyota Alphard/Vellfire/Hv

Production Apr 2008 - Oct 2011
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0804- )

Click highlighted areas on diagram

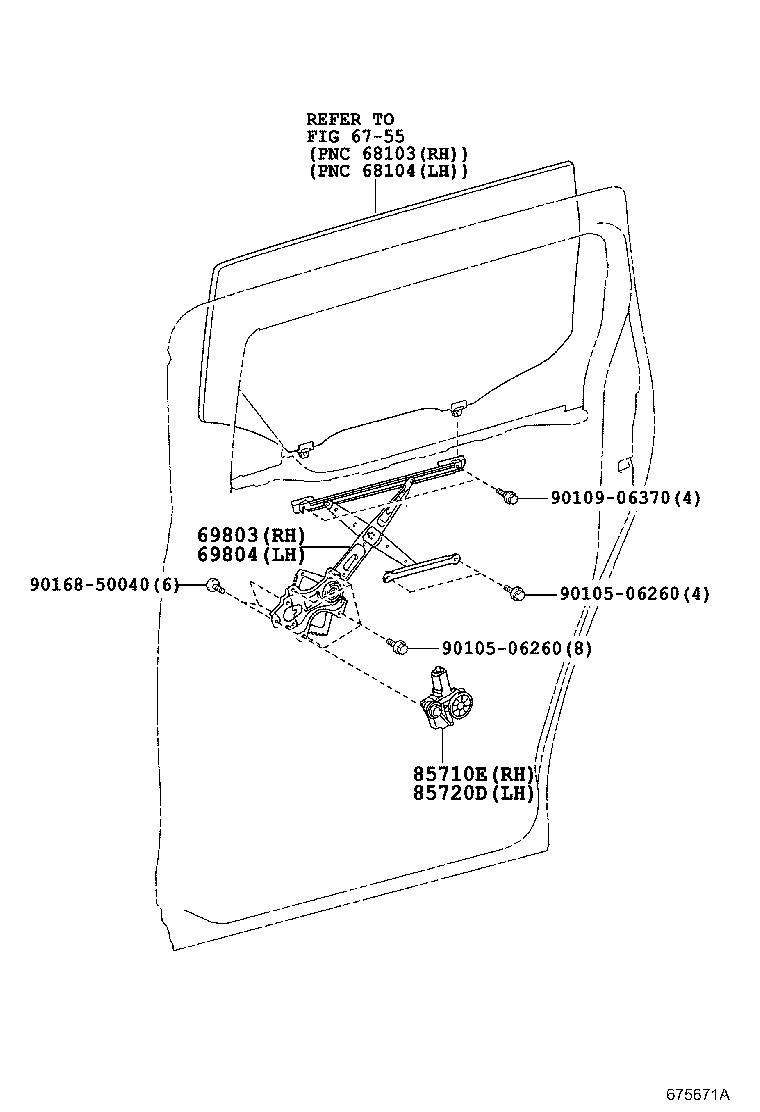

diagram 6755 69803 69804 85710E 85720D 9010506260 9010506260 9010906370 9016850040
Part # Description Qty Price
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-58020

ANH2#,GGH2#..CBU

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-58020

ANH2#,GGH2#..CBU

 1
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-58030

ANH2#,GGH2#..CBU

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-58030

ANH2#,GGH2#..CBU

 1
Common parts
90105-06260
90109-06370
90168-50040
Linked diagrams
6755
