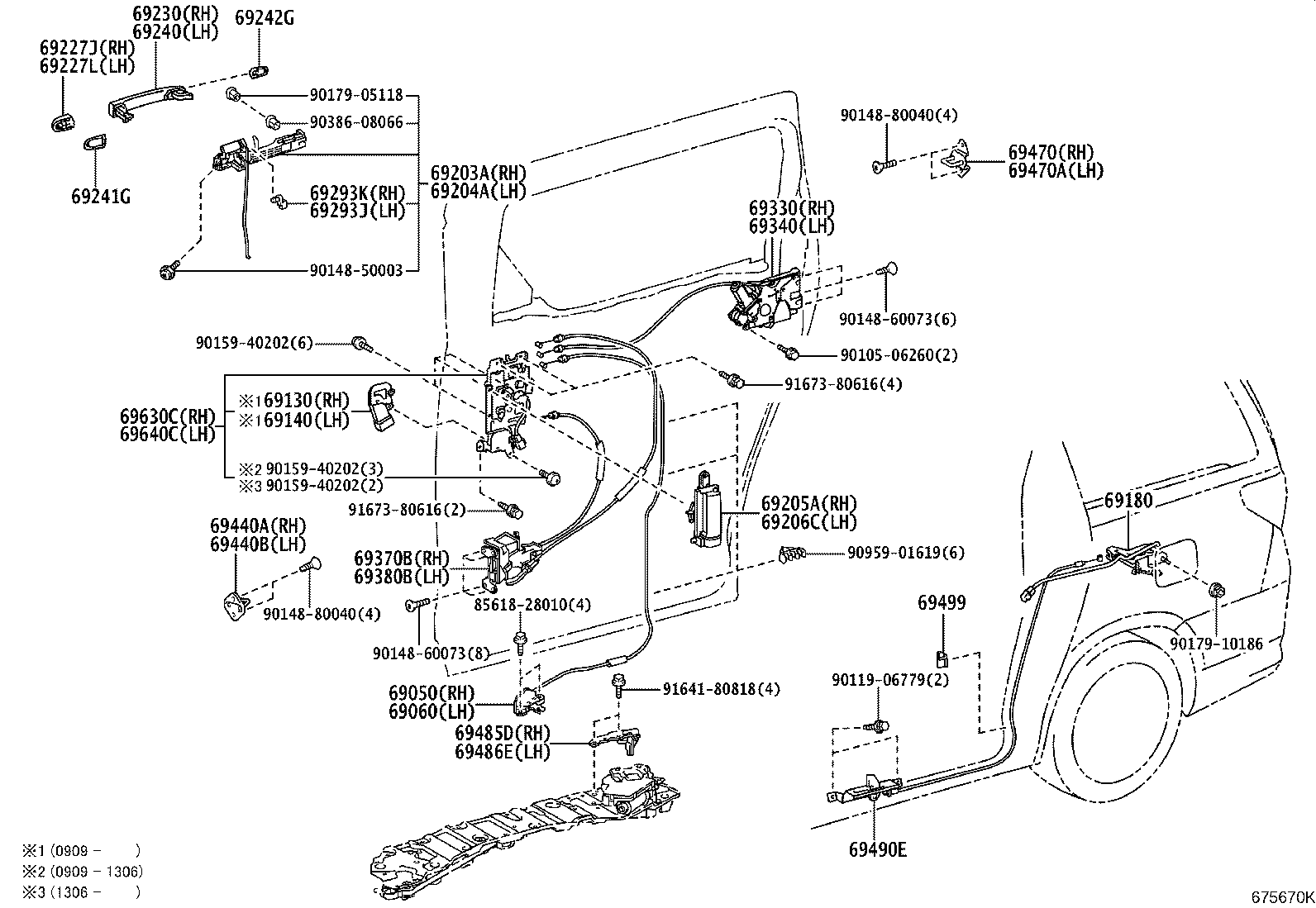

GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv
(0804- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69050 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH | ||||
| 69050-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 69050-58040 |
ANH2#,GGH2#..CBU 寒冷地仕様 |
1 | ||
| 69060 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH | ||||
| 69060-58040 |
ANH2#,GGH2#..CBU 寒冷地仕様 |
1 | ||
| 69060-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH | ||||
| 69130-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH | ||||
| 69140-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 69180 - CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER | ||||
| 69180-28080 |
ANH2#,GGH2#..CBU |
1 | ||
| 69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69203-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69204-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69207-28020B1 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 69207-58010A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),SHELL,TRIM0# |
1 | ||
| 69281-58010A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),SHELL,TRIM0# |
1 | ||
| 69207-58010B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),DK.GRAY,TRIM1# |
1 | ||
| 69281-58010B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),DK.GRAY,TRIM1# |
1 | ||
| 69281-58010A0 |
GGH2#..07S..(350S,35Z)..CBU *274 or *275&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,SHELL,TRIM0# |
1 | ||
| 69281-58010A0 |
GGH2#..07S..(350S,35Z)..CBU *296 or *297&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,SHELL,TRIM0# |
1 | ||
| 69281-58010B0 |
GGH2#..07S..(350S,35Z)..CBU *274 or *275&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 69281-58020B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 69281-58010B0 |
GGH2#..07S..(350S,35Z)..CBU *296 or *297&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69208-28020B1 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 69282-58010B0 |
GGH2#..07S..(350S,35Z)..CBU *274 or *275&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 69208-58010B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),DK.GRAY,TRIM1# |
1 | ||
| 69282-58010B0 |
GGH2#..07S..(350S,35Z)..CBU *296 or *297&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 69282-58010A0 |
GGH2#..07S..(350S,35Z)..CBU *274 or *275&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,SHELL,TRIM0# |
1 | ||
| 69208-58010A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),SHELL,TRIM0# |
1 | ||
| 69282-58020B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 69282-58010A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),SHELL,TRIM0# |
1 | ||
| 69282-58010B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),DK.GRAY,TRIM1# |
1 | ||
| 69282-58010A0 |
GGH2#..07S..(350S,35Z)..CBU *296 or *297&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,SHELL,TRIM0# |
1 | ||
| 69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69250-58010E1 |
ANH2#,GGH2#..(240G,240S,240X,24V,350G,350S,350X,35V)..CBU GOLD PEARL CS.,4U1 |
1 | ||
| 69250-58010B3 |
GGH2#..07S..(350S,35Z)..CBU *274 or *275&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,GRAY ME.,1G3 |
1 | ||
| 69250-58010B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU SILVER ME.,1E4 |
1 | ||
| 69250-58010A2 |
ANH2#,GGH2#..CBU WHITE PEARL CS.,070 |
1 | ||
| 69250-58010B3 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,GRAY ME.,1G3 |
1 | ||
| 69250-58010J2 |
ANH2#,GGH2#..(240G,240S,240X,24V,24Z,350G,350S,350X,35V,35Z)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 69250-58010B3 |
GGH2#..07S..(350S,35Z)..CBU *296 or *297&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,GRAY ME.,1G3 |
1 | ||
| 69250-58010B3 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),GRAY ME.,1G3 |
1 | ||
| 69250-58010B3 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ),GRAY ME.,1G3 |
1 | ||
| 69250-58010C1 |
ANH2#,GGH2#..CBU BLACK,202 |
1 | ||
| 69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69250-58010C1 |
ANH2#,GGH2#..CBU BLACK,202 |
1 | ||
| 69250-58010B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU SILVER ME.,1E4 |
1 | ||
| 69250-58010B3 |
GGH2#..07S..(350S,35Z)..CBU *274 or *275&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,GRAY ME.,1G3 |
1 | ||
| 69250-58010J2 |
ANH2#,GGH2#..(240G,240S,240X,24V,24Z,350G,350S,350X,35V,35Z)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 69250-58010B3 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,GRAY ME.,1G3 |
1 | ||
| 69250-58010B3 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ),GRAY ME.,1G3 |
1 | ||
| 69250-58010A2 |
ANH2#,GGH2#..CBU WHITE PEARL CS.,070 |
1 | ||
| 69250-58010E1 |
ANH2#,GGH2#..(240G,240S,240X,24V,350G,350S,350X,35V)..CBU GOLD PEARL CS.,4U1 |
1 | ||
| 69250-58010B3 |
GGH2#..07S..(350S,35Z)..CBU *296 or *297&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,GRAY ME.,1G3 |
1 | ||
| 69250-58010B3 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),GRAY ME.,1G3 |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-58020A2 |
ANH2#,GGH2#..CBU WHITE PEARL CS.,070 |
1 | ||
| 69230-58020E1 |
ANH2#,GGH2#..(240G,240S,240X,24V,350G,350S,350X,35V)..CBU GOLD PEARL CS.,4U1 |
1 | ||
| 69230-58020C1 |
ANH2#,GGH2#..CBU BLACK,202 |
1 | ||
| 69230-58020B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU SILVER ME.,1E4 |
1 | ||
| 69230-58020B3 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,GRAY ME.,1G3 |
1 | ||
| 69230-28080B1 |
GGH2#..07S..(350S,35Z)..CBU *274 or *275&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,GRAY ME.,1G3 |
1 | ||
| 69230-58020B3 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ),GRAY ME.,1G3 |
1 | ||
| 69230-58020J2 |
ANH2#,GGH2#..(240G,240S,240X,24V,24Z,350G,350S,350X,35V,35Z)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 69230-28080C0 |
ANH2#,GGH2#..CBU BLACK,202 |
1 | ||
| 69230-28080E1 |
ANH2#,GGH2#..ALPHD..CBU GOLD PEARL CS.,4U1 |
1 | ||
| 69230-28080B1 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,GRAY ME.,1G3 |
1 | ||
| 69230-28080A0 |
ANH2#,GGH2#..CBU WHITE PEARL CS.,070 |
1 | ||
| 69230-28080J0 |
ANH2#,GGH2#..(240G,240S,240X,24Z,350G,350S,350X,35Z)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 69230-28080B1 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),GRAY ME.,1G3 |
1 | ||
| 69230-28080B2 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU SILVER ME.,1E4 |
1 | ||
| 69230-28080B1 |
GGH2#..07S..(350S,35Z)..CBU *296 or *297&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,GRAY ME.,1G3 |
1 | ||
| 69230-28080B1 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ),GRAY ME.,1G3 |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69230-58020B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU SILVER ME.,1E4 |
1 | ||
| 69230-58020E1 |
ANH2#,GGH2#..(240G,240S,240X,24V,350G,350S,350X,35V)..CBU GOLD PEARL CS.,4U1 |
1 | ||
| 69230-58020A2 |
ANH2#,GGH2#..CBU WHITE PEARL CS.,070 |
1 | ||
| 69230-58020C1 |
ANH2#,GGH2#..CBU BLACK,202 |
1 | ||
| 69230-58020B3 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ),GRAY ME.,1G3 |
1 | ||
| 69230-58020J2 |
ANH2#,GGH2#..(240G,240S,240X,24V,24Z,350G,350S,350X,35V,35Z)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 69230-28080B1 |
GGH2#..07S..(350S,35Z)..CBU *274 or *275&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,GRAY ME.,1G3 |
1 | ||
| 69230-28080C0 |
ANH2#,GGH2#..CBU BLACK,202 |
1 | ||
| 69230-58020B3 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,GRAY ME.,1G3 |
1 | ||
| 69230-28080A0 |
ANH2#,GGH2#..CBU WHITE PEARL CS.,070 |
1 | ||
| 69230-28080B2 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU SILVER ME.,1E4 |
1 | ||
| 69230-28080E1 |
ANH2#,GGH2#..ALPHD..CBU GOLD PEARL CS.,4U1 |
1 | ||
| 69230-28080B1 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,GRAY ME.,1G3 |
1 | ||
| 69230-28080J0 |
ANH2#,GGH2#..(240G,240S,240X,24Z,350G,350S,350X,35Z)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 69230-28080B1 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ),GRAY ME.,1G3 |
1 | ||
| 69230-28080B1 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ),GRAY ME.,1G3 |
1 | ||
| 69230-28080B1 |
GGH2#..07S..(350S,35Z)..CBU *296 or *297&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,GRAY ME.,1G3 |
1 | ||
| 69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT | ||||
| 69242-60030 |
ANH2#,GGH2#..CBU |
2 | ||
| 69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR | ||||
| 69241-28060 |
ANH2#,GGH2#..CBU |
2 | ||
| 69293J - SNAP, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69293-28040 |
ANH2#,GGH2#..CBU |
1 | ||
| 69293K - SNAP, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69293-28030 |
ANH2#,GGH2#..CBU |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69200-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 69200-58021 |
ANH2#,GGH2#..CBU |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69300-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 69300-58021 |
ANH2#,GGH2#..CBU |
1 | ||
| 69370B - LOCK ASSY, SLIDE DOOR, FRONT RH | ||||
| 69370-58031 |
ANH2#,GGH2#..CBU 寒冷地仕様 |
1 | ||
| 69370-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 69370-58031 |
ANH2#,GGH2#..CBU |
1 | ||
| 69370-58040 |
ANH2#,GGH2#..CBU |
1 | ||
| 69380B - LOCK ASSY, SLIDE DOOR, FRONT LH | ||||
| 69380-58031 |
ANH2#,GGH2#..CBU |
1 | ||
| 69380-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 69380-58040 |
ANH2#,GGH2#..CBU |
1 | ||
| 69380-58031 |
ANH2#,GGH2#..CBU 寒冷地仕様 |
1 | ||
| 69380B - LOCK ASSY, SLIDE DOOR, FRONT LH | ||||
| 69380-58031 |
ANH2#,GGH2#..CBU |
1 | ||
| 69380-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 69380-58040 |
ANH2#,GGH2#..CBU |
1 | ||
| 69380-58031 |
ANH2#,GGH2#..CBU 寒冷地仕様 |
1 | ||
| 69440A - PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER | ||||
| 69440-28060 |
ANH2#,GGH2#..CBU |
1 | ||
| 69440B - PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER | ||||
| 69440-28060 |
ANH2#,GGH2#..CBU |
1 | ||
| 69470 - PLATE ASSY, SLIDE DOOR LOCK STRIKER | ||||
| 69470-28120 |
ANH2#,GGH2#..CBU |
1 | ||
| 69470A - PLATE ASSY, SLIDE DOOR LOCK STRIKER, LH | ||||
| 69470-28120 |
ANH2#,GGH2#..CBU |
1 | ||
| 69485D - STRIKER, SLIDE DOOR OPEN, RH | ||||
| 69485-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 69486E - STRIKER, SLIDE DOOR OPEN, LH | ||||
| 69486-58040 |
ANH2#,GGH2#..CBU |
1 | ||
| 69490E - STOPPER ASSY, SLIDE DOOR HALF OPEN | ||||
| 69490-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 69499 - CLIP, SLIDE DOOR HALF OPEN STOPPER CABLE | ||||
| 69499-28020 |
ANH2#,GGH2#..CBU |
1 | ||
| 69630C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, RH | ||||
| 69630-28160 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 69630-28160 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 69630-58060 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 69630-28150 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU |
1 | ||
| 69630-58060 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU 有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 69630-58060 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 69630-58050 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU |
1 | ||
| 69630-58060 |
GGH2#..07S..(350S,35Z)..CBU *274 or *275&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ |
1 | ||
| 69630-58060 |
GGH2#..07S..(350S,35Z)..CBU *296 or *297&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ |
1 | ||
| 69630-28160 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261&有り(両側ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ&ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ)&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ |
1 | ||
| 69640C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH | ||||
| 69640-28240 |
ANH2#,GGH2#..CBU |
1 | ||
| 69640-58050 |
ANH2#,GGH2#..CBU |
1 | ||
| Common parts | ||||
| 85618-28010 | ||||
| 90105-06260 | ||||
| 90119-06779 | ||||
| 90148-50003 | ||||
| 90148-60073 | ||||
| 90148-80040 | ||||
| 90159-40202 | ||||
| 90179-05118 | ||||
| 90179-10186 | ||||
| 90386-08066 | ||||
| 90959-01619 | ||||
| 91641-80818 | ||||
| 91673-80616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
