GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv
(0804- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-42210 |
ANH2#,GGH2#..CBU |
1 | ||
| 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH | ||||
| 69040-42230 |
ANH2#,GGH2#..CBU |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-28030 |
ANH2#,GGH2#..CBU |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-28020 |
ANH2#,GGH2#..CBU |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-20210C0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU BLACK,TRIM0#,1# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
ANH2#,GGH2#..CBU |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-20210C0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU BLACK,TRIM0#,1# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-30290E4 |
ANH2#,GGH2#..ALPHD..CBU GOLD PEARL CS.,4U1 |
1 | ||
| 69210-30290J2 |
ANH2#,GGH2#..(240G,240S,240X,24Z,350G,350S,350X,35Z)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 69210-30290A8 |
ANH2#,GGH2#..CBU WHITE PEARL CS.,070 |
1 | ||
| 69210-30290B6 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU GRAY ME.,1G3 |
1 | ||
| 69210-30290C0 |
ANH2#,GGH2#..CBU BLACK,202 |
1 | ||
| 69210-20410B3 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU SILVER ME.,1E4 |
1 | ||
| 69210-20410A1 |
ANH2#,GGH2#..CBU WHITE PEARL CS.,070 |
1 | ||
| 69210-30290B3 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU SILVER ME.,1E4 |
1 | ||
| 69210-20410E1 |
ANH2#,GGH2#..ALPHD..CBU GOLD PEARL CS.,4U1 |
1 | ||
| 69210-20410J1 |
ANH2#,GGH2#..(240G,240S,240X,24Z,350G,350S,350X,35Z)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 69210-20410B2 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU GRAY ME.,1G3 |
1 | ||
| 69210-20410C1 |
ANH2#,GGH2#..CBU BLACK,202 |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69250-30010A7 |
ANH2#,GGH2#..CBU WHITE PEARL CS.,070 |
1 | ||
| 69250-30010B4 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU SILVER ME.,1E4 |
1 | ||
| 69250-30010C0 |
ANH2#,GGH2#..CBU BLACK,202 |
1 | ||
| 69250-30010E4 |
ANH2#,GGH2#..(240G,240S,240X,24V,350G,350S,350X,35V)..CBU GOLD PEARL CS.,4U1 |
1 | ||
| 69250-30010J2 |
ANH2#,GGH2#..(240G,240S,240X,24V,24Z,350G,350S,350X,35V,35Z)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 69250-30010B7 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU GRAY ME.,1G3 |
1 | ||
| 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69250-30020E4 |
ANH2#,GGH2#..(240G,240S,240X,24V,350G,350S,350X,35V)..CBU GOLD PEARL CS.,4U1 |
1 | ||
| 69250-30020C0 |
ANH2#,GGH2#..CBU BLACK,202 |
1 | ||
| 69250-30020P4 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU SILVER ME.,1E4 |
1 | ||
| 69250-30020A6 |
ANH2#,GGH2#..CBU WHITE PEARL CS.,070 |
1 | ||
| 69250-30020B6 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU GRAY ME.,1G3 |
1 | ||
| 69250-30020J2 |
ANH2#,GGH2#..(240G,240S,240X,24V,24Z,350G,350S,350X,35V,35Z)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-30290B6 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU GRAY ME.,1G3 |
1 | ||
| 69210-30290C0 |
ANH2#,GGH2#..CBU BLACK,202 |
1 | ||
| 69210-30290E4 |
ANH2#,GGH2#..ALPHD..CBU GOLD PEARL CS.,4U1 |
1 | ||
| 69210-30290J2 |
ANH2#,GGH2#..(240G,240S,240X,24Z,350G,350S,350X,35Z)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 69210-20410B3 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU SILVER ME.,1E4 |
1 | ||
| 69210-20410B2 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU GRAY ME.,1G3 |
1 | ||
| 69210-30290A8 |
ANH2#,GGH2#..CBU WHITE PEARL CS.,070 |
1 | ||
| 69210-30290B3 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU SILVER ME.,1E4 |
1 | ||
| 69210-20410C1 |
ANH2#,GGH2#..CBU BLACK,202 |
1 | ||
| 69210-20410E1 |
ANH2#,GGH2#..ALPHD..CBU GOLD PEARL CS.,4U1 |
1 | ||
| 69210-20410J1 |
ANH2#,GGH2#..(240G,240S,240X,24Z,350G,350S,350X,35Z)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 69210-20410A1 |
ANH2#,GGH2#..CBU WHITE PEARL CS.,070 |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-28060 |
ANH2#,GGH2#..CBU |
2 | ||
| 69242F - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-60030 |
ANH2#,GGH2#..CBU |
2 | ||
| 69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-20020C0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU BLACK,TRIM0#,1# |
1 | ||
| 69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-20010C0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU BLACK,TRIM0#,1# |
1 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12030 |
ANH2#,GGH2#..CBU |
1 | ||
| 69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12040 |
ANH2#,GGH2#..CBU |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
ANH2#,GGH2#..CBU |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-33010 |
ANH2#,GGH2#..CBU |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69750-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 84947A - COVER, DOOR ELECTRICAL KEY SWITCH | ||||
| 84947-68010 |
ANH2#,GGH2#..CBU |
2 | ||
| Common parts | ||||
| 90148-50003 | ||||
| 90148-60073 | ||||
| 90148-80066 | ||||
| 90159-50083 | ||||
| 90179-05118 | ||||
| 90189-05003 | ||||
| 90386-08066 | ||||
| 93219-64006 | ||||

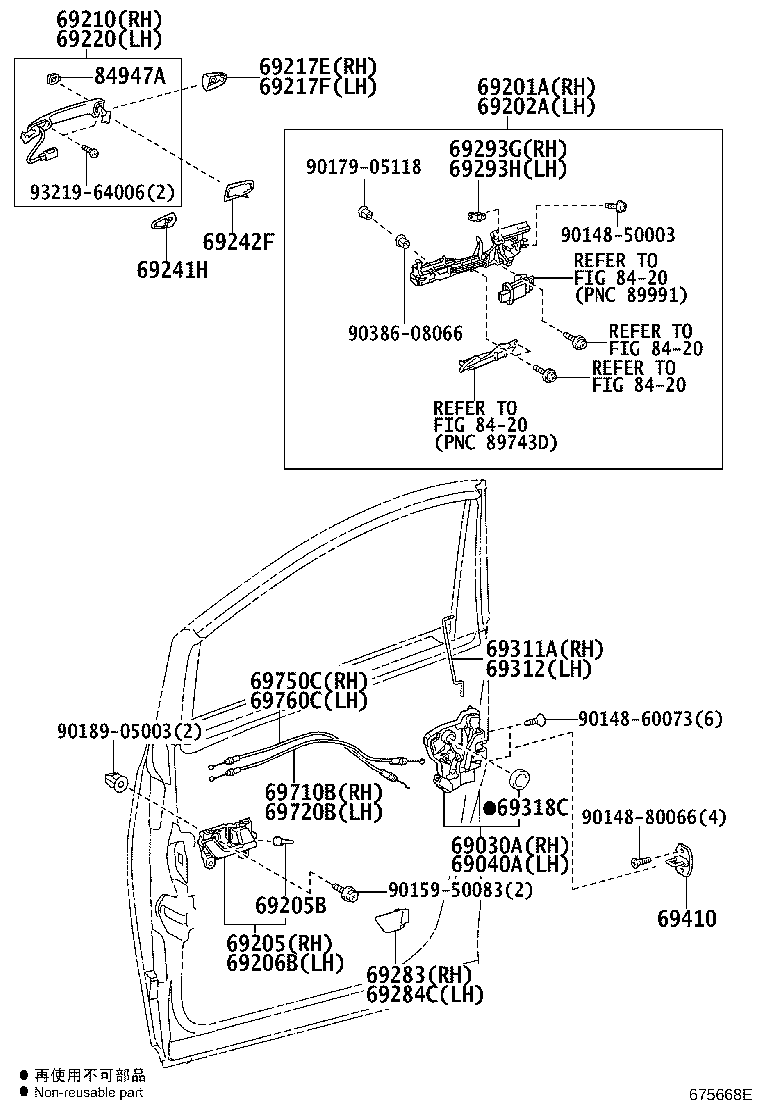

| Linked diagrams | ||||
| 8420 | ||||
