GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv

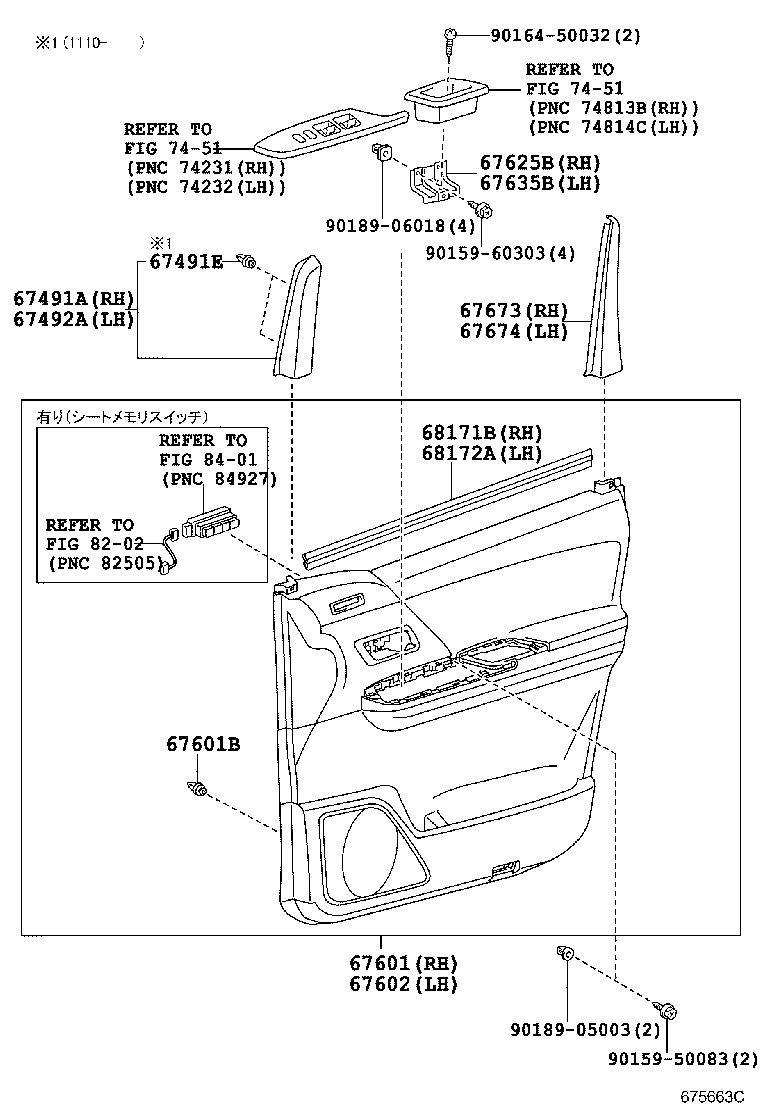

ILLUST NO. 3 OF 3(0804- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-58021 |
ANH2#,GGH2#..CBU |
1 | ||
| 67491-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 67492-58021 |
ANH2#,GGH2#..CBU |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-58220E0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶｰﾄﾞ ﾓｹｯﾄ,SHELL,TRIM0# |
1 | ||
| 67610-58210B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 67610-58330B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 67610-58300B0 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 67610-58341B0 |
GGH2#..07S..(350S,35Z)..CBU *274 or *275&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 67610-58200B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 67610-58301B0 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 67610-58331B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 67610-58221E0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶｰﾄﾞ ﾓｹｯﾄ,SHELL,TRIM0# |
1 | ||
| 67610-58201B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 67610-58450B0 |
GGH2#..07S..(350S,35Z)..CBU *296 or *297&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ANH2#,GGH2#..CBU |
24 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-58321B0 |
GGH2#..07S..(350S,35Z)..CBU *274 or *275&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 67620-58221E0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶｰﾄﾞ ﾓｹｯﾄ,SHELL,TRIM0# |
1 | ||
| 67620-58310B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 67620-58280B0 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 67620-58311B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 67620-58200B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 67620-58201B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 67620-58210B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 67620-58321B0 |
GGH2#..07S..(350S,35Z)..CBU *296 or *297&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 67620-58220E0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶｰﾄﾞ ﾓｹｯﾄ,SHELL,TRIM0# |
1 | ||
| 67620-58281B0 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 67625B - BRACKET, DOOR TRIM, NO.1 RH | ||||
| 67625-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 67635B - BRACKET, DOOR TRIM, NO.1 LH | ||||
| 67635-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 67673 - GARNISH, DOOR FRAME, LOWER RH | ||||
| 67673-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 67674 - GARNISH, DOOR FRAME, LOWER LH | ||||
| 67674-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| Common parts | ||||
| 90159-50083 | ||||
| 90159-60303 | ||||
| 90164-50032 | ||||
| 90189-05003 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 8202 | ||||
| 8401 | ||||

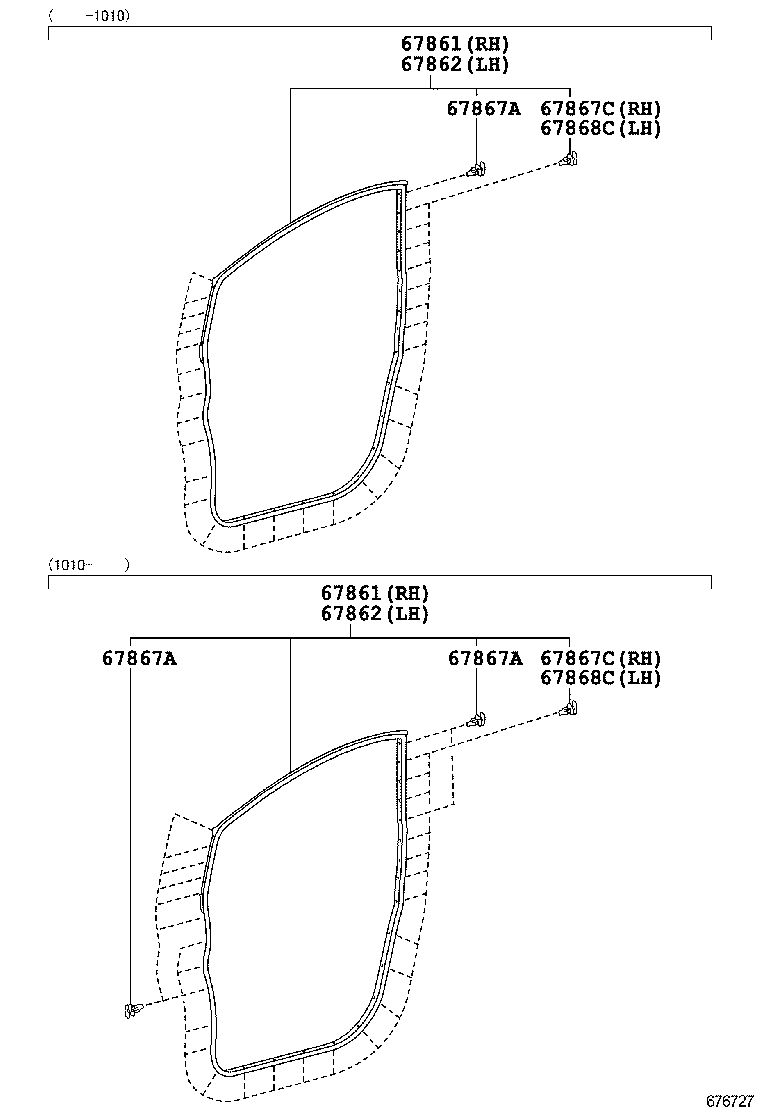

ILLUST NO. 2 OF 3(0804- )
ﾄﾞｱｳｴｻﾞｽﾄﾘｯﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67867-52020 |
ANH2#,GGH2#..CBU |
2 | ||
| 67867-52020 |
ANH2#,GGH2#..CBU |
18 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67867-52020 |
ANH2#,GGH2#..CBU |
2 | ||
| 67867-52020 |
ANH2#,GGH2#..CBU |
18 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67867-52020 |
ANH2#,GGH2#..CBU |
2 | ||
| 67867-52020 |
ANH2#,GGH2#..CBU |
18 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ANH2#,GGH2#..CBU |
28 | ||
| 67867-12150 |
ANH2#,GGH2#..CBU |
20 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ANH2#,GGH2#..CBU |
28 | ||
| 67867-12150 |
ANH2#,GGH2#..CBU |
20 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ANH2#,GGH2#..CBU |
28 | ||
| 67867-12150 |
ANH2#,GGH2#..CBU |
20 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ANH2#,GGH2#..CBU |
28 | ||
| 67867-12150 |
ANH2#,GGH2#..CBU |
20 | ||

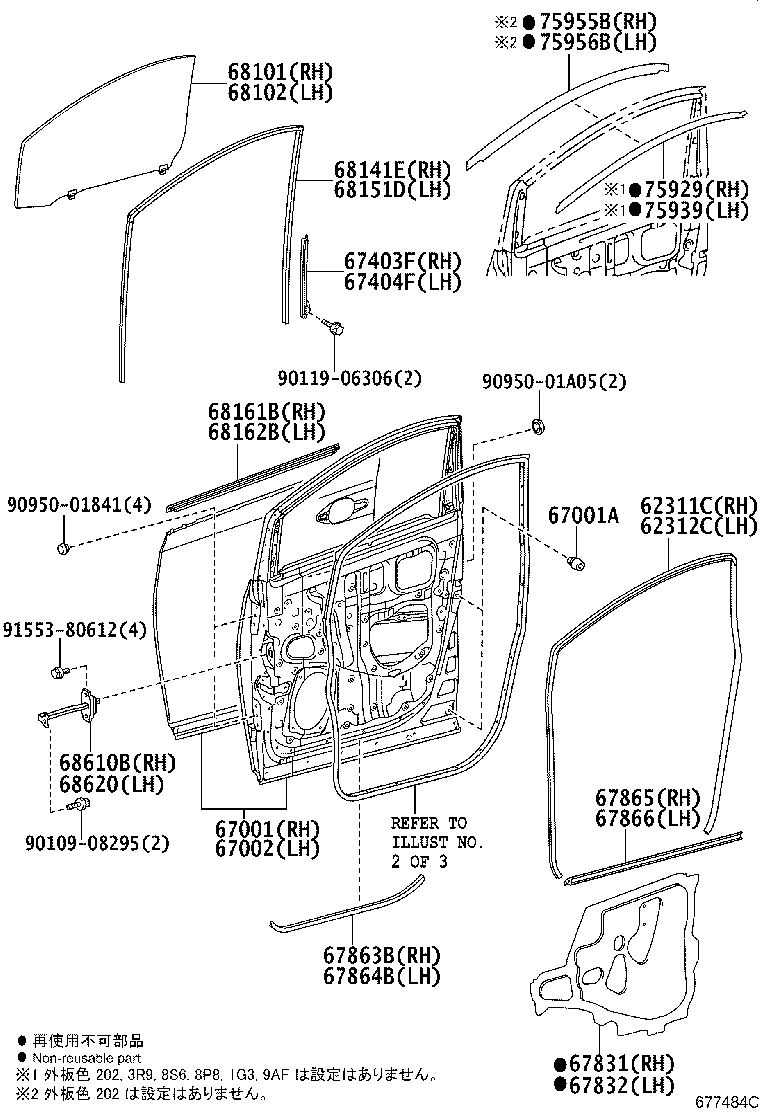

ILLUST NO. 1 OF 3(0804- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62311C - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-58020B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 62311-58020A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 62312C - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-58020B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 62312-58020A0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU SHELL,TRIM0# |
1 | ||
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-58040 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09069 |
ANH2#,GGH2#..CBU |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-58040 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67801-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67802-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67863-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 67865 - WEATHERSTRIP, FRONT DOOR, LOWER RH | ||||
| 67853-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 67866 - WEATHERSTRIP, FRONT DOOR LOWER, LH | ||||
| 67853-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-58030 |
ANH2#,GGH2#..CBU *UVCT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68101-58042 |
GGH2#..07S..(350S,35Z)..CBU *UVIRCT,厚さ=5.0,ｸﾞﾘｰﾝ,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 68101-58040 |
GGH2#..07S..(350S,35Z)..CBU *UVIRCT,厚さ=5.0,ｸﾞﾘｰﾝ,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 68101-58031 |
ANH2#,GGH2#..CBU *UVCT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68101-58041 |
GGH2#..07S..(350S,35Z)..CBU *UVIRCT,厚さ=5.0,ｸﾞﾘｰﾝ,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-58030 |
ANH2#,GGH2#..CBU *UVCT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102-58031 |
ANH2#,GGH2#..CBU *UVCT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102-58041 |
GGH2#..07S..(350S,35Z)..CBU *UVIRCT,厚さ=5.0,ｸﾞﾘｰﾝ,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 68102-58040 |
GGH2#..07S..(350S,35Z)..CBU *UVIRCT,厚さ=5.0,ｸﾞﾘｰﾝ,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 68102-58042 |
GGH2#..07S..(350S,35Z)..CBU *UVIRCT,厚さ=5.0,ｸﾞﾘｰﾝ,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 68141E - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 68141-58021 |
ANH2#,GGH2#..CBU |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 68151-58021 |
ANH2#,GGH2#..CBU |
1 | ||
| 68161B - WEATHERSTRIP, FRONT DOOR GLASS, OUTER RH | ||||
| 68161-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 68162B - WEATHERSTRIP, FRONT DOOR GLASS, OUTER LH | ||||
| 68162-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-28060 |
ANH2#,GGH2#..CBU |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68610-28060 |
ANH2#,GGH2#..CBU |
1 | ||
| 75929 - TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH | ||||
| 75929-58020 |
ANH2#,GGH2#..CBU 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75939 - TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH | ||||
| 75939-58020 |
ANH2#,GGH2#..CBU 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75955B - TAPE, BLACK OUT FRONT DOOR, OUTER UPPER RH | ||||
| 75955-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 75955-58020 |
ANH2#,GGH2#..CBU 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75956B - TAPE, BLACK OUT FRONT DOOR, OUTER UPPER LH | ||||
| 75956-58020 |
ANH2#,GGH2#..CBU 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75956-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06306 | ||||
| 90950-01841 | ||||
| 90950-01A05 | ||||
| 91553-80612 | ||||
