GGH25W-PFTSK (2008)

Toyota Alphard/Vellfire/Hv

Production Apr 2008 - Oct 2011
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0804- )

Click highlighted areas on diagram

ﾙｰﾌﾊﾟﾈﾙ

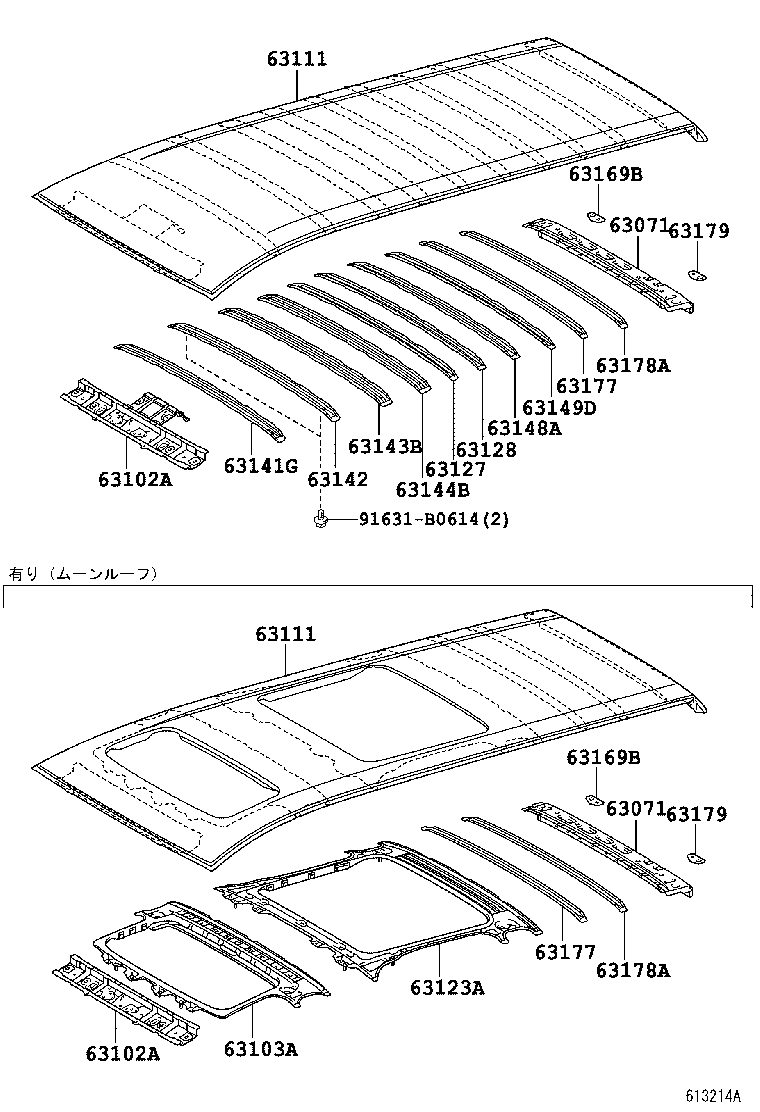

diagram 63071 63071 63102A 63102A 63103A 63111 63111 63123A 63127 63128 63141G 63142 63143B 63144B 63148A 63149D 63169B 63169B 63177 63177 63178A 63178A 63179 63179 91631B0614
Part # Description Qty Price
63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63071-58020

ANH2#,GGH2#..CBU

 1
63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63071-58020

ANH2#,GGH2#..CBU

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-58030

ANH2#,GGH2#..CBU

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-58030

ANH2#,GGH2#..CBU

 1
63111 - PANEL, ROOF
63111-58030

ANH2#,GGH2#..CBU

 1
63111 - PANEL, ROOF
63111-58030

ANH2#,GGH2#..CBU

 1
63127 - REINFORCEMENT, ROOF PANEL, NO.5
63127-58021

ANH2#,GGH2#..CBU

 1
63128 - REINFORCEMENT, ROOF PANEL, NO.6
63128-58021

ANH2#,GGH2#..CBU

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-58020

ANH2#,GGH2#..CBU

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-58020

ANH2#,GGH2#..CBU

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-58021

ANH2#,GGH2#..CBU

 1
63144B - REINFORCEMENT, ROOF PANEL, NO.4
63144-58021

ANH2#,GGH2#..CBU

 1
63148A - REINFORCEMENT, ROOF PANEL, NO.7
63148-58021

ANH2#,GGH2#..CBU

 1
63149D - REINFORCEMENT, ROOF PANEL, NO.8
63149-58021

ANH2#,GGH2#..CBU

 1
63169B - PLATE, ROOF PANEL REINFORCEMENT, RH
63169-35020

ANH2#,GGH2#..CBU

 1
63169B - PLATE, ROOF PANEL REINFORCEMENT, RH
63169-35020

ANH2#,GGH2#..CBU

 1
63177 - REINFORCEMENT, ROOF PANEL, NO.9
63177-58010

ANH2#,GGH2#..CBU

 1
63177 - REINFORCEMENT, ROOF PANEL, NO.9
63177-58010

ANH2#,GGH2#..CBU

 1
63178A - REINFORCEMENT, ROOF PANEL, NO.10
63178-58010

ANH2#,GGH2#..CBU

 1
63178A - REINFORCEMENT, ROOF PANEL, NO.10
63178-58010

ANH2#,GGH2#..CBU

 1
63179 - PLATE, ROOF PANEL REINFORCEMENT, LH
63179-35020

ANH2#,GGH2#..CBU

 1
63179 - PLATE, ROOF PANEL REINFORCEMENT, LH
63179-35020

ANH2#,GGH2#..CBU

 1
Common parts
91631-B0614

ILLUST NO. 3 OF 3(0804- )

Click highlighted areas on diagram

ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ

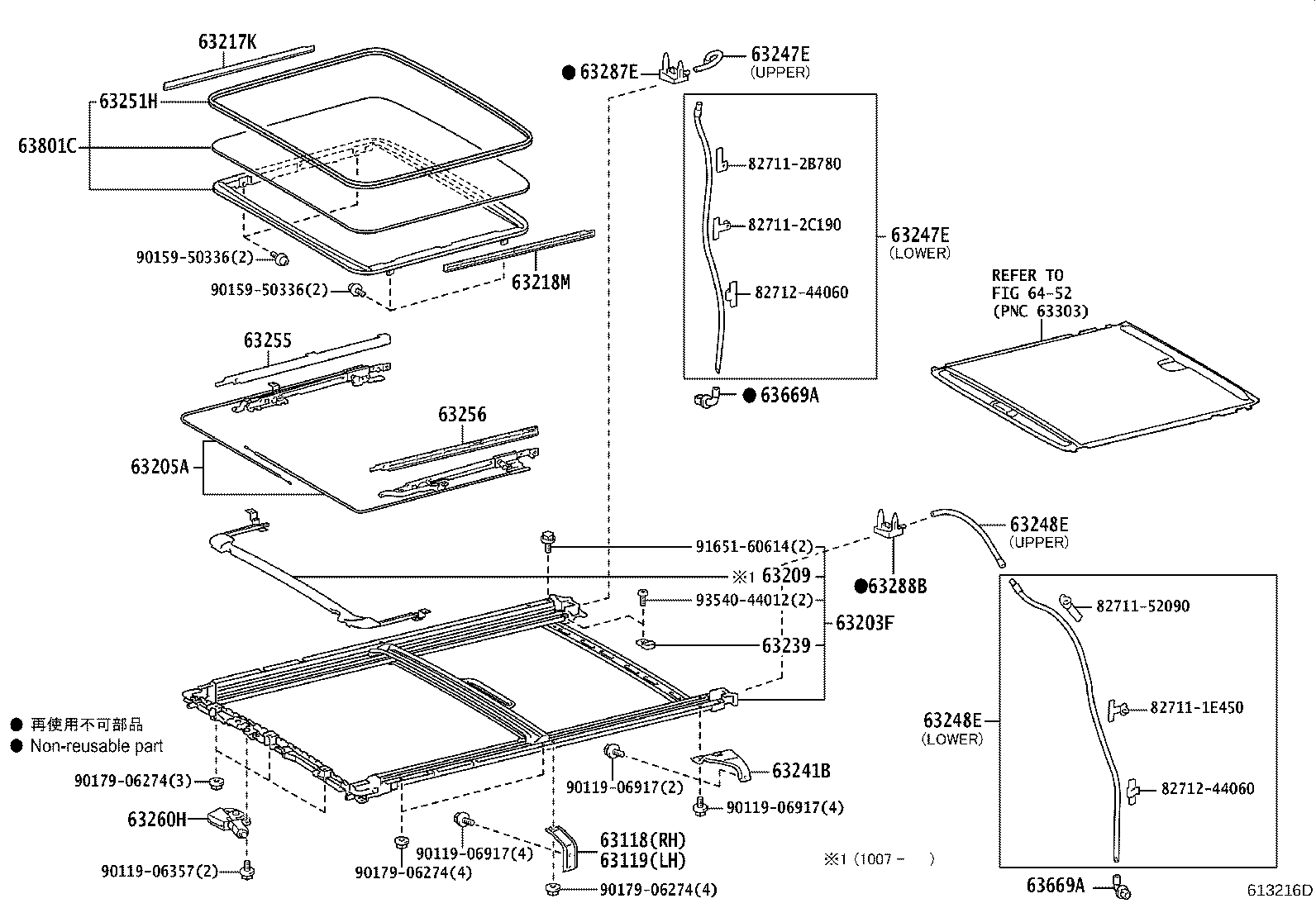

diagram 63118 63119 63203F 63205A 63209 63217K 63218M 63239 63241B 63247E 63247E 63248E 63248E 63251H 63255 63256 63260H 63287E 63288B 63669A 63669A 63801C 6452 827111E450 827112B780 827112C190 8271152090 8271244060 8271244060 9011906357 9011906917 9011906917 9011906917 9015950336 9015950336 9017906274 9017906274 9017906274 9165160614 9354044012
Part # Description Qty Price
Common parts
82711-1E450
82711-2B780
82711-2C190
82711-52090
82712-44060
90119-06357
90119-06917
90159-50336
90179-06274
91651-60614
93540-44012
Linked diagrams
6452

ILLUST NO. 2 OF 3(0804- )

Click highlighted areas on diagram

ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ

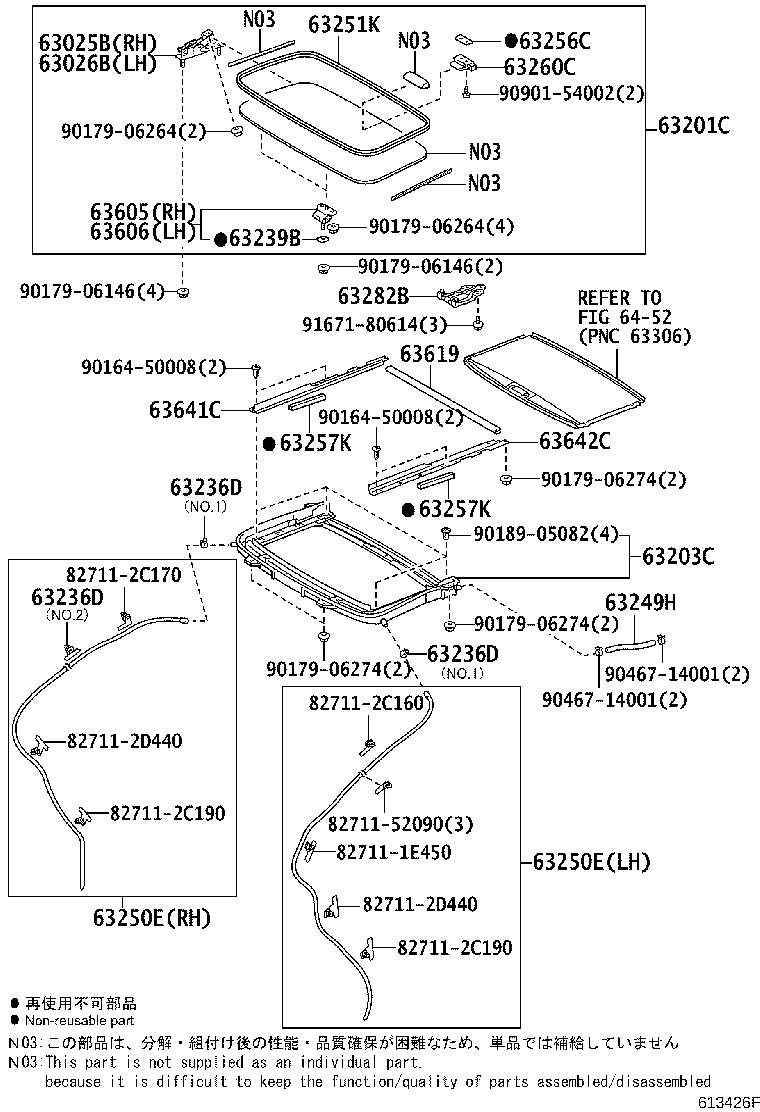

diagram 63025B 63026B 63201C 63203C 63236D 63236D 63236D 63239B 63249H 63250E 63250E 63251K 63256C 63257K 63257K 63260C 63282B 63605 63606 63619 63641C 63642C 6452 827111E450 827112C160 827112C170 827112C190 827112C190 827112D440 827112D440 8271152090 9016450008 9016450008 9017906146 9017906146 9017906264 9017906264 9017906274 9017906274 9017906274 9018905082 9046714001 9046714001 9090154002 9167180614
Part # Description Qty Price
Common parts
82711-1E450
82711-2C160
82711-2C170
82711-2C190
82711-2D440
82711-52090
90164-50008
90179-06146
90179-06264
90179-06274
90189-05082
90467-14001
90901-54002
91671-80614
Linked diagrams
6452
