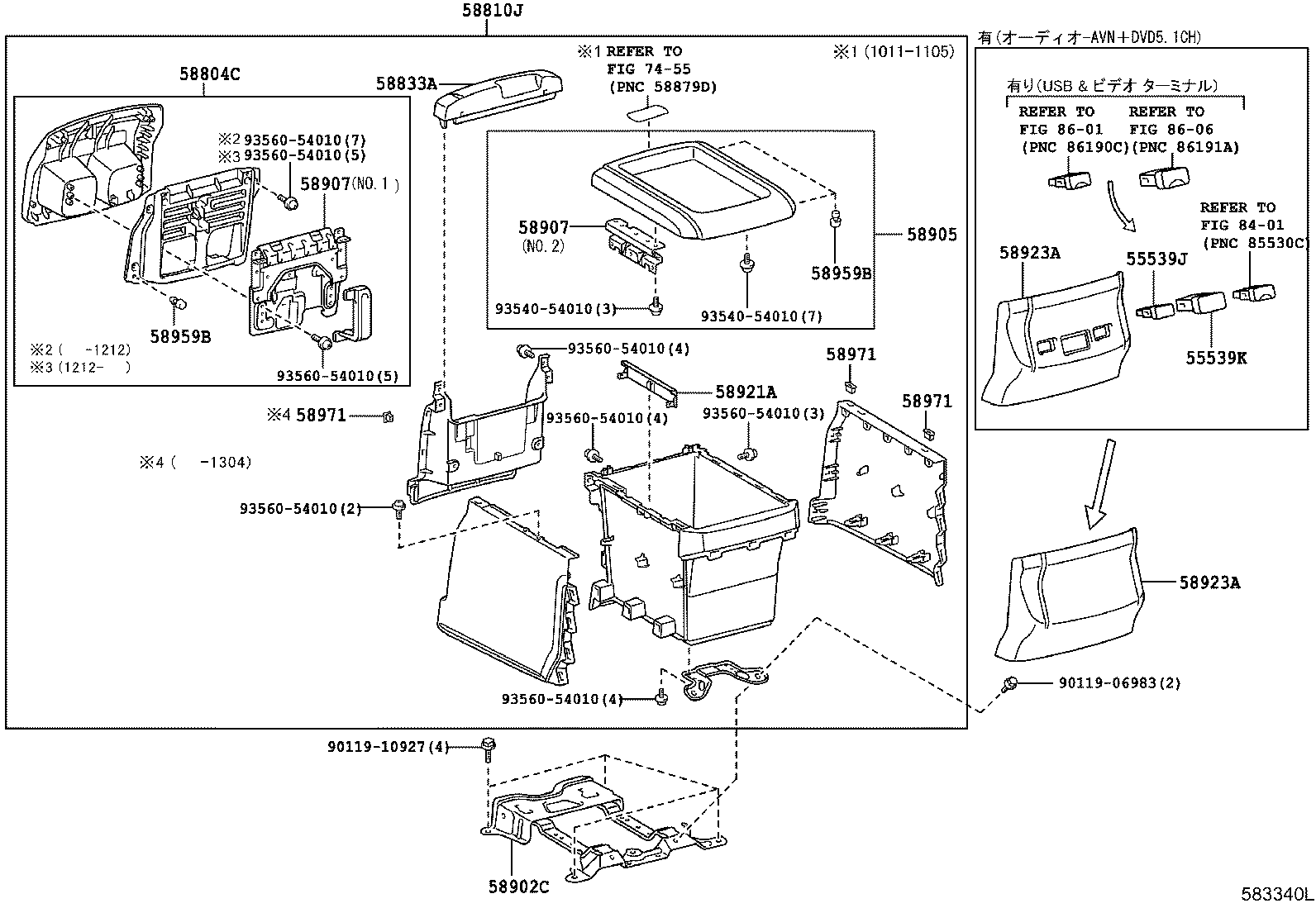

GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv
(0804- )240S,240X,24X,24Z,350S,350X,35X,35Z
ｶｲﾃﾝｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58804C - INSERT SUB-ASSY, CONSOLE BOX, FRONT | ||||
| 58804-58120B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-58190B0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *274 or *275&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 58810-58090A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶｰﾄﾞ ﾓｹｯﾄ,SHELL,TRIM0# |
1 | ||
| 58810-58140B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58810-58180B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 58810-58190B0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *296 or *297&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 58810-58160B0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *260 or *261&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 58810-58130B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 58833A - COVER, CONSOLE, UPPER | ||||
| 58833-58060B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING | ||||
| 58902-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-58100B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58905-58110B0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *260 or *261&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 58905-58120B0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *274 or *275&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 58905-58120B0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *296 or *297&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-58060 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU NO.2 |
1 | ||
| 58907-58050 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU NO.1 |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-58060 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU NO.2 |
1 | ||
| 58907-58050 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU NO.1 |
1 | ||
| 58921A - PANEL, REAR CONSOLE, UPPER | ||||
| 58921-58030B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-58060B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58923-58070B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58923-58070B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58923-58080B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58923-58080A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD5.1CH,SHELL,TRIM0# |
1 | ||
| 58923-58080A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD5.1CH,SHELL,TRIM0# |
1 | ||
| 58923-58090B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 58923-58080B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58923-58090A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-58060B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58923-58070B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58923-58070B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58923-58080B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58923-58080A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD5.1CH,SHELL,TRIM0# |
1 | ||
| 58923-58080A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD5.1CH,SHELL,TRIM0# |
1 | ||
| 58923-58090B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 58923-58080B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58923-58090A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU |
4 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU |
4 | ||
| 58971 - LOCK, CONSOLE COMPARTMENT DOOR | ||||
| 58971-26010 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU |
3 | ||
| 58971-58060 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU |
3 | ||
| 58971-26010 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *274 or *275&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ |
3 | ||
| 58971 - LOCK, CONSOLE COMPARTMENT DOOR | ||||
| 58971-26010 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU |
3 | ||
| 58971-58060 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU |
3 | ||
| 58971-26010 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *274 or *275&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ |
3 | ||
| 58971 - LOCK, CONSOLE COMPARTMENT DOOR | ||||
| 58971-26010 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU |
3 | ||
| 58971-58060 |
ANH2#,GGH2#..(240S,240X,24X,24Z,350S,350X,35X,35Z)..CBU |
3 | ||
| 58971-26010 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *274 or *275&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ |
3 | ||
| Common parts | ||||
| 90119-06983 | ||||
| 90119-10927 | ||||
| 93540-54010 | ||||
| 93560-54010 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8401 | ||||
| 8601 | ||||
| 8606 | ||||

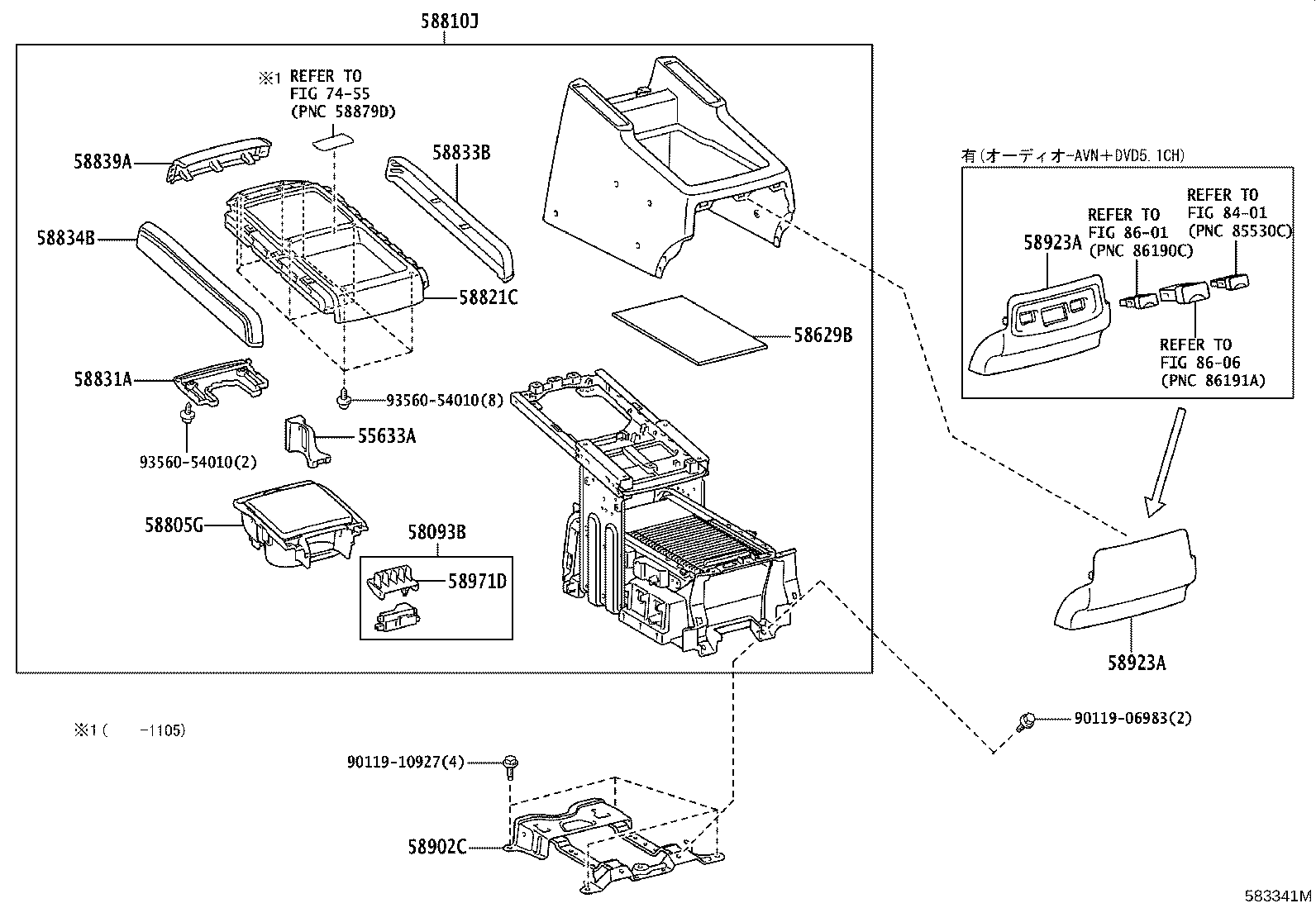

(0804- )ANH2#,GGH2#
ｽﾗｲﾄﾞｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55633A - SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1 | ||||
| 55633-58020 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 55633-58020 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶｰﾄﾞ ﾓｹｯﾄ |
1 | ||
| 58093B - LOCK SUB-ASSY, BOX | ||||
| 58093-58010 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶｰﾄﾞ ﾓｹｯﾄ |
1 | ||
| 58093-58010 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 58629B - MAT, CENTER CONSOLE | ||||
| 58629-58010 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶｰﾄﾞ ﾓｹｯﾄ |
1 | ||
| 58629-58010 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 58805G - HOLDER SUB-ASSY, CONSOLE BOX | ||||
| 58805-58011B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 58805-58010B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 58805-58011A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶｰﾄﾞ ﾓｹｯﾄ,SHELL,TRIM0# |
1 | ||
| 58805-58010A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶｰﾄﾞ ﾓｹｯﾄ,SHELL,TRIM0# |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-58190B0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *274 or *275&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 58810-58090A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶｰﾄﾞ ﾓｹｯﾄ,SHELL,TRIM0# |
1 | ||
| 58810-58140B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58810-58180B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 58810-58190B0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *296 or *297&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,DK.GRAY,TRIM1# |
1 | ||
| 58810-58160B0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *260 or *261&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 58810-58130B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-58080A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶｰﾄﾞ ﾓｹｯﾄ,SHELL,TRIM0# |
1 | ||
| 58821-58080B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 58821-58081B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 58821-58081A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶｰﾄﾞ ﾓｹｯﾄ,SHELL,TRIM0# |
1 | ||
| 58831A - GARNISH, CONSOLE UPPER PANEL, FRONT | ||||
| 58833-58070 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 58833-58070 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶｰﾄﾞ ﾓｹｯﾄ |
1 | ||
| 58833B - GARNISH, CONSOLE UPPER PANEL, NO.1 | ||||
| 58833-58050B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 58833-58020A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶｰﾄﾞ ﾓｹｯﾄ,SHELL,TRIM0# |
1 | ||
| 58833-58100B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 58834B - GARNISH, CONSOLE UPPER PANEL, NO.2 | ||||
| 58834-58040B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 58834-58070B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 58834-58010A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶｰﾄﾞ ﾓｹｯﾄ,SHELL,TRIM0# |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-58010A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶｰﾄﾞ ﾓｹｯﾄ,SHELL,TRIM0# |
1 | ||
| 58839-58010B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING | ||||
| 58902-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-58060B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58923-58070B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58923-58070B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58923-58080B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58923-58080A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD5.1CH,SHELL,TRIM0# |
1 | ||
| 58923-58080A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD5.1CH,SHELL,TRIM0# |
1 | ||
| 58923-58090B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 58923-58080B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58923-58090A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-58060B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 58923-58070B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58923-58070B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD 5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58923-58080B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58923-58080A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−AVN 11ｽﾋﾟｰｶ & DVD5.1CH,SHELL,TRIM0# |
1 | ||
| 58923-58080A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD5.1CH,SHELL,TRIM0# |
1 | ||
| 58923-58090B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1# |
1 | ||
| 58923-58080B0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−AVN 18ｽﾋﾟｰｶ & DVD5.1CH,DK.GRAY,TRIM1# |
1 | ||
| 58923-58090A0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 58971D - LEVER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58971-58040 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 58971-58040 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶｰﾄﾞ ﾓｹｯﾄ |
1 | ||
| Common parts | ||||
| 90119-06983 | ||||
| 90119-10927 | ||||
| 93560-54010 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8401 | ||||
| 8601 | ||||
| 8606 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
