GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv
(0804-1110)

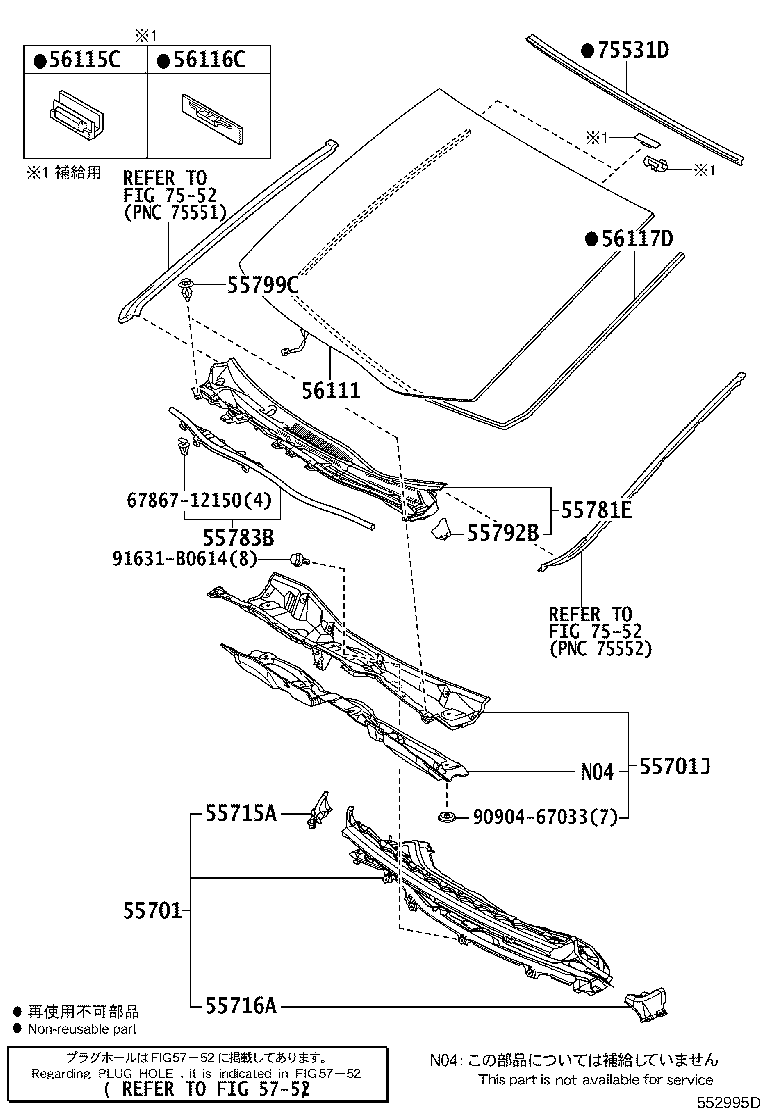

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-58021 |
ANH2#,GGH2#..CBU |
1 | ||
| 55700-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 55701J - PANEL SUB-ASSY, COWL TOP, OUTER | ||||
| 55701-58032 |
ANH2#,GGH2#..CBU |
1 | ||
| 55701-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 55701-58031 |
ANH2#,GGH2#..CBU |
1 | ||
| 55715A - BRACE, COWL TOP TO APRON, RH | ||||
| 55715-58011 |
ANH2#,GGH2#..CBU |
1 | ||
| 55715-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 55716A - BRACE, COWL TOP TO APRON, LH | ||||
| 55716-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 55716-58011 |
ANH2#,GGH2#..CBU |
1 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-58050 |
ANH2#,GGH2#..CBU |
1 | ||
| 55708-58060 |
ANH2#,GGH2#..CBU 寒冷地仕様 |
1 | ||
| 55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1 | ||||
| 55709-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 55792B - COVER, COWL REINFORCEMENT, UPPER LH | ||||
| 55792-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 55799C - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 55799-28020 |
ANH2#,GGH2#..CBU |
2 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-58905 |
GGH2#..07S..(350S,35Z)..CBU *EHL,T=4.76,ｸﾞﾘｰﾝ,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&寒冷地仕様 |
1 | ||
| 56101-58904 |
GGH2#..(350S,350X,35X,35Z)..CBU *LAM,T=4.76,ｸﾞﾘｰﾝ,ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56101-58910 |
GGH2#..07S..(350S,35Z)..CBU *LAM,T=4.76,ｸﾞﾘｰﾝ,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ﾃﾞｼﾞﾀﾙﾃﾚrﾁｭｰﾅ有り |
1 | ||
| 56101-58906 |
GGH2#..07S..(350S,35Z)..CBU *EHL,T=4.76,ｸﾞﾘｰﾝ,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&寒冷地仕様&fｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56101-58910 |
GGH2#..07S..(350S,35Z)..CBU *LAM,T=4.76,ｸﾞﾘｰﾝ,*260 or *261&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅLり |
1 | ||
| 56101-58902 |
GGH2#..(350S,350X,35X,35Z)..CBU *EHL,T=4.76,ｸﾞﾘｰﾝ,寒冷地仕様 |
1 | ||
| 56101-58903 |
GGH2#..07S..(350S,35Z)..CBU *LAM,T=4.76,ｸﾞﾘｰﾝ,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 56101-58901 |
GGH2#..(350S,350X,35X,35Z)..CBU *LAM,T=4.76,ｸﾞﾘｰﾝ |
1 | ||
| 56101-58905 |
GGH2#..07S..(350S,35Z)..CBU *EHL,T=4.76,ｸﾞﾘｰﾝ,*260 or *261&寒冷地仕様 |
1 | ||
| 56101-58908 |
GGH2#..(350S,350X,35X,35Z)..CBU *EHL,T=4.76,ｸﾞﾘｰﾝ,寒冷地仕様&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56101-58906 |
GGH2#..07S..(350S,35Z)..CBU *EHL,T=4.76,ｸﾞﾘｰﾝ,*260 or *261&寒冷地仕様&ﾃﾞｼﾞﾀﾙﾃ激rﾁｭｰﾅ有り |
1 | ||
| 56101-58925 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *EHL,T=4.76,ｸﾞﾘｰﾝ,*274 or *275&寒冷地仕様 |
1 | ||
| 56101-58920 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *LAM,T=4.76,ｸﾞﾘｰﾝ,*274 or *275 |
1 | ||
| 56101-58926 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *EHL,T=4.76,ｸﾞﾘｰﾝ,*274 or *275&寒冷地仕様&ﾃﾞｼﾞﾀﾙﾃ激rﾁｭｰﾅ有り |
1 | ||
| 56101-58922 |
GGH2#..(350S,350X,35X,35Z)..CBU *LAM,T=4.76,ｸﾞﾘｰﾝ |
1 | ||
| 56101-58907 |
GGH2#..07S..(350S,35Z)..CBU *EHL,T=4.76,ｸﾞﾘｰﾝ,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&寒冷地仕様&Nﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 56101-58909 |
GGH2#..07S..(350S,35Z)..CBU *LAM,T=4.76,ｸﾞﾘｰﾝ,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝgﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56101-58923 |
GGH2#..(350S,350X,35X,35Z)..CBU *EHL,T=4.76,ｸﾞﾘｰﾝ,寒冷地仕様 |
1 | ||
| 56101-58928 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *LAM,T=4.76,ｸﾞﾘｰﾝ,*274 or *275&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅLり |
1 | ||
| 56101-58920 |
GGH2#..07S..(350S,35Z)..CBU *LAM,T=4.76,ｸﾞﾘｰﾝ,*260 or *261 |
1 | ||
| 56101-58907 |
GGH2#..07S..(350S,35Z)..CBU *EHL,T=4.76,ｸﾞﾘｰﾝ,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&寒冷地仕様&Nﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｰﾅ有り |
1 | ||
| 56101-58924 |
GGH2#..(350S,350X,35X,35Z)..CBU *LAM,T=4.76,ｸﾞﾘｰﾝ,ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56101-58920 |
GGH2#..07S..(350S,35Z)..CBU *LAM,T=4.76,ｸﾞﾘｰﾝ,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 56101-58927 |
GGH2#..(350S,350X,35X,35Z)..CBU *EHL,T=4.76,ｸﾞﾘｰﾝ,寒冷地仕様&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56101-58926 |
GGH2#..07S..(350S,35Z)..CBU *EHL,T=4.76,ｸﾞﾘｰﾝ,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&寒冷地仕様&fｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56101-58925 |
GGH2#..07S..(350S,35Z)..CBU *EHL,T=4.76,ｸﾞﾘｰﾝ,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&寒冷地仕様 |
1 | ||
| 56101-58926 |
GGH2#..07S..(350S,35Z)..CBU *EHL,T=4.76,ｸﾞﾘｰﾝ,*260 or *261&寒冷地仕様&ﾃﾞｼﾞﾀﾙﾃ激rﾁｭｰﾅ有り |
1 | ||
| 56101-58928 |
GGH2#..07S..(350S,35Z)..CBU *LAM,T=4.76,ｸﾞﾘｰﾝ,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ﾃﾞｼﾞﾀﾙﾃﾚrﾁｭｰﾅ有り |
1 | ||
| 56101-58925 |
GGH2#..07S..(350S,35Z)..CBU *EHL,T=4.76,ｸﾞﾘｰﾝ,*260 or *261&寒冷地仕様 |
1 | ||
| 56101-58909 |
GGH2#..07S..(350S,35Z)..CBU *LAM,T=4.76,ｸﾞﾘｰﾝ,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝgﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 56101-58928 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *LAM,T=4.76,ｸﾞﾘｰﾝ,*296 or *297&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅLり |
1 | ||
| 56101-58920 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *LAM,T=4.76,ｸﾞﾘｰﾝ,*296 or *297 |
1 | ||
| 56101-58928 |
GGH2#..07S..(350S,35Z)..CBU *LAM,T=4.76,ｸﾞﾘｰﾝ,*260 or *261&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅLり |
1 | ||
| 56101-58925 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *EHL,T=4.76,ｸﾞﾘｰﾝ,*296 or *297&寒冷地仕様 |
1 | ||
| 56101-58926 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *EHL,T=4.76,ｸﾞﾘｰﾝ,*296 or *297&寒冷地仕様&ﾃﾞｼﾞﾀﾙﾃ激rﾁｭｰﾅ有り |
1 | ||
| 56115C - STOPPER, WINDSHIELD GLASS | ||||
| 56115-30100 |
ANH2#,GGH2#..CBU |
2 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
ANH2#,GGH2#..CBU |
2 | ||
| 56117D - DAM, WINDSHIELD GLASS ADHESIVE | ||||
| 56117-58020 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU 長さ=3408,*274 or *275&寒冷地仕様&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56117-58020 |
ANH2#,GGH2#..CBU 長さ=3408 |
1 | ||
| 56117-58020 |
GGH2#..07S..(350S,35Z)..CBU 長さ=3408,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰ求|有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 56117-58020 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU 長さ=3408,*274 or *275 |
1 | ||
| 56117-58020 |
GGH2#..07S..(350S,35Z)..CBU 長さ=3408,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐ株gﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 56117-58020 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU 長さ=3408,*274 or *275&寒冷地仕様 |
1 | ||
| 56117-58020 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU 長さ=3408,*274 or *275&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56117-58020 |
GGH2#..07S..(350S,35Z)..CBU 長さ=3408,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&寒冷地仕様 |
1 | ||
| 56117-58020 |
GGH2#..07S..(350S,35Z)..CBU 長さ=3408,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&寒冷地仕様&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭ[ﾅ有り |
1 | ||
| 56117-58020 |
GGH2#..07S..(350S,35Z)..CBU 長さ=3408,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐ株gﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56117-58020 |
ANH2#,GGH2#..CBU 長さ=3408,寒冷地仕様 |
1 | ||
| 56117-58020 |
GGH2#..07S..(350S,35Z)..CBU 長さ=3408,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ |
1 | ||
| 56117-58020 |
GGH2#..07S..(350S,35Z)..CBU 長さ=3408,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰ求|有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き)&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56117-58020 |
GGH2#..07S..(350S,35Z)..CBU 長さ=3408,*260 or *261 |
1 | ||
| 56117-58020 |
GGH2#..07S..(350S,35Z)..CBU 長さ=3408,*260 or *261&寒冷地仕様 |
1 | ||
| 56117-58020 |
GGH2#..07S..(350S,35Z)..CBU 長さ=3408,*260 or *261&寒冷地仕様&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56117-58020 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU 長さ=3408,*296 or *297&寒冷地仕様 |
1 | ||
| 56117-58020 |
GGH2#..07S..(350S,35Z)..CBU 長さ=3408,*260 or *261&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56117-58020 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU 長さ=3408,*296 or *297 |
1 | ||
| 56117-58020 |
GGH2#..07S..(350S,35Z)..CBU 長さ=3408,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56117-58020 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU 長さ=3408,*296 or *297&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56117-58020 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) 長さ=3408,寒冷地仕様&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56117-58020 |
ANH25..08S..CBU;ANH20,GGH2#..CBU;ANH25..07S..(240G,240S,24V,24Z) 長さ=3408,ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 56117-58020 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU 長さ=3408,*296 or *297&寒冷地仕様&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ有り |
1 | ||
| 75531D - MOULDING, WINDSHIELD, OUTSIDE UPPER | ||||
| 75531-58011 |
ANH2#,GGH2#..CBU |
1 | ||
| Common parts | ||||
| 67867-12150 | ||||
| 90904-67033 | ||||
| 91631-B0614 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 7552 | ||||
