GGH25W-PFTSK (2008)

Toyota Alphard/Vellfire/Hv

Production Apr 2008 - Oct 2011
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0804- )

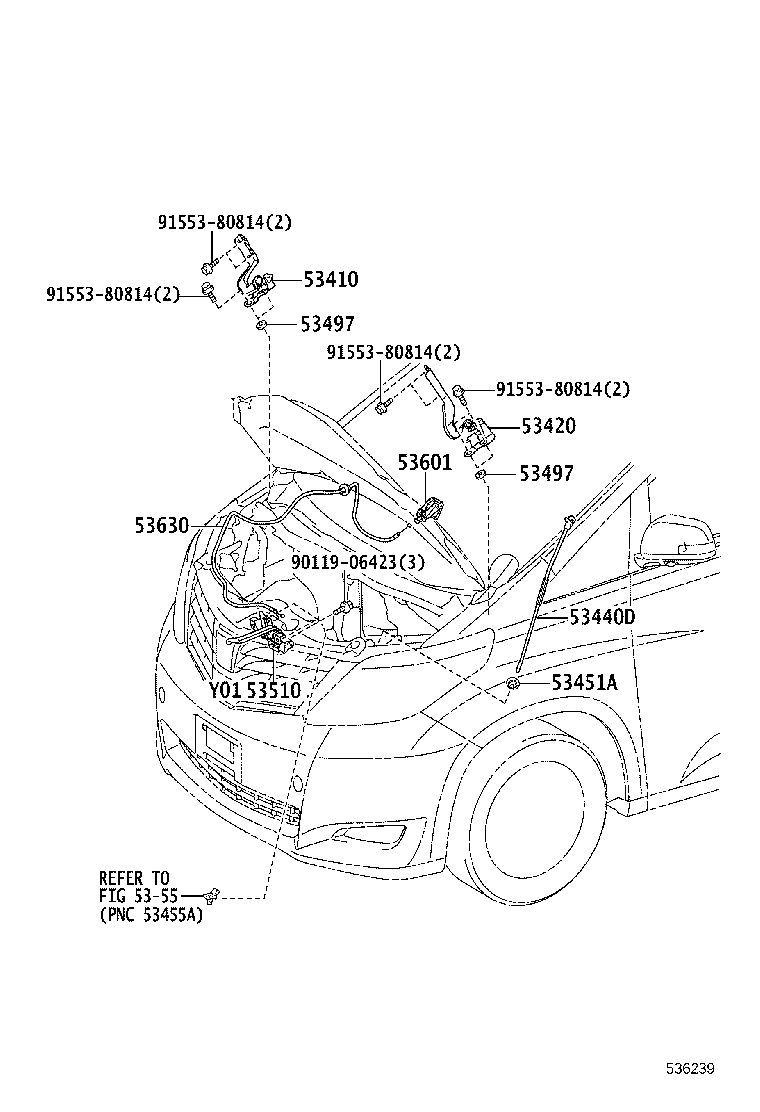

Click highlighted areas on diagram

diagram 53410 53420 53440D 53451A 53497 53497 53510 53601 53630 9011906423 9155380814 9155380814 9155380814 9155380814
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-58040

ANH2#,GGH2#..CBU

 1
53420 - HINGE ASSY, HOOD, LH
53420-58040

ANH2#,GGH2#..CBU

 1
53440D - SUPPORT ASSY, HOOD
53440-58030

ANH2#,GGH2#..CBU

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15025

ANH2#,GGH2#..CBU

 1
53497 - PAD, HOOD HINGE, NO.1
53497-42010

ANH2#,GGH2#..CBU

厚さ=0.5

 4
53497-20070

ANH2#,GGH2#..CBU

厚さ=2.0

 4
53497 - PAD, HOOD HINGE, NO.1
53497-42010

ANH2#,GGH2#..CBU

厚さ=0.5

 4
53497-20070

ANH2#,GGH2#..CBU

厚さ=2.0

 4
53510 - LOCK ASSY, HOOD
53510-58030

ANH25..08S..240X..CBU;ANH25..(240G,240S)..CBU;ANH20,GGH2#..ALPHD..CBU

GｰBOOK−有り(DCM)

 1
53510-58020

ANH2#,GGH2#..ALPHD..CBU

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-52010B3

ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU

DK.GRAY,TRIM1#

 1
53601-52010A3

ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU

SHELL,TRIM0#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-58030

ANH2#,GGH2#..CBU

 1
Common parts
90119-06423
91553-80814
