GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv
(0804-1110)ALPHD

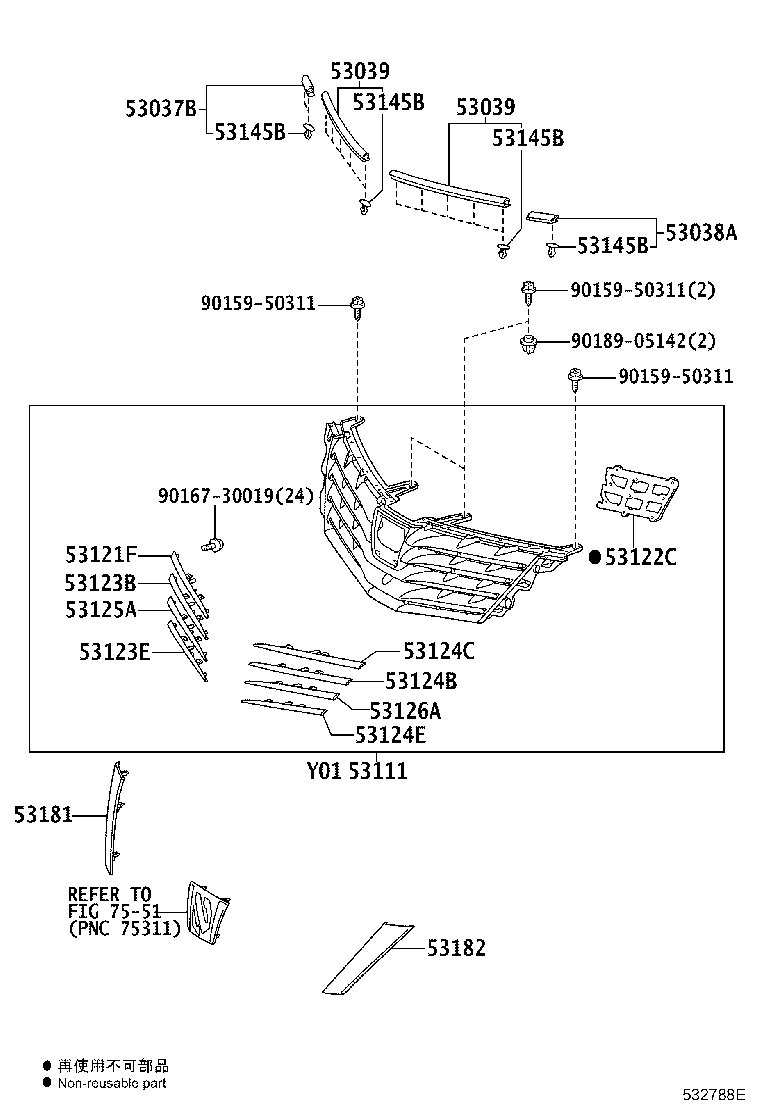

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53037B - SEAL SUB-ASSY, RADIATOR, RH | ||||
| 53037-58010 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 53038A - SEAL SUB-ASSY, RADIATOR, LH | ||||
| 53038-58010 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 53039 - SEAL, RADIATOR, UPPER | ||||
| 53039-58040 |
ANH2#,GGH2#..ALPHD..CBU |
2 | ||
| 53039 - SEAL, RADIATOR, UPPER | ||||
| 53039-58040 |
ANH2#,GGH2#..ALPHD..CBU |
2 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53101-58130 |
ANH25..08S..240X..CBU;ANH25..(240G,240S)..CBU;ANH20,GGH2#..ALPHD..CBU ﾒｯｷ,ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA&*WVFM&ｻｲﾄﾞcjﾀ) |
1 | ||
| 53101-58130 |
GGH2#..07S..350S..CBU ﾒｯｷ,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰ_ｰ式,ﾌﾞﾚｰｷ制御付き)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA普魔vVFM&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 53101-58120 |
ANH2#,GGH2#..ALPHD..CBU ﾒｯｷ |
1 | ||
| 53121F - MOULDING, RADIATOR GRILLE, UPPER RH | ||||
| 53121-58060 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 53122C - PLATE, RADIATOR GRILLE FINISH, LH | ||||
| 53122-58030 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 53123B - MOULDING, RADIATOR GRILLE SIDE, RH | ||||
| 53123-58050 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 53123E - MOULDING, RADIATOR GRILLE, LOWER RH | ||||
| 53123-58070 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 53124B - MOULDING, RADIATOR GRILLE SIDE, LH | ||||
| 53124-58060 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 53124C - MOULDING, RADIATOR GRILLE, UPPER LH | ||||
| 53124-58040 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 53124E - MOULDING, RADIATOR GRILLE, LOWER LH | ||||
| 53124-58070 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 53125A - MOULDING, RADIATOR GRILLE, CENTER RH | ||||
| 53125-58020 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 53126A - MOULDING, RADIATOR GRILLE, CENTER LH | ||||
| 53126-58020 |
ANH2#,GGH2#..ALPHD..CBU |
1 | ||
| 53145B - CLIP, RADIATOR GRILLE GARNISH | ||||
| 53145-60030 |
ANH2#,GGH2#..ALPHD..CBU |
14 | ||
| 53145B - CLIP, RADIATOR GRILLE GARNISH | ||||
| 53145-60030 |
ANH2#,GGH2#..ALPHD..CBU |
14 | ||
| 53145B - CLIP, RADIATOR GRILLE GARNISH | ||||
| 53145-60030 |
ANH2#,GGH2#..ALPHD..CBU |
14 | ||
| 53145B - CLIP, RADIATOR GRILLE GARNISH | ||||
| 53145-60030 |
ANH2#,GGH2#..ALPHD..CBU |
14 | ||
| 53181 - COVER, HEADLAMP, RH | ||||
| 53181-58020B0 |
ANH2#,GGH2#..(240S,350S)..CBU SILVER ME.,1E4 |
1 | ||
| 53181-58020A0 |
ANH2#,GGH2#..ALPHD..CBU WHITE PEARL CS.,070 |
1 | ||
| 53181-58020C0 |
ANH2#,GGH2#..ALPHD..CBU BLACK,202 |
1 | ||
| 53181-58020E1 |
ANH2#,GGH2#..ALPHD..CBU GOLD PEARL CS.,4U1 |
1 | ||
| 53181-58020B2 |
ANH2#,GGH2#..07S..(240S,350S)..CBU GRAY ME.,1G3 |
1 | ||
| 53181-58020J0 |
ANH2#,GGH2#..ALPHD..CBU DK.BLUE MC.,8S6 |
1 | ||
| 53182 - COVER, HEADLAMP, LH | ||||
| 53182-58020B0 |
ANH2#,GGH2#..(240S,350S)..CBU SILVER ME.,1E4 |
1 | ||
| 53182-58020C0 |
ANH2#,GGH2#..ALPHD..CBU BLACK,202 |
1 | ||
| 53182-58020E1 |
ANH2#,GGH2#..ALPHD..CBU GOLD PEARL CS.,4U1 |
1 | ||
| 53182-58020B2 |
ANH2#,GGH2#..07S..(240S,350S)..CBU GRAY ME.,1G3 |
1 | ||
| 53182-58020A0 |
ANH2#,GGH2#..ALPHD..CBU WHITE PEARL CS.,070 |
1 | ||
| 53182-58020J0 |
ANH2#,GGH2#..ALPHD..CBU DK.BLUE MC.,8S6 |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90167-30019 | ||||
| 90189-05142 | ||||
| Linked diagrams | ||||
| 7551 | ||||
