GGH25W-PFTSK (2008)

Toyota Alphard/Vellfire/Hv

Production Apr 2008 - Oct 2011
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0804- )240S,24Z,350S,35Z,HBDSR,HBDZR

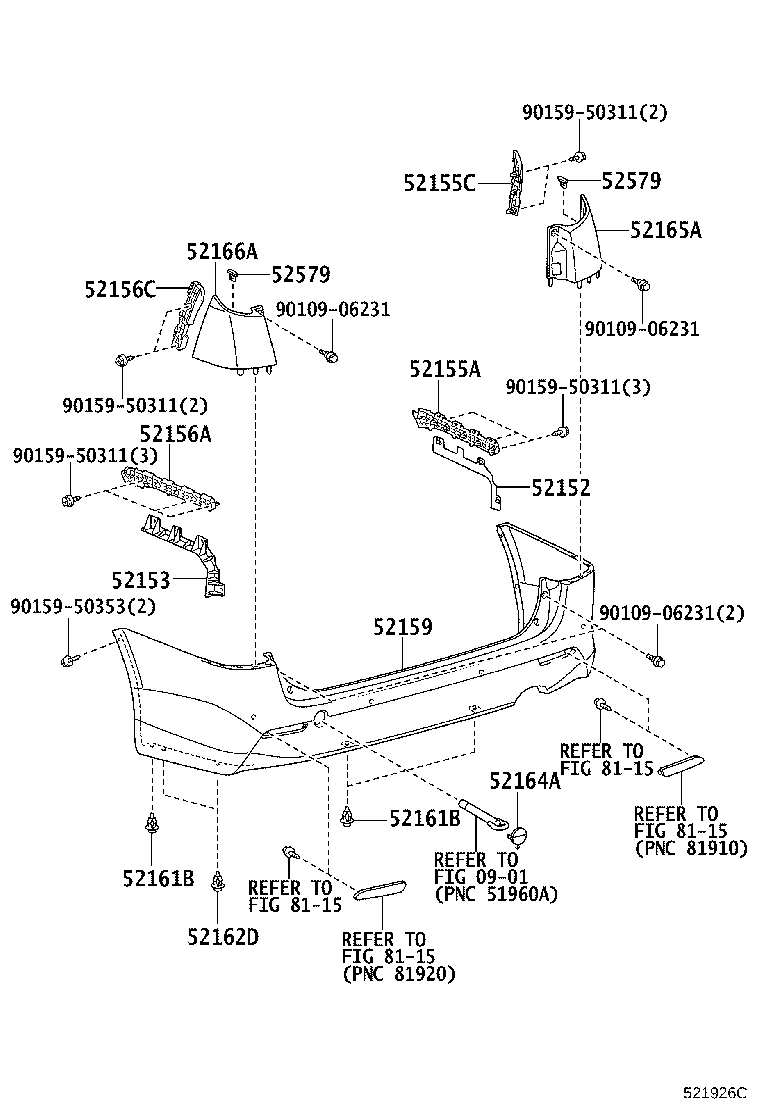

Click highlighted areas on diagram

diagram 0901 52152 52153 52155A 52155C 52156A 52156C 52159 52161B 52161B 52162D 52164A 52165A 52166A 52579 52579 8115 8115 8115 8115 9010906231 9010906231 9010906231 9015950311 9015950311 9015950311 9015950311 9015950353
Part # Description Qty Price
52152 - BAR, REAR BUMPER, RH
52152-58010

ANH2#,GGH2#..CBU

 1
52153 - BAR, REAR BUMPER, LH
52153-58020

ANH2#,GGH2#..CBU

 1
52153-58010

ANH2#,GGH2#..CBU

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-58030

ANH2#,GGH2#..CBU

 1
52155C - SUPPORT, REAR BUMPER SIDE, NO.1 RH
52155-58020

ANH2#,GGH2#..CBU

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-58020

ANH2#,GGH2#..CBU

 1
52156C - SUPPORT, REAR BUMPER SIDE, NO.1 LH
52156-58010

ANH2#,GGH2#..CBU

 1
52159 - COVER, REAR BUMPER
52159-58080A0

ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU

WHITE PEARL CS.,070

 1
52159-58080B0

ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU

SILVER ME.,1E4

 1
52159-58080E0

ANH2#,GGH2#..(240S,350S)..CBU

GOLD PEARL CS.,4U1

 1
52159-58080J0

ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU

DK.BLUE MC.,8S6

 1
52159-58080B2

ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU

GRAY ME.,1G3

 1
52159-58080C0

ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU

BLACK,202

 1
52161B - PIECE, REAR BUMPER
52161-16010

ANH2#,GGH2#..CBU

 4
52161B - PIECE, REAR BUMPER
52161-16010

ANH2#,GGH2#..CBU

 4
52162D - PIECE, REAR BUMPER
52161-16010

ANH2#,GGH2#..CBU

 4
52164A - PLATE, REAR BUMPER, LH
52164-58020A0

ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU

WHITE PEARL CS.,070

 1
52164-58020C0

ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU

BLACK,202

 1
52164-58020J0

ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU

DK.BLUE MC.,8S6

 1
52164-58020B0

ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU

SILVER ME.,1E4

 1
52164-58020B2

ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU

GRAY ME.,1G3

 1
52164-58020E0

ANH2#,GGH2#..(240S,350S)..CBU

GOLD PEARL CS.,4U1

 1
52165A - COVER, REAR BUMPER, UPR RH
52165-58020C0

ANH2#,GGH2#..CBU

BLACK,202

 1
52165-58020A0

ANH2#,GGH2#..CBU

WHITE PEARL CS.,070

 1
52165-58020J0

ANH2#,GGH2#..(240G,240S,240X,24V,24Z,350G,350S,350X,35V,35Z)..CBU

DK.BLUE MC.,8S6

 1
52165-58020B0

ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU

SILVER ME.,1E4

 1
52165-58020B2

ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU

GRAY ME.,1G3

 1
52165-58020E1

ANH2#,GGH2#..ALPHD..CBU

GOLD PEARL CS.,4U1

 1
52166A - COVER, REAR BUMPER, UPR LH
52166-58020B2

ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU

GRAY ME.,1G3

 1
52166-58020B0

ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU

SILVER ME.,1E4

 1
52166-58020A0

ANH2#,GGH2#..CBU

WHITE PEARL CS.,070

 1
52166-58020J0

ANH2#,GGH2#..(240G,240S,240X,24V,24Z,350G,350S,350X,35V,35Z)..CBU

DK.BLUE MC.,8S6

 1
52166-58020E1

ANH2#,GGH2#..ALPHD..CBU

GOLD PEARL CS.,4U1

 1
52166-58020C0

ANH2#,GGH2#..CBU

BLACK,202

 1
52579 - RETAINER, REAR BUMPER SIDE, NO.3
52579-58020

ANH2#,GGH2#..CBU

 6
52579 - RETAINER, REAR BUMPER SIDE, NO.3
52579-58020

ANH2#,GGH2#..CBU

 6
Common parts
90109-06231
90159-50311
90159-50353
Linked diagrams
0901
8115
