GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv
Production
Apr 2008
-
Oct 2011
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0804-1110)ANH25,GGH25

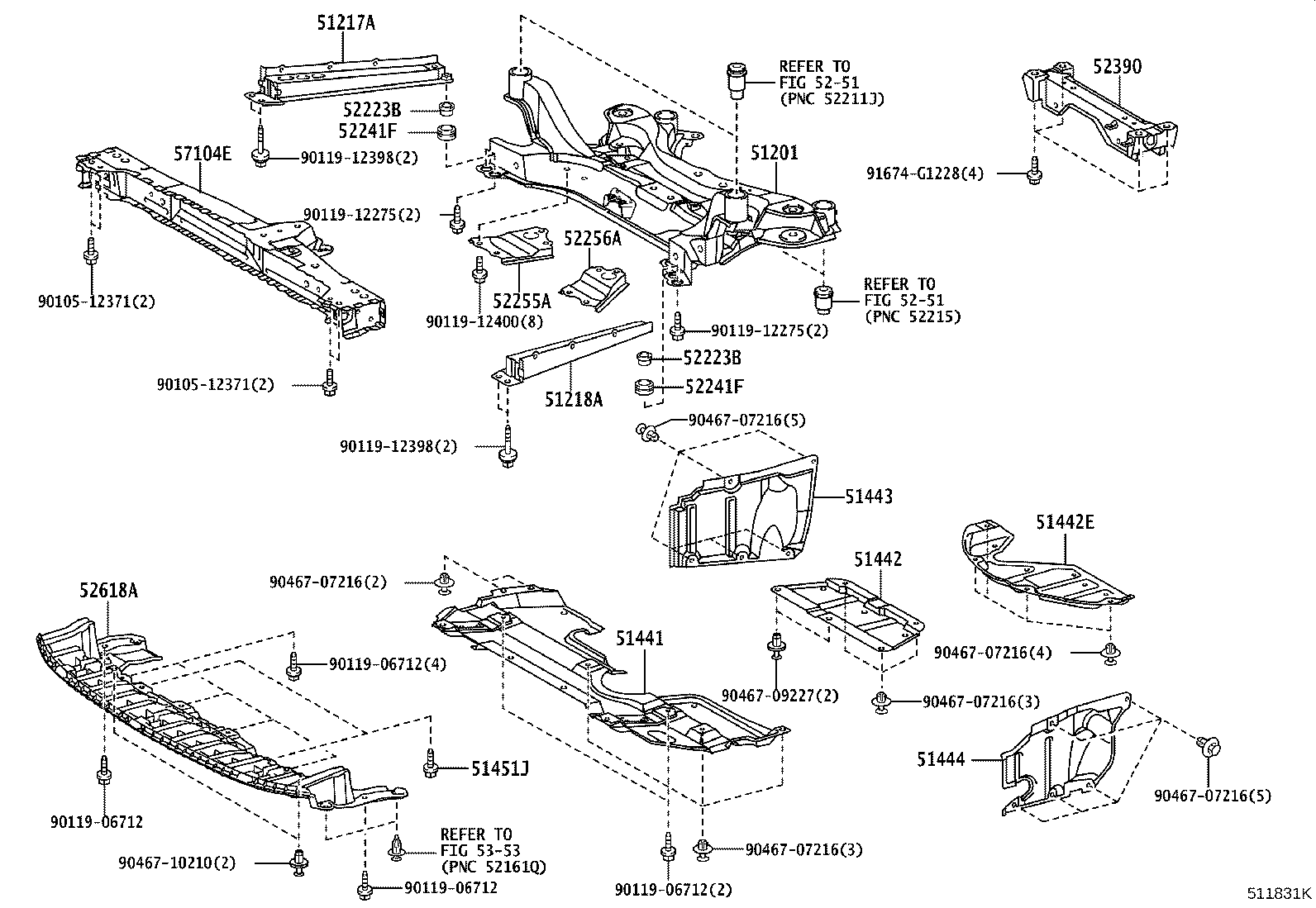

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-28281 |
ANH2#,GGH2#..CBU |
1 | ||
| 51217A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH | ||||
| 51107-28020 |
ANH2#,GGH2#..CBU |
1 | ||
| 51218A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH | ||||
| 51108-28040 |
ANH2#,GGH2#..CBU |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-12230 |
ANH2#,GGH2#..CBU |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-42080 |
ANH2#,GGH2#..CBU |
1 | ||
| 51442E - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-12210 |
ANH2#,GGH2#..CBU |
1 | ||
| 51443 - COVER, ENGINE UNDER, REAR RH | ||||
| 51443-12080 |
ANH2#,GGH2#..CBU |
1 | ||
| 51443-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 51444 - COVER, ENGINE UNDER, REAR LH | ||||
| 51444-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 51444-28040 |
ANH2#,GGH2#..CBU |
1 | ||
| 51451J - BOLT, NO.1 | ||||
| 90119-06712 |
ANH2#,GGH2#..CBU |
2 | ||
| 52223B - SPACER, FRONT SUSPENSION MEMBER MOUNTIONG, LOWER | ||||
| 52223-28010 |
ANH2#,GGH2#..CBU |
4 | ||
| 52223B - SPACER, FRONT SUSPENSION MEMBER MOUNTIONG, LOWER | ||||
| 52223-28010 |
ANH2#,GGH2#..CBU |
4 | ||
| 52241F - CUSHION, FRONT SUSPENSION MEMBER MOUNTING, LWR | ||||
| 52241-28010 |
ANH2#,GGH2#..CBU |
4 | ||
| 52241F - CUSHION, FRONT SUSPENSION MEMBER MOUNTING, LWR | ||||
| 52241-28010 |
ANH2#,GGH2#..CBU |
4 | ||
| 52255A - BRACE, FRONT SUSPENSION MEMBER, FRONT RH | ||||
| 52255-28030 |
ANH2#,GGH2#..CBU |
1 | ||
| 52256A - BRACE, FRONT SUSPENSION MEMBER, FRONT LH | ||||
| 52256-28030 |
ANH2#,GGH2#..CBU |
1 | ||
| 52390 - SUPPORT ASSY, FRONT DIFFERENTIAL, REAR | ||||
| 52390-58020 |
ANH25,GGH25 |
1 | ||
| 52618A - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 57104E - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-12270 |
ANH2#,GGH2#..CBU |
1 | ||
| Common parts | ||||
| 90105-12371 | ||||
| 90119-06712 | ||||
| 90119-12275 | ||||
| 90119-12398 | ||||
| 90119-12400 | ||||
| 90467-07216 | ||||
| 90467-09227 | ||||
| 90467-10210 | ||||
| 91674-G1228 | ||||
| Linked diagrams | ||||
| 5251 | ||||
| 5353 | ||||
