GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv
(0804- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

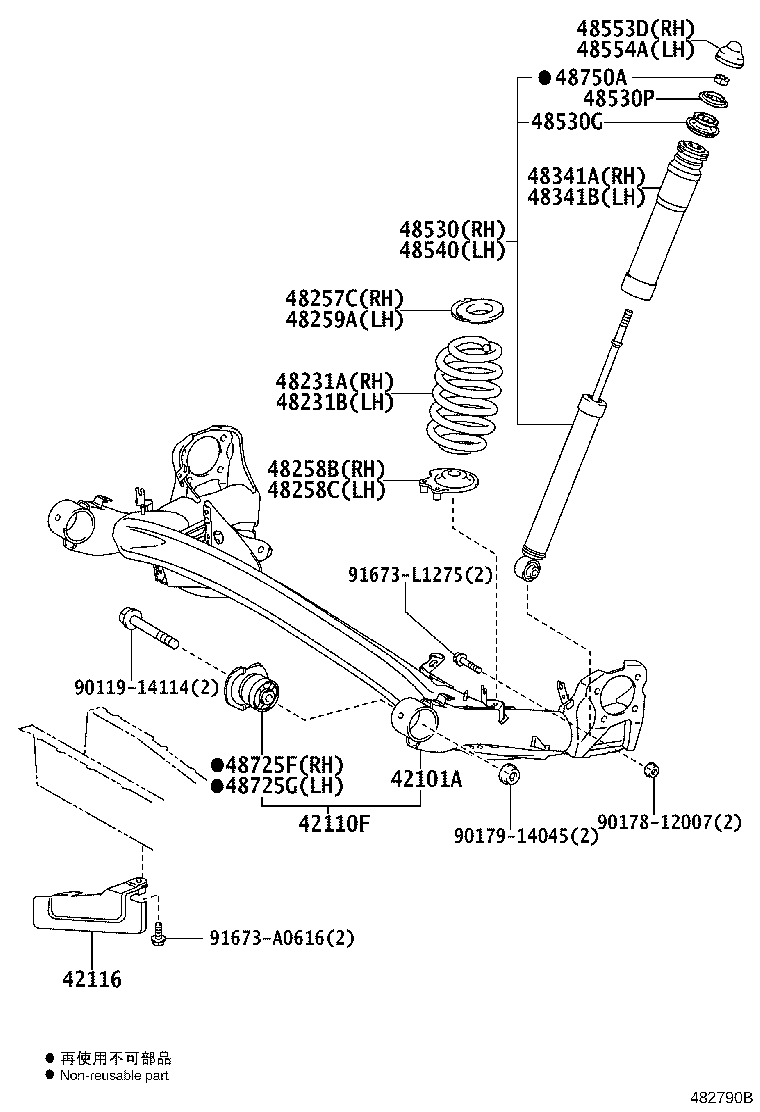

| 42101A - BEAM SUB-ASSY, REAR AXLE | ||||
| 42110-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 42110F - BEAM ASSY, REAR AXLE | ||||
| 42110-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 42116 - COVER, REAR AXLE BEAM | ||||
| 42116-28020 |
ANH2#,GGH2#..CBU |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-58090 |
ANH25..08S..(240X,24X);ANH25,GGH25..240G,240S,24V,24Z,350G,350S,350X,35V,35X,35Z |
1 | ||
| 48231-58100 |
GGH25..07S ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ) |
1 | ||
| 48231-58100 |
GGH25..07S ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ) |
1 | ||
| 48231-58100 |
GGH25..07S ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-58100 |
GGH25..07S ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 48231-58090 |
ANH25..08S..(240X,24X);ANH25,GGH25..240G,240S,24V,24Z,350G,350S,350X,35V,35X,35Z |
1 | ||
| 48231-58100 |
GGH25..07S ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ) |
1 | ||
| 48231-58100 |
GGH25..07S ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着､自操ﾀｲﾌﾟ) |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-28070 |
ANH2#,GGH2#..CBU |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-28050 |
ANH2#,GGH2#..CBU |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-28050 |
ANH2#,GGH2#..CBU |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-28070 |
ANH2#,GGH2#..CBU |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-28110 |
ANH2#,GGH2#..CBU |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-28110 |
ANH2#,GGH2#..CBU |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-80474 |
ANH25,GGH25..CBU ﾏｰｸ 48530−58070 |
1 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90905-40019 |
ANH2#,GGH2#..CBU |
2 | ||
| 48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02192 |
ANH2#,GGH2#..CBU |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-80474 |
ANH25,GGH25..CBU ﾏｰｸ 48530−58070 |
1 | ||
| 48553D - CAP, REAR SHOCK ABSORBER, RH | ||||
| 48553-28010 |
ANH2#,GGH2#..CBU |
1 | ||
| 48554A - CAP, REAR SHOCK ABSORBER, LH | ||||
| 48553-28010 |
ANH2#,GGH2#..CBU |
1 | ||
| 48725F - BUSH, REAR AXLE CARRIER, RH | ||||
| 48725-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 48725G - BUSH, REAR AXLE CARRIER, LH | ||||
| 48725-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 48750A - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER) | ||||
| 94130-61200 |
ANH2#,GGH2#..CBU |
2 | ||
| Common parts | ||||
| 90119-14114 | ||||
| 90178-12007 | ||||
| 90179-14045 | ||||
| 91673-A0616 | ||||
| 91673-L1275 | ||||
