GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv

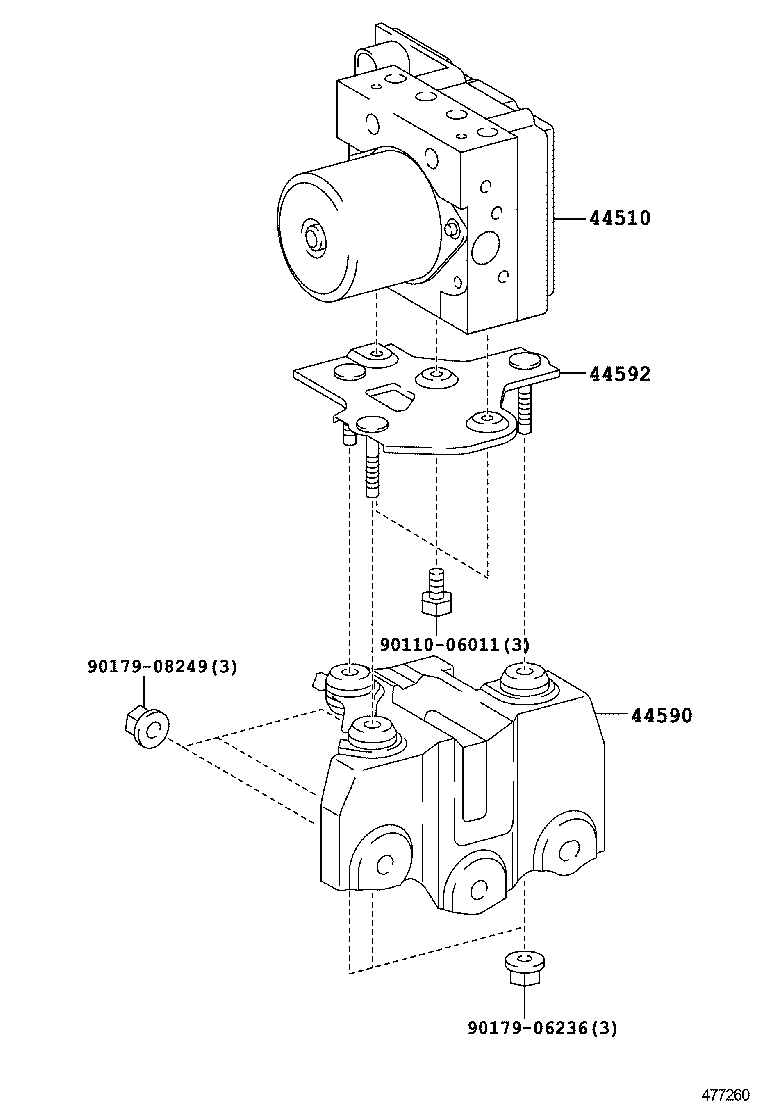

ILLUST NO. 2 OF 2(0804- )ANH2#,GGH2#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-58100 |
ANH25,GGH25..CBU |
1 | ||
| 44050-58090 |
GGH2#..(350G,35V)..CBU;GGH2#..07S..(350S,35Z)..CBU ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾐﾘ波ﾚｰﾀﾞｰ式,ﾌﾞﾚｰｷ制御付き) |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-28170 |
ANH2#,GGH2#..CBU |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-28140 |
ANH2#,GGH2#..CBU |
1 | ||
| Common parts | ||||
| 90110-06011 | ||||
| 90179-06236 | ||||
| 90179-08249 | ||||

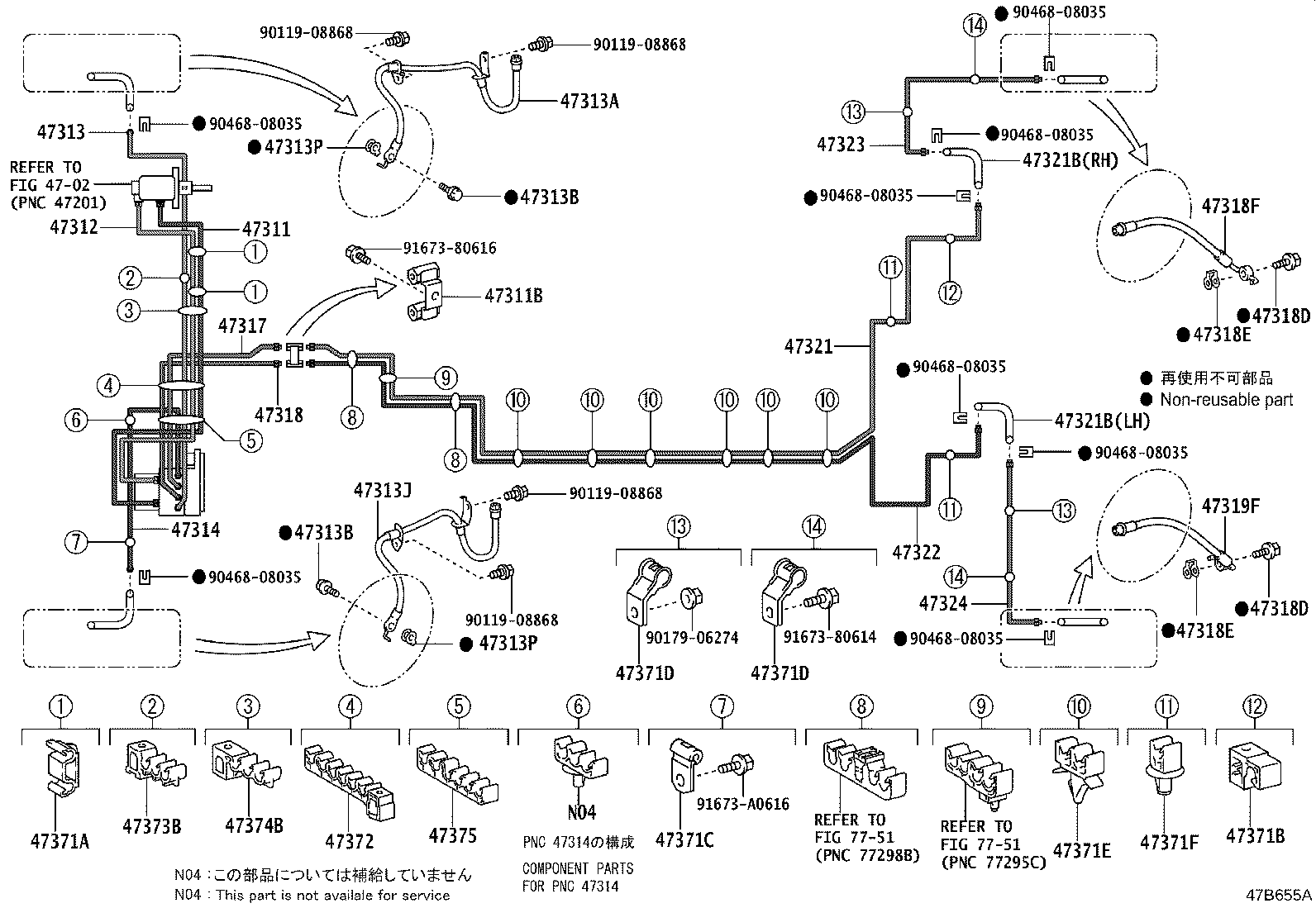

ILLUST NO. 1 OF 2(0804- )ANH2#,GGH2#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-58040 |
ANH2#,GGH2#..CBU |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
ANH2#,GGH2#..CBU |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-58050 |
ANH2#,GGH2#..CBU |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02F47 |
ANH2#,GGH2#..CBU |
1 | ||
| 90947-02F47 |
ANH2#,GGH2#..CBU |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ANH2#,GGH2#..CBU |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ANH2#,GGH2#..CBU |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02F48 |
ANH2#,GGH2#..CBU |
1 | ||
| 90947-02F48 |
ANH2#,GGH2#..CBU |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ANH2#,GGH2#..CBU |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ANH2#,GGH2#..CBU |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-28370 |
ANH2#,GGH2#..CBU |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-28250 |
ANH2#,GGH2#..CBU |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-28070 |
ANH2#,GGH2#..CBU |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ANH2#,GGH2#..CBU |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ANH2#,GGH2#..CBU |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ANH2#,GGH2#..CBU |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ANH2#,GGH2#..CBU |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02F45 |
ANH2#,GGH2#..CBU |
1 | ||
| 90947-02F45 |
ANH2#,GGH2#..CBU |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02F46 |
ANH2#,GGH2#..CBU |
1 | ||
| 90947-02F46 |
ANH2#,GGH2#..CBU |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-28540 |
ANH2#,GGH2#..CBU |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02E60 |
ANH2#,GGH2#..CBU 右側 |
1 | ||
| 90947-02F44 |
ANH2#,GGH2#..CBU 左側 |
1 | ||
| 90947-02E60 |
ANH2#,GGH2#..CBU 右側 |
1 | ||
| 90947-02F44 |
ANH2#,GGH2#..CBU 左側 |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02E60 |
ANH2#,GGH2#..CBU 右側 |
1 | ||
| 90947-02F44 |
ANH2#,GGH2#..CBU 左側 |
1 | ||
| 90947-02E60 |
ANH2#,GGH2#..CBU 右側 |
1 | ||
| 90947-02F44 |
ANH2#,GGH2#..CBU 左側 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-28350 |
ANH2#,GGH2#..CBU |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-28360 |
ANH2#,GGH2#..CBU |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-28260 |
ANH2#,GGH2#..CBU |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-01C59 |
ANH2#,GGH2#..CBU |
2 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-01C82 |
ANH2#,GGH2#..CBU |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90461-08730 |
ANH2#,GGH2#..CBU |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90461-10731 |
ANH2#,GGH2#..CBU |
4 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90461-10731 |
ANH2#,GGH2#..CBU |
4 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90469-07019 |
ANH2#,GGH2#..CBU |
6 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-01D29 |
ANH2#,GGH2#..CBU |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01D34 |
ANH2#,GGH2#..CBU |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01C95 |
ANH2#,GGH2#..CBU |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-13040 |
ANH2#,GGH2#..CBU |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90464-00892 |
ANH2#,GGH2#..CBU |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90179-06274 | ||||
| 90468-08035 | ||||
| 91673-80614 | ||||
| 91673-80616 | ||||
| 91673-A0616 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||
