GGH25W-PFTSK (2008)

Toyota Alphard/Vellfire/Hv

Production Apr 2008 - Oct 2011
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0804- )GGH2#

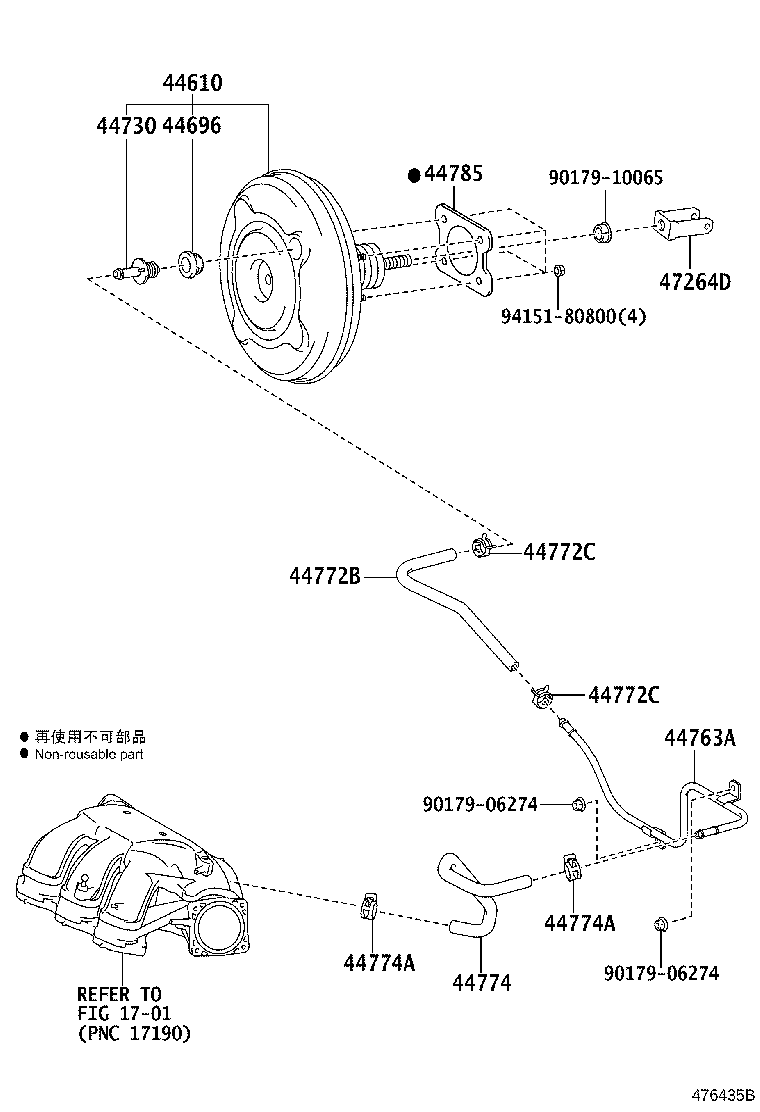

Click highlighted areas on diagram

diagram 1701 44610 44696 44730 44763A 44772B 44772C 44772C 44774 44774A 44774A 44785 47264D 9017906274 9017906274 9017910065 9415180800
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-58030

ANH2#,GGH2#..CBU

 1
44696 - GROMMET, CHECK VALVE
90480-24015

ANH2#,GGH2#..CBU

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-28030

ANH2#,GGH2#..CBU

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-58010

GGH2#..CBU

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-58010

GGH2#..CBU

 1
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
96133-41500

GGH2#..CBU

 2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
96133-41500

GGH2#..CBU

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-58010

GGH2#..CBU

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

GGH2#..CBU

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

GGH2#..CBU

 2
44785 - GASKET, BRAKE BOOSTER
44785-12040

ANH2#,GGH2#..CBU

 1
44785-28010

ANH2#,GGH2#..CBU

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-30060

ANH2#,GGH2#..CBU

 1
Common parts
90179-06274
90179-10065
94151-80800
Linked diagrams
1701
