GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv
Production
Apr 2008
-
Oct 2011
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0804- )ANH2#,GGH2#

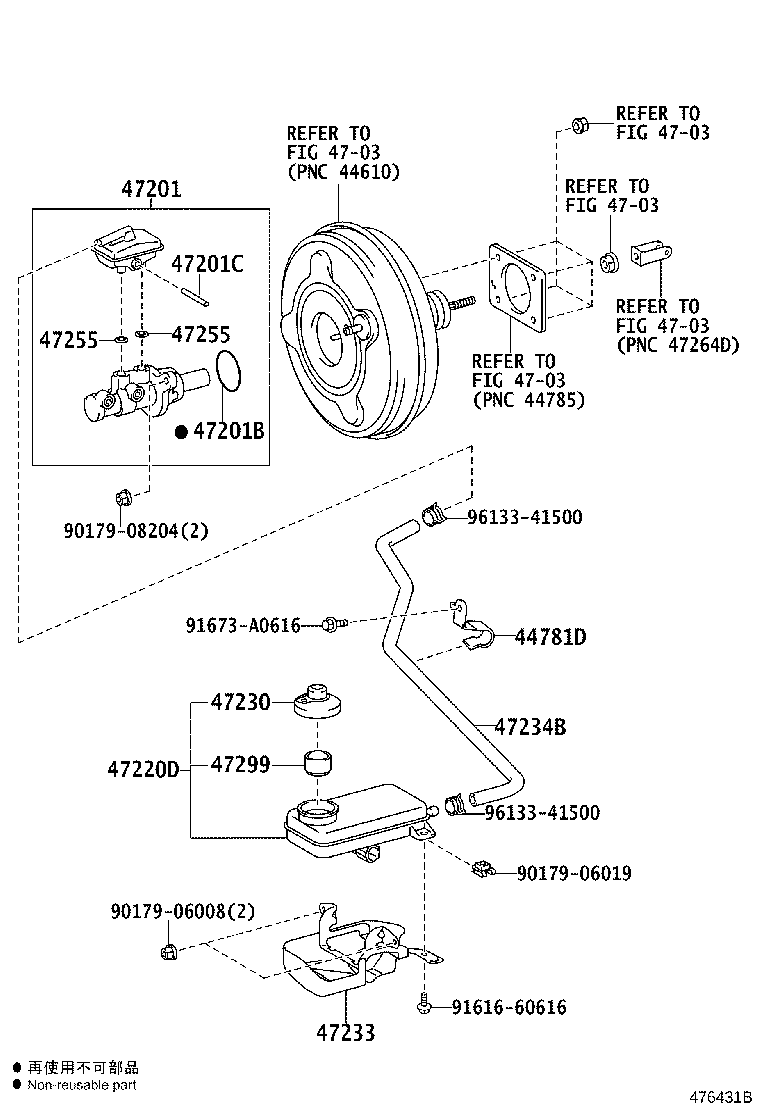

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44781D - BRACKET, RESERVOIR HOSE | ||||
| 44781-58011 |
ANH2#,GGH2#..CBU |
1 | ||
| 44781-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-28660 |
ANH2#,GGH2#..CBU |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90015-AH001 |
ANH2#,GGH2#..CBU |
1 | ||
| 47201C - RING PIN, BRAKE MASTER CYLINDER | ||||
| 90015-AE401 |
ANH2#,GGH2#..CBU |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-28240 |
ANH2#,GGH2#..CBU |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-58030 |
ANH2#,GGH2#..CBU |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-58040 |
ANH2#,GGH2#..CBU |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 90015-AT001 |
ANH2#,GGH2#..CBU |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 90015-AT001 |
ANH2#,GGH2#..CBU |
2 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-52110 |
ANH2#,GGH2#..CBU |
1 | ||
| Common parts | ||||
| 90179-06008 | ||||
| 90179-06019 | ||||
| 90179-08204 | ||||
| 91616-60616 | ||||
| 91673-A0616 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4703 | ||||
