GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv

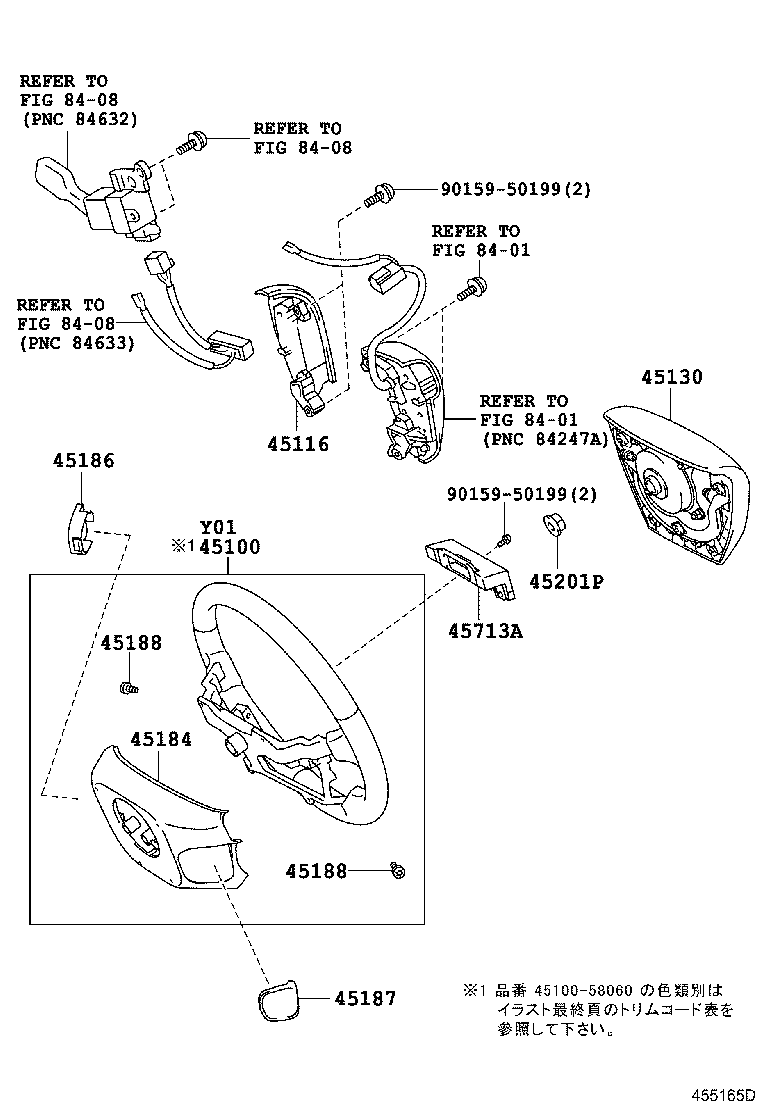

ILLUST NO. 1 OF 2(0804- )
4-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-58060B1 |
GGH2#..07S..(350S,35Z)..CBU 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,*260 or *261&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,DK.GRAY & IVORY,TRIM1#,ｲﾗｽﾄ参照 |
1 | ||
| 45100-58060B2 |
GGH2#..07S..(350S,35Z)..CBU 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,*274 or *275&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗSｰﾙﾄﾞ,DK.GRAY & BLACK,TRIM19,ｲﾗｽﾄ参照 |
1 | ||
| 45100-58060E0 |
GGH2#..07S..(350S,35Z)..CBU 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,*274 or *275&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗSｰﾙﾄﾞ,DK. BROWN,TRIM0#,ｲﾗｽﾄ参照 |
1 | ||
| 45100-58060E0 |
GGH2#..07S..(350S,35Z)..CBU 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,DK. BROWN,TRIM0#,ｲﾗｽﾄ参照 |
1 | ||
| 45100-58060B1 |
GGH2#..07S..(350S,35Z)..CBU 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,*274 or *275&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗSｰﾙﾄﾞ,DK.GRAY & IVORY,TRIM19,ｲﾗｽﾄ参照 |
1 | ||
| 45100-58060B0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,DK.GRAY,TRIM1#,ｲﾗｽﾄ参照 |
1 | ||
| 45100-58060E0 |
GGH2#..07S..(350S,35Z)..CBU 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬJｰﾄﾞ ﾓｹｯﾄ,DK. BROWN,TRIM0#,ｲﾗｽﾄ参照 |
1 | ||
| 45100-58060B1 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,DK.GRAY & IVORY,TRIM19,ｲﾗｽﾄ参照 |
1 | ||
| 45100-58060E0 |
GGH2#..07S..(350S,35Z)..CBU 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,*260 or *261&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,DK. BROWN,TRIM0#,ｲﾗｽﾄ参照 |
1 | ||
| 45100-58070B1 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,DK.GRAY & DK.RED,TRIM1# |
1 | ||
| 45100-58060B2 |
GGH2#..07S..(350S,35Z)..CBU 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬJｰﾄﾞ ﾓｹｯﾄ,DK.GRAY & BLACK,TRIM19,ｲﾗｽﾄ参照 |
1 | ||
| 45100-58060B0 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,DK.GRAY,TRIM19,ｲﾗｽﾄ参照 |
1 | ||
| 45100-58060B1 |
GGH2#..07S..(350S,35Z)..CBU 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬJｰﾄﾞ ﾓｹｯﾄ,DK.GRAY & IVORY,TRIM1#,ｲﾗｽﾄ参照 |
1 | ||
| 45100-58060B2 |
GGH2#..07S..(350S,35Z)..CBU 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,*260 or *261&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,DK.GRAY & BLACK,TRIM19,ｲﾗｽﾄ参照 |
1 | ||
| 45100-58060B1 |
GGH2#..07S..(350S,35Z)..CBU 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,*260 or *261&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,DK.GRAY & IVORY,TRIM19,ｲﾗｽﾄ参照 |
1 | ||
| 45100-58060B1 |
GGH2#..07S..(350S,35Z)..CBU 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,*296 or *297&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗSｰﾙﾄﾞ,DK.GRAY & IVORY,TRIM19,ｲﾗｽﾄ参照 |
1 | ||
| 45100-58060E0 |
GGH2#..07S..(350S,35Z)..CBU 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,*296 or *297&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗSｰﾙﾄﾞ,DK. BROWN,TRIM0#,ｲﾗｽﾄ参照 |
1 | ||
| 45100-58060B2 |
GGH2#..07S..(350S,35Z)..CBU 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,*296 or *297&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗSｰﾙﾄﾞ,DK.GRAY & BLACK,TRIM19,ｲﾗｽﾄ参照 |
1 | ||
| 45100-58060B1 |
GGH2#..07S..(350S,35Z)..CBU 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬJｰﾄﾞ ﾓｹｯﾄ,DK.GRAY & IVORY,TRIM19,ｲﾗｽﾄ参照 |
1 | ||
| 45116 - ORNAMENT, STEERING WHEEL, NO.1 | ||||
| 45116-58010B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 45116-58010E0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU DK. BROWN,TRIM0# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-58030E0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU DK. BROWN,TRIM0# |
1 | ||
| 45130-58030B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 45184 - COVER, STEERING WHEEL BOSS, LOWER | ||||
| 45184-58020E0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶｰﾄﾞ ﾓｹｯﾄ,DK. BROWN,TRIM0# |
1 | ||
| 45184-58020E0 |
GGH2#..07S..(350S,35Z)..CBU *274 or *275&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,DK. BROWN,TRIM0# |
1 | ||
| 45184-58020E0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU DK. BROWN,TRIM0# |
1 | ||
| 45184-58020E0 |
GGH2#..07S..(350S,35Z)..CBU *296 or *297&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗｺﾞｰﾙﾄﾞ,DK. BROWN,TRIM0# |
1 | ||
| 45184-58020B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 45184-58020E0 |
GGH2#..07S..(350S,35Z)..CBU *260 or *261&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,DK. BROWN,TRIM0# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-58040B0 |
GGH2#..(350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 45186-58040E0 |
GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,24V,350G,350X,35V,35X)..CBU DK. BROWN,TRIM0# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-58020E0 |
ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU DK. BROWN,TRIM0# |
1 | ||
| 45187-58020B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
ANH2#,GGH2#..CBU 長さ=18 |
2 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
ANH2#,GGH2#..CBU 長さ=18 |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
ANH2#,GGH2#..CBU |
1 | ||
| 45713A - DAMPER, STEERING SHAKE | ||||
| 45713-30170 |
ANH2#,GGH2#..CBU |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8408 | ||||

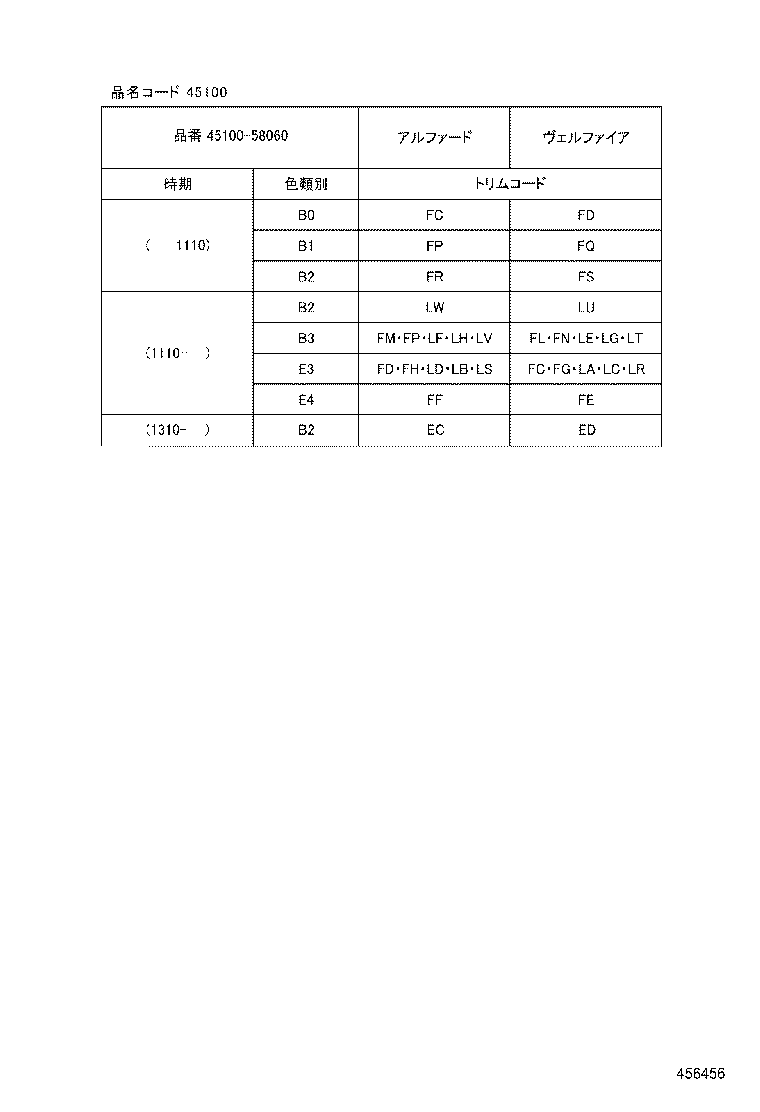

ILLUST NO. 2 OF 2(0804- )
ﾄﾘﾑｺｰﾄﾞ ﾋｮｳ
