GGH25W-PFTSK (2008)

Toyota Alphard/Vellfire/Hv

Production Apr 2008 - Oct 2011
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0804- )

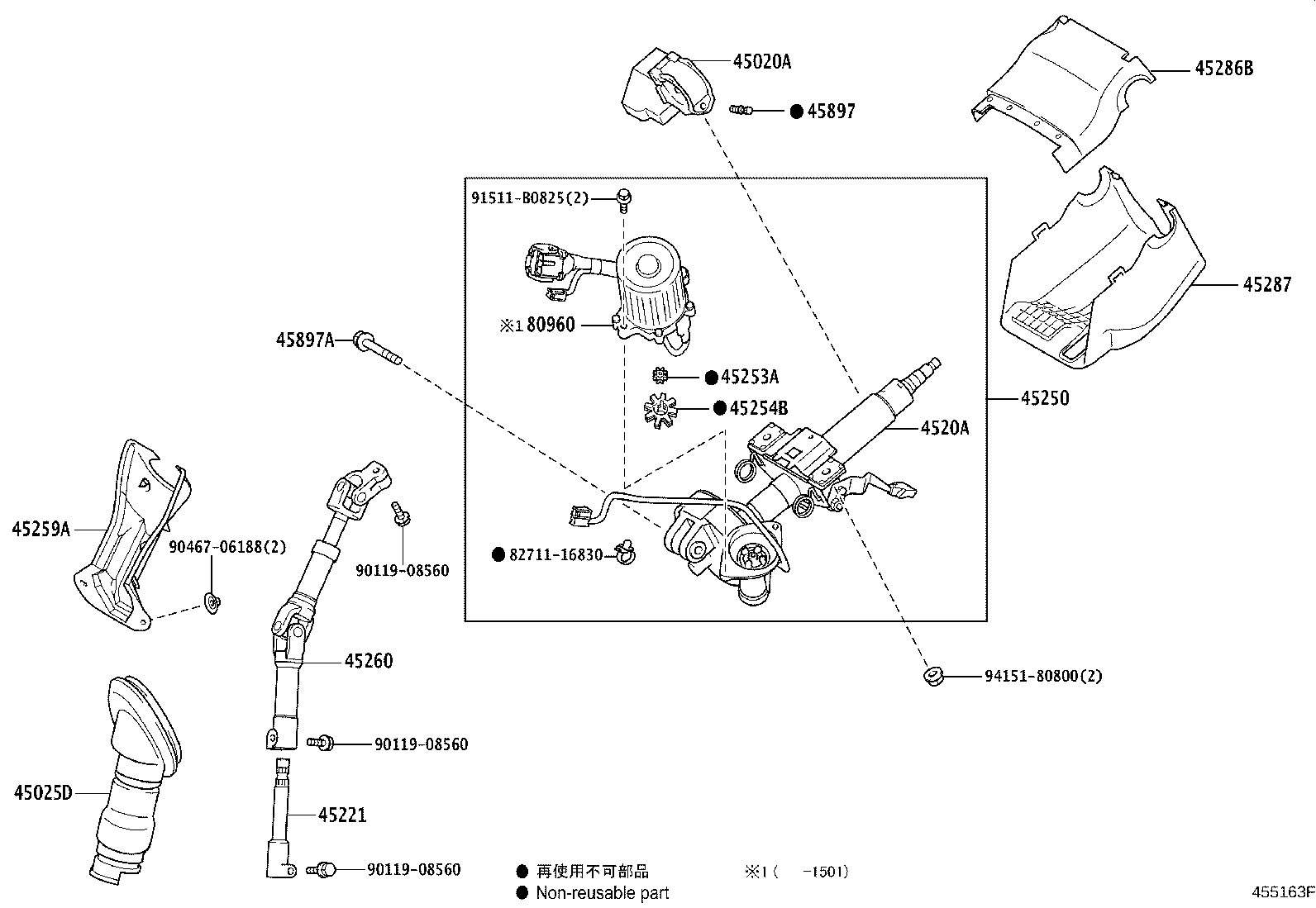

Click highlighted areas on diagram

diagram 45020A 45025D 4520A 45221 45250 45253A 45254B 45259A 45260 45286B 45287 45897 45897A 80960 8271116830 9011908560 9011908560 9011908560 9046706188 91511B0825 9415180800
Part # Description Qty Price
45020A - ACTUATOR ASSY, STEERING LOCK
45020-42150

ANH2#,GGH2#..CBU

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-28090

ANH2#,GGH2#..CBU

 1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-58010

ANH2#,GGH2#..CBU

 1
45221 - SHAFT, STEERING INTERMEDIATE
45221-28140

ANH2#,GGH2#..CBU

 1
45250 - COLUMN ASSY, STEERING
45250-58040

ANH2#,GGH2#..CBU

 1
45253A - SPACER, ELECTRIC POWER STEERING MOTOR SHAFT
45253-28130

ANH2#,GGH2#..CBU

 1
45254B - DAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45254-28040

ANH2#,GGH2#..CBU

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-58010

ANH2#,GGH2#..CBU

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-58050

ANH2#,GGH2#..CBU

 1
45286B - COVER, STEERING COLUMN, UPR
45286-58011B0

ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU

DK.GRAY,TRIM1#

 1
45286-58010B0

ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU

DK.GRAY,TRIM1#

 1
45286-58010E0

GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU

DK. BROWN,TRIM0#

 1
45286-58011E0

ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU

DK. BROWN,TRIM0#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-58011E0

ANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU

DK. BROWN,TRIM0#

 1
45287-58010B0

ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU

DK.GRAY,TRIM1#

 1
45287-58010E0

GGH2#..07S..(350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU

DK. BROWN,TRIM0#

 1
45287-58011B0

ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU

DK.GRAY,TRIM1#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

ANH2#,GGH2#..CBU

 1
45897A - BOLT, TILT STEERING PAWL SET
45897-42010

ANH2#,GGH2#..CBU

 1
80960 - MOTOR ASSY, POWER STEERING
80960-58010

ANH2#,GGH2#..CBU

 1
Common parts
82711-16830
90119-08560
90467-06188
91511-B0825
94151-80800
