GGH25W-PFTSK (2008)

Toyota Alphard/Vellfire/Hv

Production Apr 2008 - Oct 2011
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0804- )

Click highlighted areas on diagram

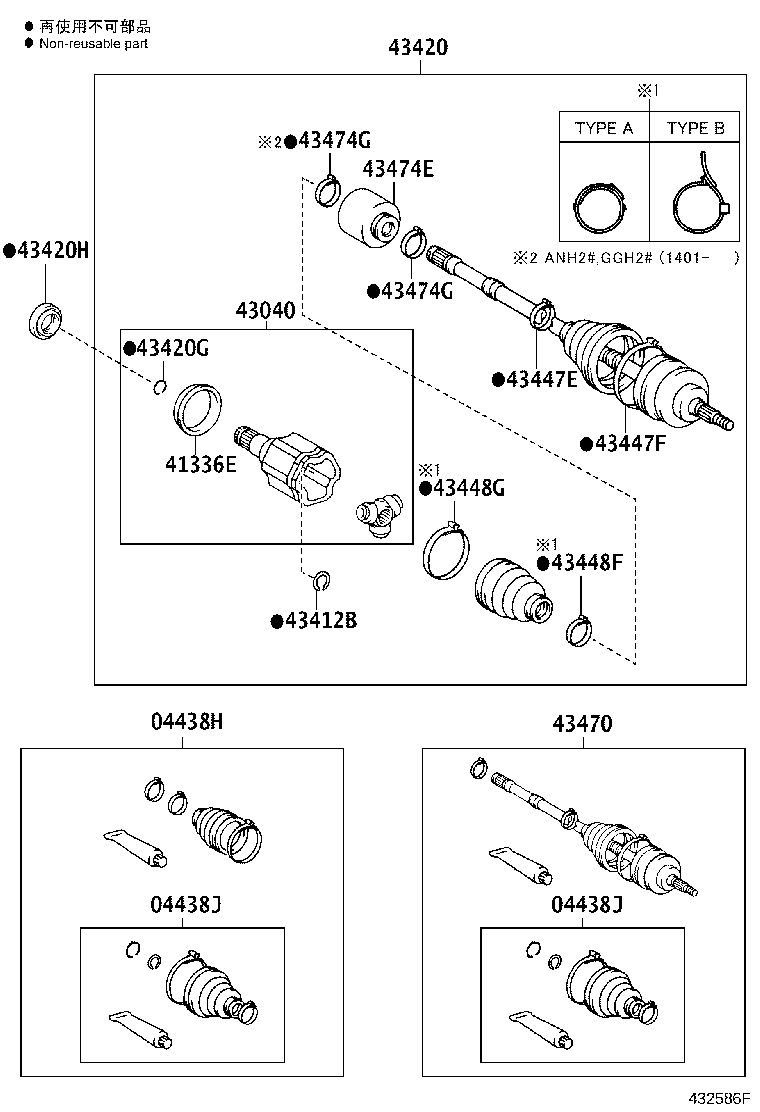

LH

diagram 04438H 04438J 04438J 41336E 43040 43412B 43420 43420G 43420H 43447E 43447F 43448F 43448G 43470 43474E 43474G 43474G
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04428-42120

GGH2#..CBU

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-42180

ANH2#,GGH2#..CBU

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-42180

ANH2#,GGH2#..CBU

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-28020

ANH2#,GGH2#..CBU

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-28011

ANH2#,GGH2#..CBU

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-28010

ANH2#,GGH2#..CBU

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-28090

GGH2#..CBU

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-33002

ANH2#,GGH2#..CBU

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-50045

GGH2#..CBU

 1
90311-50033

GGH2#..CBU

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-42120

GGH2#..CBU

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-42110

GGH2#..CBU

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01559

ANH2#,GGH2#..CBU

ﾀｲﾌﾟ B

 1
42345-42010

ANH2#,GGH2#..CBU

ﾀｲﾌﾟ A

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12160

ANH2#,GGH2#..CBU

ﾀｲﾌﾟ B,ﾀｲﾌﾟ A

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-80176

GGH2#..CBU

 1
43474E - DAMPER, FRONT DRIVE SHAFT, LH
43474-42050

GGH2#..CBU

 1
43474-28020

GGH2#..CBU

 1
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-14010

ANH2#,GGH2#..CBU

 1
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-14010

ANH2#,GGH2#..CBU

 1

(0804- )ANH25,GGH25

Click highlighted areas on diagram

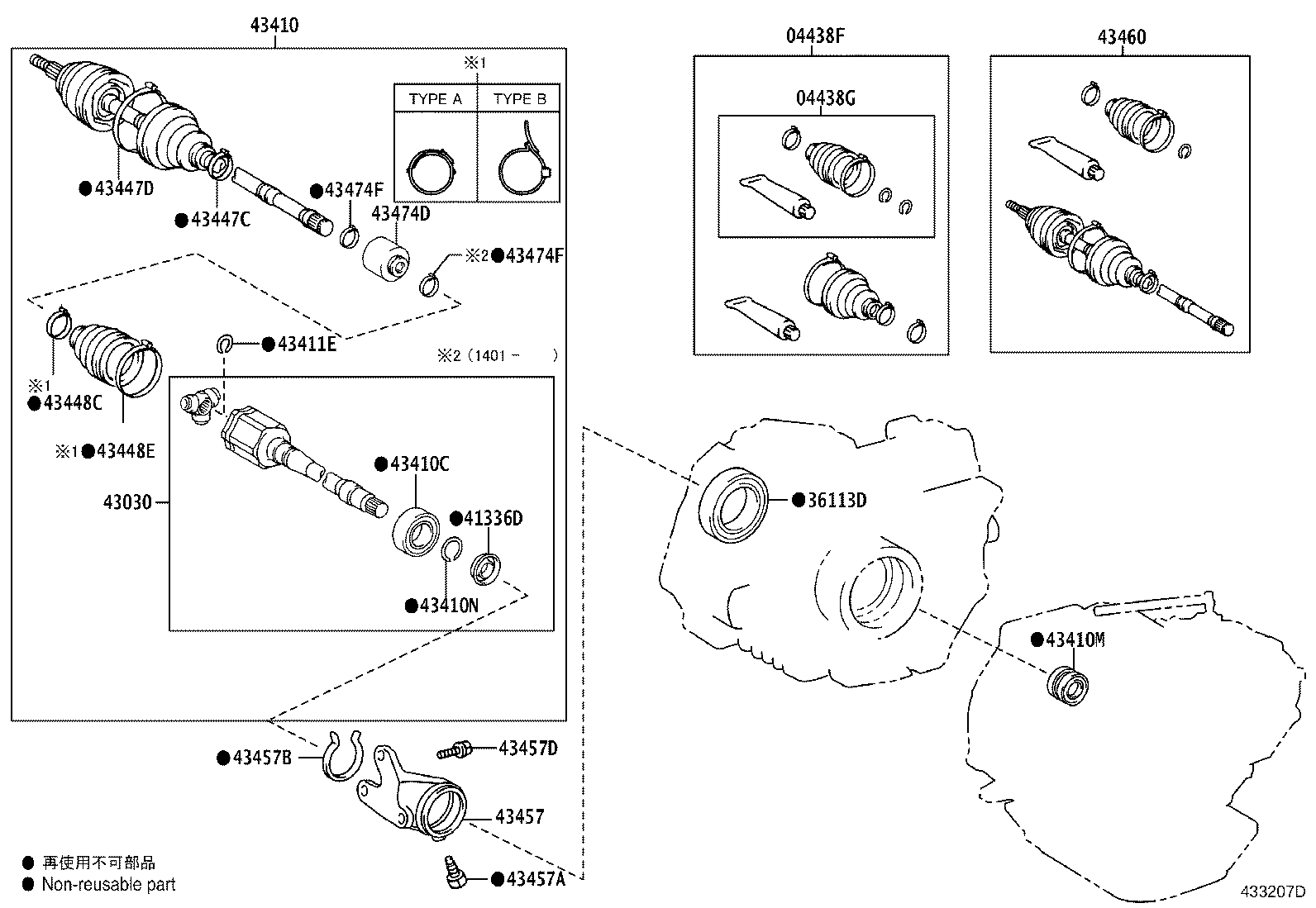

RH

diagram 04438F 04438G 36113D 41336D 43030 43410 43410C 43410M 43410N 43411E 43447C 43447D 43448C 43448E 43457 43457A 43457B 43457D 43460 43474D 43474F 43474F
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04427-42010

GGH25..CBU

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-42180

ANH2#,GGH2#..CBU

 1
36113D - SEAL, OIL (FOR TRANSFER CASE RH)
90311-35056

ANH25,GGH25..CBU

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-52020

ANH25,GGH25..CBU

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43030-42070

GGH25..CBU

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-42200

GGH25..CBU

 1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-36006

ANH25,GGH25

 1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90316-34001

GGH25..CBU

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90520-33008

ANH25,GGH25..CBU

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-28010

ANH2#,GGH2#..CBU

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-42120

GGH2#..CBU

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-42110

GGH2#..CBU

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01559

ANH2#,GGH2#..CBU

ﾀｲﾌﾟ B

 1
42345-42010

ANH2#,GGH2#..CBU

ﾀｲﾌﾟ A

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12160

ANH2#,GGH2#..CBU

ﾀｲﾌﾟ B,ﾀｲﾌﾟ A

 1
43457 - BRACKET, DRIVE SHAFT BEARING
43457-42070

GGH25..CBU

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90119-10461

ANH25,GGH25..CBU

*10−1.25PX19.8−8.3

 1
43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
90521-75002

ANH25,GGH25

 1
43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90105-10381

ANH2#,GGH2#..CBU

 3
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470-49655

GGH2#..CBU

 1
43474D - DAMPER, FRONT DRIVE SHAFT, RH
43474-48030

ANH25,GGH25

 1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010

ANH25,GGH25..CBU

 1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010

ANH25,GGH25..CBU

 1
