GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv
Production
Apr 2008
-
Oct 2011
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

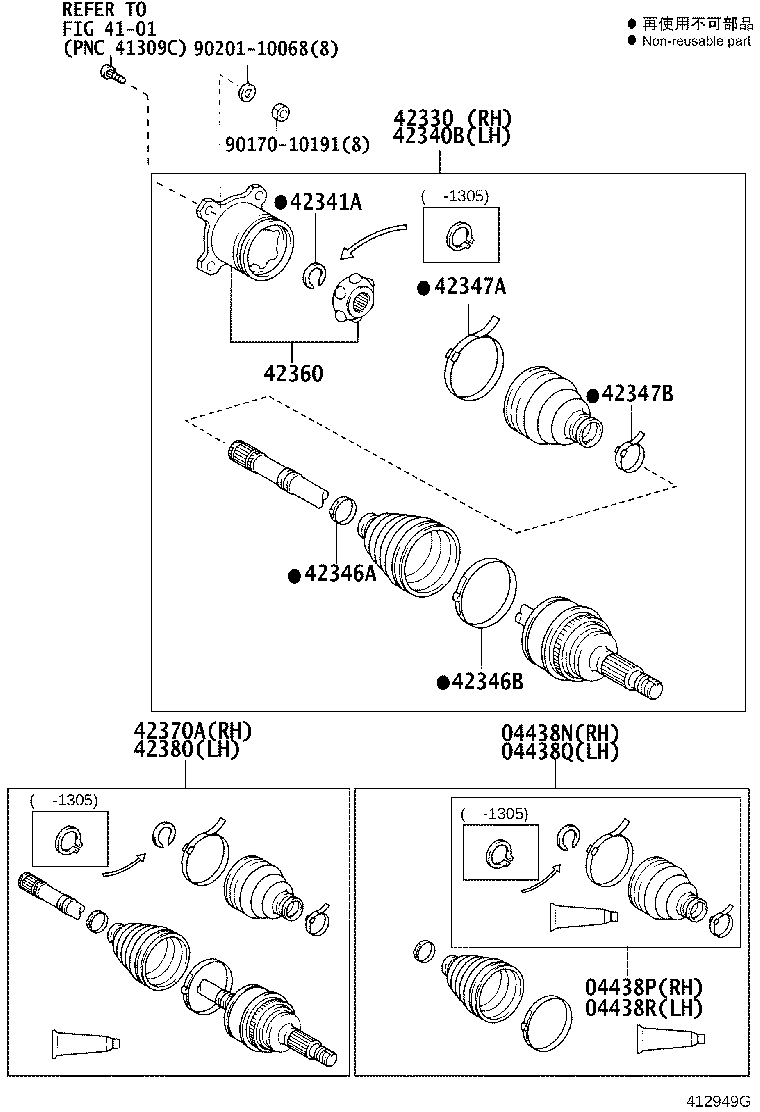

ILLUST NO. 1 OF 2(0804- )ANH25,ATH20,GGH25
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438N - BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, RH | ||||
| 04429-12020 |
ANH25,GGH25 |
1 | ||
| 04438P - BOOT KIT, REAR DRIVE SHAFT, INBOARD JOINT, RH | ||||
| 04439-12010 |
ANH25,GGH25 |
1 | ||
| 04438Q - BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, LH | ||||
| 04429-12020 |
ANH25,GGH25 |
1 | ||
| 04438R - BOOT KIT, REAR DRIVE SHAFT, INBOARD JOINT, LH | ||||
| 04439-12010 |
ANH25,GGH25 |
1 | ||
| 42330 - SHAFT ASSY, REAR DRIVE, RH | ||||
| 42340-58020 |
ANH25,GGH25 |
1 | ||
| 42340B - SHAFT ASSY, REAR DRIVE, LH | ||||
| 42340-58020 |
ANH25,GGH25 |
1 | ||
| 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) | ||||
| 90520-21020 |
ANH25,GGH25 |
2 | ||
| 42346A - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 42345-12130 |
ANH25,GGH25 |
2 | ||
| 42346B - CLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT) | ||||
| 42345-12120 |
ANH25,GGH25 |
2 | ||
| 42347A - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) | ||||
| 42345-12120 |
ANH25,GGH25 内径=74.3 |
2 | ||
| 42347B - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) | ||||
| 42345-12130 |
ANH25,GGH25 |
2 | ||
| 42360 - JOINT ASSY, REAR DRIVE SHAFT INBOARD | ||||
| 42360-28010 |
ANH25,GGH25 |
2 | ||
| 42370A - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH | ||||
| 42370-59145 |
ANH25,GGH25 |
1 | ||
| 42380 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH | ||||
| 42370-59145 |
ANH25,GGH25 |
1 | ||
| Common parts | ||||
| 90170-10191 | ||||
| 90201-10068 | ||||
| Linked diagrams | ||||
| 4101 | ||||

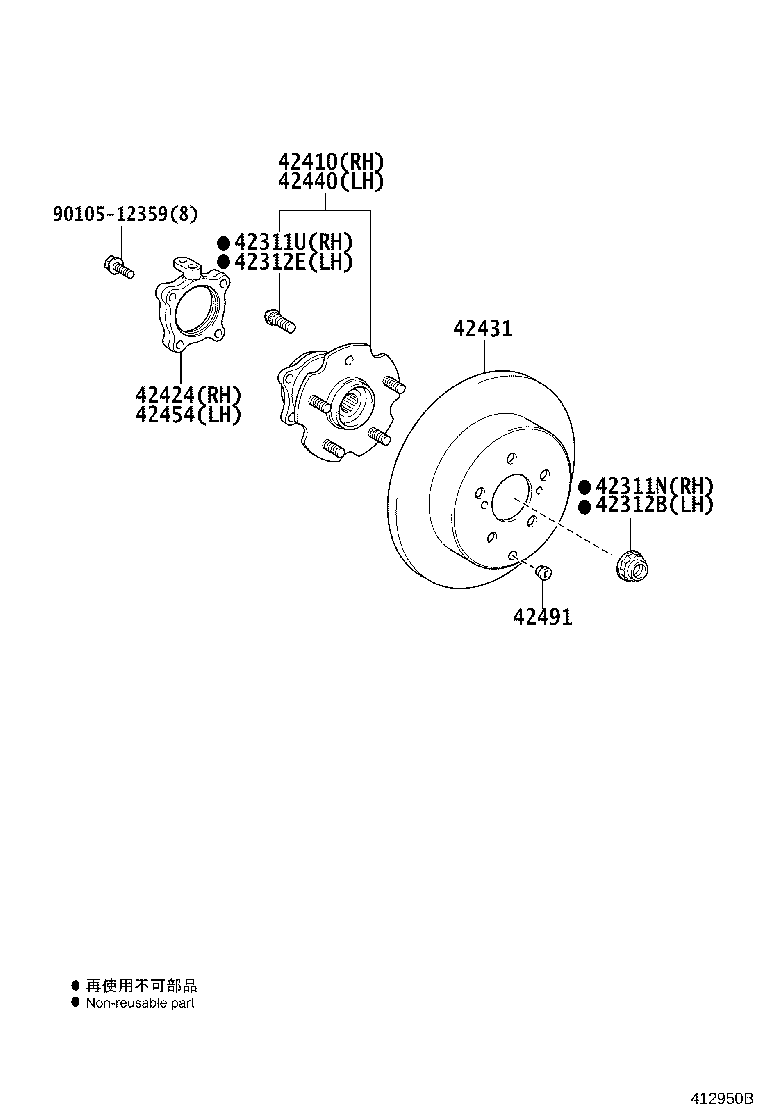

ILLUST NO. 2 OF 2(0804- )ANH25,ATH20,GGH25
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90177-22001 |
ANH25,GGH25 |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02049 |
ANH2#,GGH2#..CBU |
5 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90177-22001 |
ANH25,GGH25 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02049 |
ANH2#,GGH2#..CBU |
5 | ||
| 42410 - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42410-28030 |
ANH25,GGH25 |
1 | ||
| 42424 - RETAINER, REAR AXLE BEARING, OUTER, RH | ||||
| 42424-28050 |
ANH25,GGH25 |
1 | ||
| 42431 - DISC, REAR | ||||
| 42431-58020 |
ANH2#,GGH2#..CBU |
2 | ||
| 42440 - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42410-28030 |
ANH25,GGH25 |
1 | ||
| 42454 - RETAINER, REAR AXLE BEARING, OUTER, LH | ||||
| 42424-28050 |
ANH25,GGH25 |
1 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-22020 |
ANH2#,GGH2#..CBU |
2 | ||
| Common parts | ||||
| 90105-12359 | ||||
