GGH25W-PFTSK (2008)

Toyota Alphard/Vellfire/Hv

Production Apr 2008 - Oct 2011
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0804- )ANH25,GGH25

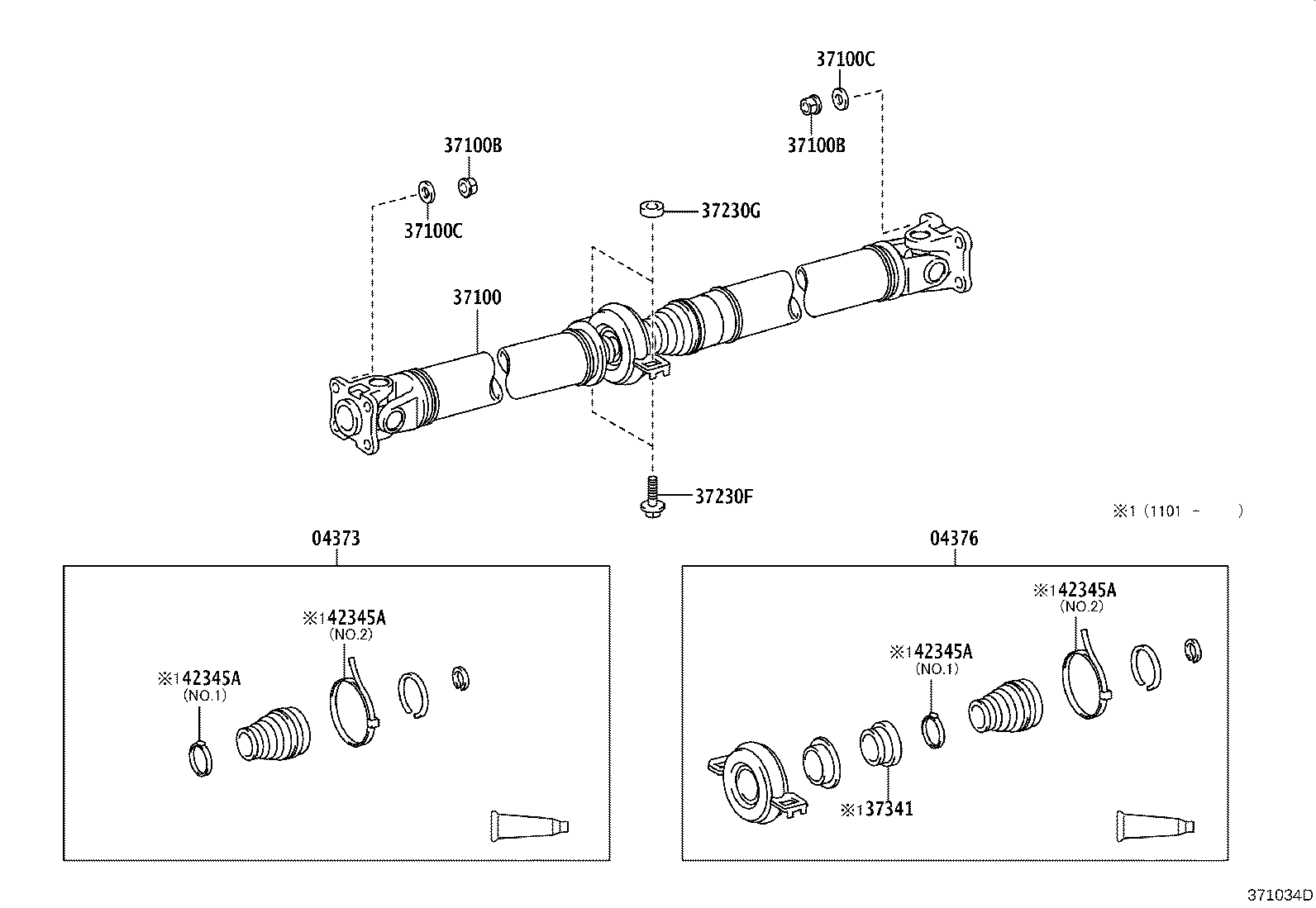

Click highlighted areas on diagram

diagram 04373 04376 37100 37100B 37100B 37100C 37100C 37230F 37230G 37341 42345A 42345A 42345A 42345A
Part # Description Qty Price
04373 - BOOT KIT, UNIVERSAL
04373-58010

ANH25,GGH25..CBU

 1
04376 - BEARING KIT, CENTER SUPPORT
04376-58010

ANH25,GGH25..CBU

 1
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-58020

ANH25,GGH25..CBU

 1
37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90178-08017

ANH25,GGH25..CBU

 8
37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90178-08017

ANH25,GGH25..CBU

 8
37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90201-08098

ANH25,GGH25..CBU

 8
37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90201-08098

ANH25,GGH25..CBU

 8
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-10444

ANH25,GGH25..CBU

 2
37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING)
90201-10123

ANH25,GGH25..CBU

厚さ=2.0

 2
90201-10081

ANH25,GGH25..CBU

厚さ=4.5

 2
90201-10083

ANH25,GGH25..CBU

厚さ=6.5

 2
