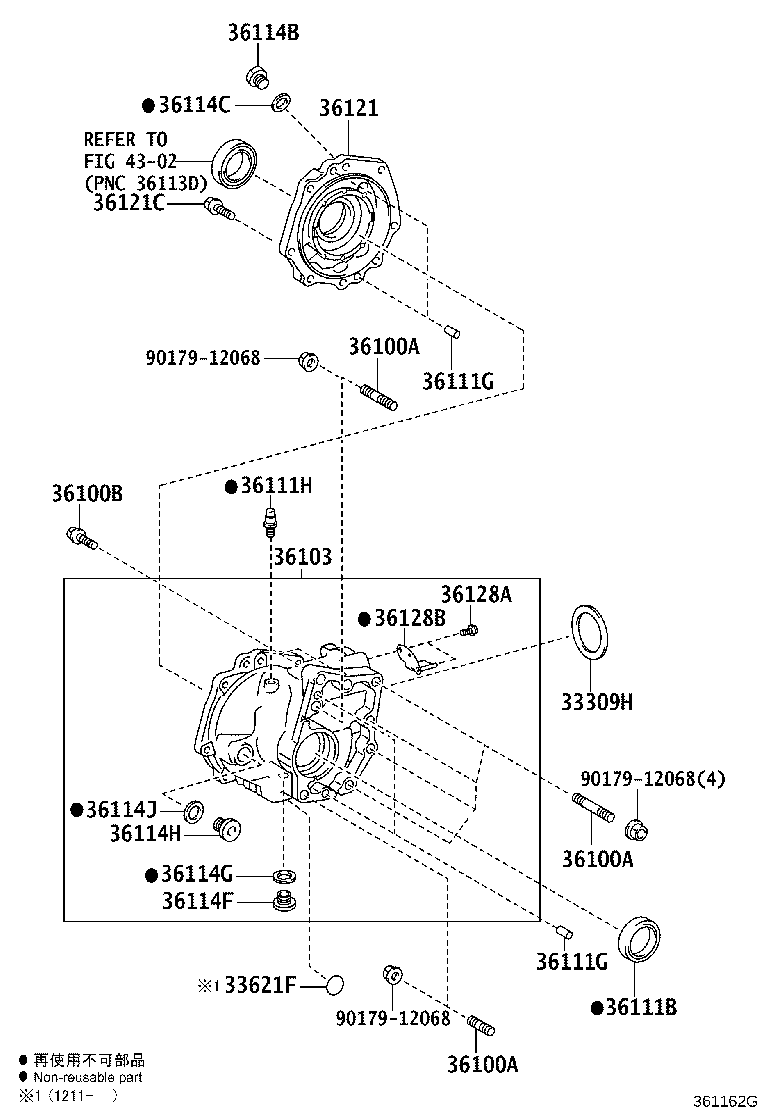

GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv
(0804- )GGH25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33309H - WASHER, TRANSFER OUTPUT SHAFT | ||||
| 36275-52080 |
ANH25,GGH25 厚さ=1.16,ﾏｰｸ 08 |
1 | ||
| 36275-52010 |
ANH25,GGH25 厚さ=1.02,ﾏｰｸ 01 |
1 | ||
| 36275-52030 |
ANH25,GGH25 厚さ=1.06,ﾏｰｸ 03 |
1 | ||
| 36275-52040 |
ANH25,GGH25 厚さ=1.08,ﾏｰｸ 04 |
1 | ||
| 36275-52060 |
ANH25,GGH25 厚さ=1.12,ﾏｰｸ 06 |
1 | ||
| 36275-52070 |
ANH25,GGH25 厚さ=1.14,ﾏｰｸ 07 |
1 | ||
| 36275-52090 |
ANH25,GGH25 厚さ=1.18,ﾏｰｸ 09 |
1 | ||
| 36275-52050 |
ANH25,GGH25 厚さ=1.10,ﾏｰｸ 05 |
1 | ||
| 36275-52150 |
ANH25,GGH25 厚さ=1.30,ﾏｰｸ 15 |
1 | ||
| 36275-52100 |
ANH25,GGH25 厚さ=1.20,ﾏｰｸ 10 |
1 | ||
| 36275-52130 |
ANH25,GGH25 厚さ=1.26,ﾏｰｸ 13 |
1 | ||
| 36275-52020 |
ANH25,GGH25 厚さ=1.04,ﾏｰｸ 02 |
1 | ||
| 36275-52140 |
ANH25,GGH25 厚さ=1.28,ﾏｰｸ 14 |
1 | ||
| 36275-52110 |
ANH25,GGH25 厚さ=1.22,ﾏｰｸ 11 |
1 | ||
| 36275-52170 |
ANH25,GGH25 厚さ=1.34,ﾏｰｸ 17 |
1 | ||
| 36275-52160 |
ANH25,GGH25 厚さ=1.32,ﾏｰｸ 16 |
1 | ||
| 36275-52120 |
ANH25,GGH25 厚さ=1.24,ﾏｰｸ 12 |
1 | ||
| 36275-52200 |
ANH25,GGH25 厚さ=1.40,ﾏｰｸ 20 |
1 | ||
| 36275-52240 |
ANH25,GGH25 厚さ=1.48,ﾏｰｸ 24 |
1 | ||
| 36275-52220 |
ANH25,GGH25 厚さ=1.44,ﾏｰｸ 22 |
1 | ||
| 36275-52210 |
ANH25,GGH25 厚さ=1.42,ﾏｰｸ 21 |
1 | ||
| 36275-52180 |
ANH25,GGH25 厚さ=1.36,ﾏｰｸ 18 |
1 | ||
| 36275-52280 |
ANH25,GGH25 厚さ=1.56,ﾏｰｸ 28 |
1 | ||
| 36275-52260 |
ANH25,GGH25 厚さ=1.52,ﾏｰｸ 26 |
1 | ||
| 36275-52270 |
ANH25,GGH25 厚さ=1.54,ﾏｰｸ 27 |
1 | ||
| 36275-52230 |
ANH25,GGH25 厚さ=1.46,ﾏｰｸ 23 |
1 | ||
| 36275-52250 |
ANH25,GGH25 厚さ=1.50,ﾏｰｸ 25 |
1 | ||
| 36275-52190 |
ANH25,GGH25 厚さ=1.38,ﾏｰｸ 19 |
1 | ||
| 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90116-12028 |
ANH25,GGH25..CBU ﾈｼﾞ部長さ=22 & 22,長さ=69 |
1 | ||
| 90116-12034 |
ANH25,GGH25..CBU ﾈｼﾞ部長さ=19 & 19,長さ=47 |
1 | ||
| 90116-12041 |
ANH25,GGH25..CBU ﾈｼﾞ部長さ=30 & 22,長さ=64 |
4 | ||
| 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90116-12028 |
ANH25,GGH25..CBU ﾈｼﾞ部長さ=22 & 22,長さ=69 |
1 | ||
| 90116-12034 |
ANH25,GGH25..CBU ﾈｼﾞ部長さ=19 & 19,長さ=47 |
1 | ||
| 90116-12041 |
ANH25,GGH25..CBU ﾈｼﾞ部長さ=30 & 22,長さ=64 |
4 | ||
| 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90116-12028 |
ANH25,GGH25..CBU ﾈｼﾞ部長さ=22 & 22,長さ=69 |
1 | ||
| 90116-12034 |
ANH25,GGH25..CBU ﾈｼﾞ部長さ=19 & 19,長さ=47 |
1 | ||
| 90116-12041 |
ANH25,GGH25..CBU ﾈｼﾞ部長さ=30 & 22,長さ=64 |
4 | ||
| 36100B - BOLT (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90105-12298 |
GGH25..CBU *12−1.25PX53−35 |
2 | ||
| 36103 - CASE SUB-ASSY, TRANSFER | ||||
| 36103-42021 |
GGH25 |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-55002 |
GGH25 |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10017 |
ANH25,GGH25 長さ=20,外径=10 |
4 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10017 |
ANH25,GGH25 長さ=20,外径=10 |
4 | ||
| 36111H - PLUG, BREATHER (FOR TRANSFER CASE) | ||||
| 90930-03133 |
ANH25,GGH25 |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
ANH25,GGH25..CBU |
1 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 12157-10010 |
ANH25,GGH25..CBU |
1 | ||
| 36114F - PLUG (FOR TRANSFER DRAIN) | ||||
| 90341-18051 |
ANH25,GGH25 |
1 | ||
| 36114G - GASKET (FOR TRANSFER DRAIN PLUG) | ||||
| 12157-10010 |
ANH25,GGH25..CBU |
1 | ||
| 36114H - PLUG, NO.2 (FOR TRANSFER CASE) | ||||
| 90341-18023 |
ANH25,GGH25 |
1 | ||
| 36114J - GASKET, NO.2 (FOR TRANSFER CASE) | ||||
| 12157-10010 |
ANH25,GGH25..CBU |
1 | ||
| 36121 - COVER, TRANSFER CASE, NO.1 | ||||
| 36121-42011 |
GGH25 |
1 | ||
| 36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVE | ||||
| 91552-81030 |
ANH25,GGH25 |
8 | ||
| 36128A - BOLT (FOR BREATHER OIL DEFLECTOR) | ||||
| 91621-60614 |
ANH25,GGH25 |
2 | ||
| 36128B - DEFLECTOR, BREATHER OIL | ||||
| 36128-42010 |
GGH25 |
1 | ||
| Common parts | ||||
| 90179-12068 | ||||
| Linked diagrams | ||||
| 4302 | ||||
