GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv
Production
Apr 2008
-
Oct 2011
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0804- )GGH2#

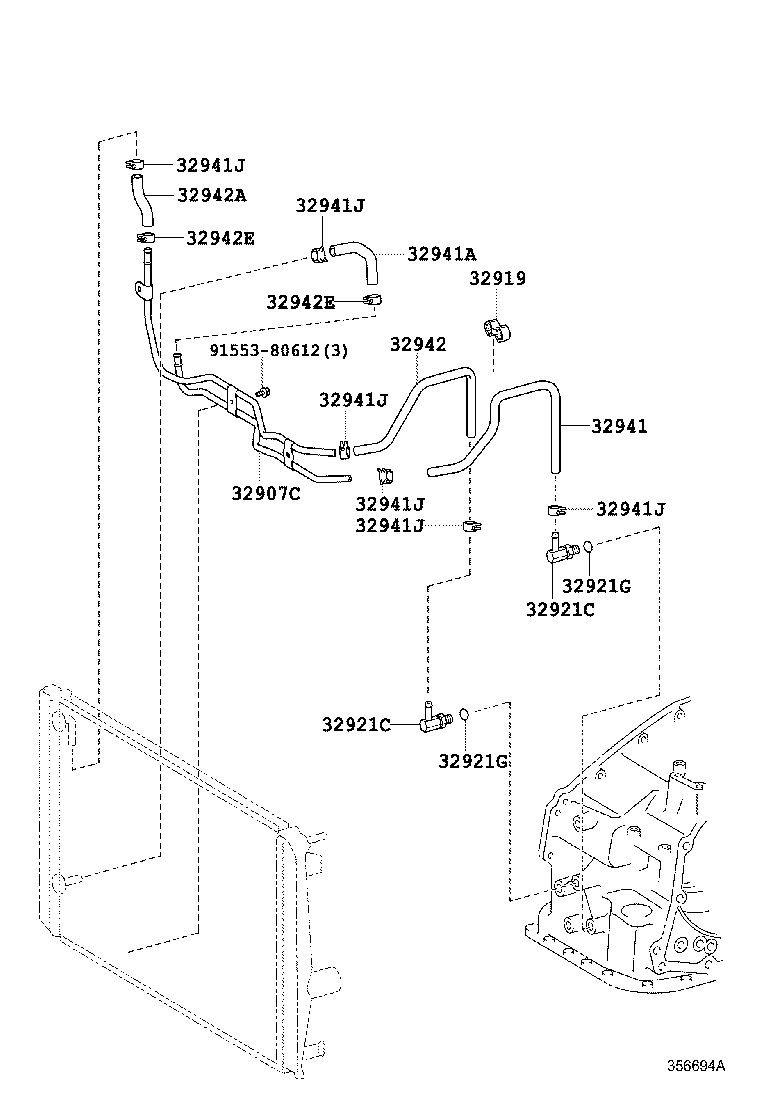

Click highlighted areas on diagram
U660E,U660F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32907C - TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1 | ||||
| 32907-28050 |
GGH2#..CBU |
1 | ||
| 32919 - HOLDER, OIL COOLER TUBE | ||||
| 32919-58010 |
GGH2#..CBU |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14032 |
GGH2#..CBU |
2 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14032 |
GGH2#..CBU |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
GGH2#..CBU |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
GGH2#..CBU |
2 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-58030 |
GGH2#..CBU |
1 | ||
| 32941A - HOSE, OIL COOLER INLET, NO.2 | ||||
| 32942-28270 |
GGH2#..CBU |
1 | ||
| 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
GGH2#..CBU |
6 | ||
| 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
GGH2#..CBU |
6 | ||
| 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
GGH2#..CBU |
6 | ||
| 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
GGH2#..CBU |
6 | ||
| 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
GGH2#..CBU |
6 | ||
| 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
GGH2#..CBU |
6 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32942-58020 |
GGH2#..CBU |
1 | ||
| 32942A - HOSE, OIL COOLER OUTLET, NO.2 | ||||
| 90445-17179 |
GGH2#..CBU |
1 | ||
| 32942E - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
GGH2#..CBU |
2 | ||
| 90467-16022 |
GGH2#..CBU |
2 | ||
| 32942E - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
GGH2#..CBU |
2 | ||
| 90467-16022 |
GGH2#..CBU |
2 | ||
| Common parts | ||||
| 91553-80612 | ||||
