GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv

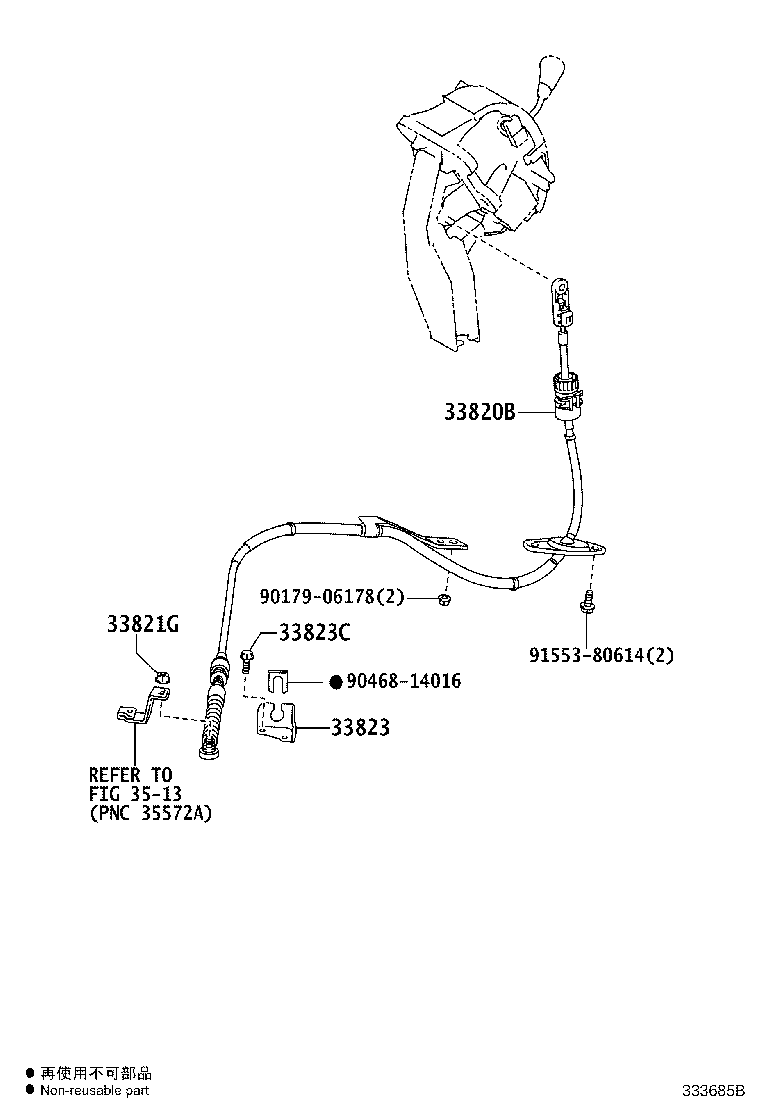

ILLUST NO. 2 OF 2(0804- )GGH2#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-58050 |
GGH2#..CBU |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 94151-80800 |
ANH2#,GGH2#..CBU |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-28290 |
GGH2#..CBU |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-B0816 |
ANH2#,GGH2#..CBU |
2 | ||
| Common parts | ||||
| 90179-06178 | ||||
| 90468-14016 | ||||
| 91553-80614 | ||||
| Linked diagrams | ||||
| 3513 | ||||

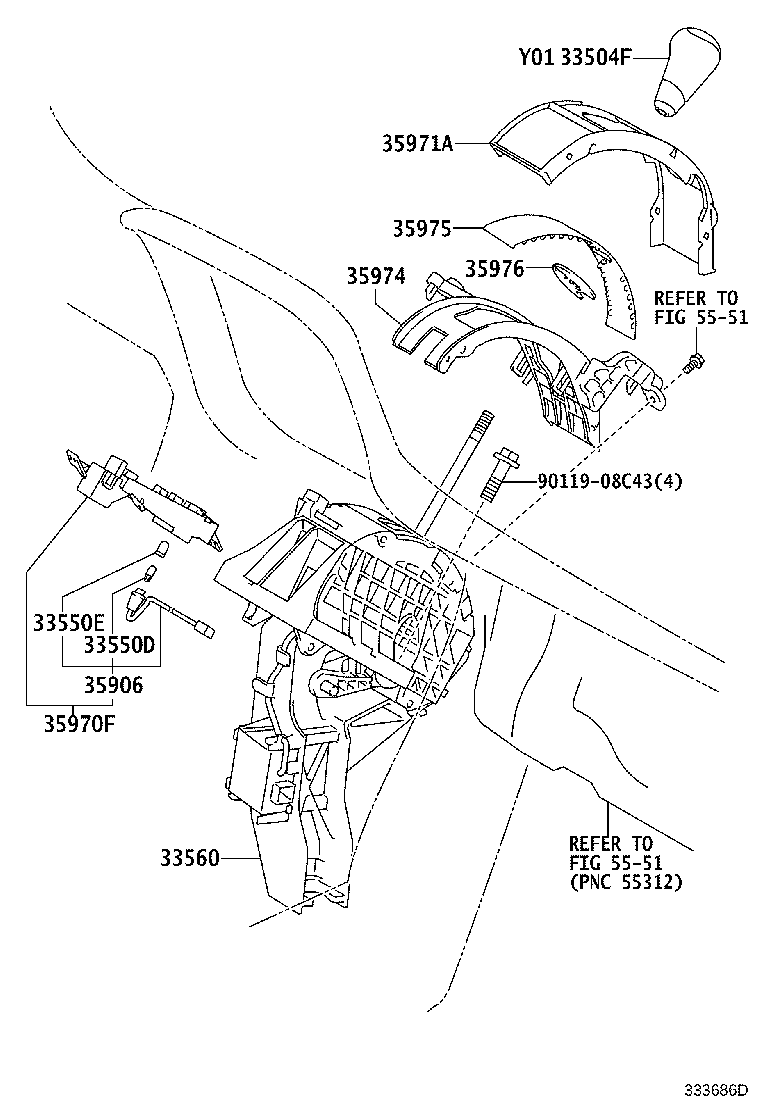

ILLUST NO. 1 OF 2(0804- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-58040E0 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶｰﾄﾞ ﾓｹｯﾄ,DK. BROWN,TRIM0# |
1 | ||
| 33504-58050B0 |
ANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU DK.GRAY,TRIM1# |
1 | ||
| 33504-28040B2 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU *260 or *261&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,DK.GRAY & IVORY,TRIM1# |
1 | ||
| 33504-58050B2 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU DK.GRAY & DK.RED,TRIM19 |
1 | ||
| 33504-58050B3 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU DK.GRAY & BLACK,TRIM19 |
1 | ||
| 33504-58050B2 |
ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU DK.GRAY & DK.RED,TRIM1# |
1 | ||
| 33504-28040B0 |
ANH2#,GGH2#..07S..(24Z,350S,35Z)..CBU *260 or *261&ｼｰﾄ表皮−ｱﾙｶﾝﾀｰﾗ,DK.GRAY,TRIM1# |
1 | ||
| 33504-58040E1 |
GGH2#..07S..(350S,35Z)..CBU Gｴﾃﾞｨｼｮﾝ or Cﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶｰﾄﾞ ﾓｹｯﾄ,DK. BROWN & DARK BROWN,TRIM0# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
ANH2#,GGH2#..CBU 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 35956-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-58040 |
ANH2#,GGH2#..CBU |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 35970F - HOUSING ASSY, POSITION INDICATOR | ||||
| 35970-58050 |
GGH2#..CBU |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-58010 |
ANH2#,GGH2#..CBU |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-58020 |
ANH2#,GGH2#..CBU |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-28010 |
ANH2#,GGH2#..CBU |
1 | ||
| Common parts | ||||
| 90119-08C43 | ||||
| Linked diagrams | ||||
| 5551 | ||||
