GGH25W-PFTSK (2008)
Toyota Alphard/Vellfire/Hv
Production
Apr 2008
-
Oct 2011
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0804- )2GRFE

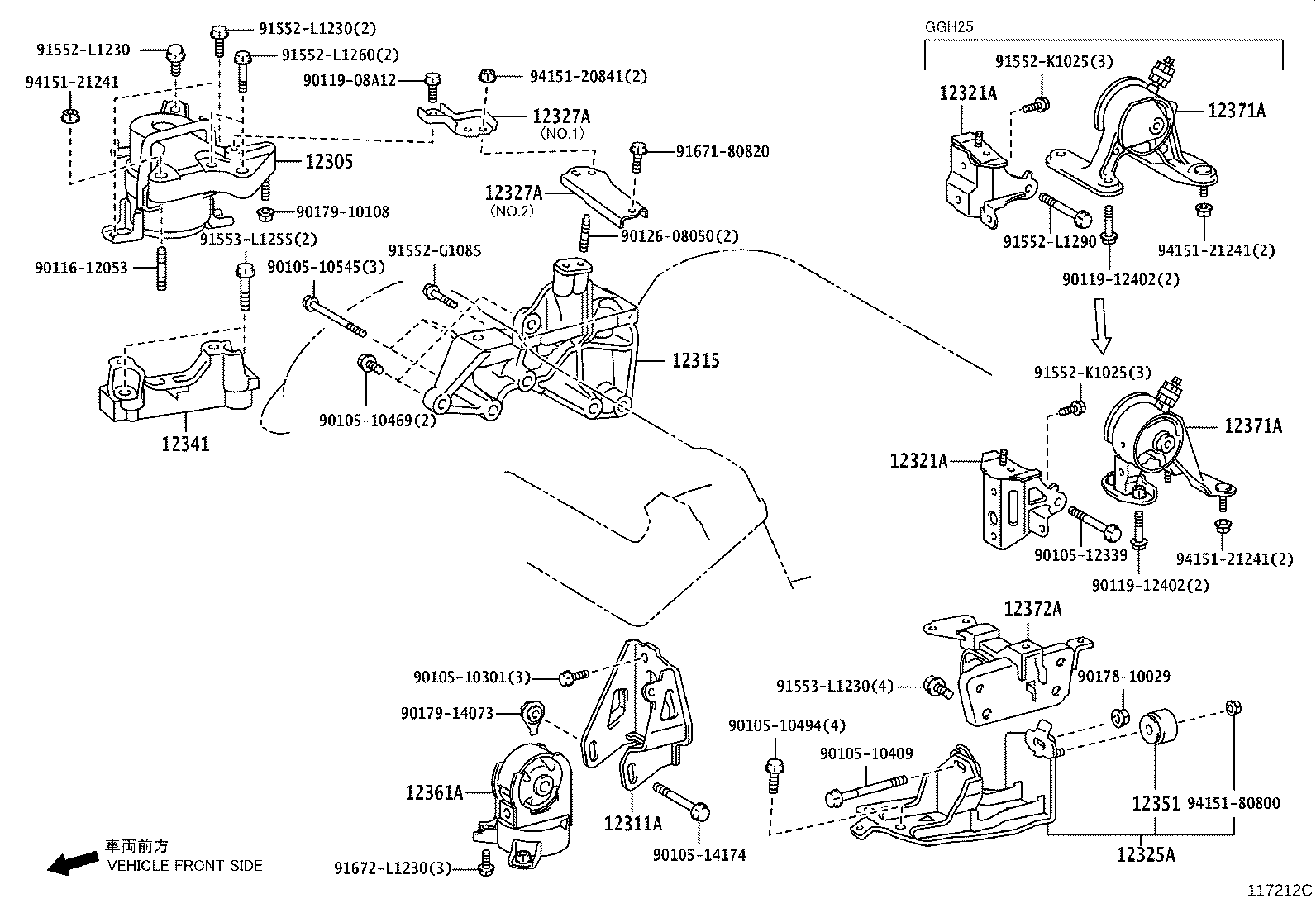

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-31031 |
2GRFE..GGH2#..CBU |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-31100 |
2GRFE..GGH2#..CBU |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-31130 |
2GRFE..GGH2#..CBU |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-31080 |
2GRFE..GGH25..CBU |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-31080 |
2GRFE..GGH25..CBU |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12304-31020 |
2GRFE..GGH2#..CBU |
1 | ||
| 12327A - STAY, ENGINE MOUNTING, NO.2 RH | ||||
| 12327-31050 |
2GRFE..GGH2#..CBU NO.1 |
1 | ||
| 12327-31010 |
2GRFE..GGH2#..CBU NO.2 |
1 | ||
| 12327A - STAY, ENGINE MOUNTING, NO.2 RH | ||||
| 12327-31050 |
2GRFE..GGH2#..CBU NO.1 |
1 | ||
| 12327-31010 |
2GRFE..GGH2#..CBU NO.2 |
1 | ||
| 12341 - SPACER, ENGINE MOUNTING | ||||
| 12341-26011 |
2GRFE..GGH2#..CBU |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-23040 |
2GRFE..GGH2#..CBU |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-31210 |
2GRFE..GGH2#..CBU |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-31160 |
2GRFE..GGH25..CBU |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-31160 |
2GRFE..GGH25..CBU |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-31030 |
2GRFE..GGH2#..CBU |
1 | ||
| Common parts | ||||
| 90105-10301 | ||||
| 90105-10409 | ||||
| 90105-10469 | ||||
| 90105-10494 | ||||
| 90105-10545 | ||||
| 90105-12339 | ||||
| 90105-14174 | ||||
| 90116-12053 | ||||
| 90119-08A12 | ||||
| 90119-12402 | ||||
| 90126-08050 | ||||
| 90178-10029 | ||||
| 90179-10108 | ||||
| 90179-14073 | ||||
| 91552-G1085 | ||||
| 91552-K1025 | ||||
| 91552-L1230 | ||||
| 91552-L1260 | ||||
| 91552-L1290 | ||||
| 91553-L1230 | ||||
| 91553-L1255 | ||||
| 91671-80820 | ||||
| 91672-L1230 | ||||
| 94151-20841 | ||||
| 94151-21241 | ||||
| 94151-80800 | ||||
